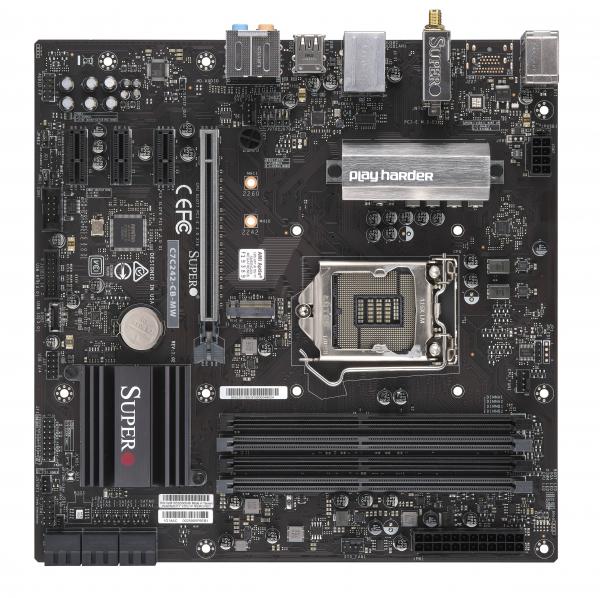

Supermicro Motherboard Xeon Boards C7C242-CB-MW

Desktop

Key Features

  1. Intel® C242 Express PCH
  2. Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHzUp to , in 4 DIMM slots
  3. 1 PCI-E 3.0 x16,
    3 PCI-E 3.0 x1
    M.2 Interface: 1 PCI-E 3.0 x4
    M.2 Form Factor: 2280
    M.2 Key: M-Key, E-Key
    E Key for CNVi WiFi only
  4. Intel® C242 chipset
  5. Up to 64GB Unbuffered ECC UDIMM DDR4 2666MHz; 4 DIMM slots
  6. 1 PCI-E 3.0 x16 (in x16) slot
  7. M.2 Interface: 1 PCI-E 3.0 x4
    Form Factor: 2280
    Key: M-Key , E-Key
    E Key for CNVi WiFi only

Specifications
Product SKUs
MBD-C7C242-CB-MW
  • C7C242-CB-MW

Physical Stats
Form Factor
  • microATX
Dimensions
  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor/Cache
CPU
  • 8th Generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor.
  • Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
  • Core i7 8086K is not supported, All of K code CPU will be supported but no overclocking function because of Intel spec. limitation
Cores / Cache
  • 6 cores, 12 threads

System Memory
Memory Capacity
  • Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHzUp to , in 4 DIMM slots
Memory Type
  • 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C242 Express PCH
SATA
  • Intel® C242 controller for 6 SATA3 (6 Gbps) ports;
Network Controllers
  • Single LAN with Intel® single Ethernet PHY i219V
Audio
  • RealTek ALC888 7.1 High Definition Audio with S/PDIF header

Input / Output
USB
  • 5 USB 2.0 ports (3 rear + 2 via headers)
  • 3 USB 3.0 ports (1 rear + 2 via headers)
  • 2 USB 3.1 ports (2 rears (1 Type A + 1 Type C); 1 USB 3.1 Gen.1 type C header (USB3.0)
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x16,
  • 3 PCI-E 3.0 x1
M.2
  • M.2 Interface: 1 PCI-E 3.0 x4
  • Form Factor: 2280
  • Key: M-Key , E-Key
  • E Key for CNVi WiFi only

System BIOS
BIOS Type
  • UEFI 256Mb
BIOS Features
  • SMBIOS 2.7

Management
Software
  • SuperDoctor® 5
System Mangement Software
  • SuperDoctor 5
Power Configurations
  • ATX Power connector

PC Health Monitoring
Voltage
  • +1.8V, +3.3V, +5V, +5V standby, HT, Memory, VBAT
FAN
  • 3x 4-pin fan headers (up to 3 fans), 3 fans with tachometer monitoring
Temperature
  • Thermal Control for 3 Fan Connectors
LED
  • N/A
Other Features
  • Chassis intrusion header
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C7C242-CB-MW 1 C7C242-CB-MW Motherboard
--

Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-C7C242-CB-MW 1 C7C242-CB-MW Motherboard
C.A. SATA 7P TO 7P 500MMCBL-SAST-1000-21C.A. SATA 7P TO 7P 500MM
SATA cableCBL-SAST-1001-21SATA cable
AntennaCBL-ANTDB-SMA1Antenna
Quick Installation GuideMNL-2097-QRG1QUICK INSTALLATION GUIDE
Driver CD 1Driver CD
I/O ShieldMCP-260-00123-1N1C7C242-CB-MW Back Plate (I/O Shield)
Retail Color Box1Retail Color Box

Optional Parts List
Name Part Number Qty Description
Chassis (Optimized for

C7C242-CB-MW

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SC731i-300B
SC731i-403B
SCDS3A-261B
4U Heatsink:SNK-P0051AP4


= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
