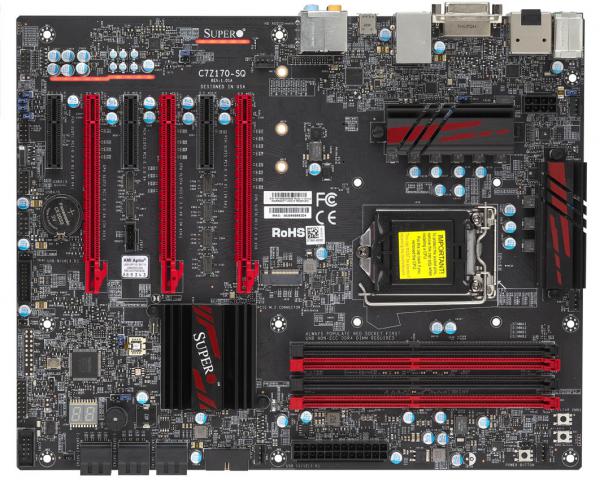

C7Z170-SQ

Desktop
Overclock

Key Features


  1. Intel® 6th Generation Core™ i3 series, Intel® 6th Generation Core™ i5 series, Intel® 6th Generation Core™ i7 series, Intel® 7th Generation Core™ i3 series, Intel® 7th Generation Core™ i5 series, Intel® 7th Generation Core™ i7 series. , Socket H4 (LGA 1151) supported, CPU TDP support Up to 160W
  2. Single LAN with Intel® single Ethernet PHY i219V
  3. Intel® Z170 Express
  4. 64GB Unbuffered non-ECC UDIMM, DDR4-3200MHz (OC), in 4 DIMM slots
  5. Intel® Z170 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    + 1 PCI-E M.2(PCI-E x4, 2260/2280/22110)(No Raid Support)
  6. 3 PCI-E 3.0 x16,
    1 PCI-E 3.0 x4,
    2 PCI-E 3.0 x1
    ***3 PCI-Ex16 slots are running at 16/NA/NA or 8/8/NA or 8/4/4, 2 PCI-E x1 are in x4 slots***
  7. 1 DVI - D port, 1 DP (DisplayPort) port, 1 HDMI port,
    ***Display Port support up to DP1.2, HDMI support up to HDMI1.4***



Resources
Specifications
Product SKUs
MBD-C7Z170-SQ
  • C7Z170-SQ

Physical Stats
Form Factor
  • ATX
Dimension
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor
CPU
  • Intel® 6th Generation Core™ i3 series, Intel® 7th Generation Core™ i3 series, Intel® 6th Generation Core™ i5 series, Intel® 6th Generation Core™ i7 series, Intel® 7th Generation Core™ i5 series, Intel® 7th Generation Core™ i7 series
  • Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 160W TDP

System Memory
Memory Capacity
  • 4 DIMM slots
  • 64GB Unbuffered non-ECC UDIMM, DDR4-3200MHz
Memory Type
  • 2400/2133/1866MHz 2400/2133/1866
DIMM Sizes
  • 2GB, 4GB, 8GB, 16GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • Intel® Z170 Express
SATA
  • Intel® Z170 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • + 1 PCIe M.2(PCIe x4, 2260/2280/22110)(No Raid Support)
Audio
  • ALC 1150 HD Audio
Graphics
  • ***Display Port support up to DP1.2, HDMI support up to HDMI1.4***
Network Controllers
  • Single LAN with Intel® single Ethernet PHY i219V

Input / Output
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
  • 4 USB 3.2 Gen1 port(s) (4 via header)
  • 2 USB 3.0 port(s) (2 rear)
  • 1 USB 3.1 (10 Gb/s) Type C port (Rear)
Video Output
  • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
Serial Port
  • 1 COM Port(s) (1 header)
Others
  • 1 Support SPDIF-Out(Rear)
Expansion Slots
PCI-E
  • 3 PCI-E 3.0 x16,
  • 1 PCI-E 3.0 x4,
  • 2 PCI-E 3.0 x1
  • ***3 PCI-Ex16 slots are running at 16/NA/NA or 8/8/NA or 8/4/4, 2 PCI-E x1 are in x4 slots***

System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 3.0
  • ACPI 5.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 3.0
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup

Management
Software
  • SuperDoctor® 5

PC Health Monitoring
Voltage
  • VBAT, Monitors CPU voltages, Chassis intrusion header, +5V, +3.3V, +12V
Temperature
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
  • I2C temperature sensing logic
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Fan speed control
  • Overheat LED indication
Other Features
  • WOL, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, 8-pin 12v DC power connector, Voltage and Frequency Overclocking, Intel Smart Response Technology
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C7Z170-SQ 1 C7Z170-SQ Motherboard
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-C7Z170-SQ 1 C7Z170-SQ Motherboard
C7Z170-SQ IO SHIELD MCP-260-00105-0N 1 C7Z170-SQ I/O Shield
Quick Reference Guide MNL-1720-QRG 1 C7Z170-SQ Quick Reference Guide
SATA cable CBL-0044L 6 57.5CM SATA FLAT S-S PBF
Chassis (Optimized for C7Z170-SQ)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SC732G-903B
SCGS50-000R
SC732D4-865B
SC732D4-903B
4U Heatsink:SNK-P0051AP4
SC743TQ-1200B-SQ
4U Heatsink:SNK-P0051AP4
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Server (Optimized for C7Z170-SQ)
Server Name
SYS-5039AD-T
C7Z170-SQ
