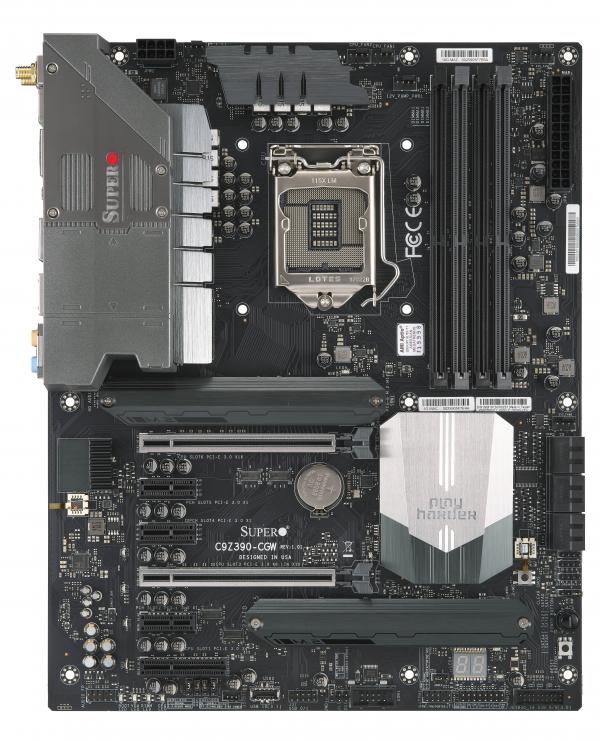

Supermicro Motherboard Xeon Boards C9Z390-CGW

Key Features

  1. Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 120W TDP
  2. Intel® Z390 Express
  3. Up to 64GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 128GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 9th core i5/i7/i9)
  4. 2 PCI-E 3.0 x16 slots (16/NA or 8/8),
    1 PCI-E 3.0 x4,
    3 PCI-E 3.0 x1
    M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 and 1 CNVi
    M.2 Form Factor: 2242/2260/2280/22110, 2242/2260/2280, 2230
    M.2 Key: M-Key, M-Key, E-Key
    One Wi-Fi+BT WiFi module is pre-installed in the M.2 E-Key slot
  5. 2 DP (DisplayPort) ports, 1 HDMI port,
    DP up to 1.2; HDMI up to 1.4b
  6. Intel® Z390 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. Single LAN with Intel® single Ethernet PHY i219V
    Single LAN with Aquantia® AQC107 10G Ethernet Controller

Specifications
Product SKUs
MBD-C9Z390-CGW
  • C9Z390-CGW

Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache
CPU
  • Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor.
  • Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 120W TDP

System Memory
Memory Capacity
  • Up to 64GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 128GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 9th core i5/i7/i9)
Memory Type
  • 2666MHz/2400MHz DDR4 288-pin Non-ECC UDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • Intel® Z390 Express
SATA
  • Intel® Z390 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
  • Single LAN with Intel® single Ethernet PHY i219V
    Single LAN with Aquantia® AQC107 10G Ethernet Controller
Graphics
  • DP up to 1.2; HDMI up to 1.4b

Input / Output
SATA
  • 6 SATA3 (6Gbps) port
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 10GBase-T ports
USB
  • 2 USB 2.0 ports (2 via headers, Type A))
  • 4 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers)
  • 5 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 1 via header); Internal USB 3.1 Gen2 port supports one Type C device
Video Output
  • 2 DP (DisplayPort) ports, 1 HDMI port,
  • DP up to 1.2; HDMI up to 1.4b
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 2 PCI-E 3.0 x16 slots (16/NA or 8/8),
  • 1 PCI-E 3.0 x4,
  • 3 PCI-E 3.0 x1
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 and 1 CNVi
  • Form Factor: 2242/2260/2280/22110, 2242/2260/2280, 2230
  • Key: M-Key , M-Key , E-Key
  • One Wi-Fi+BT WiFi module is pre-installed in the M.2 E-Key slot

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM
BIOS Features
  • ACPI 6.0
  • UEFI 2.4
  • SMBIOS 3.0 or later

Management
Software
  • SuperDoctor® 5, Watchdog
System Mangement Software
  • SuperDoctor 5
Power Configurations
  • Power-on mode for AC power recovery

PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 5 (4-pin)
FAN
  • 5 fans with tachometer status monitoring
Temperature
  • PECI
LED
  • +5V Standby alert LED
Other Features
  • Chassis intrusion header
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C9Z390-CGW 1 C9Z390-CGW Motherboard
--

Parts List (Retail Package)
Name Part Number Qty Description
MotherboardMBD-C9Z390-CGW1MBD-C9Z390-CGW Motherboard
IO shieldMCP-260-00138-0N1C9Z390-CGW IO Shield
Quick Reference GuideMNL-2098-QRG1C9Z390-CGW Quick Reference Guide
SATA cableCBL-0044L457.5CM SATA FLAT S-S PBF
Driver CD1C9 Driver CD
Metal badge1SuperO metal badge
WiFi+BT AntennaCBL-ANTDB-SMA2C9Z390-CGW WiFi+BT Antenna

Chassis (Optimized for

C9Z390-CGW

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SCGS5A-754K
SCGS5A-753B
SC732D3-1200B
SC732D3-903B
SC732D4-500B
4U Heatsink:SNK-P0051AP4


= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU


C9Z390-CGW
