SuperBlade® – Power Supplies and Cooling

One of the biggest benefits of moving to a blade environment is the relocation of power supplies and fans into a single chassis versus an individual set in each server. This greatly helps reduce the power requirements on a per server basis.

Underlining Supermicro's high-efficiency power philosophy into the SuperBlade® server technology, Supermicro engineers have mastered the power supply design challenge to produce high-quality, high-performance solutions with peak efficiency ratings of 96%. Supermicro solutions continue to outperform and outlast the competition and providing the best technology investment available to customers.

Key Advantages of Supermicro High-efficiency Blade Power Supplies

  • Availability Non-stop power with N+1 redundant power supply modules
  • Cost Saving At 96% peak efficiency, power consumption is significantly reduced, providing a planet-friendly, real-world advantage for our environment.
  • Investment Protection Power capacity headroom for future generation processors
  • Easy Installation Snap-in installation from the back of the chassis; hot-swappable in operation
  • Intelligent Power Infrastructure Each power enclosure includes a power management module that monitors the power supplies and the power enclosure that connects to the blade management.

CLICK HERE FOR POWER CORD INFORMATION

PWS-1K62-BR
PWS-1K62-BR

Power Supply

For 7U SuperBlade only
Output
  • 1620W / 1200W *
Type
  • Redundant Module (N+1)
+12V
  • 132A (200~240VAC input)
  • 100A (100~140VAC input)
5VSB
  • 16A
PFC
  • Yes
Peak Efficiency
  • 93%
Input AC Range
  • 100~240VAC
Operating Conditions
  • Temp: -5 to 50°C
  • Humidity: 5 to 95% RH
Fan Type
  • 2x 90mm fans
  • PFC0912DE-6L38 (8000 RPM with PWM)

  * 1620W (200~240VAC input) , 1200W (100~140VAC input)

PWS-2K21A-BR
PWS-2K21A-BR

(Power Supply) & PWS-DF006-2F (Fan)

Maximum Output Power
  • 2200W
Type
  • Redundant Module (N+1)
+12V
  • 183.33A (2200W)
  • 174.17A (2090W)
  • 165A (1980W)
  • 150A (1800W)
  • 100A (1200W)
12Vsb
  • 2A
PFC
  • Yes
Peak Efficiency
  • 96%
Input AC Range
  • 100-127V (1200W)
  • 200-220V (1800W)
  • 220-230V (1980W)
  • 230-240V (2090W)
  • 200-220V (2090W for UL & cUL)
  • 220-240V (2200W for UL & cUL)
Operating Conditions
  • Temp: 0 to 50°C
  • Humidity: 5 to 95% RH
Fan Type
  • 80x80mm counter rotating fan
Certification 80PLUS Titanium95%+
  80 PLUS
  Titanium Certified
PWS-2K53-BR
PWS-2K53-BR

Power Supply

For 7U SuperBlade only
Output
  • 2500W
Type
  • Redundant Module (N+1)
+12V
  • 208A
5VSB
  • 16A
PFC
  • Yes
Peak Efficiency
  • 94%
Input AC Range
  • 200~240VAC
Operating Conditions
  • Temp: -5 to 50°C
  • Humidity: 5 to 95% RH
Fan Type
  • 4x 90mm fans
  • PFC0912DE-9E69 (8000 RPM with PWM)
  • QFR0912UHE-9E70 (8800 RPM with PWM)
Certification 80PLUS Platinum94%+
  80 PLUS
  Platinum Certified

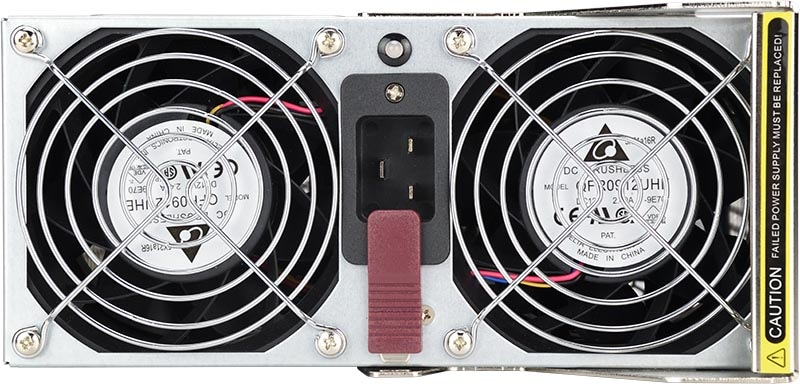

PWS-3K01-BR
PWS-3K01-BR

Power Supply

For 7U SuperBlade only
Output
  • 3000W
Type
  • Redundant Module (N+1)
+12V
  • 250A
5VSB
  • 16A
PFC
  • Yes
Peak Efficiency
  • 94%
Input AC Range
  • 200~240VAC
Operating Conditions
  • Temp: -5 to 50°C
  • Humidity: 5 to 95% RH
Fan Type
  • 4x 90mm fans
  • PFC0912DE-9E69 (8000 RPM with PWM)
  • QFR0912UHE-9E70 (8800 RPM with PWM)
