25G Ethernet
  • SBM-25G-200
SBM-25G-200
General Specifications
  • Broadcom BCM56770 25GbE Low Latency Switch
  • 6x 100G/40G & 1x 1G uplinks*
  • 40x 25Gbps downlinks (SuperBlade),
    56x 25Gbps downlinks (MicroBlade)
  • 1 Console port
  • 1 USB port
Switching Capacity
  • 2000Gbps
Physical Layer Features
  • Jumbo frames up to 9KB
  • 100G/40G QSFP28/QSFP+ optical/copper
  • 1G RJ-45 copper
Layer 3 Features
  • IPv4 unicast routing - static routing, RIP, OSPF and BGP
  • IPv6 unicast routing - static routing
  • VRRP (Virtual Router Redundancy Protocol)
  • ECMP (Equal-cost multi-path)
  • PIM
  • IGMP
Layer 2 Features
  • 4K VLANS
  • Spanning Tree (802.1D)
  • Rapid Spanning Tree (802.1w)
  • Multiple Spanning Trees (802.1s)
  • IEEE 802.lQ VLANs/ port-based VLANs
  • IEEE 802.3ad with LACP
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features
  • Storm control
  • Flow control
  • Port mirroring
  • MLAG
  • RoCE v1/v2
  • Loop Protection per VLAN
Security Features
  • Switch access password protection
  • RADIUS and TACACS+ Authentication
  • Access Control Lists
  • SSH, SSL Encryption
  • DHCP Snooping
System Management
  • Industry Standard CLI with telnet, SSH or local management port
    • Scripting capability
    • Command completion
    • Context sensitive "Help"
  • SNMP v1/v2/v3
  • SSH
  • Syslog
  • DHCP (Client)
  • Web-based management interface
    • HTTP, HTTPS
    • Telnet (7 sessions)
  • NTP
  • Four RMON Groups - (1, 2, 3 and 9)
  • Multiple levels of user privileges (CLI and Web UI)
  • Configuration file - upload / download
    • Restconf
    • Ansible
Multicast
  • IGMP Snooping
Weight
  • 2.625lbs/1.2kg
Dimensions (W x D x H)
  • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
Download


* When used in a 3U MicroBlade enclosure, the available uplink ports are 6x 100G/40G QSFP28/QSFP+, can be split into 4x 25G for each port.

* When used in a 6U MicroBlade enclosure, the available uplink ports are 6x 100G/40G QSFP28/QSFP+, no split for each port.

* When used in a 4U & 8U 820J/820C/820H SuperBlade enclosure, the available uplink ports are 2x 100G/40G QSFP28/QSFP+, and 4x 100G/40G QSFP28/QSFP+ can be split into 4x 25G for each port.

* When used in a 8U 820L SuperBlade enclosure, the available uplink ports are 5x 100G/40G QSFP28/QSFP+, and 1x 100G/40G QSFP28/QSFP+ can be split into 4x 25G for each port.

* When used in a 6U SuperBlade enclosure, the available uplink ports are 1x 100G/40G QSFP28/QSFP+, and 5x 100G/40G QSFP28/QSFP+ can be split into 4x 25G for each port.

  • SBM-25G-100
SBM-25G-100
General Specifications
  • Marvell BobCat3 98CX8410 25GbE Low Latency Switch
  • 20x 25G Ethernet downlink (backward compatible to 20x10G)
  • 4x 100G/40G Ethernet uplinks, each can split into 4x 25G or 4x 10G uplinks with optional fan-out cables
  • 1x Gigabit Ethernet uplink
  • 1 console port
Switching Capacity
  • 1802Gbps
Physical Layer Features
  • 100G/40G optical/copper QSFP28
  • Gigabit Ethernet copper RJ45
Layer 2 Features
  • 4K VLANs
  • Spanning Tree Protocol (802.1D)
  • Rapid Spanning Tree Protocol (802.1w)
  • IEEE 802.lQ VLANs/ port-based VLANs
  • Multiple Spanning Tree Protocol (802.1s)
  • Jumbo frames up to 9KB
  • IEEE 802.1AX LAG
  • IEEE 802.3ac VLAN tagging
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features
  • Storm control
  • Flow control
  • Port mirroring
  • Uplink Failure Detection (UFD)
  • MLAG
  • RDMA over Converged Ethernet (RoCE)
    • Data Center Bridging Extensions (DCBx)
    • Per-Priority Flow Control [PFC] (802.1Qbb)
    • Enhanced Transmission Selection [ETS] – (802.1Qaz)
Security Features
  • Switch access password protection
  • RADIUS and TACACS+ Authentication
  • Access Control Lists
  • SSH, SSL Encryption
System Management
  • Industry Standard CLI
  • Web-based management interface – HTTP/HTTPS
  • Syslog
  • SSH
  • SNMP v1/v2/v3
  • NTP
  • Content-sensitive "Help"
  • Auto Command completion
  • TFTP Client
  • RESTCONF
Multicast
  • IGMP Snooping
Automation
  • Zero Touch Provisioning
Weight
  • 3.2lbs/1.5kg
Dimensions (W x D x H)
  • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
Download
  • AOC-B25G-6CVL
  • 6U
AOC-B25G-6CVL
Chipset
  • Intel® Ethernet Controller E810-XXVAM2
Ports
  • Two 25G/10G ports
Power Consumption
  • 10.9W typical/ 11.5W max
Download
  • AOC-B25G-6X4D
  • 6U
AOC-B25G-6X4D
Chipset
  • Mellanox ConnectX-4
Ports
  • Two 25G/10G ports
Power Consumption
  • 12.5W typical/ 14.6W max
Download
  • AOC-B25G-X4D
  • 8U

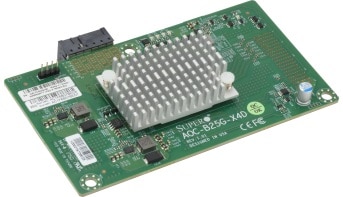

AOC-B25G-X4D
Chipset
  • Mellanox ConnectX-4
Ports
  • Two 25G/10G ports
Power Consumption
  • 12.5W typical/ 14.6W max
Download
10G Ethernet
  • MBM-XEM-100
MBM-XEM-100
General Specifications
  • Marvell BobCat3 98CX8410 10GbE Low Latency Switch
  • 56x 10G Ethernet downlink
  • 4x 100G/40G Ethernet uplinks, each can split into 4x 25G or 4x 10G uplinks with optional fan-out cables
  • 1x Gigabit Ethernet uplink
  • 1 console port
Switching Capacity
  • 1922Gbps
Physical Layer Features
  • 100G/40G optical/copper QSFP28
  • Gigabit Ethernet copper RJ45
Layer 2 Features
  • 4K VLANs
  • Spanning Tree Protocol (802.1D)
  • Rapid Spanning Tree Protocol (802.1w)
  • IEEE 802.lQ VLANs/ port-based VLANs
  • Multiple Spanning Tree Protocol (802.1s)
  • Jumbo frames up to 9KB
  • IEEE 802.1AX LAG
  • IEEE 802.3ac VLAN tagging
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features
  • Storm control
  • Flow control
  • Port mirroring
  • Uplink Failure Detection (UFD)
  • MLAG
  • RDMA over Converged Ethernet (RoCE)
    • Data Center Bridging Extensions (DCBx)
    • Per-Priority Flow Control [PFC] (802.1Qbb)
    • Enhanced Transmission Selection [ETS] – (802.1Qaz)
Security Features
  • Switch access password protection
  • RADIUS and TACACS+ Authentication
  • Access Control Lists
  • SSH, SSL Encryption
System Management
  • Industry Standard CLI
  • Web-based management interface – HTTP/HTTPS
  • Syslog
  • SSH
  • SNMP v1/v2/v3
  • NTP
  • Content-sensitive "Help"
  • Auto Command completion
  • TFTP Client
  • Ansible
  • RESTCONF
Multicast
  • IGMP Snooping
Automation
  • Zero Touch Provisioning
Weight
  • 3.2lbs/1.5kg
Dimensions (W x D x H)
  • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
Download
  • Firmware [ Download ]
  • Ansible Module – Requires Firmware 1.1.1.3 or later [ Download ]
  • Switch Configuration User's Guide [ Download ]
  • Cables and Transceivers List [ Download ]
  • SNMP MIB [ Download ]
  • MBM-XEM-002
MBM-XEM-002
General Specifications
  • Broadcom BCM56846 10GbE Low Latency Switch
  • 2x40G and 4x10G uplinks*
  • 20x 10/1Gbps downlinks (SuperBlade)
    56x 10/1Gbps downlinks (MicroBlade)
  • 1 Console port
  • 1 USB port
Switching Capacity
  • 1280Gbps
Physical Layer Features
  • Jumbo frames up to 9KB
  • 40G QSFP+ optical/copper
  • 10G SFP+ optical/copper
Layer 3 Features
  • BGP
  • OSPF
  • VRRP
Layer 2 Features
  • 4K VLANS
  • Spanning Tree (802.1D)
  • Rapid Spanning Tree (802.1w)
  • Multiple Spanning Trees (802.1s)
  • IEEE 802.lQ VLANs/ port-based VLANs
  • IEEE 802.3ad with LACP
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features
  • Storm control
  • Flow control
  • Port mirroring
  • MLAG
Security Features
  • Switch access password protection
  • RADIUS and TACACS+ Authentication
  • Access Control Lists
  • SSH, SSL Encryption
  • DHCP Snooping
System Management
  • Industry Standard CLI
  • Command Completion
  • Context Sensitive Help
  • SNMP v1/v2/v3
  • SSH
  • Syslog
  • DHCP (Client)
  • Web-based management interface
  • NTP
  • RMON
  • Ansible
  • RESTCONF
Multicast
  • IGMP Snooping
Weight
  • 3.2lbs/1.5kg
Dimensions (W x D x H)
  • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
Download

* (MicroBlade) When used in a 6U MicroBlade enclosure the available uplink ports are 2x 40G, or 1x 40G and 4x 10G.
  • MBM-XEM-002+
MBM-XEM-002+
General Specifications
  • Broadcom BCM56846 10GbE Low Latency Switch
  • 2x40G, 4x10G, and 1x 1G uplinks*
  • 20x 10/1Gbps downlinks (SuperBlade)
    56x 10/1Gbps downlinks (MicroBlade)
  • 1 Console port
  • 1 USB port
Switching Capacity
  • 1280Gbps
Physical Layer Features
  • Jumbo frames up to 9KB
  • 40G QSFP+ optical/copper
  • 10G SFP+ optical/copper
  • 1G RJ45 optical/copper
Layer 3 Features
  • BGP
  • OSPF
  • VRRP
Layer 2 Features
  • 4K VLANS
  • Spanning Tree (802.1D)
  • Rapid Spanning Tree (802.1w)
  • Multiple Spanning Trees (802.1s)
  • IEEE 802.lQ VLANs/ port-based VLANs
  • IEEE 802.3ad with LACP
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features
  • Storm control
  • Flow control
  • Port mirroring
  • MLAG
Security Features
  • Switch access password protection
  • RADIUS and TACACS+ Authentication
  • Access Control Lists
  • SSH, SSL Encryption
  • DHCP Snooping
System Management
  • Industry Standard CLI
  • Command Completion
  • Context Sensitive Help
  • SNMP v1/v2/v3
  • SSH
  • Syslog
  • DHCP (Client)
  • Web-based management interface
  • NTP
  • RMON
  • Ansible
  • RESTCONF
Multicast
  • IGMP Snooping
Weight
  • 3.2lbs/1.5kg
Dimensions (W x D x H)
  • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
Download

* (MicroBlade) When used in a 6U MicroBlade enclosure the available uplink ports are 2x 40G, or 1x 40G and 4x 10G.
  • SBM-XEM-X8SM
  • 7U
SBM-XEM-X8SM
Internal Ports
  • 10 (Ten Blade) or 14 (Fourteen Blade) or 20 (Twin Blade) internal 10G connection to blades
External Uplink Ports
  • 4 (Twin Blade) or 8 (Ten Blade/Fourteen Blade) 10G SFP+ ports
Type
  • Layer 2/3 10Gb Ethernet switch
Switching Capacity
  • 320 Gbps
Trunking
  • Link Aggregation
Jumbo Frame Support
  • Up to 9K bytes
Remote Management
  • Browser-based management / CLI
Protocols
  • STP, RSTP, MSTP, etc.
OS
  • Firmware upgradeable
Download
  • SBM-XEM-F8X4SM
  • 7U
SBM-XEM-F8X4S_Front
Internal Ports
  • 10 (Ten-Blade) or 14 (Fourteen-Blade) or 20 (TwinBlade) internal 10-Gigabit connections to Blades. Internal ports support DCB /FCoE
External Uplink Ports
  • 4 (TwinBlade) or 6 (Ten-Blade/Fourteen-Blade) external Fibre Channel ports (SFP+) (N_port type)
  • 4 (Ten-Blade/Fourteen-Blade) external 10-Gigabit Ethernet ports (SFP+). No external 10Gb Ethernet with TwinBlade enclosure.
  • One external 1GE port (RJ45)
Type
  • Converged Data Center switch with FC/FCoE support
Switching Capacity
  • 480 Gbps
Trunking
  • Link Aggregation - 8 groups with 8 members per group
Jumbo Frame Support
  • Up to 9K bytes (Ethernet)
  • 2112 bytes (Fibre Channel)
Remote Management
  • Browser-based management / CLI
Protocols
  • STP, RSTP, MSTP, IGMP snooping, 802.1x, LACP, DHCP, RIP/OSPF, ACL, QoS.
  • FIP (FC-BB-5) gateway
OS
  • Firmware upgradeable
Download
  • AOC-XEH-iN2
  • 7U
AOC-XEH-iN2
Chipset
  • Intel® Ethernet Controller 82599
Ports
  • Two 10G ports
Power Consumption
  • 6.25W max
Download
1G Ethernet
  • MBM-GEM-004
MEM-GEM-004
General Specifications
  • Broadcom BCM56151 1GbE Switch
  • 4x 10Gbps SFP+ and 8x 1Gbps RJ45 uplinks
  • 40x 1Gbps downlinks
  • 1 Console port
Switching Capacity
  • 176Gbps
Physical Layer Features
  • Jumbo frames up to 9KB
  • 10 gigabit optical Ethernet SFP+/copper
  • 1 gigabit RJ45 Ethernet
Layer 2 Features
  • 4K VLANS
  • Spanning Tree (802.1D)
  • Rapid Spanning Tree (802.1w)
  • Multiple Spanning Trees (802.1s)
  • IEEE 802.lQ VLANs/ port-based VLANs
  • IEEE 802.3ad with LACP
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features
  • Storm control
  • Flow control
  • Port mirroring
  • Uplink Failure Detection (UFD)
  • MLAG
Security Features
  • Switch access password protection
  • RADIUS and TACACS+ Authentication
  • Access Control Lists
  • SSH, SSL Encryption
  • Protected Ports
System Management
  • Industry Standard CLI
  • Context Sensitive Help
  • Command Completion
  • SNMP v1/v2/v3
  • SSH
  • Syslog
  • DHCP (Client)
  • Web-based management interface
  • NTP
  • RMON
Multicast
  • IGMP Snooping
Automation
  • Zero Touch Provisioning
Weight
  • 3.1lbs/1.4kg
Dimensions
(W x D x H)
  • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
Download
  • SBM-GEM-X4S
  • 7U
SBM-GEM-X4S
Internal Ports
  • 20x 1G downlink ports
External Uplink Ports
  • 4x 10-Gbps SFP+ ports and 4x 1G RJ45 ports
Type
  • Layer 2 1Gb Ethernet switch
Layer 2 Features
  • 4K VLAN
  • Spanning Tree (802.1D)
  • Rapid Spanning Tree (802.1w)
  • Multiple Spanning Tree (802.1s)
  • IEEE 802.1Q VLANs/ port-based VLANs
  • IEEE 802.3ad with LACP
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features
  • Storm control
  • Flow control
  • Port mirroring
  • Uplink Failure Detection (UFD)
  • MLAG
Jumbo Frame Support
  • Up to 9K bytes
Remote Management
  • Browser-based management / CLI
Protocols
  • VLANs, STP, RSTP, MSTP
OS
  • Firmware upgradeable
Download
InfiniBand
  • SBM-IBS-H4020
  • 8U
SBM-IBS-H4020
Switch Chip
  • Mellanox Quantum
Internal Ports
  • Twenty HDR 200G Ports
External Uplink Ports
  • Twenty HDR 200G Ports with QSFP56 connectors
Bandwidth
  • 16 Tbps Switch Bandwidth
Download
  • AOC-IBH-X6HS
  • 8U
AOC-IBH-X6HS
Chipset
  • Mellanox ConnectX-6 VPI
InfiniBand Ports
  • One HDR 200-Gbps port
Power Consumption
  • 21.1W max
Download

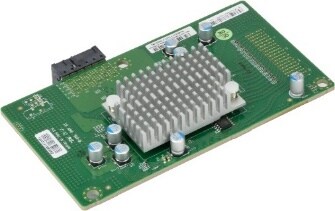

  • AOC-IBH-X4ES
  • 8U
AOC-IBH-X4ES
Chipset
  • Mellanox ConnectX-4
InfiniBand Ports
  • One EDR 100-Gbps port
Power Consumption
  • 12.5W typical/ 14.6W max
Download
  • AOC-IBH-X3QD
  • 7U
AOC-IBH-X3QD
Chipset
  • Mellanox ConnectX-3
InfiniBand Ports
  • Two 4x FDR-10 40-Gbps ports
Ethernet Ports
  • One or two 10-Gbps ports
Power Consumption
  • 8.5W typical/ 9W max
Download
  • SBM-IBS-E3616
  • 8U

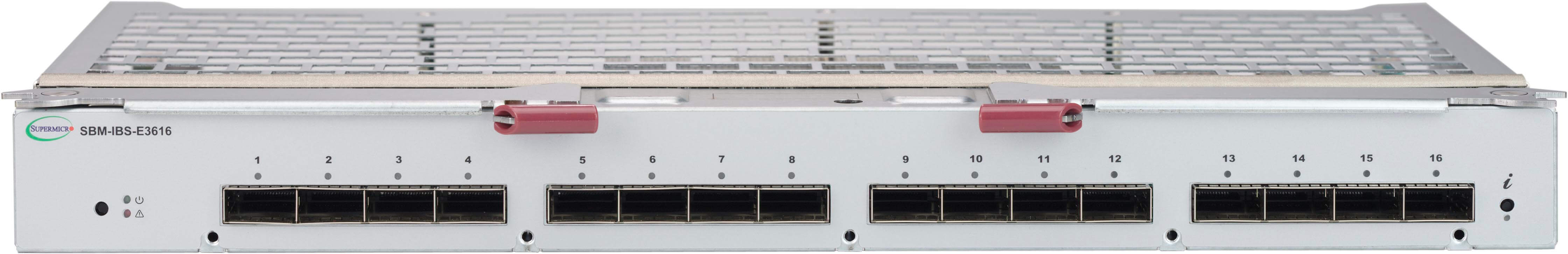

SBM-IBS-E3616
Switch Chip
  • Mellanox Switch-IB
Internal Ports
  • Twenty EDR ports at 100Gbps
External Uplink Ports
  • Sixteen EDR ports with QSFP28 connectors
Bandwidth
  • 7.62Tbps total switch bandwidth (36-Port)
Download
  • SBM-IBS-F3616M
  • 7U
SBM-IBS-F3616M
Switch Chip
  • Mellanox SwitchX
Internal Ports
  • Twenty FDR10/FDR ports at 40/56Gbps
External Uplink Ports
  • Sixteen 4x FDR with QSFP connectors
  • 4X FDR (56-Gbps) non-blocking architecture with 56Gbps through external ports
Bandwidth
  • 3.392Tbps total switch bandwidth (36-Port)
Download
Intel® Omni-Path
Display:
  • AOC-OPH-WFR
  • EOL

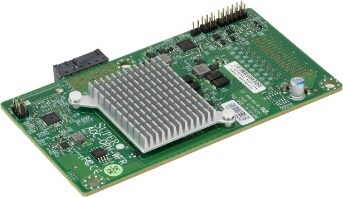

AOC-OPH-WFR
Chipset
  • Intel Omni-Path Wolfriver
Omni-Path Ports
  • One 100-Gbps port
Power Consumption
  • 13.12W typical/ 16.65W max
Download
  • SBM-OPA-C4020
  • EOL

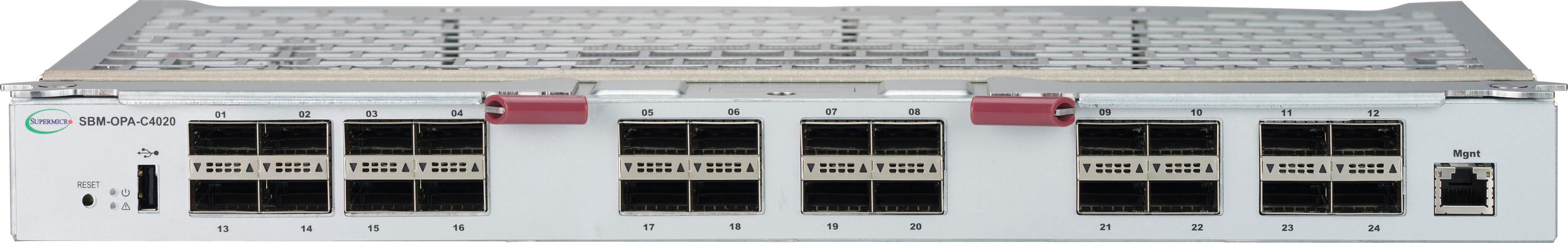

SBM-OPA-C4020_Front
Switch Chip
  • Intel Omni-Path chipset
Internal Ports
  • Twenty ports at 100Gbps
External Uplink Ports
  • Twenty four 100Gbs ports with QSFP28 connectors
Bandwidth
  • 9.6 Tbps total switch bandwidth (44-Port)
Download
Pass-Thru Module
  • SBM-25G-P10
SBM-25G-P10
General Specifications
  • 20x 25G/10G Ethernet downlinks
  • 5x 100G Ethernet uplinks (each can split into 4x 25G or 4x 10G uplinks with optional fan-out cables) or 5x 40G Ethernet uplinks (each can split into 4x 10G uplinks with optional fan-out cables)
  • 1 Console port
Partner Switches
  • 100G QSFP28 Switch (100G port split into 4x10G/25G)
  • 40G QSFP+ Switch (40G port split into 4x10G)
  • 25G SFP28 Switch
  • 10G SFP+ Switch
Configuration Info
Weight
  • 1.99lbs/0.902kg
Dimensions (W x D x H)
  • 165mm x 268mm x 38mm (6.5" x 10.56" x 1.5")
Download
