A+ SuperWorkstation 5014A-TT (Complete System Only)

A+ Products Systems Tower [ 5014A-TT ]




Integrated Board
M12SWA-TF

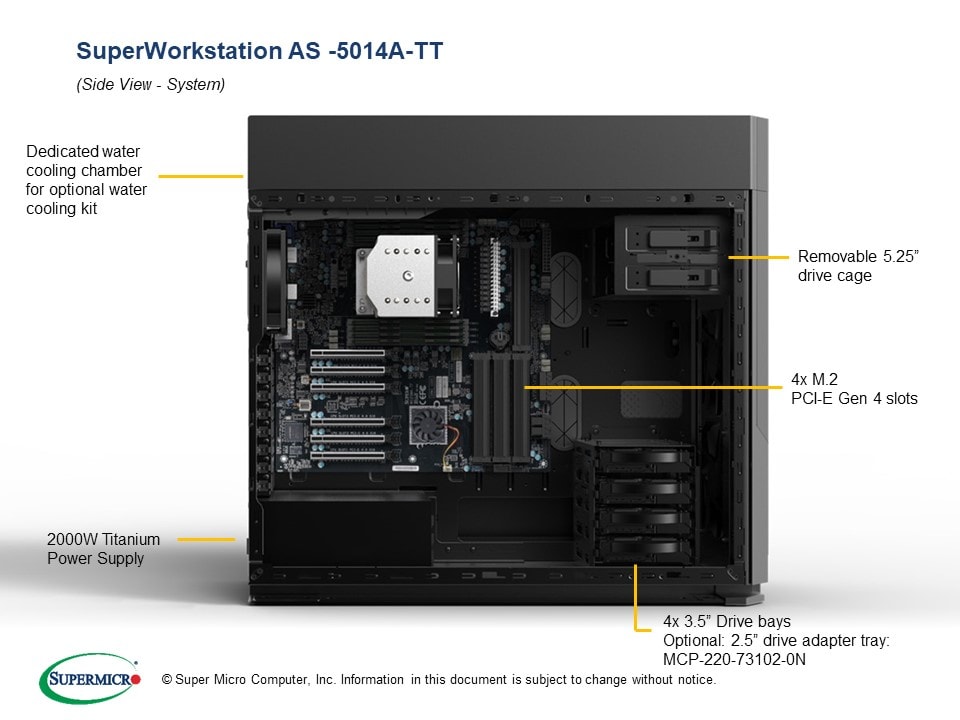

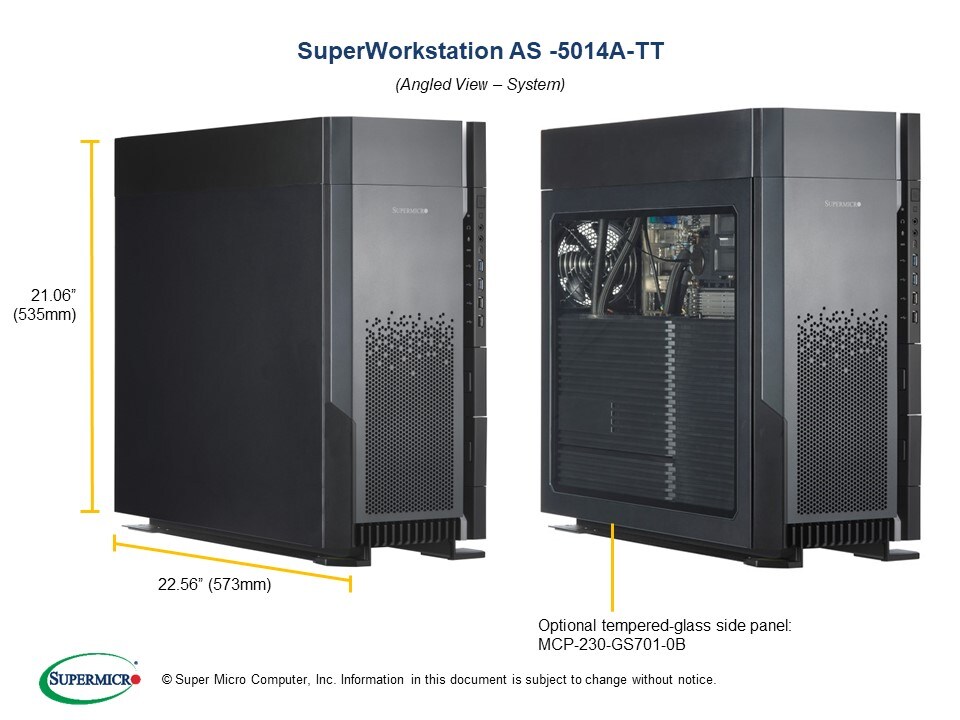

Views: | Angled View | Side View |
| Front View | Rear View |


Key Applications
- Media and Entertainment Content Creation
- Product Design and Engineering Simulation
- AI and Deep Learning

Key Features
1. AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
2. 8 DIMMs; up to 2TB Registered ECC DDR4 3200-MHz Memory
3. 6 PCI-E 4.0 x16 slots
M.2 Interface: 4 PCI-E 4.0 x4, RAID 0, 1, 5 & 10
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key
U.2 Interface: 2 U.2 sockets (Software RAID 0,1)
4. 1x 10GBase-T LAN port, 1x 1GbE LAN port (shared with IPMI)
5. 4 fixed internal 3.5"/2.5" SATA drive bays, 2 fixed front 2.5" SATA drive bays, 4 M.2
6. 1 VGA port (dedicated for IPMI)
7. 7.1 HD Audio
8. 2000W Platinum Level Power Supply

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum CPU, 2 DIMMs, and 1 HDS/HDD).

Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List NVMe Options Manuals OS Certification Matrix Compatible GPU List Drive Options

Product SKUs
SuperWorkstation
  • AS -5014A-TT (Black)
Motherboard

Super M12SWA-TF
Processor/Cache
CPU
  • Single AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series processor
  • Socket sWRX8/SP3
  • Supports CPU TDP up to 280W
Cores
  • Up to 64 Cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 3200-MHz SDRAM
  • 8-channel memory bus
On-Board Devices
Chipset
  • AMD WRX80
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • 10G LAN: Single LAN via Marvel AQC113C 10G Ethernet Controller
  • 1GbE LAN: Single LAN with Intel® i210AT Enternet Controller (shared with IPMI)
Audio
  • 7.1 channel HD Audio by Realtek LC4050H + ALC1220
Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 1 RJ45 10GBase-T Ethernet LAN port
  • 1 RJ45 GbE Ethernet LAN port (shared with IPMI)
USB
  • 1 USB 3.2 Gen2x2 port (Type C, 20Gbps)
  • 5 USB 3.2 Gen2 ports (4 Type A, 1 front Intel Type C header, 10Gbps)
  • 5 USB 3.2 Gen1 ports (3 Type A, 1 via header)
  • 2 USB 2.0 via header
Video
  • 1 VGA port (dedicated for IPMI)
Audio
  • 7.1 HD Audio with optical S/PDIF
Serial Port / Header
  • 1 COM port (rear)
TPM
  • 1 TPM 2.0 Header
System BIOS
BIOS Type
  • 256Mb SPI Flash with AMI BIOS
Management
Software
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • Full Tower
  • Optional Rackmount Kit (6U)
Model
  • CSE-GS7A-2000B
Dimensions and Weight
Height
  • 21.06" (535mm)
Width
  • 8.74" (222mm)
Depth
  • 22.56" (573mm)
Front Panel
Buttons
  • Power On/Off button
  • LED On/Off button
LEDs
  • Power LED
Ports
  • 1 headphone jack
  • 1 audio jack
  • 1 USB 3.2 Port (Type C)
  • 2 USB 3.2 Ports (Type A)
  • 2 USB 2.0 Ports
Expansion Slots
PCI-Express
  • 6 PCI-E 4.0 x16 slots
M.2
  • M.2 Interface: 4 PCI-E 4.0 x4
  • Form Factor: 2280, 22110
  • Key: M-Key
U.2
  • Interface: 2 U.2 Sockets
  • Software RAID 0,1 support
Drive Bays
Fixed
  • 4 internal fixed 3.5"/2.5" SATA3 drive bays
  • 2 front fixed 2.5" SATA3 drive bays
Peripheral Bay(s)
  • 2x 5.25" drive bays
System Cooling
Water Cooling
  • Optional high-performance closed-loop water cooling for CPU
Fans
  • 1x 12cm rear exhaust fan
  • 2x 12cm front cooling fans
  • 3x 12cm top cooling fans (optional)
Power Supply
2000W PS/2 Multi-Output Power Supply
Total Output Power and Input
  • 1200W with Input 100 - 115Vac
  • 1500W with Input 115 - 200Vac
  • 2000W with Input 200 - 264Vac
AC Input Frequency
  • 50-60Hz
Dimensions
(W x H x L)
  • 150 x 86 x 200 mm
+5V
  • Max: 25A / Min: 0.1A
+12V
  • Max: 100A / Min: 0.1A (100-115Vac)
  • Max: 125A / Min: 0.1A (115-120Vac)
  • Max: 166.6A / Min: 0.1A (200-264Vac)
+3.3V
  • Max: 25A / Min: 0A
5VSB
  • Max: 4A / Min: 0A
-12V
  • Max: 0.5A / Min: 0A
Output Type
  • 24pin ATX
Certification Platinum Level Certified
  Platinum Certified
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

Part Number
 Qty
 Description
Motherboard / Chassis MBD-M12SWA-TF
CSE-GS7A-2000B 		1
1 		Super M12SWA-TF Motherboard
Full Tower/6U Rackmountable Chassis
Power Supply PWS-2K01-PQ 1 PS2 2000W Multi-output PLATINUM power supply,RoHS
Fan FAN-0221L4 2 12cm (2200rpm) cooling Fan
Fan FAN-0222L4 1 12cm (6400rpm) cooling Fan
Cable CBL-0044L 4 57.5CM SATA FLAT S-S PBF
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)


Optional Parts List
Part Number Qty Description
Fan FAN-0124L4 - 12cm (1850rpm) cooling Fan
Fan FAN-0221L4 - 12cm (2200rpm) cooling Fan
Fan FAN-0222L4 - 12cm (6400rpm) cooling Fan
CPU Heatsink SNK-P0066AP4 - High Performance 4.5U Active CPU Heat Sink for AMD Socket SP3 Platform
HDD Bracket MCP-220-73102-0N - 3.5" to 2.5" SSD/HDD Adapter Tray
Rail MCP-290-GS706-0N - GS7 6U Rail Conversion Kit for rack mount (need to add MCP-290-00057-0N).
Rail MCP-290-00057-0N - RAIL SET, QUICK/QUICK For 17.2"W
Power Cord CBL-PWCD-0240-IS - Power cord C19 to CEE 7/7 (EU/KR)
Power Cord CBL-PWCD-0445 - Power cord IEC60320, LP-53 to LS-19 (JPN)
Power Cord CBL-0238L - Power cord C19 to AS 3112 (AU)
Liquid Cooling SNK-P3045A4 - 1U Closed Loop Liquid Cooling Module for H12 AMD SP3 CPU
Intrusion switch MCP-290-GS708-0N - GS7 Chassis Intrusion Switch
TPM security module AOM-TPM-9665V - TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF;
Hide Parts List
