L2/L3 Ethernet 1G Data/Management switch with Supermicro OS

The SSE-G3624 Layer 2/3 Ethernet Switch complements the growing family of switch offerings by Supermicro in the Networking arena. Offering twenty-four 1Gbps RJ45 Ethernet ports and four 10Gbps SFP+ uplinks, the SSE-G3624 switch allows connectivity at 1Gbps to servers while aggregating traffic for connection to higher speed servers, to routers, and to other backbone network switches. The compact 1U form factor gives users the ability to optimize deployment in standalone or top-of-rack environments. The pair of mounting flanges included facilitates rack-mounting installations. The SSE-G3624 switch is ideal for deployment in Data Center, Cloud and Enterprise environments with the capability of handling access for the most demanding applications.

Pre-loaded with the Supermicro OS (SMIS OS) the SSE-G3624 is ready for your networking deployment with management and configuration look-and-feel that is common to other Supermicro switches, makes the switch an attractive choice for use in new or existing networks that use other Supermicro switches - Blade or Top-of-Rack.

SSE-G3624 switch allows connectivity at 10/100/1000 to servers and additionally comes with management and console ports for easy of management.

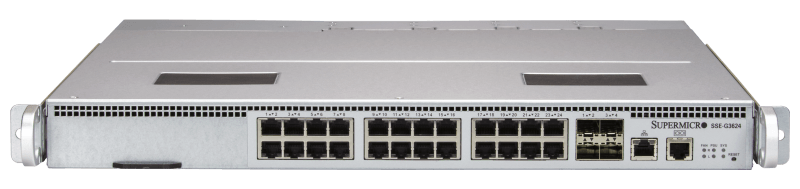

Supermicro L2/L3 Ethernet 1G Data/Management switch with Supermicro OS: SSE-G3624
Operating System / NOS
The SSE-G3624 series switch comes with preloaded SMIS OS.
No additional licensing is required.

  • Key Switch Specs
    • Form Factor: 1 RU
    • Capacity: 560Gbps
    • Interfaces Speeds: 10M, 100M, 1G & 10G
    • Operating System: SMIS OS (pre-loaded)

  • Power
    • Hot-pluggable power supply
    • AC Input Voltage: 100-127 / 200-240VAC, 50/60Hz
    • 150 Maximum Power (with Pluggable Optic)

  • Physical/Environmental:
    • Weight: Net weight: 8 kg (with 2 PSUs)
    • Size (W x D x H): 445 x 356 x 43.5 mm (17.5 x 14 x 1.7 inches)
    • Standard and Reverse Airflow models
    • Hot Swappable 1+1 redundant Fan Modules
    • Temperature: Operating 0C to 45C
    • Humidity: Operating: 5% to 95%

SMIS OS Features
  • Layer 2
    • VLAN
    • VLAN Trunking
    • MAC Aging
    • LLDP
    • LACP
    • 802.1w Rapid Spanning Tree
    • 802.1s Multiple Spanning Tree Protocol
    • 4096 VLANs
    • MLAG
    • Jumbo Frames
    • IGMP v1/v2/v3 snooping
    • Storm Control

  • Layer 3
    • Static Routing
    • RIPv2
    • OSPF
    • BGP
    • VRRP

  • Management and Monitoring
    • SNMP MIBs
    • Syslog
    • Critical Resource Monitoring
    • Mirroring
    • TACACS+
    • Sensor transceiver monitoring

  • QoS
    • 8 priority queues per port
    • Strict priority queueing
    • 802.1p based classification
    • DSCP based classification and remarking
    • Egress shaping / Weighted round robin (WRR)
    • Explicit Congestion Notification (ECN) marking
    • 802.1Qbb Per-Priority Flow Control (PFC)
    • 802.1Qaz Enhanced Transmission Selection (ETS)
    • Data Center Bridging Extensions (DCBX)

  • ACL
    • IP ACL permit/deny
    • MAC ACLs
    • Dynamic ACL upgrade
    • ACL Statistics
    • DHCP Relay / Snooping
    • Rate limiting

  • Network Management
    • RS-232 Serial Console Port & GUI
    • USB Port
    • SNMP v1, v2, v3
    • Management over IPv6
    • Telnet and SSHv2
    • Syslog
    • Industry Standard CLI & GUI
    • System Logging
    • Environment monitoring
  • Utilities
    • NTP
    • ZTP
Safety and Compliance
  • Safety
    • UL 60950-1
    • EN 60950-1
    • IEC 60950-1
    • CAN/CSA-C22.2 No. 60950
    • AS/NZS 60950-1GB4943
    • GB4943

  • Electromagnetic Compatibility
    • 47CFR Part 15 (CFR 47) Class A
    • AS/NZS CISPR22 Class A
    • CISPR22 Class A
    • EN55022 Class A
    • ICES003 Class A
    • VCCI Class A
    • EN 60825-1
    • EN61000-3-2
    • EN61000-3-3
    • KN22 Class A
    • CNS13438 Class A
    • BSMI CMS 13438 Class A
    • EN50082-1
    • EN61000-6-1
    • EN55024
    • CISPR24
    • EN300386
    • KN 61000-4 series

  • Environmental
    • RoHS 6 Compliant
Available SKUs
  Part Number Description
Layer 2/3 1/10G
Ethernet Switch
SSE-G3624   Regular Airflow (front to back)

Optics & Cables Supported
Cable Model Length SMC P/N
SFP+ Cable CBL-0347L 39.37" (100cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable CBL-0456L 78.74" (200cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable CBL-00348L 118.11" (300cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Cable CBL-0349L 196.85" (500cm) 10GbE SFP+ TO SFP+, Twinax copper cable
SFP+ Transceiver AOC-E10GSFPSR SFP+ Transceiver for use with fiber cable connections
SFP+ Transceiver TRX-10GSFP-RJ45 SFP+ Transceiver for RJ45 cable connection
