Key Features


  1. SAS3 12Gb/s and NVMe support

    1U Optimized for CloudDC motherboard with S-AIOM support, support MB size up to 12.3" x 13.4"
  2. 10 x 2.5"(tool-less) hot-swap SAS3/SATA drive bay
  3. SAS or enterprise SATA HDD only recommended
  4. 1U 10-Slot SFF Backplane Supports SAS3/SATA3/NVMe
  5. 1U 860W Redundant power supply Platinum level, 24Pin output
  6. 2x full-height & full-length expansion slot(s) 2x AIOM expansion slot(s)
  7. 4 x 40x56mm counter-rotation PWM fan(s) by default, 2 x as optional
  8. Support Service Tag for system information

Specifications Resources Parts List
Specifications
Product SKUs

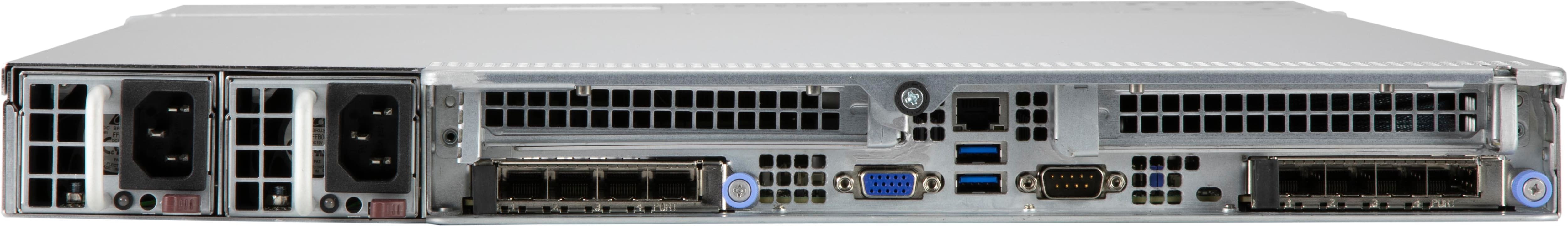

SuperChassis LB16AC10-R860AW
Form Factor
  • 1U Optimized for Cloud-DC motherboard with AIOM support, support MB size up to 12.3" x 13.4"
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 23.5" (597 mm)
Gross Weight
  • 40 lbs (18.14 kg)
Packaging (W x H x L)
  • 23.7" (602 mm) x 7.7" (196 mm) x 31.8" (808 mm)
Available Color
  • Black
Expansion Slots
  • 2x Full-height expansion slot(s)
  • 2x AIOM expansion slot(s)
Drive Bays
  • 10x 2.5" hot-swap SAS3/SATA drive bay
Backplane
  • 10-Port 1U SFF Hybrid Backplane Supports 10xSAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors
Front Panel
Button
  • Power On/Off button
  • Unit Identification (UID) button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Unit Identification (UID) LED
Port
  • 2x USB 2.0 Port(s)
Systems Cooling
Fans
  • 4x 40x56mm counter-rotation PWM fan(s)
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
800W/860W 1U redundant power supply
Power Efficiency
  • 94+%
Total Output Power and Input
  • 860W with Input 200 - 240Vac
  • 800W with Input 100 - 127Vac
  • 860W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 322 x 54.5 x 40.25 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 71.6A / Min: 0A (200Vac - 240Vac)
  • Max: 66.6A / Min: 0A (100Vac - 127Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT116-SL8824
  • O/P: 12V/80
  • +5V Max: 25A
  • +3.3V Max: 25A
  • -12V Max: 0.6A
Certification
  • Platinum Certified  Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • UL/CB
  • UL/CUL
