SuperServer SYS-110P-FDWTR-NEBS-DC

Intel Xeon Socket P+ (LGA-4189) 3rd Gen, 600W -48 Vdc redundant PWS, NEBS Level 3 certified 1U edge platform

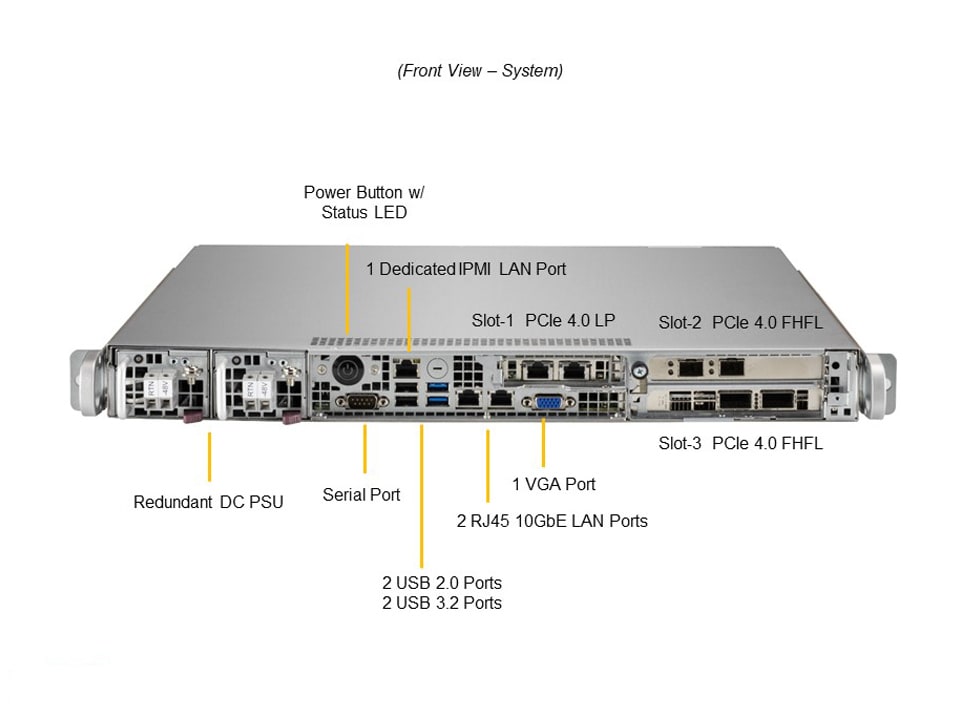

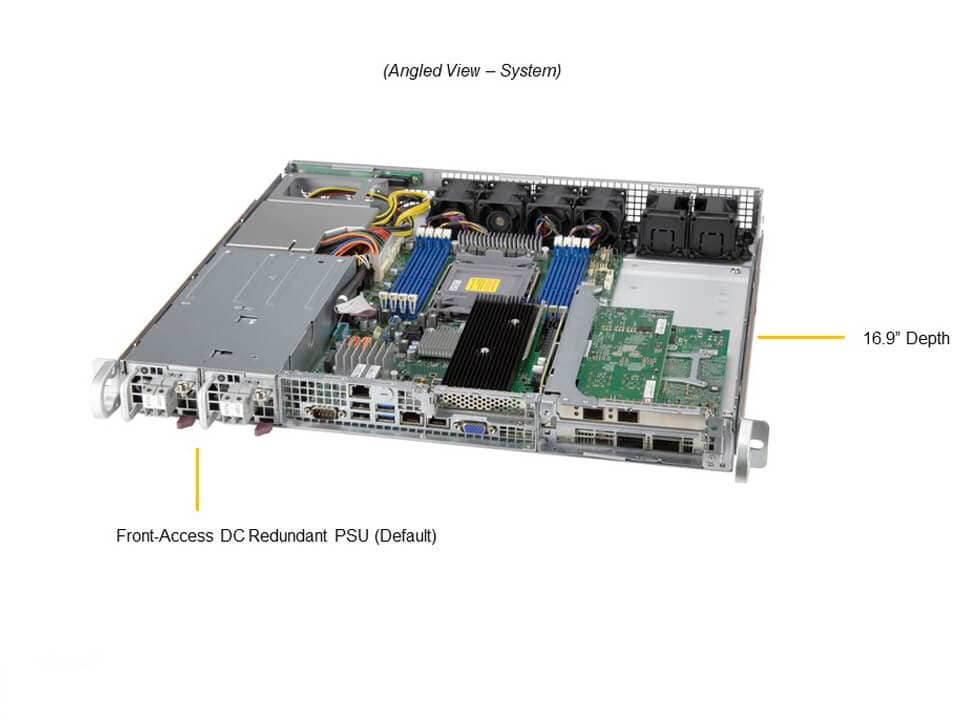

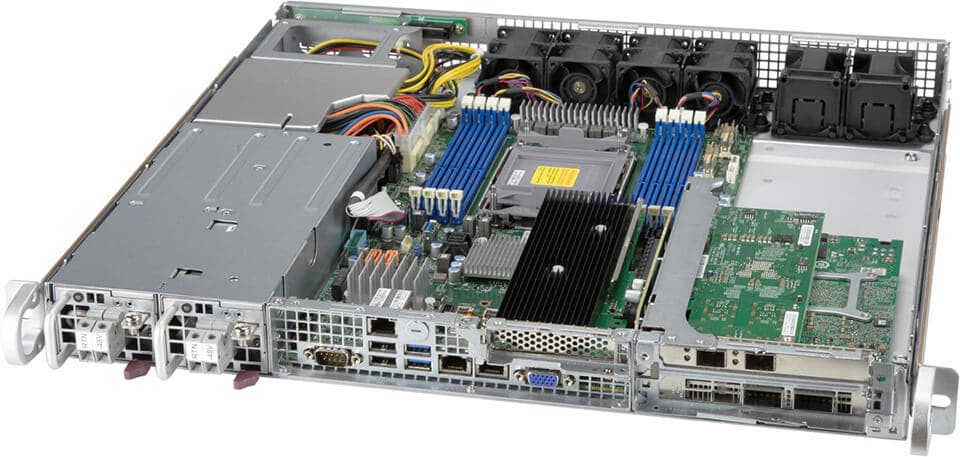

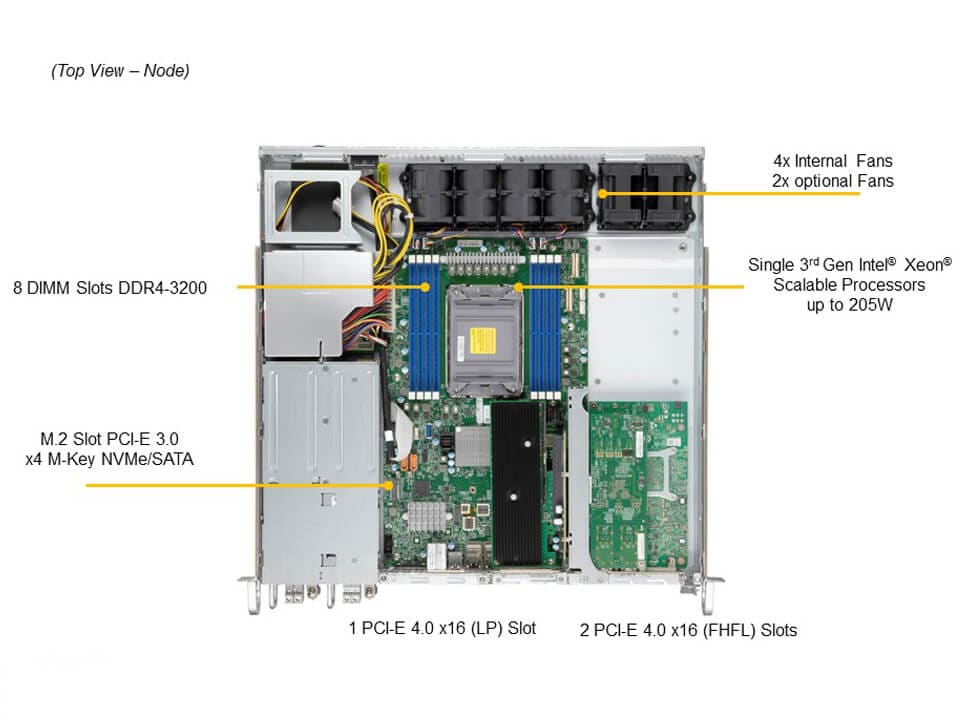

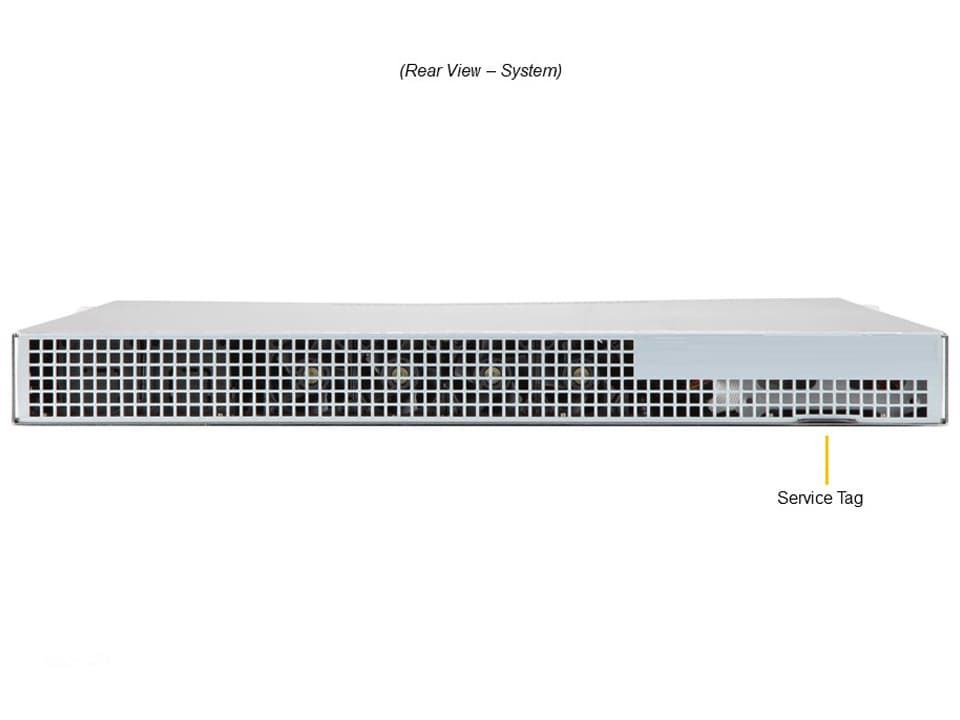

SYS-110P-FDWTR-NEBS-DC Main SYS-110P-FDWTR-NEBS-DC Angle SYS-110P-FDWTR-NEBS-DC Top SYS-110P-FDWTR-NEBS-DC Front SYS-110P-FDWTR-NEBS-DC Rear
Integrated Board: X12SPW-TF
Learn more

Key Applications

  • Multi-Access Edge Computing
  • Outdoor DU of 5G Application
  • Flex-RAN, Open-RAN vBBU

Key Features

  1. NEBS Level 3 certified for Telecommunication
  2. Socket P+ (LGA-4189) support 3rd Gen Intel® Xeon® Scalable processors
  3. 8 DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM
  4. 2x 2.5" drive bays; 1 M.2 NVMe OR 1 M.2 SATA3
  5. 6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s)
  6. 600W Redundant Power Supplies Level (92%+)
...
...
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-110P-FDWTR-NEBS-DC
Motherboard
Super X12SPW-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 32C/64T; Up to 48MB Cache
Note
  • Supports 85W - 205W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2048GB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1 support
Chipset
  • Intel® C621A
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
USB
  • 2 USB 2.0 Type-A port(s)
  • 2 Type-A port(s)
Video
  • 1 VGA port(s)
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support, PEPI
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-515B-R601W
Dimensions and Weight
Height
  • 1.7" (44.5 mm)
Width
  • 17.2" (436.88 mm)
Depth
  • 16.9" (429.3 mm)
Package
  • 8" (H) x 27" (W) x 24" (D)
Weight
  • Gross Weight: 15 lbs (6.8 kg)
  • Net Weight: 10 lbs (4.54 kg)
Available Color
  • Silver
Front Panel
LED
  • LAN1 activity
  • LAN2 activity
  • Power status
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
M.2
System Cooling
Fans
  • 6 heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud(s)
Power Supply
600W Redundant Typical 90%+ Level power supplies
Dimension (WxHxL)
  • 54.5 x 40 x 220 mm
5V SB
  • Max: 3A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SPW-TF

CSE-515B-R601W
1

1
Super X12SPW-TF Motherboard

1U Chassis
Cable CBL-0082L 1 Y SPLIT SATA POWER ADAPTER, PB FREE
CBL-0483L 2 7pin SATA (STR to STR), 29cm, PBF
CBL-PWCD-0974 2 48VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS
Fan FAN-0167L4 2 40x40x56 mm, 20.5K-17.6K RPM, Counter-rotating Fan for SC947 SBB and 1U Twin Pro Series Servers
Riser Card RSC-W-66G4 1 1U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
RSC-WR-6 1 1U RHS WIO Riser card with one PCIe 4.0 x16 slot,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077V OR 1 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
SNK-P0077P 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-601S-1R 2 1U 600W Redundant DC48V input w/PMBus power supply, W54.5xH4
*Power Distributor PDB-PT514-2824 1 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
TPM security module AOM-TPM-9670V - SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
AOM-TPM-9671V - SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
NEBS Qualified Parts List
Part Number Qty Description
Add on Cards AOC-E810-2CQDA2 (E810 2x 100G) - Intel E810-2CQDA2 PCIe 2-port 100GbE QSFP28 Gen4x16
AOC-S100GC-I2C-P - Standard PCIe 4.0 x 16 dual port 100GbE with QSFP28 based on Intel E810-CAM2
AOC-623106AC-CDAT - Mellanox MCX623106AC-CDAT PCIe 2-port 100GbE QSFP56 Gen4x16 CX-6
AOC-E810-XXVDA4 - Intel E810-XXVDA4 PCIe 4-port 25GbE SFP28 Gen4x16
AOC-P3IMB-M-P2 - Silicom P3iMB-M-P2 Accelerator Server Adapter Gen3x16
AOC-S25GC-I4S-P - PCIe Gen 4 standard low profile quad port SFP28 based on Intel E810-CAM1)
CPU P4X-ICX6338N-SRKY2 - ICX 6338N 2P 32C/64T 2.2G 48M 11.2GT 185W
P4X-ICX6314U-SRKHL - ICX 6314U 1P 32C/64T 2.3G 48M 11.2GT 205W
Memory MEM-DR412L-SL01-ER32 - 128GB DDR4-3200 4Rx4 LP (16Gb) ECC 3DS RDIMM
MEM-DR432L-CL06-ER32 - 32GB DDR4-3200 2RX4 LP ECC RDIMM
MEM-DR432L-HL02-ER32 - 32GB DDR4-3200 2Rx4 ECC REG DIMM
MEM-DR464L-HL02-ER32 - 64GB DDR4-3200 2Rx4 (16Gb) ECC RDIMM
MEM-DR416L-SL02-ER32 - 16GB DDR4-3200 2Rx8 LP ECC RDIMM
MEM-DR432L-SL05-ER32 - 32GB DDR4-3200 2Rx4 LP ECC RDIMM
MEM-DR464L-SL01-ER32 - 64GB DDR4-3200 2Rx4 LP (16Gb) ECC RDIMM
MEM-DR416L-CL06-ER32 - 16GB DDR4-3200 2RX8 LP ECC RDIMM
Storage HDS-IMT0-SSDSCKKB960G8 - Intel D3 S4510 960GB M.2 SATA 6Gb/s 3D TLC 22x80mm
HDS-SMN1-MZ1LB960HAJQ07 - Samsung PM983 960GB NVMe PCIe3x4 V4 M.2 22x110mm
HDS-I2T0-SSDSC2KB960G8 - Intel D3-S4510 960GB SATA 6Gb/s 3D TLC 2.5" 7mm
HDS-S2T1-MZ7LH960HAJR05 - Samsung PM883 960GB SATA 6Gb/s V4 TLC 2.5" 7mm
TPM security module AOM-TPM-9670V - SPI TPM 2.0 using SLB9670
AOM-TPM-9671V - Vertical TPM with Infineon 9670, 1.2FW
IoT SuperServer SYS-110P-FDWTR-NEBS-DC
