SuperServer AS -2024S-TR

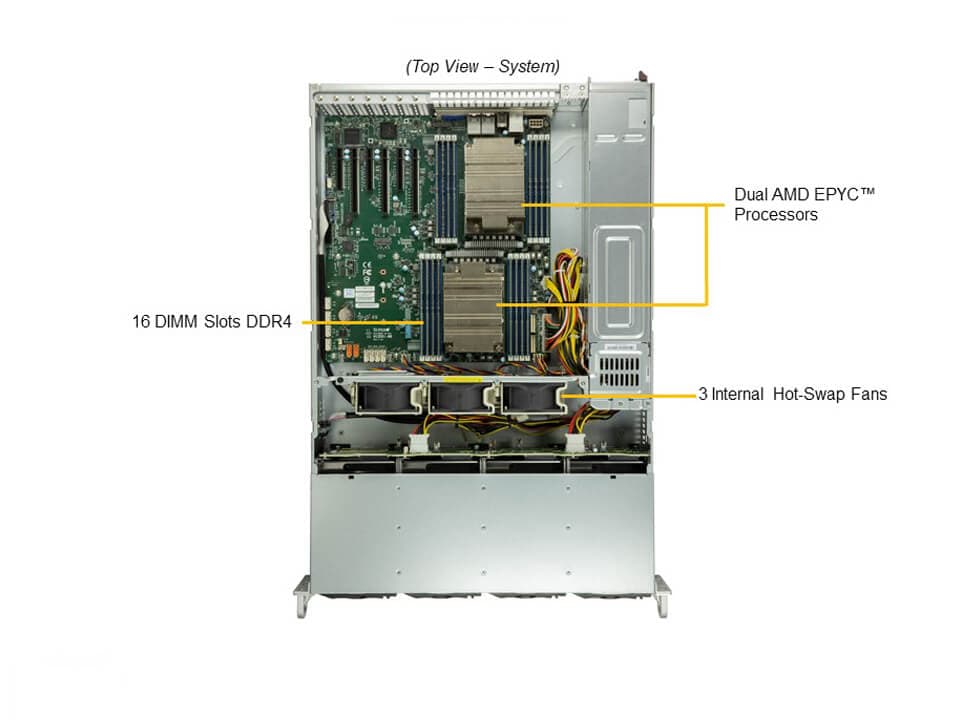

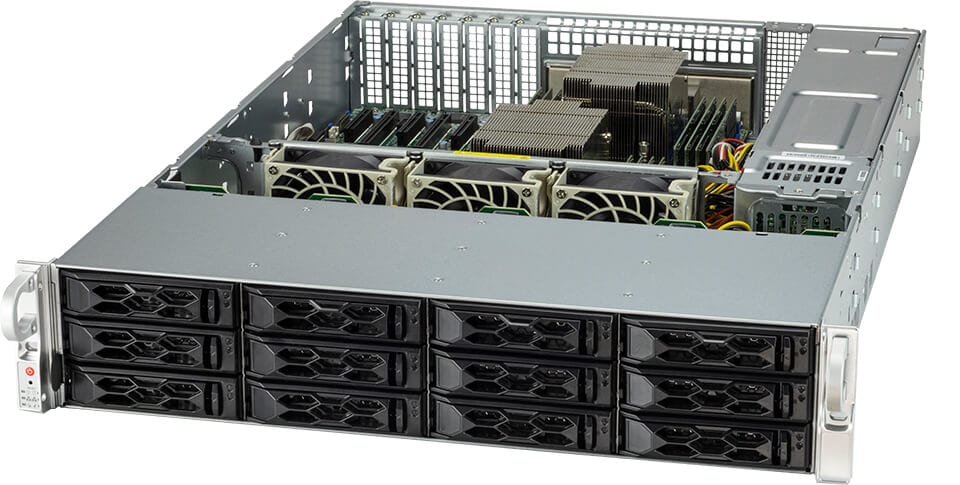

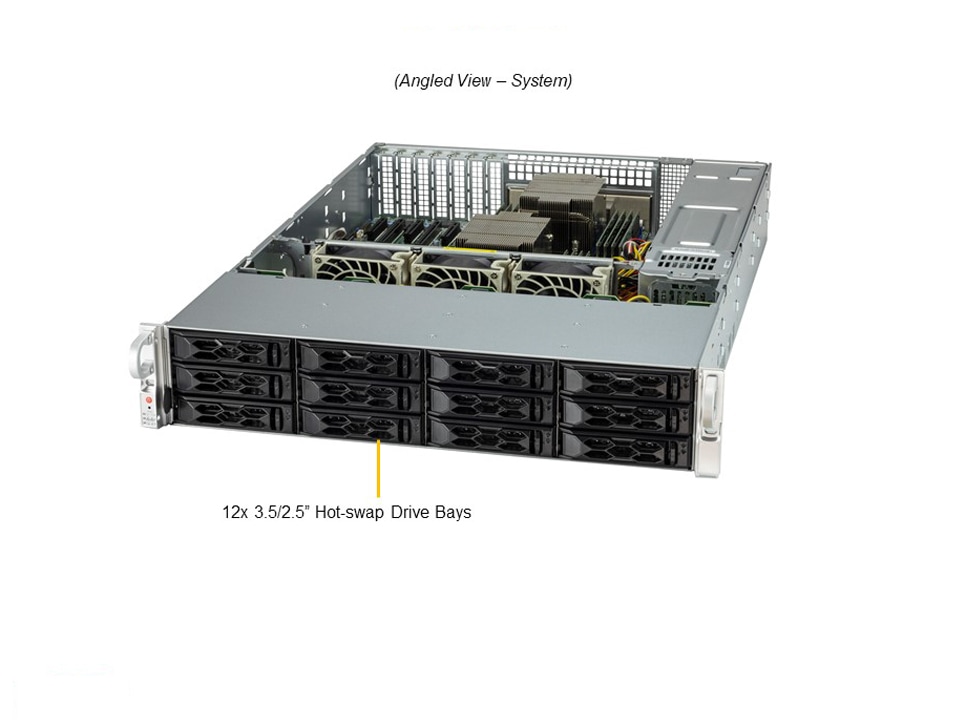

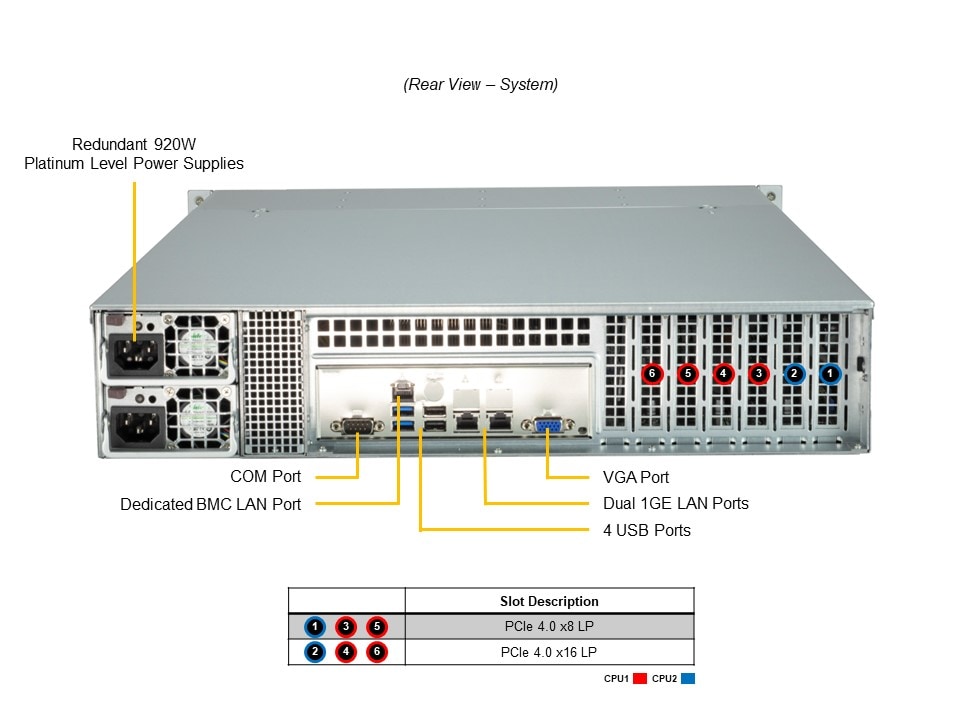

AS -2024S-TR Main AS -2024S-TR Angle AS -2024S-TR Top AS -2024S-TR Front AS -2024S-TR Rear
Integrated Board: H12DSi-N6
Learn more

Key Applications

  • Virtualization
  • Enterprise Server
  • Data Center Optimized
  • Application and data serving
  • Model analysis
  • Compute Intensive Applications

Key Features

  1. Dual AMD EPYC™ 7003/7002 Series Processors
    Supports Up to 240W CPU TDP
  2. AMD® SP3
  3. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz in 16 DIMMS
  4. 3 PCIe 4.0 x16 Low Profile (LP)
    3 PCIe 4.0 x8 Low Profile (LP)
  5. Dual Gigabit LAN
  6. 12 hot-swap 3.5" (Tool-less) or 2.5" (screw) drive bays
    (Default configuration is 8 SATA + 4 NVMe)
    (Up to 12x NVMe drives supported with optional NVMe kit)
    1 M.2 support:
    - M.2 Interface: PCIe 3.0 x4
    - M.2 Form Factor: 2260, 2280, 22110
    - M.2 Key: M-Key
  7. 3 heavy duty Hot-swappable 9.4K RPM Cooling Fans
    1 air shroud
  8. 920W Redundant Power Supplies Platinum level
  9. 1 rear VGA, 1 Type A port, 1 COM Port, and 4 USB ports
...
...
Specifications Resources Parts List
Specifications
Product SKUs
A+ Server AS -2024S-TR (Silver)
Motherboard
Super H12DSi-N6
Processor
CPU
Core Count
  • Up to 64C/128T; Up to 256MB Cache per CPU
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 3200MHz ECC DDR4 RDIMM, LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
Chipset
  • AMD SP3
Network Connectivity
  • 2x 1GbE BaseT port(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 1GbE LAN ports
USB
  • 2 USB 2.0 port(s) (2 rear)
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 COM)
DOM
  • 2 SuperDOM (Disk on Module) port
Management
Software
Power Configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R920LPP1
Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 25.5" (648mm)
Package
  • 11.4" (H) x 26.7" (W) x 34.5" (D)
Weight
  • Net Weight: 33.5 lbs (15.2 kg)
  • Gross Weight: 60 lbs (27.2 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off button
  • Reset button
LEDs
  • HDD activity LED
  • Information LED
  • Network activity LEDs
  • Power Fail LED
  • Power status LED
Expansion Slots
PCI-Express (PCIe)
  • 3 PCIe 4.0 x8 LP slot(s)
  • 3 PCIe 4.0 x16 LP slot(s)
Drive Bays / Storage
Hot-swap
  • 12x 3.5" hot-swap SATA/NVME drive bays (3.5" drive installation is tool-less, 2.5" drives will require screws. Default drive configuration is 8 SATA + 4 NVMe, other configurations require additional optional parts)
M.2
  • 1 M.2 NVMe
  • M-key, 2280, 22110
Backplane
HDD Backplane
  • Supports 12 SATA3 or 12 SAS3 or 4 NVMe
Note
  • Default drive configuration is 8 SATA + 4 NVMe, other configurations require additional optional parts
System Cooling
Air Shroud
  • 1 Clear Plastic Air Shroud(s)
Fans
  • 3 Middle 80mm Fan(s)
Power Supply
920W Redundant Platinum Level power supplies
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 920W: 100-127Vac / 50-60Hz
  • 920W: 200-240Vdc / 50-60Hz
  • 920W: 200-240Vac / 50-60Hz
+12V
  • Max: 75A / Min: 0A (100Vac-127Vac)
  • Max: 75A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Platinum Level Certified94%+   Platinum Level



  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Resources
Component Options
Drive OptionsNVMe OptionsTested AOC ListTested M.2 ListTested Memory
Documentation
ManualsQuick Reference Guide
Software
BIOS DownloadBMC DownloadDrivers & UtilitiesOS Certification
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-H12DSi-N6

CSE-LA26TS-R920LPP1 		1

1 		Super H12DSi-N6 Motherboard

2U Chassis
Backplane BPN-SAS3-LA26A-N12 1 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
Cable CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-SAST-1234A-100 2 SlimSAS x4 (STR) to 4x SATA,65CM,100 OHM,RoHS
CBL-SAST-1244-85 2 Slimline x8 (STR) to Slimline x8 (STR),45CM,85 OHM,RoHS
CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2"W
Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
Drive Tray(s) MCP-410-00016-0N 1 Screw bag and NVMe HDD label for 12x 3.5" Gen-9 HDD Tray
MCP-220-00184-0B 12 Black gen-9 tool-less cost-effective 3.5
Manual MNL-2431-QRG 1 AS -2024S-TR Quick Reference Guide
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0063P 2 2U Passive CPU Heat Sink for AMD Socket SP3 Processors
*Power Supply PWS-920P-1R2 2 1U, platinum efficiency,920W,AC input:100-127/200-240Vac,HF,
*Power Distributor PDB-PT826-L8824 1 2U cost effective PDB support up to 1200W.,RoHS
*Fan FAN-0181L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
*Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Cable Arm Kit 1x MCP-120-82503-0N and 1x MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis
Gen4 8-ports SAS Raid controller kit   1x AOC-S3908L-H8IR-16DD-P and 1x CBL-SAST-1264F-100  - Enables 8x hot-swap drive bays to support SAS drives
SuperCap kit for AOC-S3908L-H8IR-16DD-P 1x BTR-CVPM05 and 1x BKT-BBU-BRACKET-05 - SuperCap and mounting bracket for SAS RAID controller AOC-S3908L-H8IR-16DD
Supermicro Dual-Port Gen-4 Internal NVMe Host Bus Adapter kit 1x AOC-SLG4-2E4T and 1x CBL-SAST-1267-85  - Enables 2x hot-swap drive bays to support NVMe drives
Supermicro Quad-Port Gen-4 Internal NVMe Host Bus Adapter kit 1x AOC-SLG4-4E4T and 2x CBL-SAST-1267-85  - Enables 4x hot-swap drive bays to support NVMe drives
