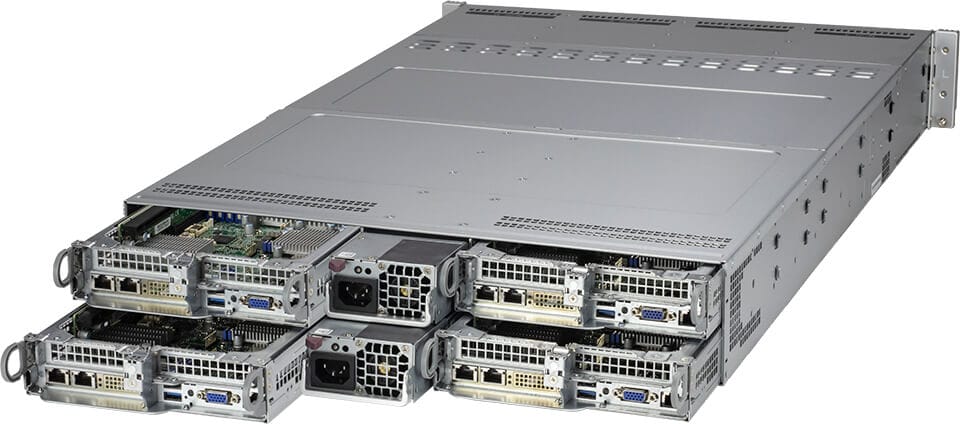

SuperServer SYS-620TP-HTTR

Integrated Board: X12DPT-PT6
  Drive Options
Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
New


Key Applications
- High Performance Computing
- Hyper-Converged Infrastructure
- Big Data / Big Science
- Oil immersion, Liquid Cooling



Key Features

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  1. Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
  2. Intel® C621A chipset
  3. 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
  4. 2 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x8 (with M.2 adapter installed)
  5. Intel® X710 Dual port 10GBase-T LAN onboard
  6. 3x 3.5" hot-swap SATA/SAS drive bays
  7. 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)
  8. Two 2200W redundant power supplies with PMBus
  9. ASPEED AST2600 BMC, 2 USB, VGA. RoT, 2 SATADOM ports
    SATA (6Gbps); 3 slots per node; RAID 0, 1, 5 support.
Specifications
Product SKUs
SYS-620TP-HTTR
  • SuperServer SYS-620TP-HTTR (Black front & sliver body)

Motherboard


Super X12DPT-PT6

Processor/Cache (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Generation Intel® Xeon® Scalable processors
  • Dual UPI up to 11.2GT/s
  • Support CPU TDP 185W *
Cores
  • Up to 32C/64T
Note
  • *Please contact Supermicro Technical Support for supporting conditions of high power (TDP 150W and above) or high base frequency (3.0 GHz and above) processors.

System Memory (per Node)
Memory
  • Memory Capacity: 16 DIMM slots
  • UP to 4TB: 16x 256 GB DRAM
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices (per Node)
SATA
  • SATA3 (6Gbps) via Intel C621A; RAID 0, 1, 5 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X710-AT2
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
BMC
  • ASPEED AST2600 BMC

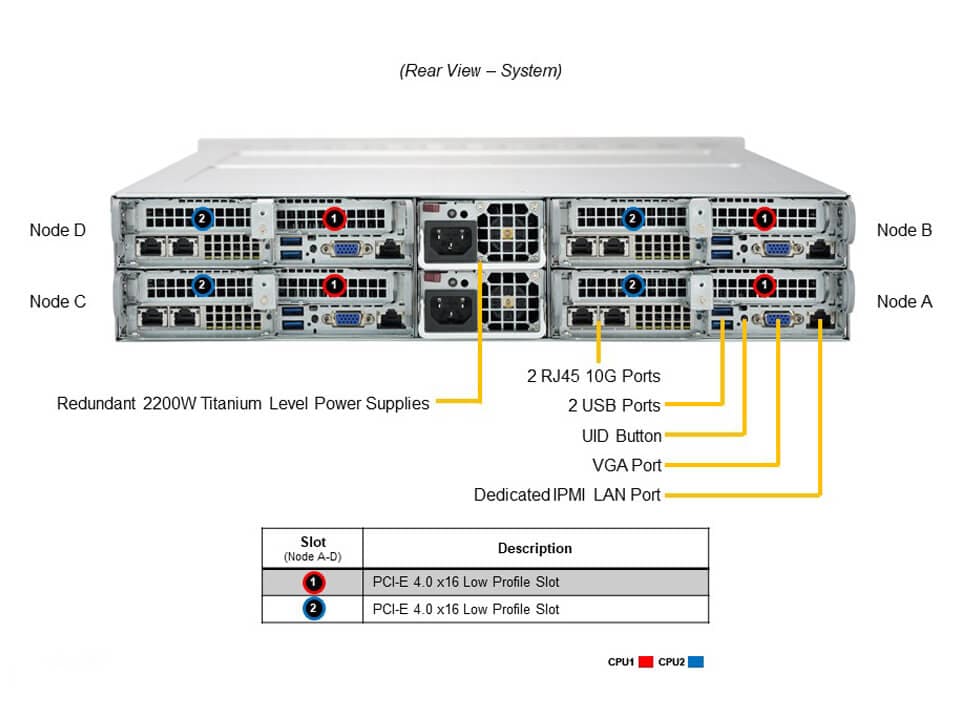

Input / Output (per Node)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3 port(s) (2 rear)
Video
  • 1 VGA port(s)
DOM
  • 2 SuperDOM (Disk on Module) port

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI/APM Power Management
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • 5 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSV-827HQ+-R2K20BP2

Dimensions and Weight
Height
  • 3.47" (88mm)
Width
  • 17.25" (438mm)
Depth
  • 30.5" (774mm)
Package
  • 10" (H) x 24.5" (W) x 45" (D)
Weight
  • Net Weight: 72 lbs (32.7 kg)
  • Gross Weight: 90 lbs (40.9 kg)
Available Color
  • Black front & sliver body

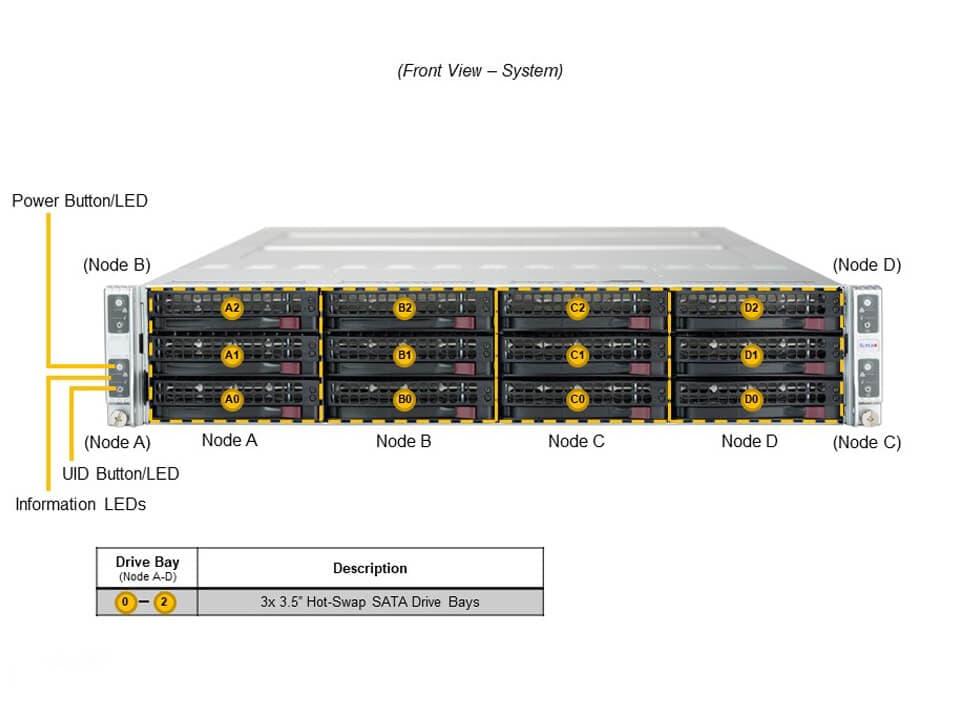

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
    • Network activity LED
    • Power status LED
    • System information (overheat/UID) LED

Expansion Slots (per Node)
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 LP
  • Slot 2: PCI-E 4.0 x16 LP
  • Internal Slot: M.2

Drive Bays / Storage (per Node)
Hot-swap
  • 3x 3.5" hot-swap SATA drive bays

System Cooling
Fans
  • 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 4 Air Shroud(s)

Power Supply
2x 2000W Redundant Power Supplies, Titanium Level
Total Output Power
  • 1200W: 100-127Vac
  • 1800W: 200-220Vac
  • 1980W: 220-230Vac
  • 2200W: 220-240Vac (for UL/cUL use only)
  • 2090W: 230-240Vdc (for CCC only)
  • 2090W: 230-240Vac
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 50-60Hz
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 183.3A / Min: 0A (220Vac-240Vac)
  • Max: 174.17A / Min: 0A (230Vac-240Vac)
5V SB
  • Max: 1A / Min: 0A
+54V
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level94%+   Titanium Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
