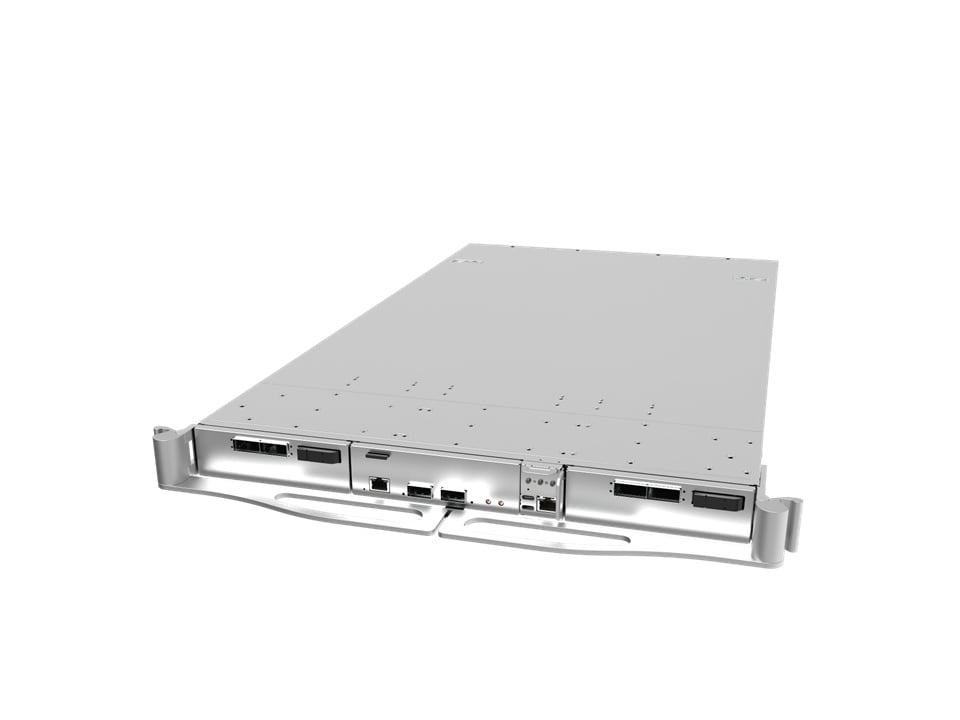

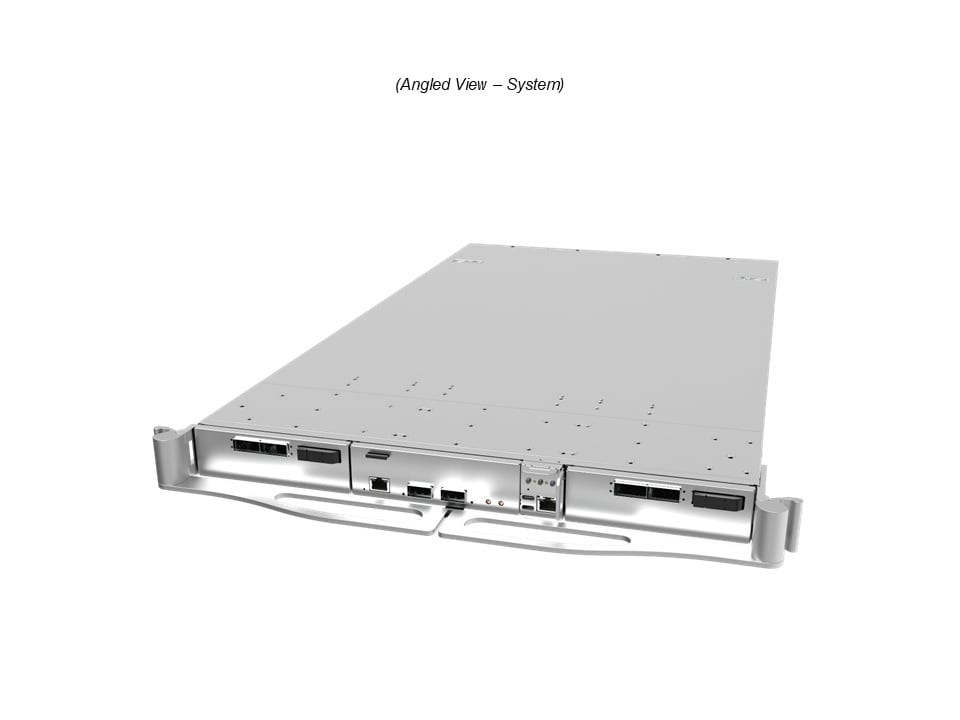

Supermicro ARS-123GL-NRB-ALC | 1U GPU Server

1U NVIDIA Vera Rubin NVL4 system with 4-port 800G ConnectX®-9, 2-port 400G BlueField®-4 and 2 E1.S drives

Integrated Board: GPU-NVVR-NVL4

Key Applications

  • GPU Accelerated Compute
  • High-performance Computing (HPC)
  • AI/Deep Learning Training and Inference

Key Features

  1. NVIDIA Vera Rubin with 4 NVIDIA NVLink® (VR NVL4)
  2. Dual NVIDIA 88-core Vera CPUs with liquid cooling
  3. Quad NVIDIA Rubin GPUs with liquid cooling
  4. 1536GB onboard memory
  5. Quad OSFP 800Gbps Infiniband/Ethernet + Dual QSFP112 400Gbps Infiniband/Ethernet
  6. 2 front hot-swap E1.S NVMe drive bays
  7. 48-52V DC Busbar
...
...
ARS-123GL-NRB-ALC
Specifications Free Remote Testing Resources & Downloads
Specifications
Product SKUs
ARS-123GL-NRB-ALC
Motherboard
Super GPU-NVVR-NVL4
Processor
CPU
  • Dual processor(s)
  • NVIDIA Vera CPU with Dual 88-core processors
Core Count
  • 88C/176T; 164MB Cache per CPU
Note
  • Supports up to 550W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • 4 onboard GPUs
GPU-GPU Interconnect
  • Sixth-Generation NVIDIA NVLink™
System Memory
Memory
  • Onboard Memory
  • 1536GB ECC LPDDR5X
On-Board Devices
Network Connectivity
  • 1 RJ45 1GbE with Realtek
  • 4 OSFP 800Gb InfiniBand with NVIDIA ConnectX®-9
  • 2 QSFP112 400Gb InfiniBand with NVIDIA BlueField®-4
Input / Output
LAN
  • 1 RJ45 1 GbE BMC Shared LAN port (ASPEED AST2600)
USB
  • 1 USB 3.2 Gen1 Type-C port(Front)
Video
  • 1 DisplayPort over USB Type-C port(Front)
TPM
  • 1 TPM Onboard TPM & TPM Header
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Features
  • Secure Firmware Updates
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
Temperature
  • Monitoring for CPU and chassis environment; CPU Thermal Trip Support; I²C Temperature Sensing Logic
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-MG108TS-V01DP-NVL4
Dimensions and Weight
Height
  • 1.7" (43.6 mm)
Width
  • 17.26" (438 mm)
Depth
  • 30.15" (766 mm)
Package
  • 9.05" (H) x 24.8" (W) x 45.27" (D)
Weight
  • Gross Weight: 79.36 lbs (36 kg)
  • Net Weight: 77.16 lbs (35 kg)
Available Color
  • Silver

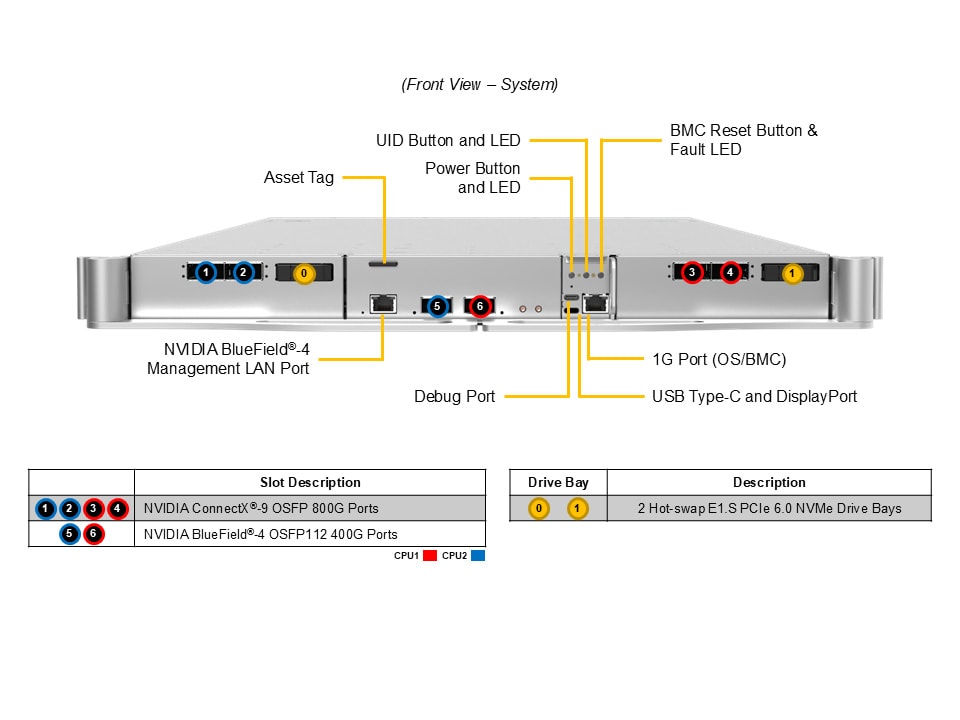

Front Panel
Buttons
  • Power On/Off
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 2 bays
    • 2 front hot-swap E1.S PCIe 6.0 x4 NVMe drive bays
M.2
  • 1 M.2 PCIe 6.0 x4 NVMe slot (M-key 22110(default)/2280)
System Cooling
Fans
  • N/A

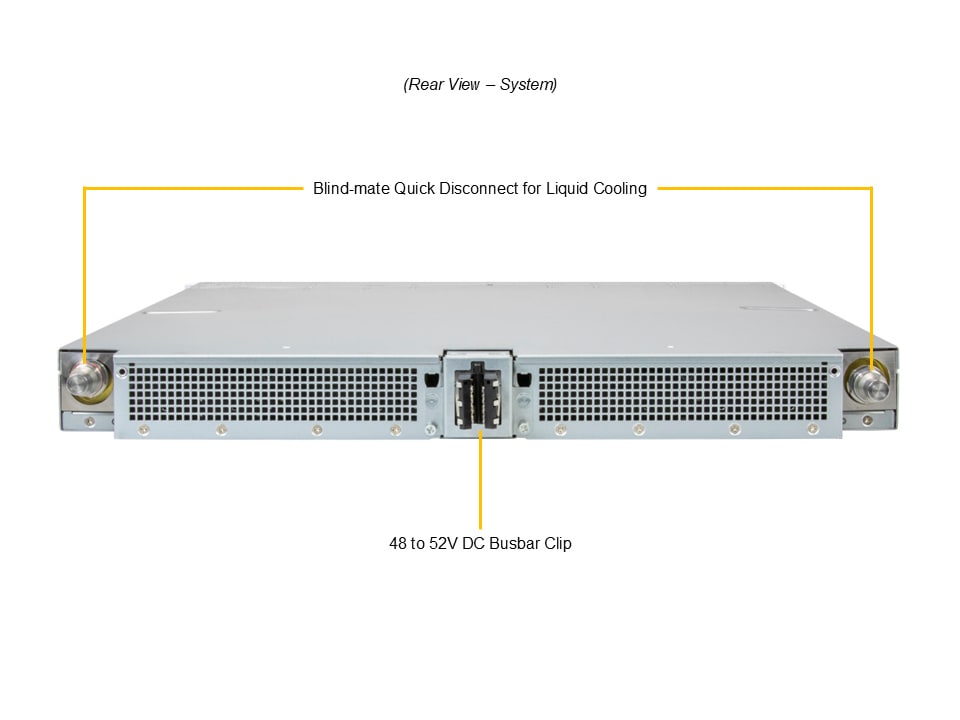

Liquid Cooling
  • Direct to Chip (D2C) Cold Plate
Power Supply
Power via Busbar (48-52V DC)
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Name: A2
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
