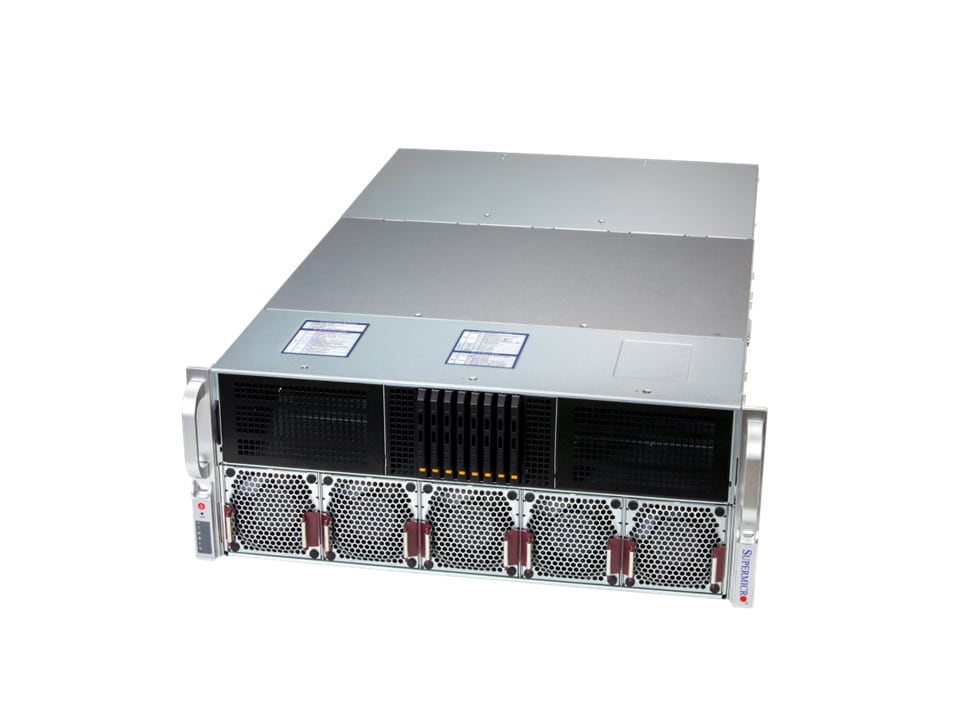

SuperServer SYS-422GB-NRT

DP Intel 4U Dual-Root PCIe GPU System with up to 8 GPUs

Integrated Board: X14DBG-SP
Learn more

Key Applications

  • High Performance Computing
  • VDI
  • AI/Deep Learning Training
  • Media/Video Streaming
  • Cloud Gaming
  • Animation and Modeling
  • Design & Visualization
  • 3D Rendering
  • Diagnostic Imaging

Key Features

  1. Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500-series processors with P-cores up to 350W with air cooling
  2. Support for up to 8 double-width PCIe GPU accelerator cards
  3. Up to 32 DIMMs supporting 4TB DDR5-6400MT/s or 8000MT/s in 1DPC or 8TB DDR5-5200MT/s in 2DPC
  4. Flexible networking with up to AIOM slots
  5. Up to 13 PCIe 5.0 x16 FHFL slots
  6. 4 Redundant 3200W Titanium Level power supplies
...
...
SYS-422GB-NRT
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-422GB-NRT
Motherboard
Super X14DBG-SP
Processor
CPU
Core Count
  • Up to 128C/256T; Up to 504MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs
CPU-GPU Interconnect
  • PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (optional)
System Memory
Memory

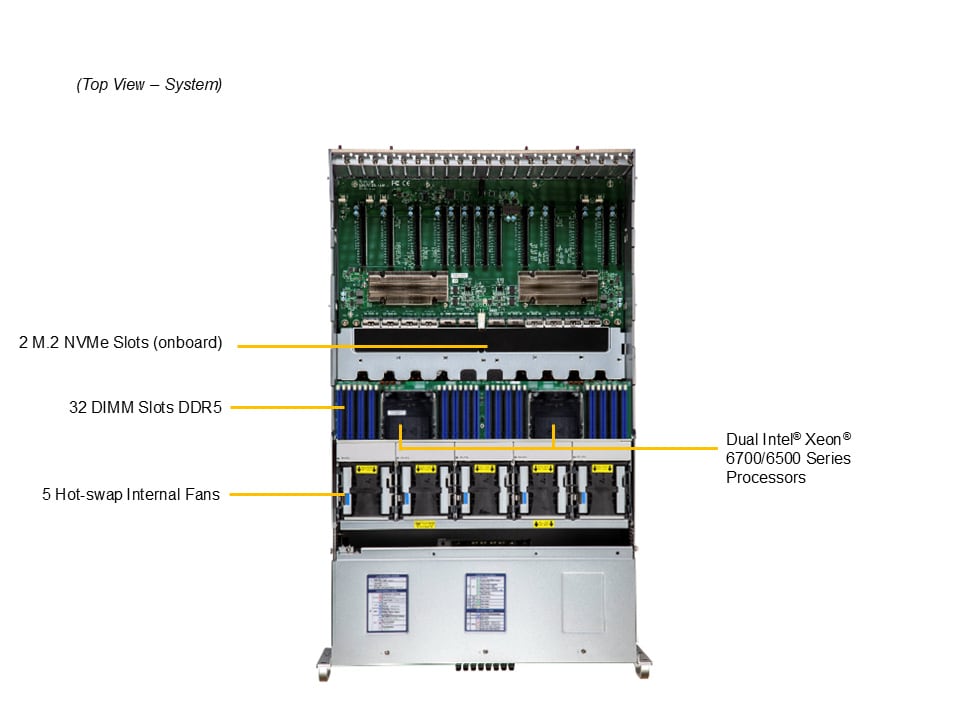

  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (1DPC): Up to 4TB 8000MT/s ECC DDR5 MRDIMM
  • Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GbE with Intel® X710-AT2
Input / Output
LAN
  • 2 RJ45 10 GbE LAN ports (Intel® X710)
USB
  • 2 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-418G3TS-R6K40P
Dimensions and Weight
Height
  • 7" (178 mm)
Width
  • 17.2" (437 mm)
Depth
  • 29" (737 mm)
Package
  • 26.57" (H) x 27" (W) x 41" (D)
Weight
  • Gross Weight: 100 lbs (45.3 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Color
  • Black Front & Silver Body
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default

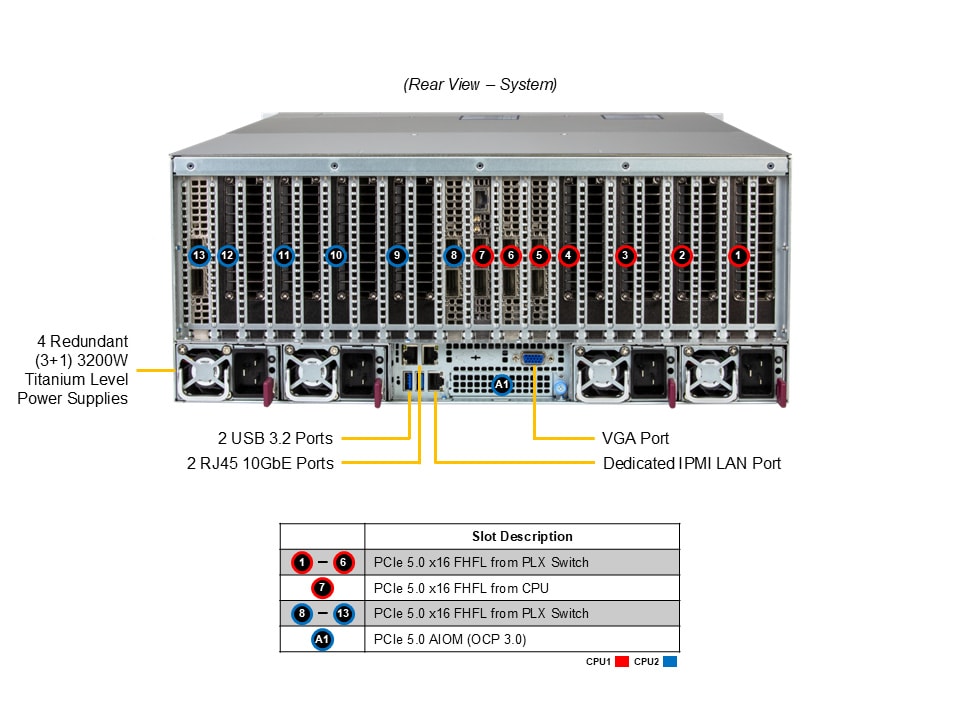

    • 13 PCIe 5.0 x16 FHFL slots
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key)
Drive Bays / Storage
Drive Bays Configuration

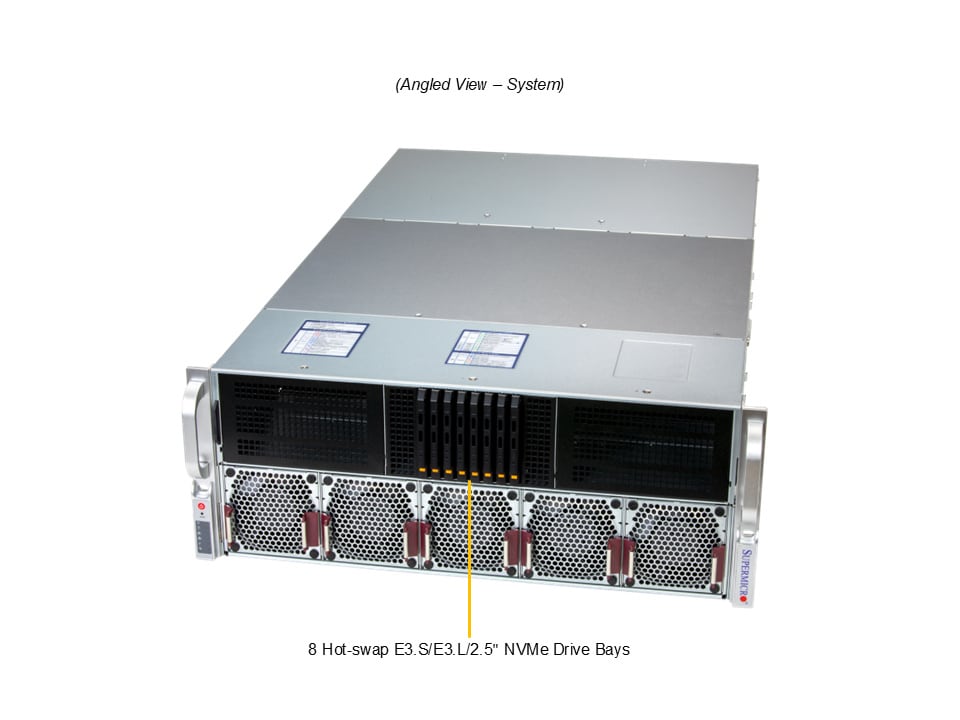

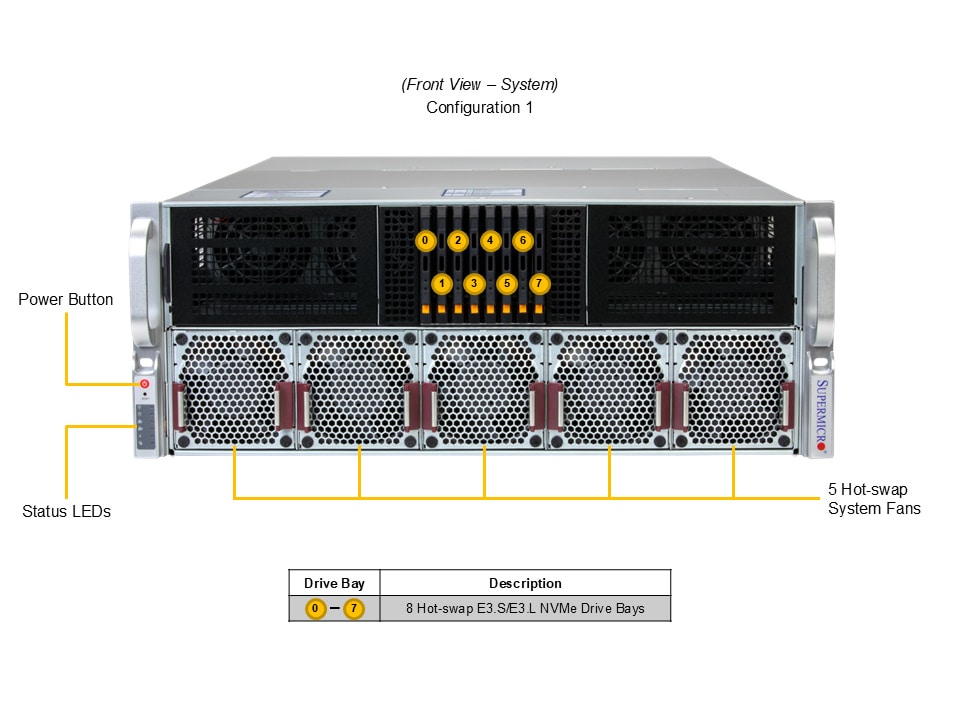

  • Option A: Total 8 bays
    • 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
  • Option B: Total 8 bays
    • 8 front hot-swap E3.L 1T PCIe 5.0 x4 NVMe drive bays
  • Option C: Total 8 bays
    • 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
M.2
  • 2 M.2 NVMe slots (M-key)
System Cooling
Fans
  • 10x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 4 Air Shrouds
Power Supply
4x 3200W
4x 3200W Redundant (3 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
Input1400W: 100-127Vac / 50-60Hz
2900W: 200-207Vac / 50-60Hz
3000W: 207.1-219Vac / 50-60Hz
3200W: 219.1-240Vac / 50-60Hz
3200W: 240Vdc / 50-60Hz (for CQC only)
+12VMax: 116.6A / Min: 0A (100Vac-127Vac)
Max: 241.6A / Min: 0A (200Vac-207Vac)
Max: 250A / Min: 0A (207.1Vac-219Vac)
Max: 266.6A / Min: 0A (219.1Vac-240Vac)
12V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Configuration with 8x E3.S/E3.L BPN-EDS5-246N-R1 1 2U BPN with 8x EDSFF NVMe for X14 Petascale Storage sys
CBL-MCIO-1435RO5Y 4 MCIO x8 RA to 2 ORTHO x4 1C,35cm,30AWG,RoHS
MCP-220-23601-0B 8 E3.S_FRONT_LATCH_ASM with Tray (76mm height x7.5mm W)
MCP-290-23603-0N 1 8x E3.S module assembly for CES236E3(W/O E3.S tray)
Configuration with 8x U.2 2.5" NVMe BPN-NVME5-HS219N-S8 1 2U 8-port Hybrid backplane support up to 8xSAS3/SATA2/NV
CBL-MCIO-1224M5 • 4 MCIO x8 (STR to STR),24CM,Gen5,85OhM,RoHS
MCP-290-23602-0N • 1 8XU.2 module assembly for CSE236E3
CPU Carrier E2A for XCC Processor SKT-1543H-0000-FXC 2 SOCKET E2 E2A CARRIER,LGA4710,GNR-SP XCC,DG1.0,COOL GRAY,HF
CPU Carrier E2B for HCC/LCC Processor SKT-1544H-0000-FXC 2 SOCKET E2 E2B CARRIER,LGA4710,GNR-SP HCC/LCC&SRF-SP,DG1.0,HF
TPM module AOM-TPM-9672V-P 1 AOM-TPM-9672V- TPM 2.0 with 10 pins SPI,RoHS
