SuperServer SYS-E403-12P-IPA2-C

X12 IP65 designed server with 3rd Gen Intel Xeon Scalable processors

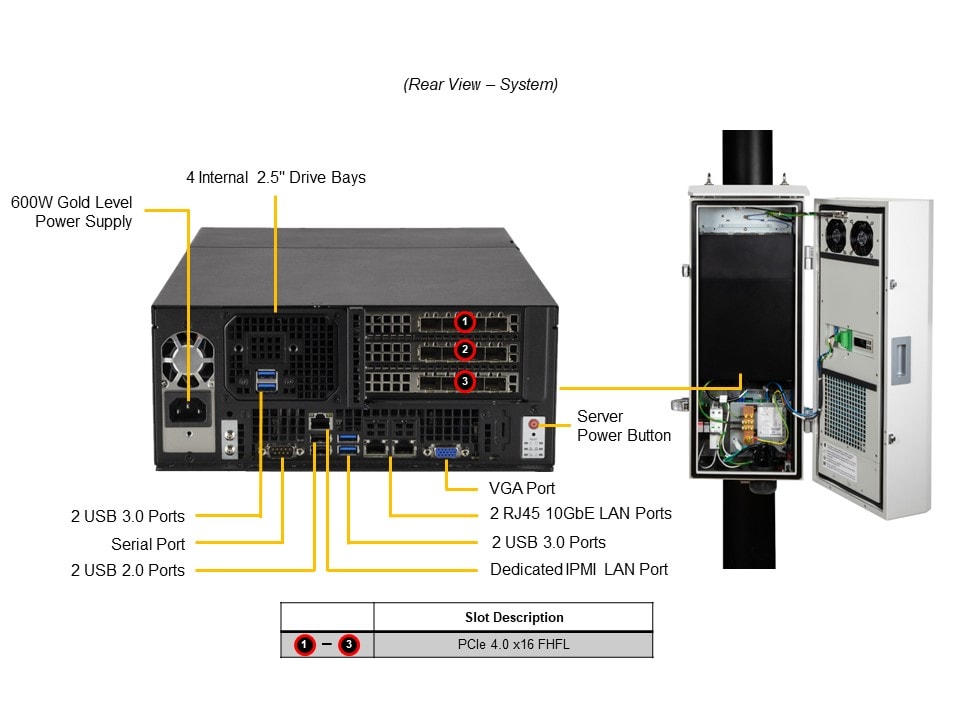

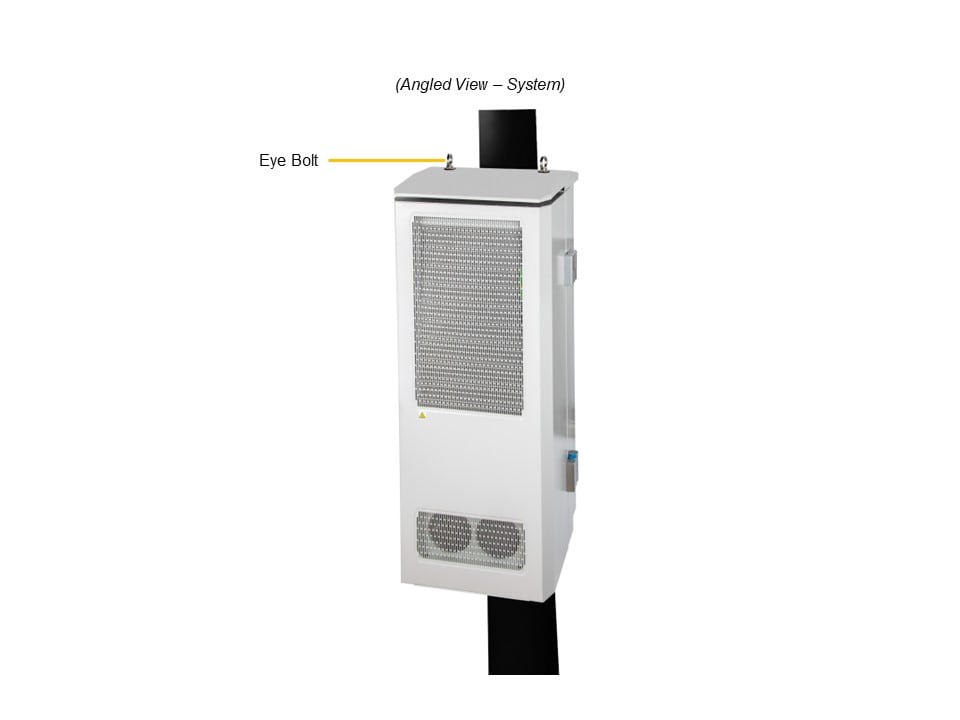

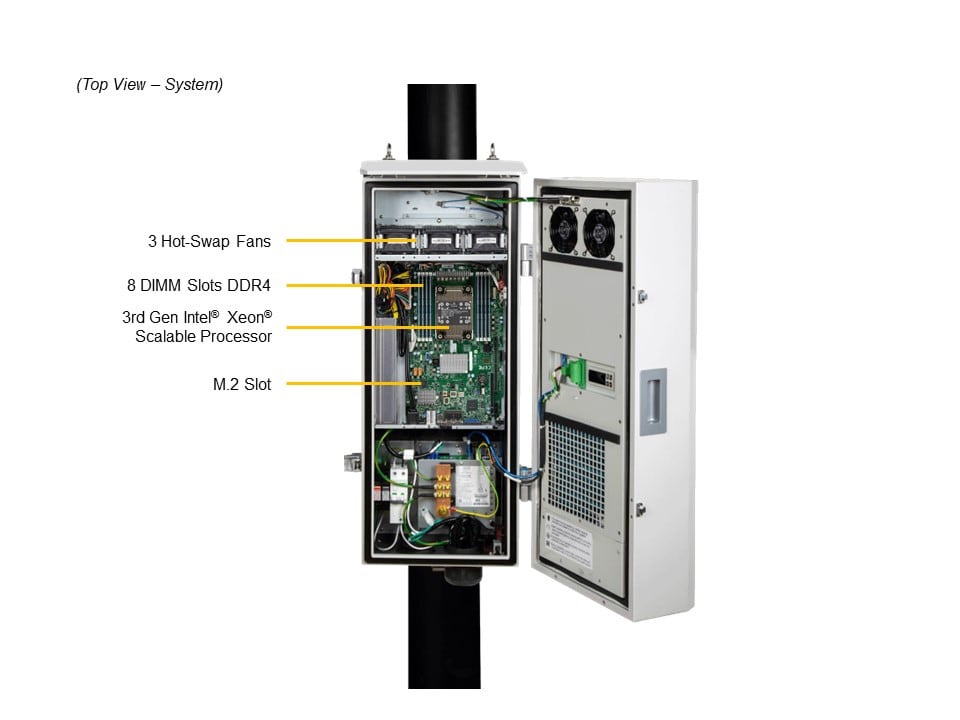

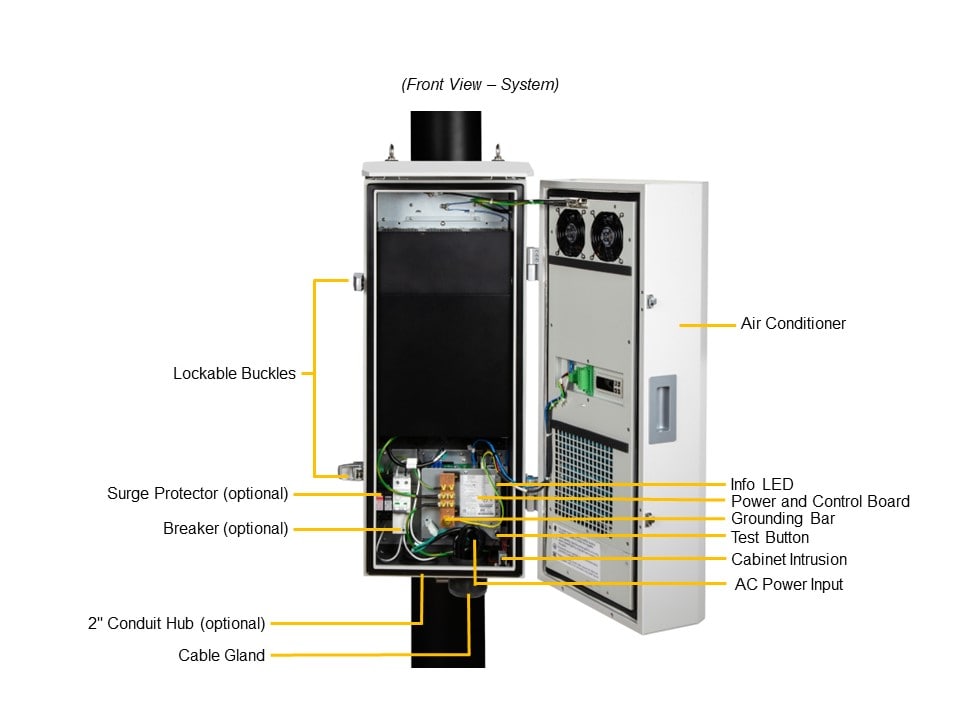

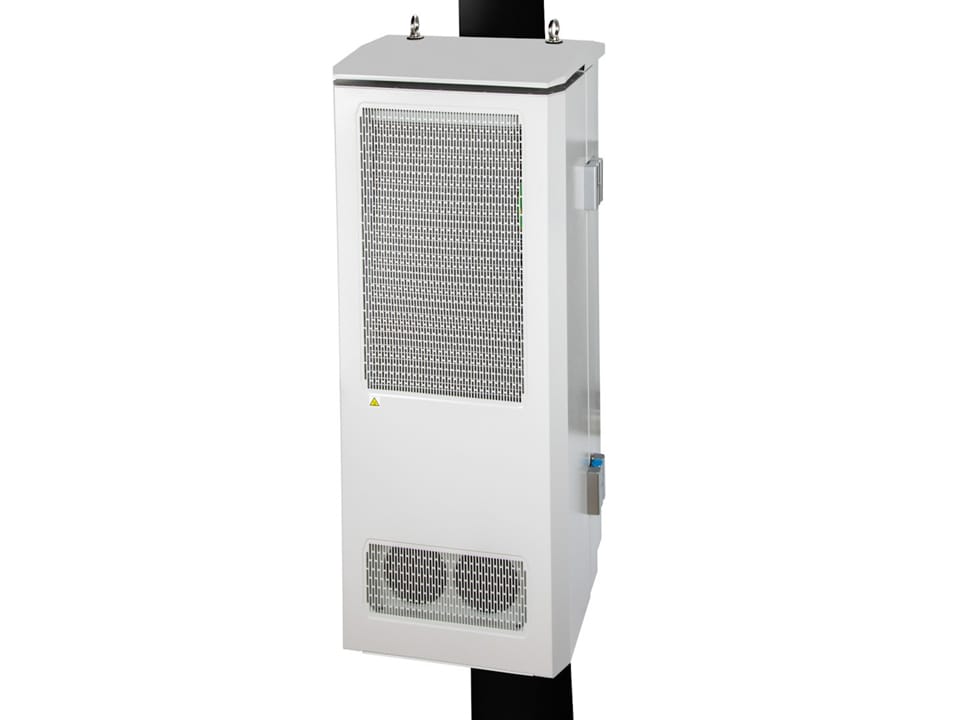

SYS-E403-12P-IPA2-C Main SYS-E403-12P-IPA2-C Angle SYS-E403-12P-IPA2-C Top SYS-E403-12P-IPA2-C Front SYS-E403-12P-IPA2-C Rear
Integrated Board: X12SPW-TF
Learn more

Key Applications

  • Multi-Access Edge Computing (MEC)
  • 5G Radio Access Network (RAN)
  • Edge AI Inferencing
  • Vehicle to Everything (C-V2X/V2X)
  • Virtualized Functions and Services

Key Features

  1. IP65 enclosure for harsh outdoor environments
  2. Operating Temperature -40°C ~ 55°C + Solar load
  3. Cabinet intrusion detection and self-diagnosis
  4. Single Socket Intel® Xeon-SP (Ice Lake) up to 32 Cores
  5. 3 Hot swap fan
...
...
SYS-E403-12P-IPA2-C
Specifications Resources & Downloads
Specifications
Product SKUs
SuperServer SYS-E403-12P-IPA2-C
Motherboard
Super X12SPW-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Note
  • Supports up to 205W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
On-Board Devices
SATA
  • SATA (6Gbps) via Intel® C621A; RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2 RJ45 10GBASE-T with Intel® X550-AT2
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
  • 2 RJ45 10 GBASE-T LAN port(s) (Intel® X550-AT2)
USB
  • 2 USB 2.0 Type-A port(s) (rear)
  • 4 USB 3.0 Type-A port(s) (Rear)
Video
  • 1 VGA port(s) (Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • Riser Card audio detection support
  • SMBIOS 3.0 or later
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
Chassis
Form Factor
  • Outdoor
Model
  • CSE-B403-C500S1-IP65
Dimensions and Weight
Height
  • 30.95" (786 mm)
Width
  • 12.58" (319.4 mm)
Depth
  • 11.83" (300.4 mm)
Package
  • 45.35" (H) x 25.6" (W) x 27.56" (D)
Weight
  • Net Weight: 58.37 lbs (26.48 kg)
Available Color
  • Beige
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 3 PCIe 4.0 x16 FHFL slot(s)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bay(s)
    • 4 internal fixed 2.5" SATA drive bay(s)
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280/22110)
System Cooling
Fans
  • 1 Active Air Conditioner Module (On IP65 enclosure) with build-in Fan(s)
  • 3 heavy duty fans with optimal fan speed control(In server) 80x80x38mm Fan(s)
Power Supply
1x 600W/680W Gold Level power supply
Dimension (WxHxL)100 x 40 x 220 mm
+12VMax: 56A / Min: 1A (180Vac-240Vac)
5V SBMax: 3A / Min: 0A
AC Input680W: 180-240Vac / 50-60Hz
Output Type24pin ATX
Operating Environment
Environmental Spec.
  • Operating Temperature: -40°C ~ 55°C (-40°F ~ 131°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
