SuperServer AS -3015A-I

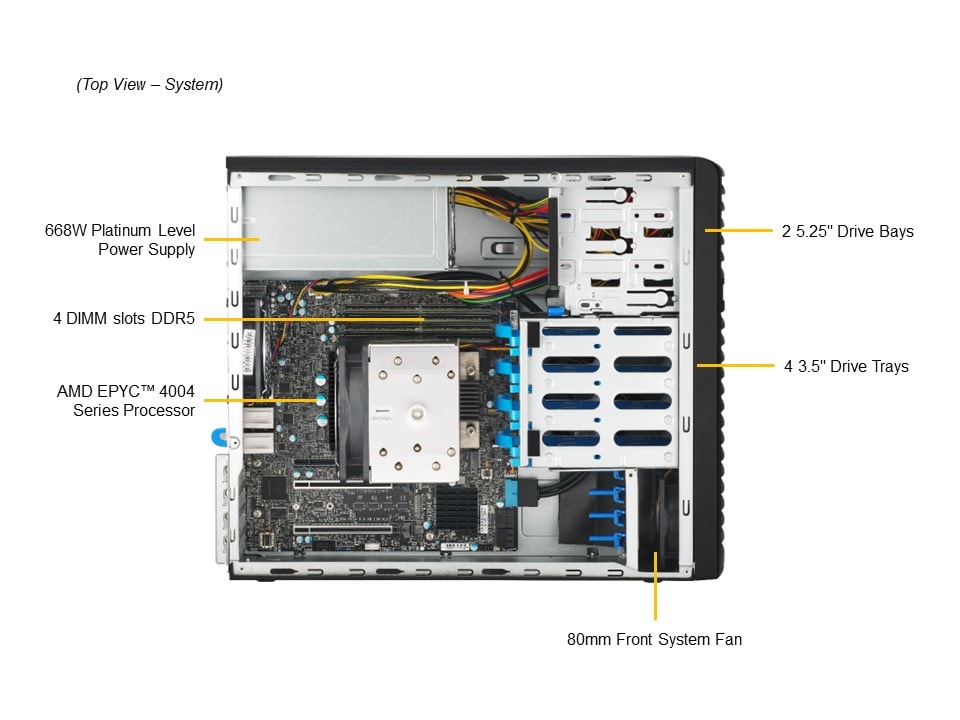

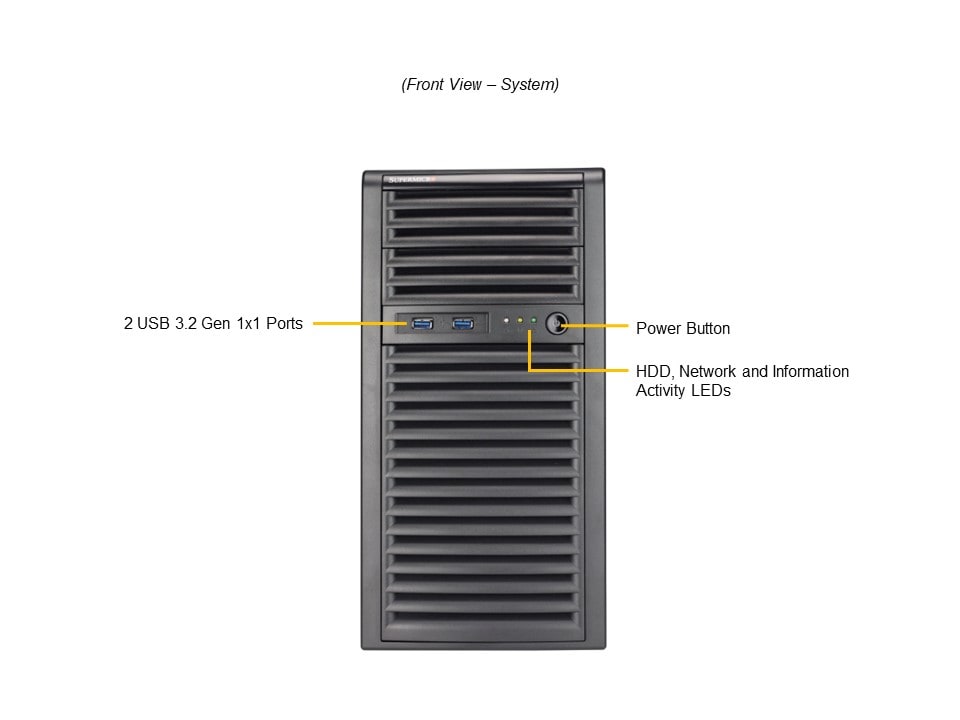

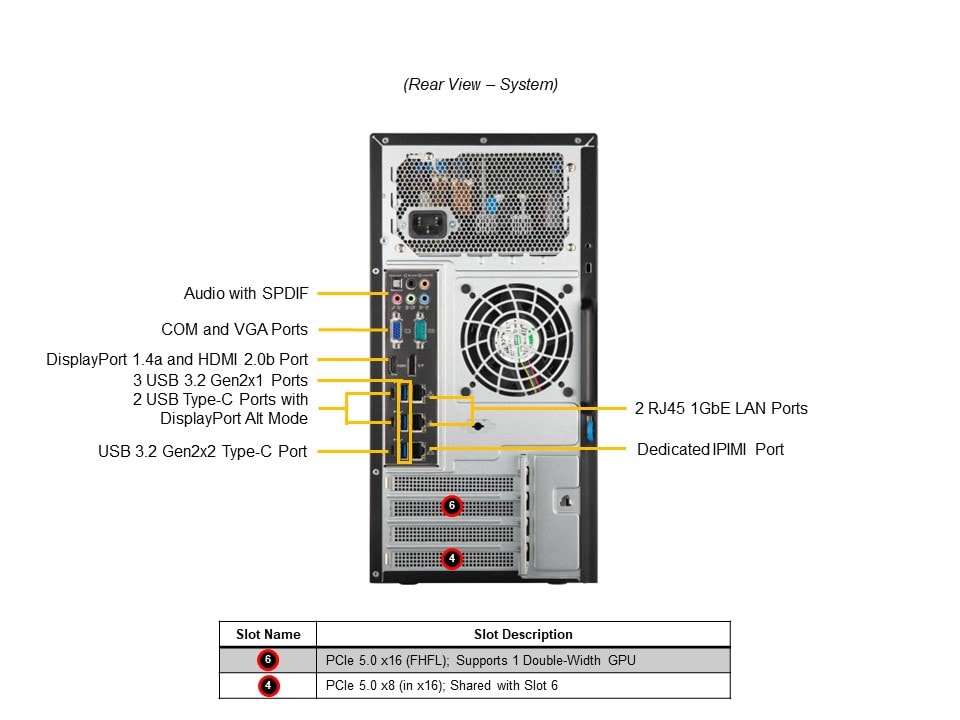

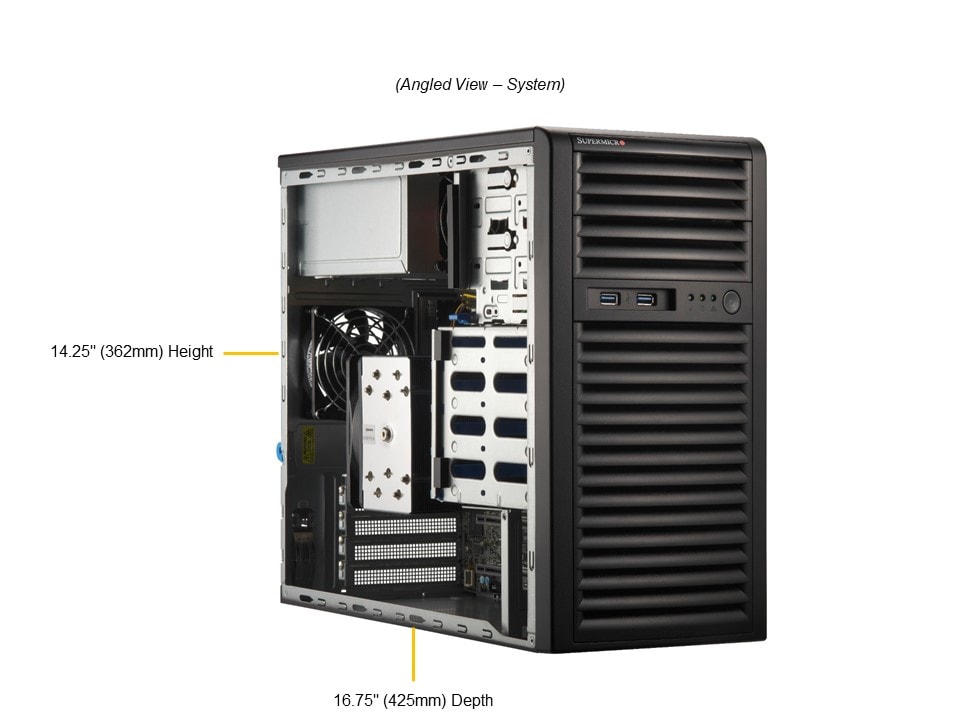

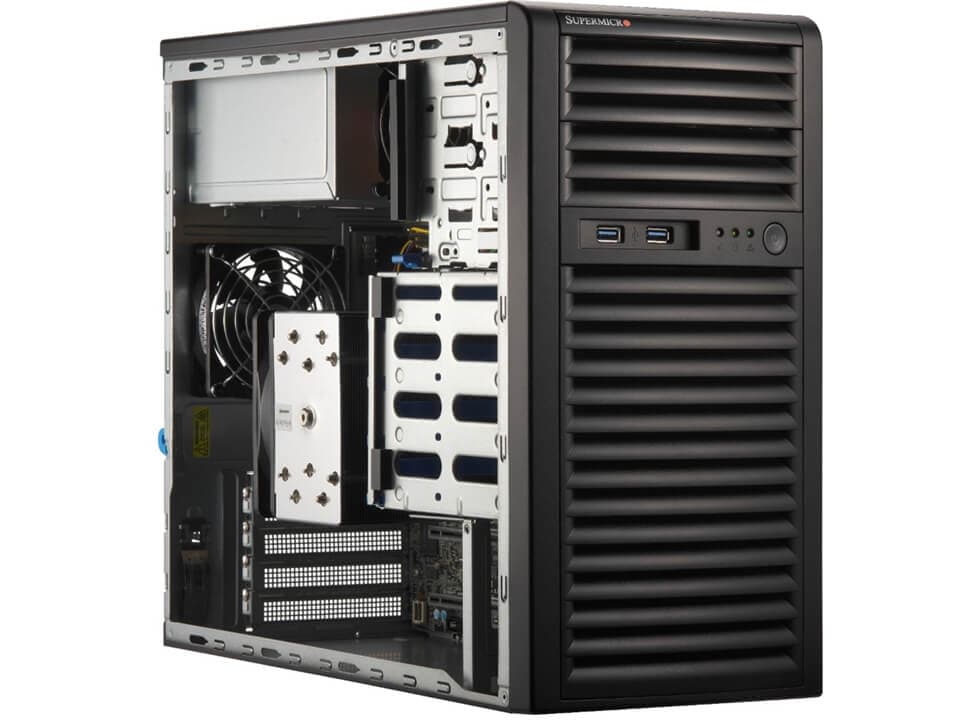

AS -3015A-I Main AS -3015A-I Angle AS -3015A-I Front AS -3015A-I Rear AS -3015A-I Side
Integrated Board: H13SAE-MF
Learn more

Key Applications

  • 2D/3D Content Creation
  • Email/Firewall/Application Server
  • Designed for small and medium businesses

Key Features

  1. AMD Ryzen™ 7000 series processors
  2. 4x Dual Channel ECC / Non-ECC DDR5 Unbuffered DIMM up to 128GB
  3. 2 High-throughput PCIe Gen5 x16 slots (16/NA or 8/8) and 2xPCIe 5.0x4 M.2 slots
  4. 2x 1GbE LAN (Intel® I210-AT)
...
...
Specifications Resources Parts List
Specifications
Product SKUs
A+ Server AS -3015A-I (Black)
Motherboard
Super H13SAE-MF
Processor
CPU
  • Single processor(s)
  • Zen4 Gen AMD Ryzen™ 7000 series processors
Core Count
  • Up to 16C/32T
Note
  • Supports up to 170W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width GPU(s)
System Memory
Memory
  • Memory Capacity: 4 DIMM slots
  • Up to 128GB: 4x 32 GB DRAM
  • Memory Type: 5200MHz ECC DDR5 UDIMM
Memory Voltage
  • 1.1 V
Error Detection
  • ECC/Non-ECC
On-Board Devices
Chipset
  • AMD B650
Network Connectivity
  • 1x 1GbE BaseT with Realtek RTL8211F PHY (dedicated IPMI)
  • 2x 1GbE BaseT with Intel® I210-AT
Input / Output
SATA
  • 4 SATA (6Gbps) port(s)
USB
  • 2 USB 3.2 Gen 1 port(s) (2 front Type A)
  • 3 USB 3.2 Gen 2x1 port(s) (3 rear Type A)
  • 1 USB 3.2 Gen 2x2 port(s) (1 rear Type C)
  • 2 USB 3.2 Gen 2 port(s) (2 rear Type C)
Video
  • 1 VGA port(s)
  • 1 HDMI port(s)
  • 1 DisplayPort (s)
Serial Port
  • 1 COM Port(s) (1 header)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Chassis
Form Factor
  • Mini-Tower
Model
  • CSE-731i-668B
Dimensions and Weight
Height
  • 14.25" (362mm)
Width
  • 7.25" (184mm)
Depth
  • 16.75" (425mm)
Package
  • 20" (H) x 11" (W) x 21" (D)
Weight
  • Net Weight: 18 lbs (8.16 kg)
  • Gross Weight: 22 lbs (9.98 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off button
LEDs
  • HDD activity LED
  • Network activity LEDs
  • Power LED
  • System Overheat LED
Port
  • USB 3.0 Port(s)
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x16 slot(s)


  • (Slot#6 and Slot#4 can be configured as 16/NA or 8/8)
Drive Bays / Storage
Drive Bays
  • 4x 3.5" SATA drive bays (or up to 4x 2.5" SATA drive bays via optoinal brackets)
M.2
  • 2x NVMe (PCIe 5.0x4)
  • M-Key, 2280/22110
Peripheral Bays
  • 2x 5.25" drive bays
System Cooling
Fans
  • 1x 80mm Fan(s)
  • 1x 90mm Fan(s)
Power Supply
668W Platinum Level power supply
Dimension

(W x H x L)
  • 150 x 86 x 185 mm
AC Input
  • 668W: 100-240Vac / 50-60Hz
+12V
  • Max: 54A / Min: 0.2A (100Vac-240Vac)
5V SB
  • Max: 2A / Min: 0A
Output Type
  • 24pin ATX
Certification Platinum Level Certified   Platinum Level




  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Resources
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-H13SAE-MF

CSE-731i-668B
1

1
Super H13SAE-MF Motherboard

Mini-Tower Chassis
Cable CBL-0044L 4 57.5CM SATA FLAT S-S PBF
CBL-PWCD-0260-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
CBL-0084L 1 16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE
CBL-CUSB-1007 1 20p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS
Fan FAN-0247L4 1 80x80x25 mm, 5K RPM Cooling Fan for AS -3015A-I,RoHS
FAN-0108L4 1 92X25MM 4-PIN PWM REAR EXT FAN FOR SC731
Parts MCP-260-00185-0B 1 STD I/O Shield for H13SAE-MF with EMI Gasket & Black Mylar
MCP-110-00033-0N 2 Binding Head Screw (with teeth) #632*4.5L
Power Supply PWS-668-PQ 1 PS2 668W Multi-Output 80Plus Platinum Power Supply with 24pi
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
*Drive Tray(s) MCP-220-73101-0B 4 SC731 Tool-less Internal 3.5inch HDD Tray
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
DVD Kit CBL-0082L 1 Y SPLIT SATA POWER ADAPTER
CBL-SAST-0624 1 70cm SATA Cable S-S 30AWG
DVM-TEAC-DVDRW24-HBT1 1 BLACK TEAC 5.25" HH 24X DVD-RW SATA DRIVE (Please also add CBL-SAST-0624 and CBL-0082L)
HDD Converter MCP-220-73102-0N 1 2.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
Heatsink SNK-P0093AP4 1 High Performance CPU Heatsink
Mobile Rack CSE-M14TQC 1 SAS3/SATA mobile rack for 4x 2.5" drives
TPM AOM-TPM-9670V 1 SPI TPM 2.0
Mainstream A+ Server AS -3015A-I
