A+ Server 1114CS-TNR (Complete System Only)

A+ Products Systems 1U [ 1114CS-TNR ]





Integrated Board
H12SSW-AN6 Motherboard
Super H12SSW-AN6

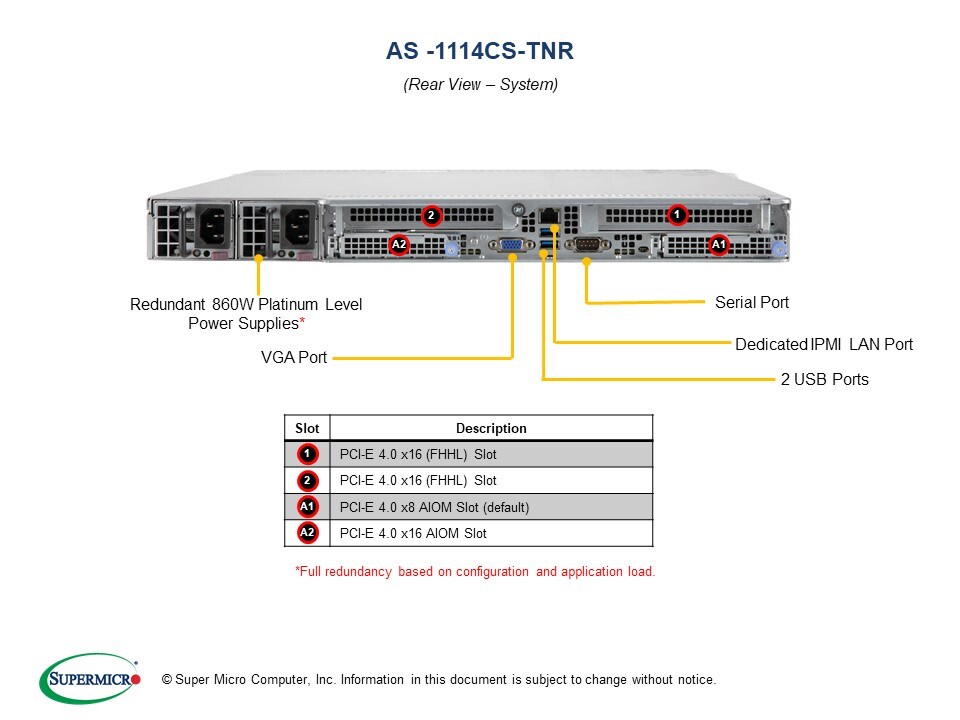

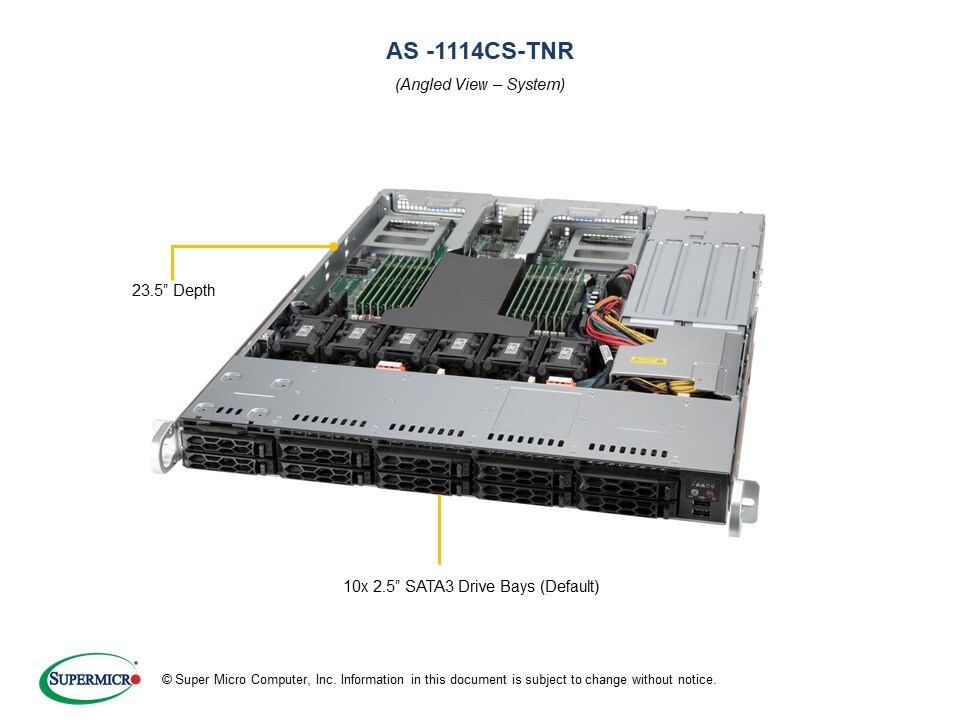

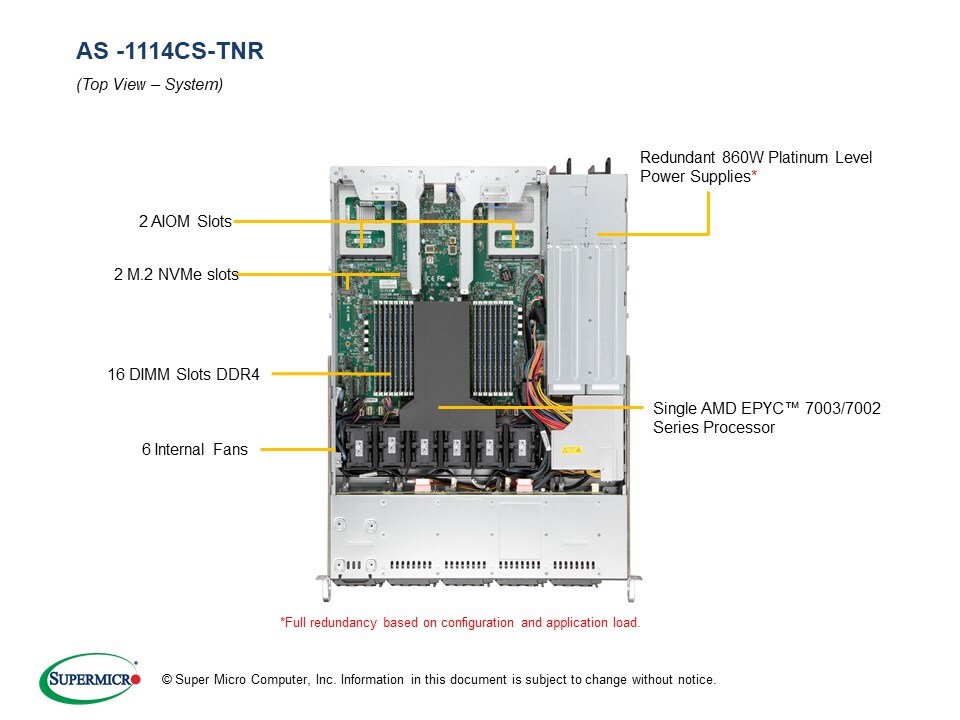

Views: | Angled View | Top View |
| Front View | Rear View |
Key Applications
- Financial Services
- Cloud Computing
- Network Appliance
- Private Cloud
- Content Delivery Network (CDN)
- Deep Learning Inferencing

Key Features
1. Single AMD EPYC™ 7002/7003 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
3. Expansion slots:
2 PCI-E 4.0 x16 (FHHL) slots,
2 AIOM slots for flexible networking
 (One x8 AIOM slot and one x16 AIOM slot)
4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
 key (SFT-OOB-LIC) included
 for OOB BIOS management
5. 10 Hot-swap 2.5" SATA3 drive bays,
optional 10x SAS3/NVMe support via additional SAS/NVMe kit
M.2 Interface: 2 PCI-E 4.0 x4
M.2 Form Factor: 2242, 2260, 2280, 22110
M.2 Key: M-Key
6. 2 USB 3.0 ports (rear),
1 VGA, 1 COM,
ASPEED AST2600 BMC graphics
7. Tool-less Drive Trays and Tool-less Brackets
8. 860W Redundant Platinum Level Power Supplies
(Full redundancy based on configuration and application load)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (For optimal performance, 8 DIMMs are recommended). Minimum requirement is 1 CPU, 4 DIMMs, 1 HDD/NVMe and 1 AIOM/AOC NIC card.

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List  NVMe Options Tested AOC  Manuals  OS Certification Matrix Compatible GPU List  Quick-References Guide  Drive Options  Tested AIOM Datasheet

Product SKUs
AS -1114CS-TNR
  • A+ Server 1114CS-TNR (Black)

Motherboard

Super H12SSW-AN6

Processor/Chipset
CPU
  • Single AMD EPYC™ 7002/7003 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W
Cores
  • Up to 64 Cores

System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Flexible networking provided via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2600 BMC

Input / Output
SATA
  • 16 SATA3 (6 Gbps) ports
LAN
  • Networking provided via AIOM
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
COM
  • 1 COM Port (rear)
Video
  • 1 VGA port

System BIOS
BIOS Type
  • AMI 256Mb SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • 6 Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LB16TS-R860AWP2

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Package
  • 7.76" (H) 23.82" (W) 32.36" (D)
Depth
  • 23.5" (597mm)
Gross Weight
  • 46 lbs (20.9kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots
PCI-Express
  • 2 PCI-E 4.0 x16 (FHHL) slots
  • 2 PCI-E 4.0 x16 AIOM networking slots (One x8 AIOM slot and one x16 AIOM slot)

Drive Bays
Hot-swap
  • 10 Hot-swap 2.5" SATA3 drive bays
  • Optional 10 SAS3/NVMe drive support via additional SAS/NVMe kit

Backplane
SAS/SATA/NVMe HDD Backplane

System Cooling
Fans
  • 6 Counter-rotating 40x40x56mm PWM fans

Power Supply
800W/860W 1U redundant power supply
Total Output Power and Input
  • 800W with Input 100 - 127Vac
  • 860W with Input 200 - 240Vac
  • 860W with Input 200 - 240Vdc
Dimension
(W x H x L)
  • 54.5 x 40.25 x 322 mm
AC Input Frequency
  • 50-60Hz
+12V
  • Max: 66.6A / Min: 0A (100Vac-127Vac)
  • Max: 71.6A / Min: 0A (200Vac-240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Platinum Level Certified

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-H12SSW-AN6
CSE-LB16TS-R860AWP2 		1
1 		Super H12SSW-AN6 Motherboard
1U Chassis
Backplane BPN-SAS3-LB16A-N10 1 1U 10-Slot SFF Hybrid Backplane Supports 10xSAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors
Cable 1 CBL-SAST-1222-100 1 Slimline x8 (LE) to 2x Slimline x4 (STR),22/22CM,100 OH
Cable 2 CBL-SAST-1230LP-100 1 SlimlineLP x4 (STR) to Slimline x4 (STR),30CM,100 OHM
FAN FAN-0141L4 6 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
Riser Card RSC-D-6G4 1 1U LHS DCO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
Riser Card RSC-DR-6G4 1 1U RHS DCO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
Heatsink / Retention SNK-P0062P 1 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
*Power Supply PWS-860P-1R2 2 1U 860W, Redundant power supply, 54.5mm width, Platinum with
*Power Distributor PDB-PT112-S2424 1 WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424
*Rail Set MCP-290-00063-0N 1set Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
Storage Control Card and Cable(s) AOC-S3008L-L8e
1x CBL-SAST-1260-100
(support up to 8 SAS3 HDD) 		- Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA;
MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM
AOC-S3008L-L8i
1x CBL-SAST-1260-100
(support up to 8 SAS3 HDD) 		- Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E;
MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM
AOC-S3108L-H8iR/16DD
1x CBL-SAST-1260-100
(support up to 8 SAS3 HDD) 		- Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60;
MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM
AOC-S3616L-L16IT
1x CBL-SAST-1285-100
1x CBL-SAST-1260-100
(support up to 10 SAS3 HDD) 		- 16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP;
Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s;
MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM
AOC-S3808L-L8IT
1x CBL-SAST-1276F-100
(support up to 8 SAS3 HDD) 		- Standard LP, 8 internal ports (12Gb/s) Gen-4, 16HDD; HBA;
Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM
AOC-S3816L-L16IT
1x CBL-SAST-1276F-100
1x CBL-SAST-1265F-100
(support up to 12 SAS3 HDD) 		- Standard LP, 16 internal ports (12Gb/s) Gen-4, 122HDD; HBA;
Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM;
Slimline x8 (STR) to Slimline x4 (STR),64CM
Cable Management Arm MCP-290-00152-0N 1 1U Supermicro Cable Management Arm 2nd Gen
CacheVault(s) BTR-TFM8G-LSICVM02 - CacheVault for Broadcom 3108
BKT-BBU-BRACKET-05 Supercap mounting bracket for PCI-E location
BTR-TFM8G-LSICVM02 - CacheVault for Broadcom 3108
MCP-240-00127-0N Supercap mounting bracket for 2.5" HDD location
Optional Kit for NVMe Solution CBL-SAST-1222-85
(Support 2 NVMe drives slot per cables for HDD slot 0~3 and 8~9)		 - Slimline X8 (LE) to Slimline X8 (STR), 22CM,85 OHM,RoHS
CBL-SAST-1219LP-85
(Support 2 NVMe drives slot per cables for HDD slot 4~7)		 - Slimline x8 (STR) to 2x SlimlineLP x4 (RE/LE),FFC,19CM,8
M.2 by AOC AOC-SLG3-2H8M2 1 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS
TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
AOM-TPM-9665V - AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
