A+ Server 1114S-WN10RT (Complete System Only)

A+ Products Systems 1U [ 1114S-WN10RT ]





Integrated Board
Super H12SSW-NTR

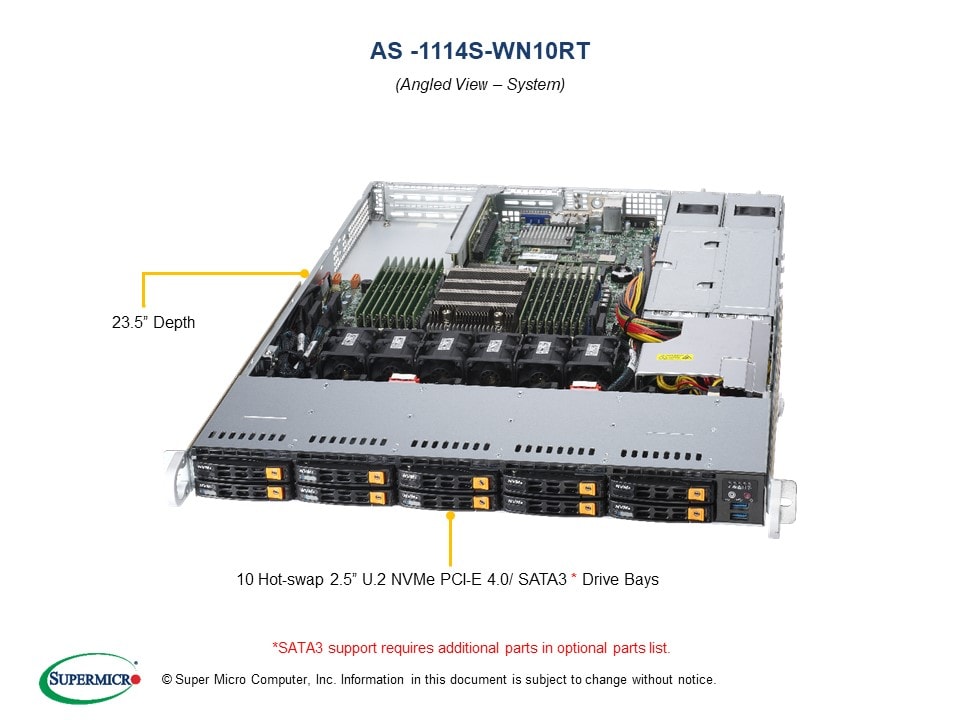

Views: | Angled View | Top View |

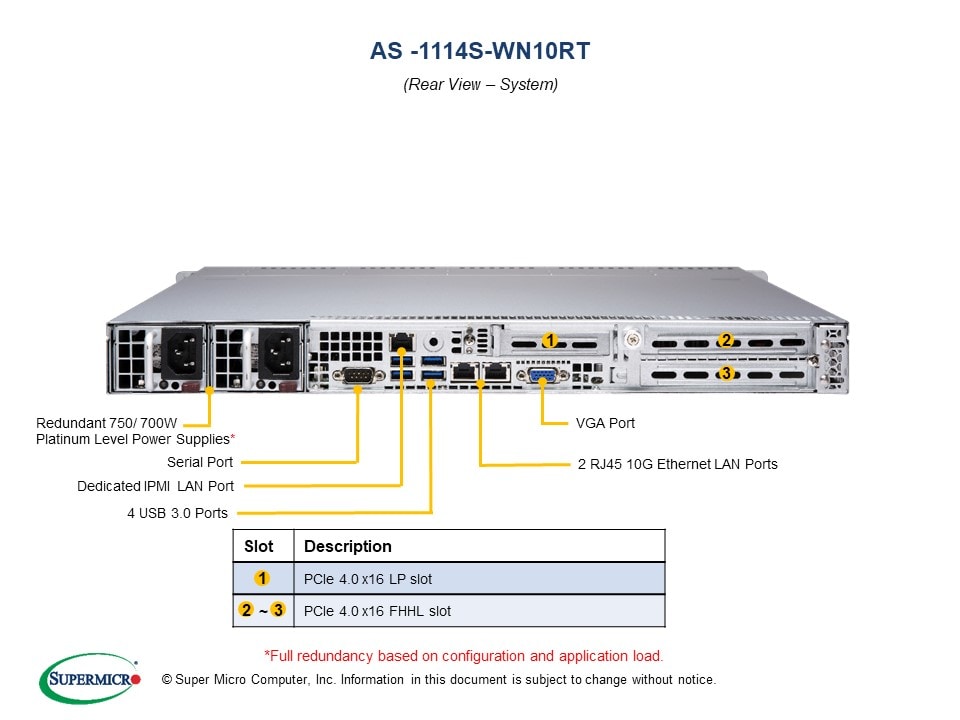

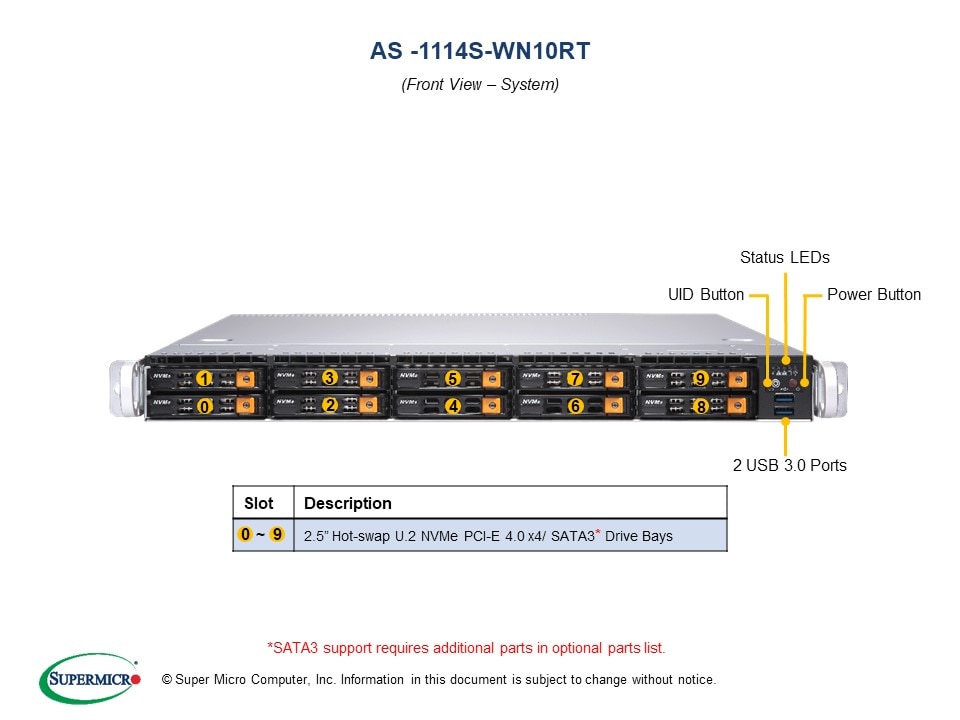

| Front View | Rear View |

Key Features
• Virtualization
• Cloud Computing
• All Flash Storage
1. Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 16 DIMMs; up to 4TB 3DS ECC
DDR4-3200MHz RDIMM/LRDIMM
3. 2 PCI-E 4.0 x16 (FHHL) slots,
1 PCI-E 4.0 x16 (LP) slot
4. Integrated IPMI 2.0 + KVM with 
dedicated LAN
• Software Out of Band License key
   (SFT-OOB-LIC) included for
   OOB BIOS management
5. 10 Hot-swap U.2 NVMe4/NVMe3/SATA3
fully hybrid drive support
6. 2x 10GBase-T LAN ports via
Broadcom BCM57416 Controller
7. 1 VGA,
7 USB 3.0 (4 rear, 2 front, 1 Type A)
8. 2 SuperDOM (Disk on Module) ports
9. 750W Redundant Power Supplies
Platinum Level High-efficiency
(Full redundancy based on
configuration and application load)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 8 DIMMs is recommended). Minimum requirement is 1 CPU, 2 DIMMs, 1 NVMe/HDD.

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List  NVMe Options Tested AOC  Manuals  OS Certification Matrix  Drive Options  Datasheet

Product SKUs
AS -1114S-WN10RT
  • Standard version with PWS-706P-1R (Platinum Level)
AS -1114S-WN10RT-EU
  • European version with PWS-861A-1R (Titanium Level)

Motherboard

Super H12SSW-NTR

Processor/Cache
CPU
  • Single AMD EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Support CPU TDP up to 280W
Cores
  • Up to 64 Cores

System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Dual 10GBase-T LAN with via Broadcom BCM57416
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 2 SATA3 (6 Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 7 USB 3.0 ports (4 rear, 2 front, 1 Type A)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • AMI 256Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-116TS-R706WBP5-N10

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 23.5" (597mm)
Package
  • 7.63" (H) 23.42" (W) 31.45" (D)
Weight
  • Net Weight: 25 lbs (11.34 kg)
  • Gross Weight: 39 lbs (17.69 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots
PCI-Express
  • 2 PCI-E 4.0 x16 (FHHL) slots
  • 1 PCI-E 4.0* x16 (LP) slot
  • 2 PCI-E  4.0 x2 NVMe M.2 slots
  •
    * Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed.

Drive Bays
Hot-swap
  • 10 Hot-swap U.2 NVMe4/NVMe3/SATA3 fully hybrid drive support

Backplane
Supports 10 NVMe or 10 SATA3

System Cooling
Fans
  • 6 heavy duty fans with Optimal Fan Speed Control

AC/DC240V Input Redundant Power Supply
700W/750W Redundant Power Supplies with PMBus
Note: AS -1114S-WN10RT-EU (European) SKU uses PWS-861A-1R (Titanium Level)
Total Output Power
  • 700W: 100 - 140Vac
  • 750W: 200 - 240Vac
  • 750W: 200 - 240Vdc (for CCC only)
Dimension
(W x H x L)
  • 54.5 x 40.25 x 320 mm
Input
  • 100 - 140Vac / 8 - 6A / 50-60Hz
  • 200 - 240Vac / 4.5 - 3.8A / 50-60Hz
  • 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V
  • Max: 58A / Min: 0.5A (100 - 140Vac)
  • Max: 62A / Min: 0.5A (200 - 240Vac)
  • Max: 62A / Min: 0.5A (200 - 240Vdc)
    (CB/CCC Only)
+5V sb
  • Max: 3A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
Certification Platinum Level Certified
  Platinum Certified
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-H12SSW-NTR
CSE-116TS-R706WBP5-N10 		1
1 		Super H12SSW-NTR Motherboard
1U Chassis
Backplane BPN-SAS3-LB16A-N10 1 1U 10-Slot SFF Backplane Supports 10x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors, HF, RoHS
Cable CBL-SAST-1049 1 SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 30.2CM,85 OHM,R
Cable CBL-SAST-1221D-85 2 Slimline x8 (LE) to Slimline x8 (STR),20CM,85 OHM
Cable CBL-SAST-1222-85 2 Slimline X8 (LE) to Slimline X8 (STR), 22CM,85 OHM
Cable CBL-SAST-1222-100 1 Slimline x8 (LE) to 2x Slimline x4 (STR),22/22CM,100 OHM
Cable CBL-SAST-1236-100 1 Slimline x8 (LE) to 2x Slimline x4 (STR),36/36CM,100 OH
Riser Card RSC-W-66G4 1 1U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS
Riser Card RSC-WR-6 1 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
Heatsink / Retention SNK-P0062P 1 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
Power Supply PWS-706P-1R 2 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
Power Distributor PDB-PT112-2424 1 SC112 24PIN REDUNDANT PWS DISTRIBUTOR
FAN FAN-0141L4 6 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
Drive Tray(s) MCP-220-00167-0B 10 Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
Rail Set MCP-290-00063-0N 1set Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
Optional Parts List
  Part Number Qty Description
Storage Controller card & cable AOC-S3008L-L8e
& 1x CBL-SAST-1295-100
AOC-S3008L-L8i
& 1x CBL-SAST-1295-100
AOC-S3108L-H8iR
& 1x CBL-SAST-1295-100 		-

-

-
  		Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA
MINI SAS HD-SlimSAS x4,12G,INT,95CM,30AWG
Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E
MINI SAS HD-SlimSAS x4,12G,INT,95CM,30AWG
Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
MINI SAS HD-SlimSAS x4,12G,INT,95CM,30AWG
Cable Management Arm MCP-290-00085-0N - Supermicro Cable Management Arm for 1U Chassis
TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
AOM-TPM-9665V - AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
SATADOM SSD-DM128-SMCMVN1 - SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH
SSD-DM480-SMCMVN1 - SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS
SSD-DM064-SMCMVN1 - SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
SSD-DM032-SMCMVN1 - SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
MEM-IDSAVS4-032G - SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725)
MEM-IDSAVM8A-128G - SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411)
MEM-IDSAVM8A-256G - SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411)
MEM-IDSAVE1-064G - SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i)
MEM-IDSAVS3-032G - SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710)
MEM-IDSAVT1-256G - IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP
Optional Kit for 10 SATA Drive Support MCP-220-00147-0B - Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design)
Global Services & Support OS4HR3/2/1
OSNBD3/2/1 		-
- 		3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
