A+ Server 2014CS-TR (Complete System Only)

A+ Products Systems 2U [ 2014CS-TR ]





Integrated Board
H12SSW-AN6 Motherboard
Super H12SSW-AN6

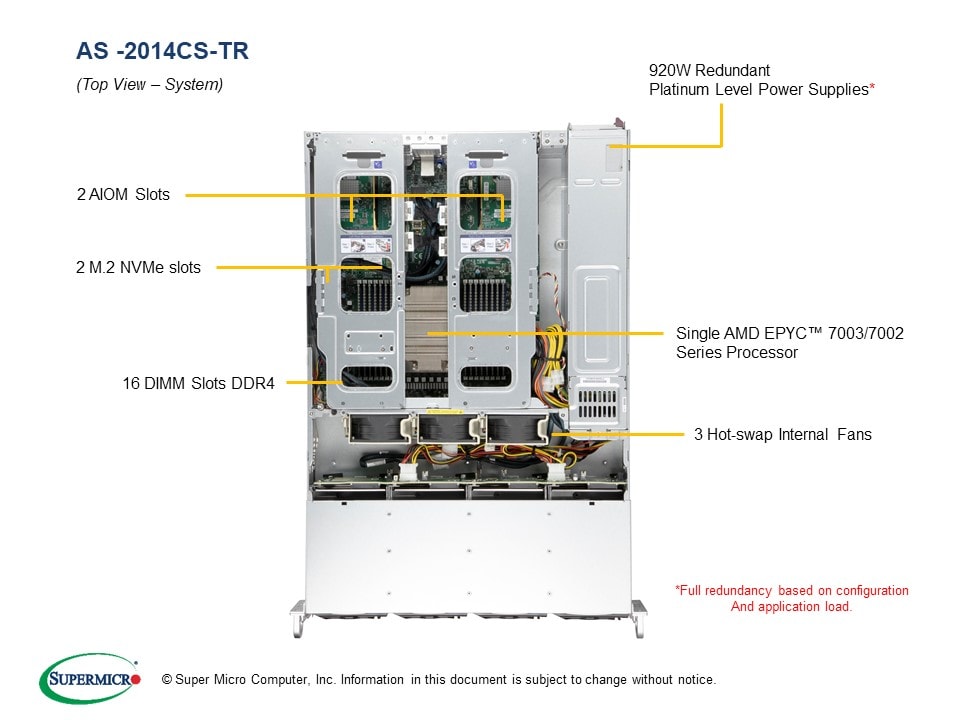

Views: | Angled View | Top View |

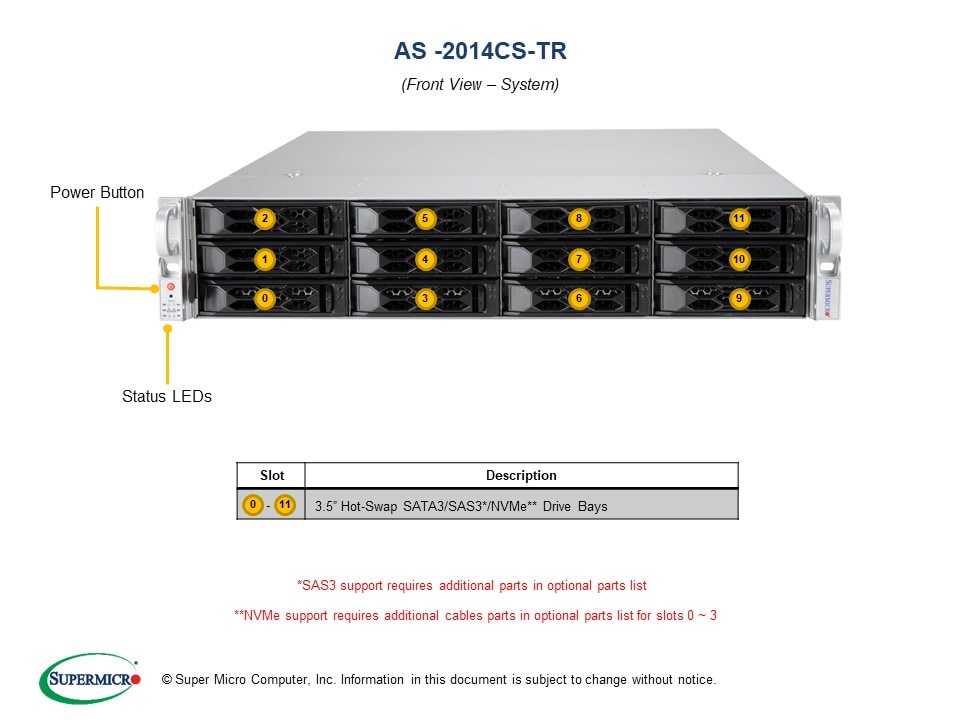

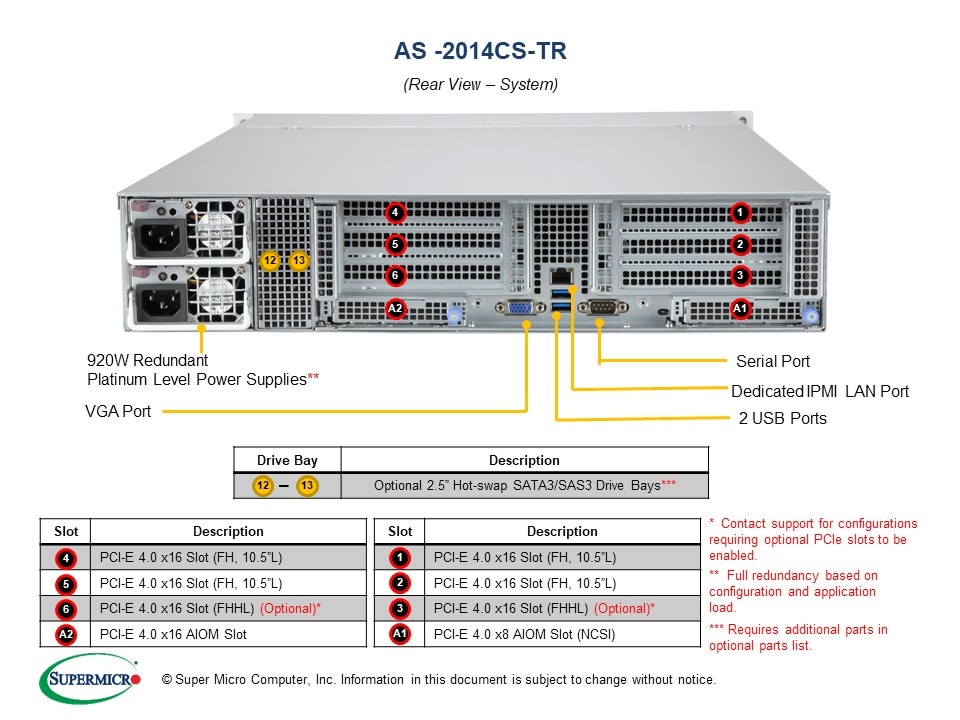

| Front View | Rear View |
Key Applications
- Financial Services
- Cloud Computing
- Network Appliance
- Private Cloud
- Content Delivery Network (CDN)
- Deep Learning Inferencing

Key Features
1. Single AMD EPYC™ 7002/7003 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
3. Expansion slots:
4 PCI-E 4.0 x16 (FH, 10.5" L) slots;
2 AIOM slots for flexible networking
 (One x8 AIOM slot and one x16 AIOM slot)
4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
 key (SFT-OOB-LIC) included
 for OOB BIOS management
5. 12 Hot-swap 3.5" SATA3/SAS3/NVMe drive bays:
 12 SATA3 by default
 or 8 SATA3 + 4NVMe via optional cables
 or 12 SAS3 via optional SAS kit;
Optional 2x 2.5" peripheral drive bays via
 rear drive bay kits
M.2 Interface: 2 PCI-E 4.0 x4
M.2 Form Factor: 2242, 2260, 2280, 22110
M.2 Key: M-Key
6. 2 USB 3.0 ports (rear),
1 VGA, 1 COM,
ASPEED AST2600 BMC graphics
7. Tool-less Drive Trays and Tool-less Brackets
8. 920W Redundant Platinum Level Power Supplies
(Full redundancy based on configuration and application load)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (For optimal performance, 8 DIMMs are recommended). Minimum requirement is 1 CPU, 4 DIMMs, 1 HDD/NVMe and 1 AIOM/AOC NIC card.

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List  NVMe Options Tested AOC  Manuals  OS Certification Matrix Compatible GPU List  Quick-References Guide  Drive Options  Tested AIOM Datasheet

Product SKUs
AS -2014CS-TR
  • A+ Server 2014CS-TR (Black)

Motherboard

Super H12SSW-AN6

Processor/Chipset
CPU
  • Single AMD EPYC™ 7002/7003 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W
Cores
  • Up to 64 Cores

System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Flexible networking provided via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2600 BMC

Input / Output
SATA
  • 16 SATA3 (6 Gbps) ports
LAN
  • Networking provided via AIOM
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
COM
  • 1 COM Port (rear)
Video
  • 1 VGA port

System BIOS
BIOS Type
  • AMI 256Mb SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • 3 Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R920AWP

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 25.5" (648mm)
Package
  • 26.4" (W) 11.4" (H) 34.3" (D)
Gross Weight
  • 59 lbs (26.76 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots
PCI-Express
  • 4 PCI-E 4.0 x16 (FH, 10.5"L) slots
  • 2 PCI-E 4.0 x16 AIOM networking slots (One x8 AIOM slot and one x16 AIOM slot)

Drive Bays
Hot-swap
  • 12 Hot-swap 3.5" drive bays:
    • 12 SATA3 by default
    • or 8 SATA3 + 4NVMe via optional cables
    • or 12 SAS3 via via optional SAS kit
  • Optional 2x 2.5" peripheral drive support via additional rear drive bays kits

Backplane
SAS/SATA/NVMe HDD Backplane

System Cooling
Fans
  • 3x 80x80x38mm middle cooling fans

Power Supply
1U 920W redundant power supply
Total Output Power and Input
  • 920W with Input 100 - 127Vac
  • 920W with Input 200 - 240Vac
  • 920W with Input 200 - 240Vdc
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
AC Input Frequency
  • 50-60Hz
+12V
  • Max: 75A / Min: 0A (100Vac-127Vac)
  • Max: 75A / Min: 0A (200Vac-240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (connector)
Certification Platinum Level Certified

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-H12SSW-AN6
CSE-LA26TS-R920AWP 		1
1 		Super H12SSW-AN6 Motherboard
2U Chassis
Backplane BPN-SAS3-LA26A-N12 1 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
Cable 1 CBL-SAST-1236-100 1 Slimline x8 (LE) to 2x Slimline x4 (STR),36/36CM,100 OH
Cable 2 CBL-SAST-1285LP-100 1 SlimlineLP x4 (STR) to Slimline x4 (STR),57CM,100 OHM,Ro
Riser Card RSC-D2-666G4 1 2U LHS DCO Riser card with three PCI-E 4.0x16slotsHFRoHS
Riser Card RSC-D2R-666G4 1 2U RHS DCO Riser card with three PCI-E 4.0 x16slotsHFRoH
Heatsink / Retention SNK-P0063P 1 2U Passive CPU Heat Sink for AMD Socket SP3 Processors
*Power Supply PWS-920P-1R2 2 1U, platinum efficiency,920W,AC input:100-127/200-240Vac,HF,
*Power Distributor PDB-PT826-S4824 1 Based on PDB-PT826-8824 to add 2pcs 8pin for option support
*FAN FAN-0206L4 3 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
*Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
Optional Power Supply PWS-1K23A-1R • 2 1200W 100-240Vac, and DC240 input
Storage Control Card and Cable(s) AOC-S3008L-L8e
1x CBL-SAST-1260-100
(support up to 8 SAS3 HDD) 		- Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA;
MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM
AOC-S3008L-L8i
1x CBL-SAST-1260-100
(support up to 8 SAS3 HDD) 		- Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E;
MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM
AOC-S3108L-H8iR/16DD
1x CBL-SAST-1260-100
(support up to 8 SAS3 HDD) 		- Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60;
MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM
AOC-S3616L-L16IT
1x CBL-SAST-1285-100
1x CBL-SAST-1260-100
(support up to 12 SAS3 HDD) 		- 16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP;
Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R
MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM
AOC-S3808L-L8IT
1x CBL-SAST-1276F-100
(support up to 8 SAS3 HDD) 		- Standard LP, 8 internal ports (12Gb/s) Gen-4, 16HDD; HBA;
Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM
AOC-S3816L-L16IT
1x CBL-SAST-1276F-100
1x CBL-SAST-1265F-100
(support up to 12 SAS3 HDD) 		- Standard LP, 16 internal ports (12Gb/s) Gen-4, 122HDD; HBA;
Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM;
Slimline x8 (STR) to Slimline x4 (STR),64CM
Cable Management Arm MCP-290-00073-0N 1 Supermicro Cable Management Arm for 2U, 3U and 4U chassis
MCP-120-82601-0N 1 Cable arm adapter for SCLA26-AW
CacheVault(s) BTR-TFM8G-LSICVM02 - CacheVault for Broadcom 3108
BKT-BBU-BRACKET-05 Supercap mounting bracket for PCI-E location
BTR-TFM8G-LSICVM02 - CacheVault for Broadcom 3108
MCP-240-00127-0N Supercap mounting bracket for 2.5" HDD location
Optional Kit for NVMe Solution CBL-SAST-1236LP-85
(Support 4 NVMe drives slot per cables for HDD slot 0~3)		 2 Slimline x8 (STR) to 2x SlimlineLP x4 (STR),FFC,40/40CM
M.2 by AOC AOC-SLG3-2H8M2 1 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS
Rear Window SATA Drive Kit MCP-220-82616-0N 1 Rear Window Module for 2x 2.5" SATA/SAS Drives
CBL-SAST-1295LP-100 1 SlimlineLP x4 (STR) to 4x SATA (STR),75/75/90/90/75CM
TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
AOM-TPM-9665V - AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
