A+ Server 2114GT-DPNR (Complete System Only)

A+ Products Systems GPU [ 2114GT-DPNR ]





Integrated Board
H12SSG-ANP6 motherboard
H12SSG-ANP6

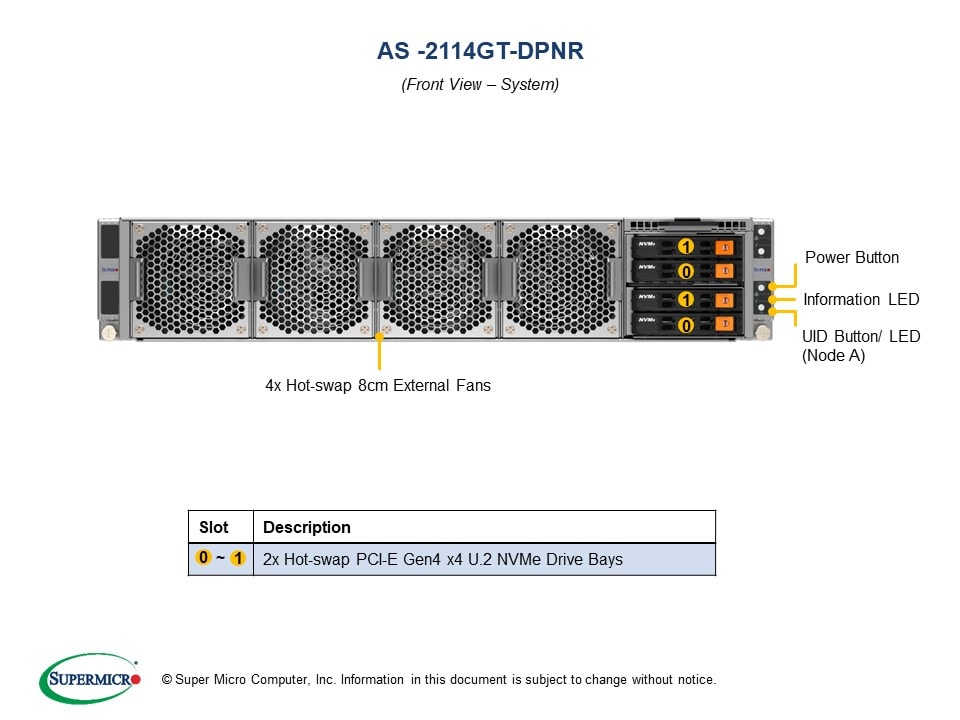

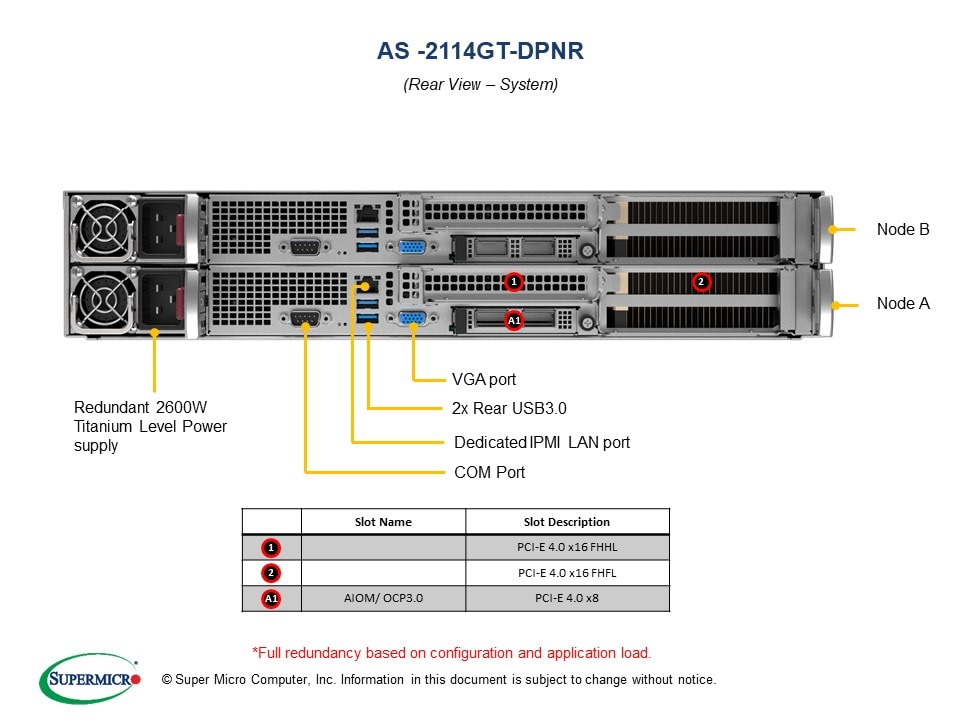

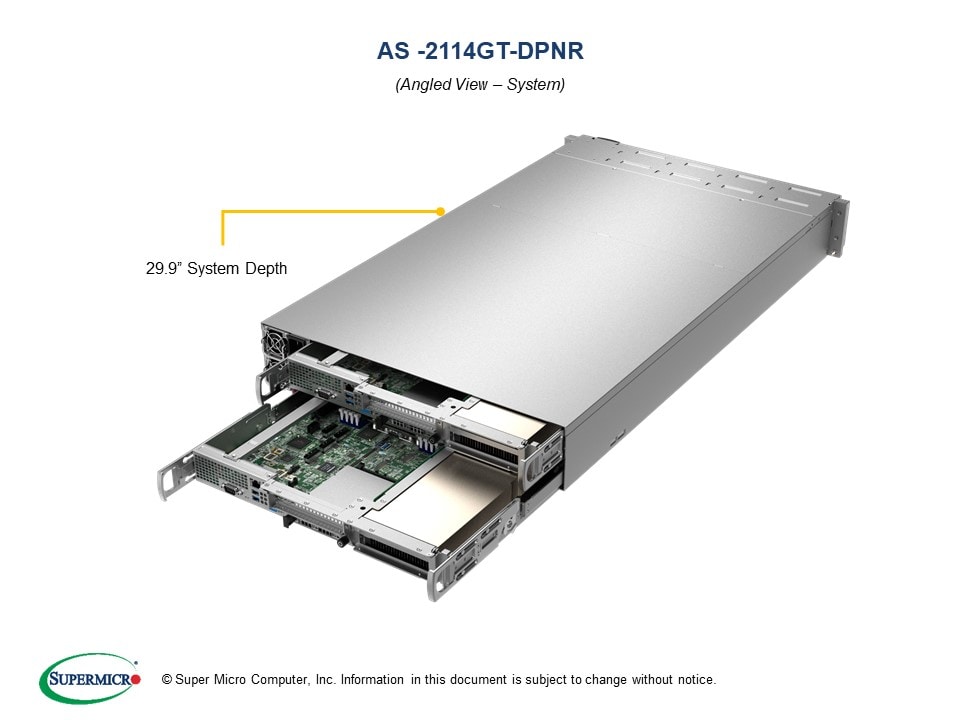

Views: | Angled View | Front View | Rear View |


Key Applications
- Media/Video Streaming
- AI Inference and Machine Learning
- GPU Virtualization (VDI)
- Industrial Automation, Retail,
  Smart Medical Expert Systems

Key Features
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
2. 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
3. 2 PCI-E Gen 4 x16 external slots, 1 PCI-E 4.0 x8 AIOM slot (or optional x16 AIOM w/ additional parts)
M.2 Interface: 2 PCI-E 4.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
4. Integrated IPMI 2.0 + KVM with 
dedicated LAN
• Software Out of Band License key
   (SFT-OOB-LIC) included for
   OOB BIOS management
5. 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays
6. AST2600 BMC
7. 2600W Redundant (1+1) Power Supplies
Titanium Level (96%)
   (Full redundancy based on
   configuration and application load)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (Per node, minimum 1 CPU, 2 DIMMs, 1 U.2 or M.2 NVMe, 1 AIOM, 1 GPU installed). Add on Cards (AOC) are recommended to be installed by Supermicro due to optimized density of the 2U form factor.
Service: OSNBD3 is highly recommended.

Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List NVMe Options Tested AOC Manuals OS Certification Matrix Compatible GPU List

Product SKUs
AS -2114GT-DPNR
  • A+ Server 2114GT-DPNR (Black)
Motherboard (per Node)

Super H12SSG-ANP6
Processor (per Node)
CPU
  • AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
  • Socket SP3
  • Supports CPU TDP up to 280W*
Cores
  • Up to 64 Cores
Chipset
  • System on Chip (SoC)
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
GPU Support (per Node)
  • Up to 3 double-width or 6 single-width GPUs
System Memory (per Node)
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-3200MH SDRAM
Memory Type
  • 3200MHz ECC DDR4 SDRAM
On-Board Devices (per Node)
Network
  • Flexible networking via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics & System Management
  • ASPEED AST2600 BMC
Input / Output (per Node)
SATA
  • N/A
LAN
  • Flexible networking provided by AIOM
  • 1 RJ45 1GbE Dedicated IPMI management port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA Connector (rear)
Others
  • 1 COM port (header)
  • 1 TPM 2.0 (header)
System BIOS (per Node)
BIOS Type
  • AMI 256Mb SPI Flash ROM
Management (per Node)
Software
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmountable
Model
  • CSE-227GTS-R2K63P
Dimensions
Height
  • 3.47" (88mm)
Width
  • 17.6" (447mm)
Depth
  • 29.9" (760mm)
Available Colors
  • Black
Drive Bays / Storage (per Node)
Hot-swap
  • 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays
Expansion Slots (per Node)
PCI-Express
  • 2 PCI-E Gen 4 x16 external slots
  • 1 PCI-E Gen 4 x8 AIOM networking slot (or optional x16 AIOM w/ additional parts)
System Cooling
Fans
  • 4 Hot-swap heavy duty 80mm PWM fans
Power Supply
2600W Redundant Power Supplies with PM Bus
Total Output Power and Input
  • 2600W with Input 200-240Vac
  • 2600W with Input 200-240Vdc (for CQC only)
Dimension
(W x H x L)
  • 40 x 73.5 x 265 mm
+12V
  • Max: 216A / Min: 0A (200-240 Vac)
+12Vsb
  • Max: 4.5A / Min: 0A
Output Type
  • Gold Finger Connector
Certification (Pending) Titanium Level96% Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

Part Number
 Qty
 Description
Motherboard / Chassis MBD-H12SSG-ANP6
CSE-227GTS-R2K63P 		2
1 		Super H12SSG-ANP6 Motherboard
2U chassis
Cable 1 CBL-CDAT-1056 1 2x5,PH2.54 to 2x5,PH2.54,7cm,28AWG,RoHS
Cable 2 CBL-PWCD-0376-IS 2 PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black
Cable 3 CBL-PWEX-1026 2 GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 35CM, 17AWG, 8A/pin,RoHS
Cable 4 CBL-PWEX-1042 4 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 50CM,16AWG,10A/pin, -40~105C,
Cable 5 CBL-PWEX-1093-36 2 MicroFit,2x2, P3.0,F to MicroFit,2x2,P3.0,F,36CM,10A/pin
Cable 6 CBL-PWEX-1257 1 2x4,PH3.0 to 2x4,PH3.0,7CM,4A,22AWG,RoHS
Cable 7 CBL-SAST-1201LPB-85 2 3x SlimlineLP x8 (STR) to 3x SlimlineLP x8 (STR),BNDL,F
Cable 8 CBL-SAST-1209F-85 2 SlimSAS (x8 STR to x8 STR),9CM,FFC,FOLD,85 OHM,RoHS
Cable 9 CBL-SAST-1235-85 2 Slimline x8 (STR) to Slimline x8 (STR),INT,35CM,85 OHM
Cable 10 CBL-SAST-1289LP-85 2 SlimsasLP x8 (STR) to SlimsasLP x8 (STR),FOLD,85 OHM,Ro
Cable 11 CBL-SAST-1295LP-85 2 SlimSASLP x8 (RA) to SlimSASLP x8 (STR),8CM,85 OHM,R
Fan Holder MCP-220-82620-0N 2 Dual 2.5 NVMe4 Drive Kit for 216B/826B/417B/846X/847B,RoHS
Air Shroud MCP-310-22702-0B 2 Mylar air shroud sets H12SSG-AN6 for SC227G(2x GPU)
Riser Card RSC-GB-66G4 2 1U Rear LHS GPU Riser card with twoPCI-E4.0x16slots,HF,R
Riser Card RSC-GF-66G4 2 1U Front LHS GPU Riser card with two PCI-E 4.0x16slotsHF
Riser Card RSC-GF-6G4 2 1U Front LHS GPU Riser card with onePCI-E4.0x16slot,HF,R
Control Board SCC-P2N2FG4-P1A-A 1 Gen4 2xNVMe power and fan control board A
Control Board SCC-P2N2FG4-P1A-B 1 Gen4 2xNVMe power and fan control board B
Software SFT-OOB-LIC 2 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0062P 2 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
*Power Supply PWS-2K63A-1R 2 1U 2600Wredundant single outpupowersupply with wide range in
*Cable 12 CBL-PWEX-1251 2 FAN,2x4 to 2x 1x4 and 1x4,5A/pin,42.5CM,22/24AWG
*Cable 13 CBL-PWEX-1252 2 FAN,2x4 to 2x 1x4 and 1x4,5A/pin,58CM,22/24AWG
*FAN 1 FAN-0219L4 4 80x80x80 mm, 14.2K-15K RPM Counter-rotating, Hot-swappable F
*Front Panel FPB-FP827BR 1 2U BigTwin front control board - right side
*Rail Set MCP-290-00144-0N 1 2U fixed rail set, quick release, default for 2,3U 17.6"W
*Front Panel FPB-FP827BR 1 2U BigTwin front control board - right side
*Rail Set MCP-290-00145-0N 1 Left fixed rail (quick) for 2U 17.6";W chassis
*Rail Set MCP-290-00146-0N 1 Right fixed rail (quick) for 2U 17.6";W chassis
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
Part Number Qty Description
Up to 5x NVIDIA A10 per node RSC-GFR-66G4 1 per node 1U Front RHS GPU Riser card with two PCI-E4.0x16slots
CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 2 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
CBL-SAST-1295LP-85 2 per node SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM
CBL-SAST-1202LPB-85 1 per node 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL
CBL-SAST-1228LP-85 3 per node SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM
CBL-SAST-1224LP-85 1 per node SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
MCP-120-22710-0N 2 per node Nvidia GPU A10 PCIe internal bracket for SC227G
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
3x NVIDIA A40 per node MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
MCP-120-22709-0N 1 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
2x NVIDIA A100/A30 per node MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
3x NVIDIA A100/A30 per node MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
2x Nvidia A16 MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
3x Nvidia A16 MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
2x RTX A6000 per node MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
2x RTX A5000 per node CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 1 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
3x RTX A5000 per node CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 2 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
1x RTX A4500 per node CBL-PWEX-1040 1 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
MCP-120-22709-0N 1 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
CBL-SAST-1201LL4FB-85* 1 per node 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS
Note:
* Add CBL-SAST-1201LL4FB-85 when using AIOM x 16 PCIe Lanes Card.
2x RTX A4500 per node CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 1 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
CBL-SAST-1201LL4FB-85* 1 per node 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS
Note:
* Add CBL-SAST-1201LL4FB-85 when using AIOM x 16 PCIe Lanes Card.
3x RTX A4500 per node CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 2 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
MCP-120-22709-0N 2 per node NVIDIA GPU universal internal bracket (w/ DW) for SC227G
MCP-310-22713-0B 1 per node Sponge air block-B for 3rd DW GPU in SC227G
CBL-SAST-1201LL4FB-85* 1 per node 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS
Note:
* Add CBL-SAST-1201LL4FB-85 when using AIOM x 16 PCIe Lanes Card.
Up to 5x Nvidia A4000 per node RSC-GFR-66G4 1 per node 1U Front RHS GPU Riser card with two PCI-E4.0x16slots
CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 2 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
CBL-SAST-1295LP-85 2 per node SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM
CBL-SAST-1202LPB-85 1 per node 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL
CBL-SAST-1228LP-85 3 per node SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM
CBL-SAST-1224LP-85 1 per node SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
MCP-120-22710-0N 2 per node Nvidia GPU RTX-A4000 PCIe internal bracket for SC227G
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
Up to 6x T4 RSC-GFR-66G4 1 per node 1U Front RHS GPU Riser card with two PCI-E4.0x16slots
CBL-SAST-1295LP-85 2 per node SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM
CBL-SAST-1202LPB-85 1 per node 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL
CBL-SAST-1228LP-85 3 per node SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM
CBL-SAST-1224LP-85 1 per node SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
MCP-120-22705-0N 2 per node Nvidia GPU T4 PCIe internal bracket for SC227G
Up to 6x A2 RSC-GFR-66G4 1 per node 1U Front RHS GPU Riser card with two PCI-E4.0x16slots
CBL-SAST-1295LP-85 2 per node SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM
CBL-SAST-1202LPB-85 1 per node 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL
CBL-SAST-1228LP-85 3 per node SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM
CBL-SAST-1224LP-85 1 per node SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
MCP-120-22710-0N 2 per node Nvidia GPU universal internal bracket(w/ SW) for SC227G
2x MI100 per node CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 1 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
MCP-120-22711-0N 2 per node AMD GPU MI100 PCIe internal bracket for SC227G
3x MI100 per node CBL-PWEX-1059 1 per node GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
CBL-PWEX-1040 2 per node PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
MCP-120-22711-0N 2 per node AMD GPU MI100 PCIe internal bracket for SC227G
2x MI210 per node MCP-120-22711-0N 2 per node AMD GPU universal internal bracket(w/ DW) for SC227G
3x MI210 per node MCP-120-22711-0N 2 per node AMD GPU universal internal bracket(w/ DW) for SC227G
MCP-310-22713-0B 1 per node Sponge air block-B for SC227G
TPM security module AOM-TPM-9671V - TPM 1.2 module (Vertical) with Infineon 9671
AOM-TPM-9670V - TPM 2.0 module (Vertical) with Infineon 9670
Global Services & Support OS4HR3/2/1
OSNBD3/2/1 		-
- 		3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Hide Parts List
Terms & Conditions | Privacy | Investor Relations | Jobs | Site Map
SuperServer® | Motherboard | Chassis | Rack Cabinet | SuperBlade® | Embedded | Networking | Storage | Accessories | AMD Solution | Power Supplies
Copyright © 2019 Super Micro Computer, Inc.
Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
