A+ Server 2114S-WN24RT (Complete System Only)
A+ Products Systems 2U [ 2114S-WN24RT ]




Integrated Board
H12SSW-NTR motherboard
H12SSW-NTR

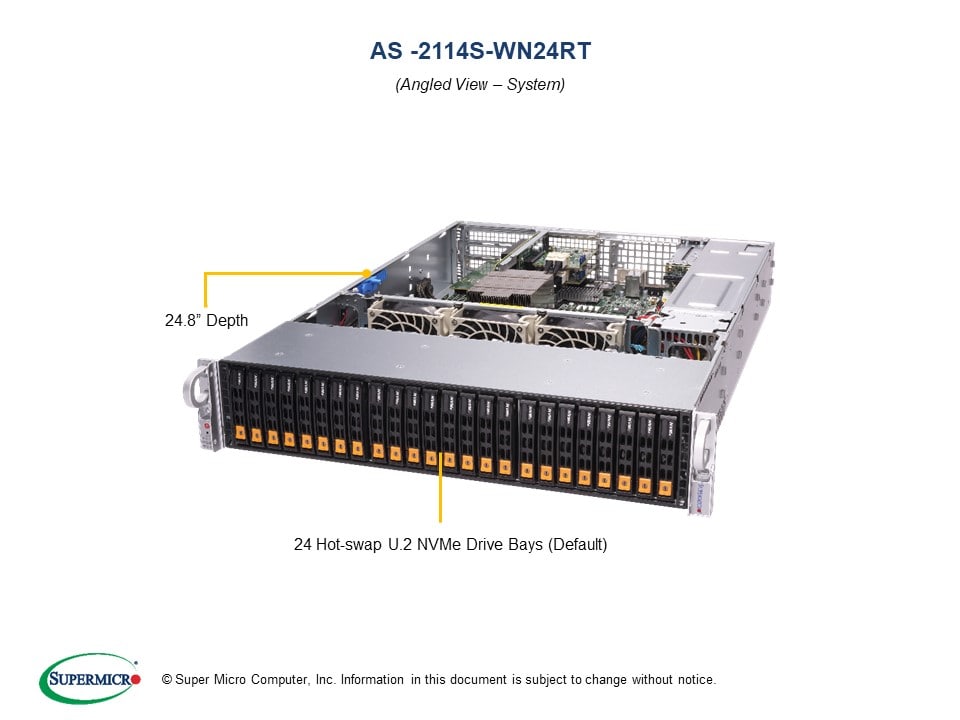

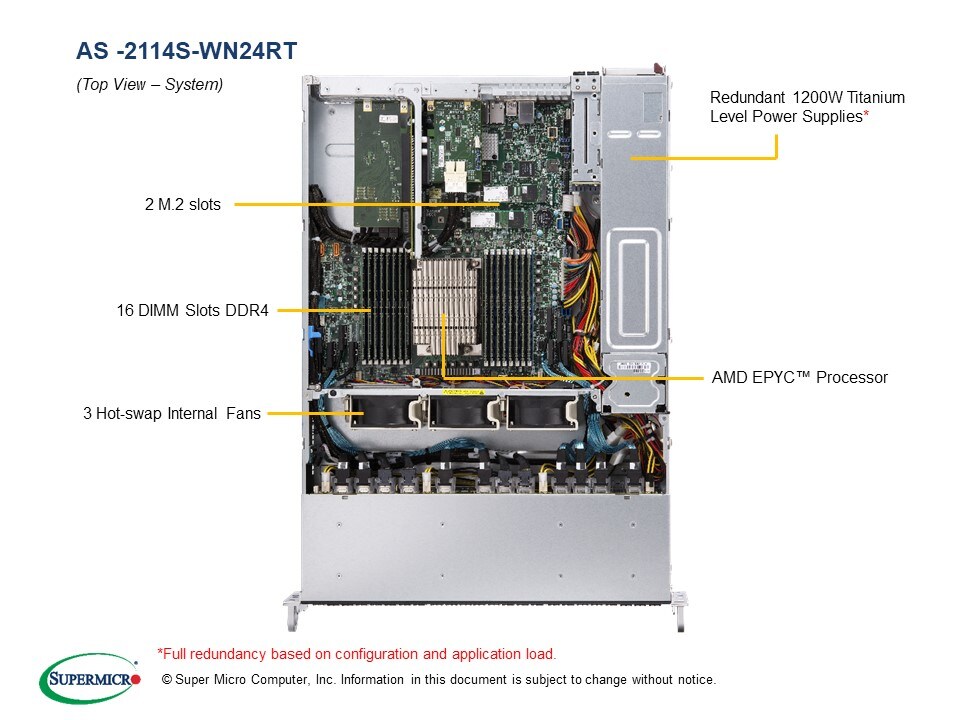

Views: | Angled View | Top View |

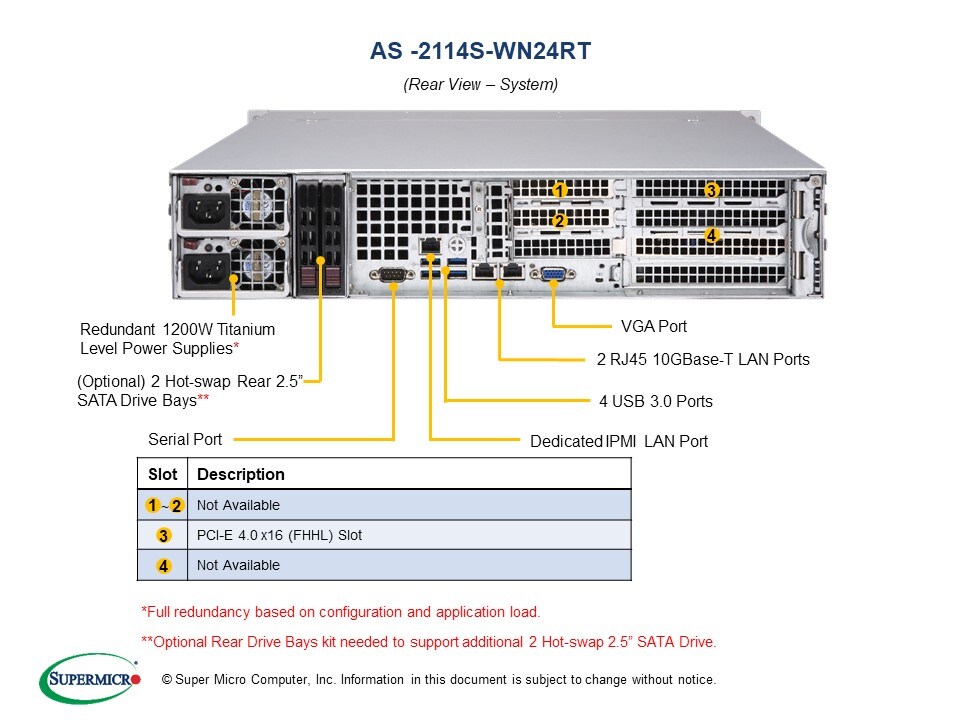

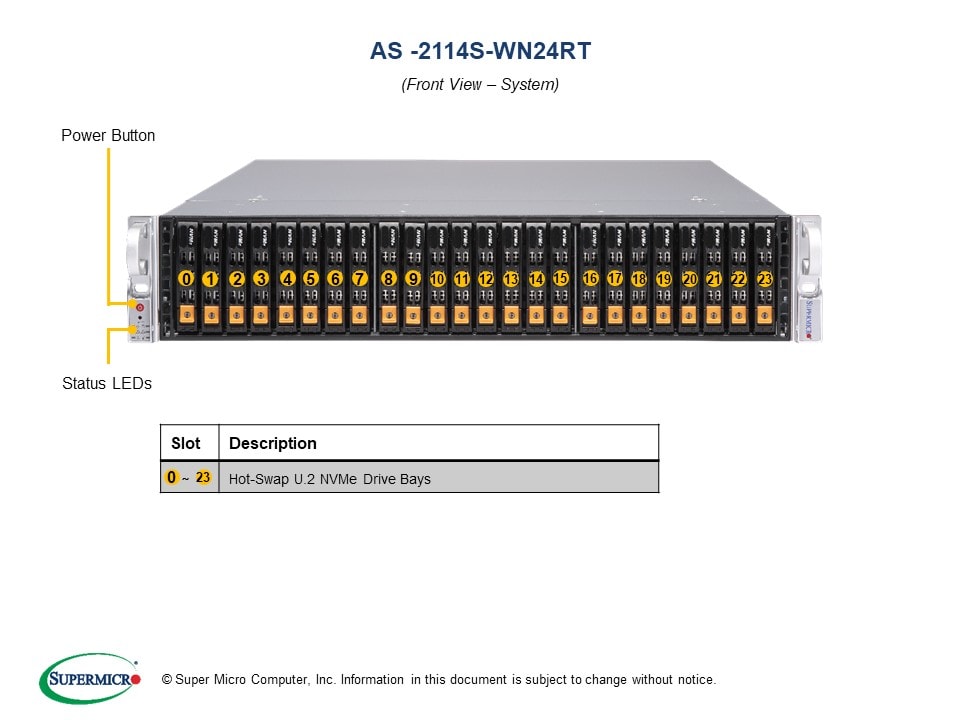

| Front View | Rear View |
Key Applications
- Virtualization
- Hyperconverged Storage
- Cloud Computing
- All Flash Storage

Key Features
1. Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. Up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
3. Expansion slots:
Up to 2 PCI-E 4.0 x16 (FH/HL) slots:
 24-NVMe configuration (Standard) – 1 slot
  available
 20-NVMe configuration – 2 slots available
M.2 Interface: 2 PCI-E 4.0 x2
M.2 Form Factor: 2280, 22110
M.2 Key: Onboard M-key
4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
 key (SFT-OOB-LIC) included
 for OOB BIOS management
5. 2x 10GBase-T LAN ports via Broadcom BCM57416
6. Up to 24 hot-swap 2.5" U.2 NVMe drive bays
7. 1200W Redundant Power Supplies
Titanium Level (96%)
(Full redundancy based on configuration and application load)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 8 DIMMs is recommended). Minimum requirement is 1 CPU, 2 DIMMs, 1 NVMe.

Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List NVMe Options Tested AOC Manuals OS Certification Matrix Quick-References Guide Drive Options


Product SKUs
AS -2114S-WN24RT
  • A+ Server 2114S-WN24RT
Motherboard
H12SSW-NTR
Processor/Chipset
CPU
  • Single AMD EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Support CPU TDP up to 280W
Cores
  • Up to 64 Cores
Chipset
  • System on Chip (SoC)
System Memory
Memory Capacity
  • 16 DIMM slots
  • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM
  • 8-channel memory bus
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Controllers
  • Broadcom BCM57416 Controller
VGA
  • ASPEED AST2500 BMC
Expansion Slots
PCI Express
  • 1 or 2* PCI-E 4.0 x16 (FH/HL) slots
M.2
  • Interface: 2 PCI-E 4.0 x2
  • Form Factor: 2280, 22110
  • Key: Onboard M-key
Note * 2 slots available using 20-NVMe configuration
(24 NVMe is standard)
Input / Output
NVMe
  • Up to 24 U.2 NVMe support
LAN
  • 2x 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (4 rear + 1 Type A)
VGA
  • 1 VGA port
Others
  • 1 COM port
  • 2 SATA DOM power connectors
  • TPM 1.2 header, TPM 2.0 header
System BIOS
BIOS Type
  • AMI 256Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Chassis
Form Factor
  • 2U
Model
  • CSE-216BTS-R1K23WBP
Dimensions
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 24.8" (630mm)
Weight
  • Net Weight: 34 lbs (15.42 kg)
  • Gross Weight: 59 lbs (26.76 kg)
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED
Drive Bays
Hot-swap
  • Up to 24 hot-swap 2.5" U.2 NVMe drive bays
System Cooling
Fans
  • 3 heavy-duty PWM fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1200W
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 100-127Vac / 15-12A / 50-60Hz
  • 200-240Vac / 8.5-7A / 50-60Hz
  • 200-240Vdc / 8.5-7A (for CCC only)
+12V
  • Max: 83A / Min: 0A (100-127Vac)
  • Max: 100A / Min: 0A (200-240Vac)
  • Max: 100A / Min: 0A (200-240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • 19 Pairs Gold Finger Connector
Certification Platinum Level Certified95%+ Titanium Level
[ Test Report ]
PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
  • CPU switching voltage regulator
FAN
  • Up to 6-fan status tachometer monitoring
  • Up to six 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 6x Fan connectors
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
Parts List - (Items Included)
Part Number Qty Description
Motherboard MBD-H12SSW-NTR 1 Super H12SSW-NTR Motherboard
Chassis CSE-216BTS-R1K23WBP 1 2U Chassis
Add-on Card / Module AOC-SLG4-2E4T-P 2 2-Port Retimer, x8 PCIe Gen 4, Low Profile AOC, RoHS
Add-on Card / Module AOC-SLG4-4E4T-P 1 4-Port Retimer, x16 PCIe Gen 4,RoHS
Backplane BPN-NVME4-216N-S24 1 2U 24-slot all-hybrid direct-attached backplane, support 24x 2.5" NVME Gen4 / SAS / SATA storage devices.,RoHS
Cable 1 CBL-0234L 1 Y CABLE FOR 4-PIN HDD
Cable 2 CBL-PWEX-1108-10 2 MicroFit,2x4,PH3.0,F to MiniFit 2x2,P4.2,M and 2x BIG,1
Cable 3 CBL-PWEX-1109-10 1 MicroFit,2x4,PH3.0,F to 2x BIG,1x4,PH5.08,M,10CM,10A/pin
Cable 4 CBL-SAST-1049 4 SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 30.2CM,85 OHM,R
Cable 5 CBL-SAST-1221D-85 2 Slimline x8 (LE) to Slimline x8 (STR),20CM,85 OHM,RoHS
Cable 6 CBL-SAST-1222-85 2 Slimline X8 (LE) to Slimline X8 (STR), 22CM,85 OHM,RoHS
Cable 7 CBL-SAST-1267-85 4 Slimline x8 (STR) to Slimline x8 (STR),INT,67CM,85 OHM,
Chassis Part(s) MCP-240-00146-0N 1 2U WIO Half Length riser card bkt for SC825, 826, 213, 216,RoHS/REACH
Drive Tray(s) MCP-220-00167-0B 24 Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
Riser Card RSC-W2-66G4 1 2U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS
Riser Card RSC-W2R-88G4 1 2U RHS WIO Riser card with two PCI-E 4.0 x8 slots,HF,RoHS
Heatsink / Retention SNK-P0063P 1 2U Passive CPU Heat Sink for AMD Socket SP3 Processors
*Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
*Power Distributor PDB-PT216-2824 1 PDB with 23pairs input connectors for SC216B
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Optional Parts List
Part Number Qty Description
Parts MCP-220-82616-0N 1 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)
Cable Management Arm MCP-290-00073-0N
MCP-120-82503-0N 		- Supermicro Cable Management Arm for 2U, 3U and 4U chassis
Cable arm adapter for SC825,213,829H,847B (MCP-290-00073-0N required),HF,RoHS/REACH,PBF
TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
AOM-TPM-9665V - AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
