A+ Server 2124US-TNRP (Complete System Only)
A+ Products Systems 2U [ 2124US-TNRP ]




Integrated Board
H12DSU-iN

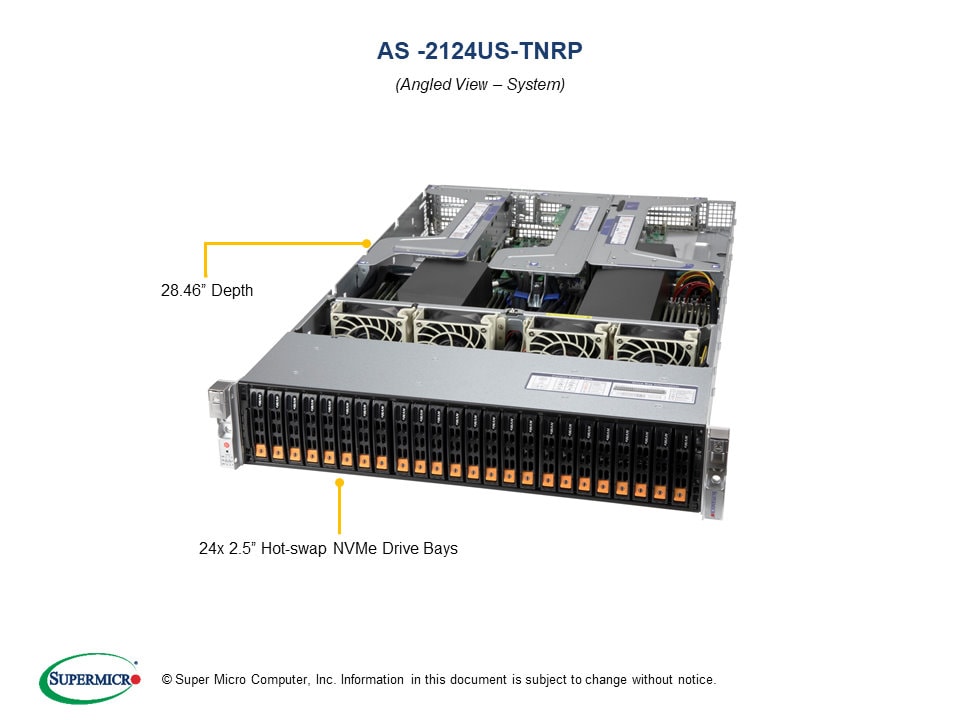

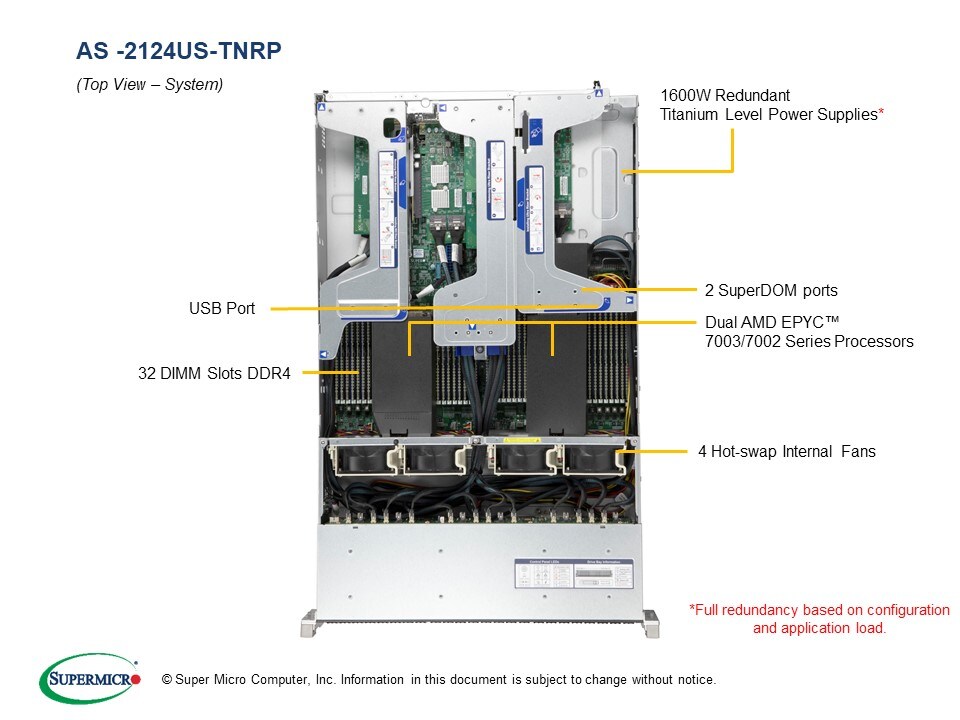

Views: | Angled View | Top View |

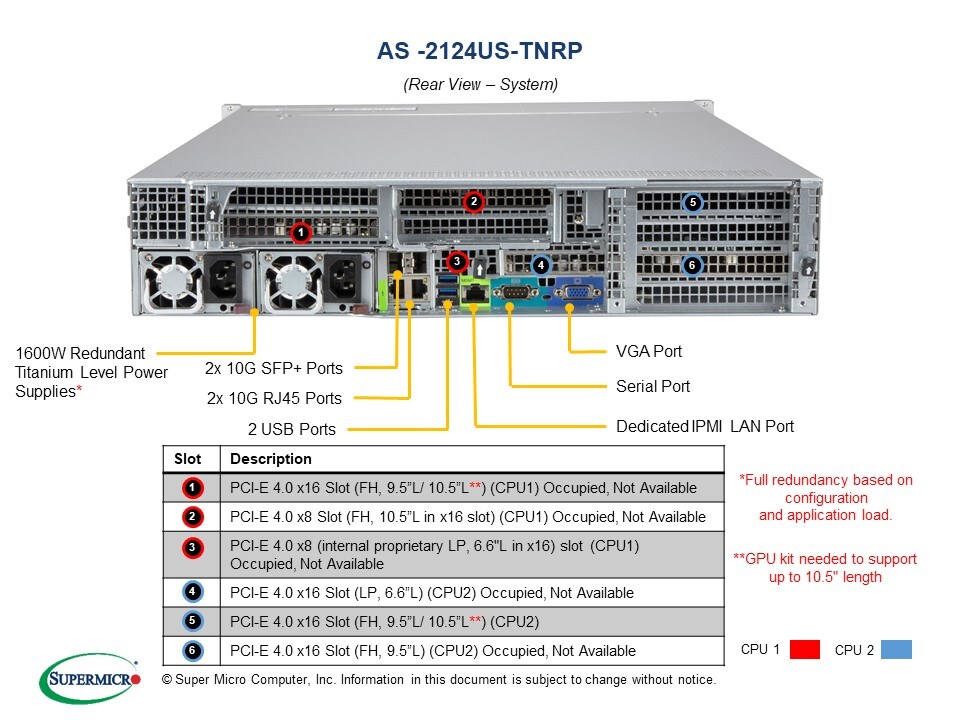

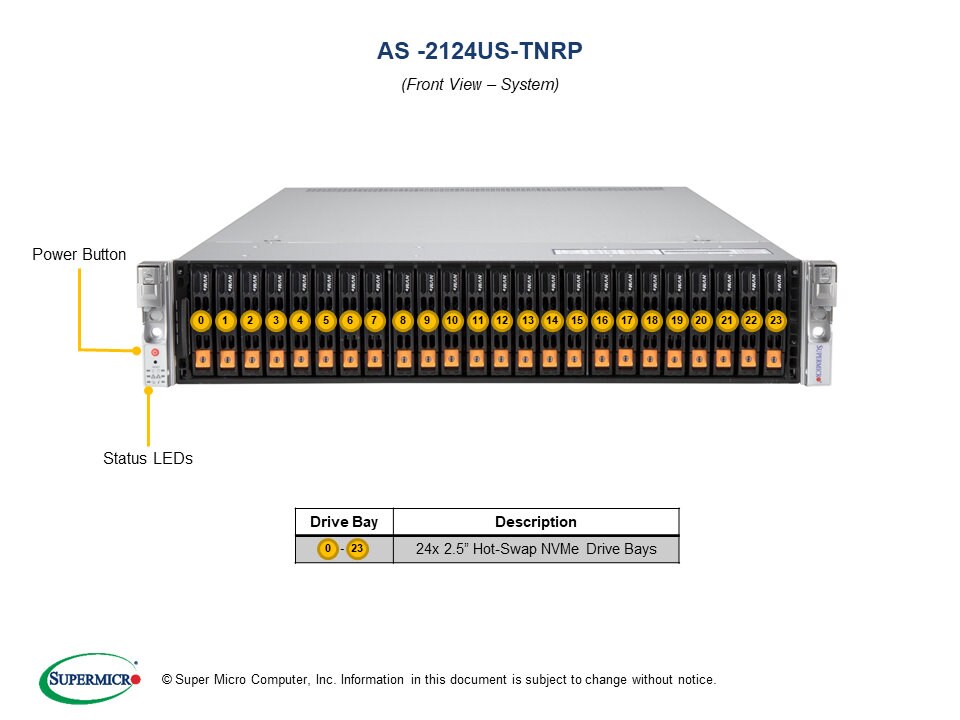

| Front View | Rear View |
Key Features
  - Virtualization
  - Cloud Computing
  - High-End Enterprise Server
  - Hyperconverged Storage
1. Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
3. Expansion slots:
1 PCIe 4.0 x16 slot (FH, 9.5" L) [Details]
Additional PCIe slots may available if using the 24 SAS Kits solution (Please contact SMC for more information)
4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
 key (SFT-OOB-LIC) included
 for OOB BIOS management
5. Dual-port 10GBase-T and Dual-port 10G SFP+
via Intel® X710-TM4
6. Drive Bays:
 24 hot-swap 2.5" U.2 NVMe drive bays
 Up to 24 SATA/SAS drive support via
  optional SAS kit
7. 1600W Redundant Power Supplies
Titanium Level (96%)
(Full redundancy based on configuration and application load)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs & at least 24/32 cores per CPU is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 NVMe HDD drive.

Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List NVMe Options Tested AOC Manuals OS Certification Matrix Quick-References Guide Drive Options Datasheet


Product SKUs
AS -2124US-TNRP
  • A+ Server 2124US-TNRP
Motherboard
H12DSU-iN
Processor/Chipset
CPU
  • Dual AMD EPYC™ 7003/7002 Series Processors
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W*
Cores
  • Up to 64 Cores
Chipset
  • System on Chip (SoC)
Note * Certain CPUs with TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory
Memory Capacity
  • 32 DIMM slots
  • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
  • 8-channel memory bus
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Connectivity
  • Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel® X710-TM4
VGA
  • ASPEED AST2500 BMC
Input / Output
NVMe
  • 24 U.2 NVMe support
LAN
  • Dual 10GBase-T LAN ports
  • Dual 10G SFP+ LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
VGA
  • 2 VGA ports (1 rear, 1 onboard)
Others
  • 1 COM port
  • 2 SATA DOM power connectors
  • TPM 2.0 header
System BIOS
BIOS Type
  • AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
  • CPU switching voltage regulator
FAN
  • Up to 4-fan status tachometer monitoring
  • Up to four 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 4x Fan connectors
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Chassis
Form Factor
  • 2U
Model
  • CSE-219U2TS-R1K62P3-TN24
Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 28.46" (723mm)
Package
  • 9.96" (H) 24.60" (W) 45.43" (D)
Weight
  • Net Weight: 39 lbs (17.7 kg)
  • Gross Weight: 63 lbs (28.6 kg)
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED
Expansion Slots
PCI-Express
  • 1 PCIe 4.0 x16 slot (FH, 9.5" L)


(Both CPUs need to be installed for full access to PCIe slots and onboard controllers. See manual block diagram and AOC Support for details.)
Drive Bays
Hot-swap
  • 24 hot-swap 2.5" U.2 NVMe drive bays
  • Up to 24 SAS/SATA drives supported via optional SAS kit
System Cooling
Fans
  • 4 heavy-duty PWM fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96% Titanium Level
[ Test Report ]
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
Parts List - (Items Included)
Part Number Qty Description
Motherboard MBD-H12DSU-iN 1 Super H12DSU-iN Motherboard
Chassis CSE-219U2TS-R1K62P3-TN24 1 2U Chassis
Add-on Card / Module AOC-2UR68G4-I4XTS-O 1 2U Ultra Riser with 2-port 10G RJ45 & 2-port 10G SFP+, Intel Carlsville X710-TM4, with 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS
Add-on Card / Module AOC-SLG4-2E4T-P 2 2-Port Retimer, x8 PCIe Gen 4, Low Profile AOC, RoHS
Add-on Card / Module AOC-SLG4-4E4T-P 3 4-Port Retimer, x16 PCIe Gen 4,RoHS
Backplane BPN-NVME4-216N-S24 1 2U 24-slot all-hybrid direct-attached backplane, support 24x 2.5" NVME Gen4 / SAS / SATA storage devices.,RoHS
Cable CBL-SAST-1248-85 1 Slimline x8 (LE) to Slimline x8 (STR),46CM,85 OHM
Cable CBL-SAST-1256A-85 1 Slimline x8 (LE) to Slimline x8 (STR),56CM,85 OHM
Cable CBL-SAST-1262F-85 1 Slimline x8 (STR) to 2x Slimline x4 (RA),FFC,60/62CM,85
Cable CBL-SAST-1265A-85 4 Slimline x8 (STR) to Slimline x8 (STR),65CM,85 OHM
Cable CBL-SAST-1268-85 1 Slimline x8 (LE) to Slimline x8 (STR),68CM,85 OHM
Cable CBL-SAST-1282-85 4 Slimline x8 (STR) to Slimline x8 (STR),82CM,85 OHM
Riser Card RSC-W2-66G4 1 2U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS
Riser Card RSC-WR-6 1 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
Heatsink / Retention SNK-P0063P 2 2U Passive CPU Heat Sink for AMD Socket SP3 Processors
Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH

Optional Parts List
Part Number Qty Description
Storage Control Card and Cable(s) AOC-S3008L-L8e &
2x CBL-SAST-1285-100
(support up to 8 SAS3 HDD) 		- Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA;
Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
AOC-S3008L-L8i &
2x CBL-SAST-1285-100
(support up to 8 SAS3 HDD) 		- Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E;
Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
AOC-S3108L-H8iR/16DD &
2x CBL-SAST-1285-100
(support up to 8 SAS3 HDD) 		- Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60;
Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
AOC-SAS3-9361-16I &
4x CBL-SAST-1285-100
(support up to 16 SAS3 HDD) 		- MegaRAID SAS 9361-16i;
Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
AOC-S3616L-L16IT &
4x CBL-SAST-1285-100
(support up to 16 SAS3 HDD) 		- 16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP;
Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
AOC-SAS3-9361-24I &
6x CBL-SAST-1285-100
(support up to 24 SAS3 HDD) 		- MegaRAID SAS 9361-24i;
Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
AOC-S3808L-L8iT &
1x CBL-SAST-1264F-100
(support up to 8 SAS3 HDD) 		- 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS;
Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM
AOC-S3908L-H8iR-16DD &
1x CBL-SAST-1264F-100
(support up to 8 SAS3 HDD) 		- 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS;
Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM
AOC-S3816L-L16iT &
2x CBL-SAST-1264F-100
(support up to 16 SAS3 HDD) 		- 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS;
Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM
AOC-S3916L-H16iR-32DD &
2x CBL-SAST-1264F-100
(support up to 16 SAS3 HDD) 		- 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS;
Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM
CacheVault(s) BTR-TFM8G-LSICVM02 - CacheVault for Broadcom 3108
MCP-240-00127-0N Supercap mounting bracket for 2.5" HDD location
BTR-CVPM05 - Cache Vault for 3908/3916 controller
MCP-240-00127-0N Supercap mounting bracket for 2.5" HDD location
Cable Management Arm MCP-290-00128-0N 1 2U Supermicro Cable Management Arm 2nd Gen
MCP-290-00127-0N
M.2 by AOC AOC-SLG3-2M2 - LP, PCIe3 x8, Dual port NVMe M.2 carrier
AOC-SLG3-2H8M2 - 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS
Note: 2x M.2 per add-on card
SATADOM SSD-DM128-SMCMVN1 - SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH
SSD-DM480-SMCMVN1 - SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS
SSD-DM064-SMCMVN1 - SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
SSD-DM032-SMCMVN1 - SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
MEM-IDSAVS4-032G - SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725)
MEM-IDSAVM8A-128G - SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411)
MEM-IDSAVM8A-256G - SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411)
MEM-IDSAVE1-064G - SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i)
MEM-IDSAVS3-032G - SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710)
MEM-IDSAVT1-256G - IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP
HDD Tray for SAS/SATA MCP-220-00117-0B 1~24 Tool-less black hot-swap 2.5" drive tray (red tab)
TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
AOM-TPM-9655V-S - Based on AOM-TPM-9655V with Server TXT package
AOM-TPM-9665H - Horizontal TPM using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
AOM-TPM-9665H-S - Horizontal TPM TCG 2.0 Provisioned for Server,RoHS/REACH
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
