A+ Server 2024US-TRT (Complete System Only)
A+ Products Systems 2U [ 2024US-TRT ]




Integrated Board
H12DSU-iN

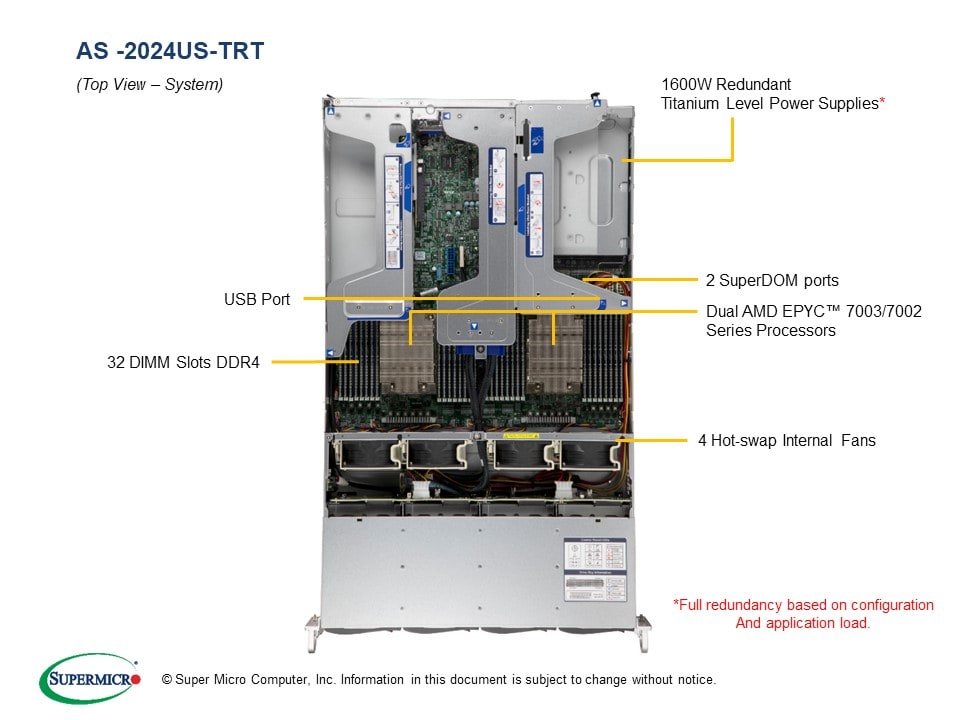

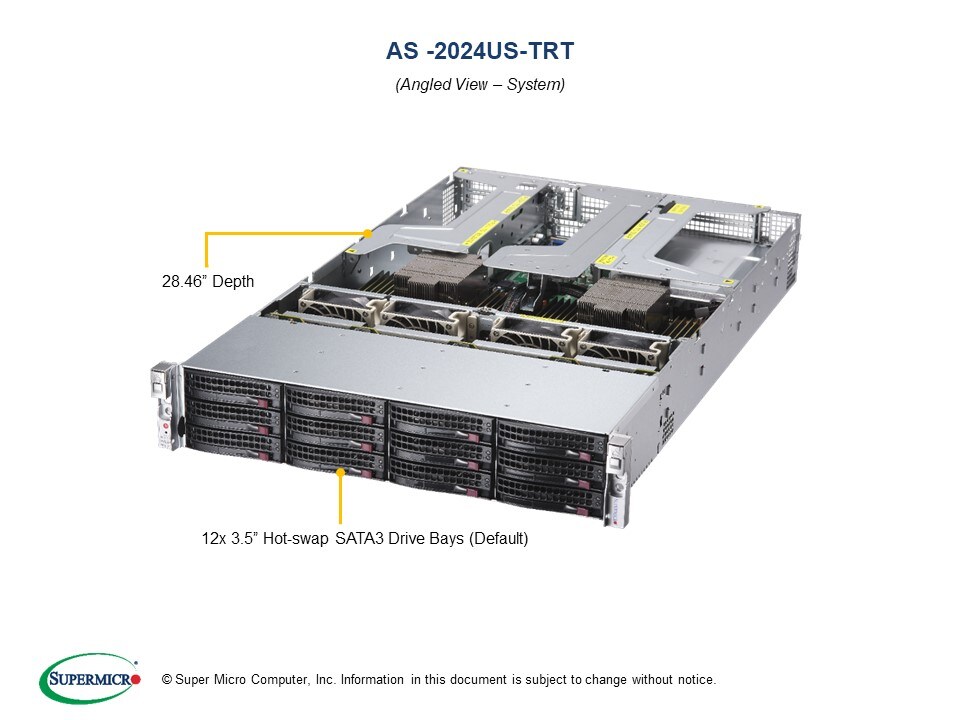

Views: | Angled View | Top View |

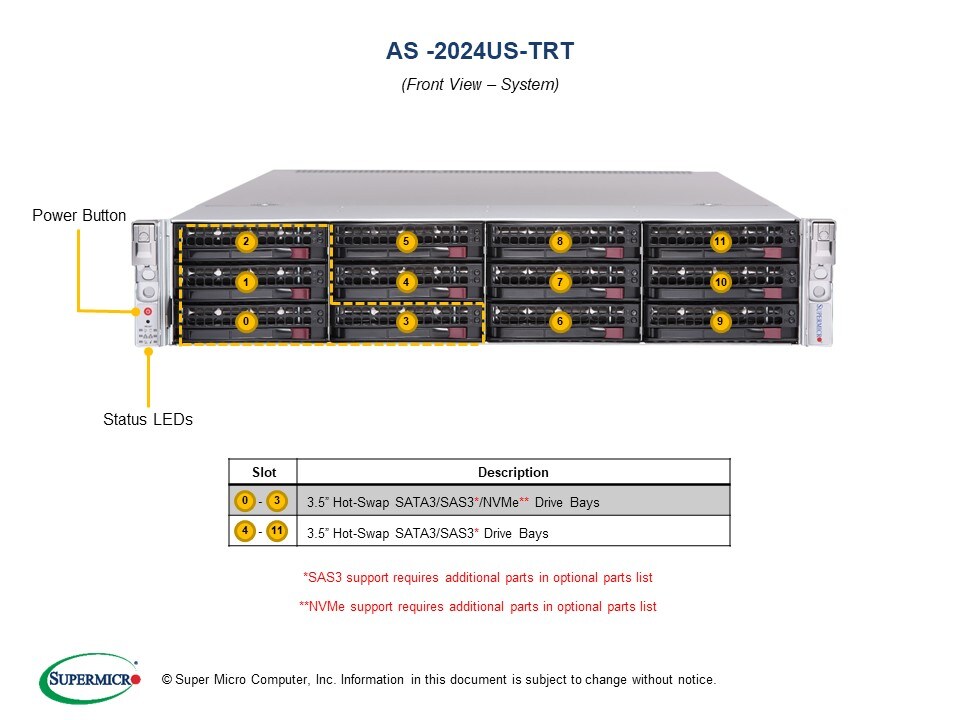

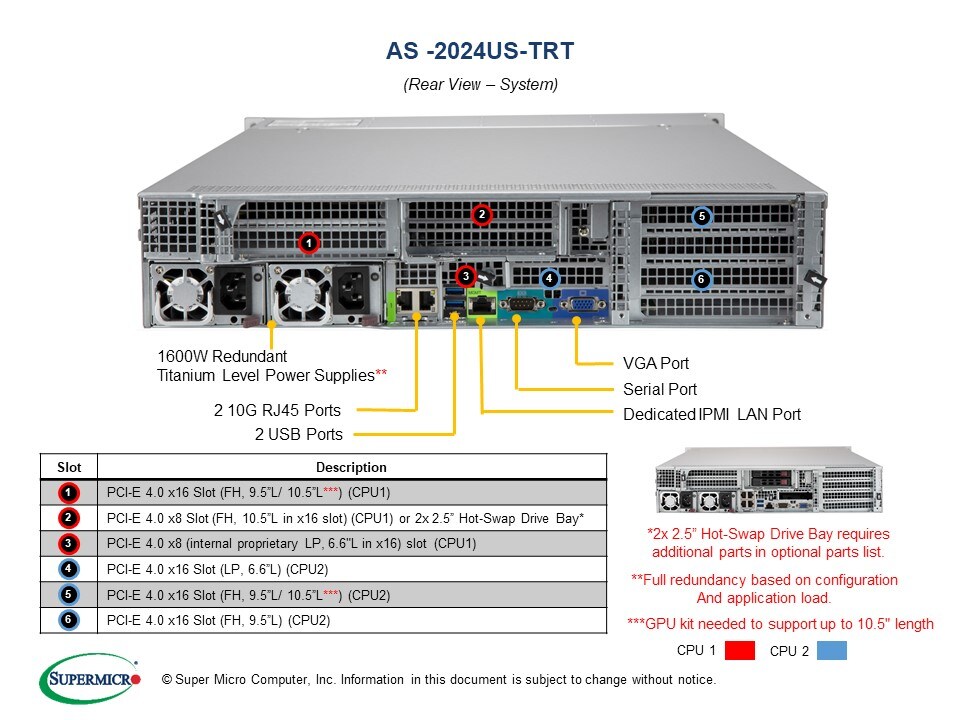

| Front View | Rear View |
Key Features
  - Virtualization
  - Cloud Computing
  - High End Enterprise Server
  - Hyperconverged Storage
  - Flexible Networking Options
1. Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
3. Expansion slots:
2 PCI-E 4.0 x16 (FH, 10.5" L) slots,
1 PCI-E 4.0 x16 (FH, 9.5" L) slot,
1 PCI-E 4.0 x16 (LP) slot,
1 PCI-E 4.0 x8 (FH, 9.5" L, in x16) slot,
1 PCI-E 4.0 x8 (internal proprietary LP in x16) slot
[ Details ]
4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
 key (SFT-OOB-LIC) included
 for OOB BIOS management
5. Dual 10GBase-T LAN ports via Intel® X710-AT2
6. 12 hot-swap 3.5" Drive Bays:
 12 SATA3 by default
 or 8 SATA3 + 4 NVMe via optional tray
 or 12 SAS3 via optional SAS kit
7. 1600W Redundant Power Supplies
Titanium Level (96%+)
(Full redundancy based on configuration
and application load)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 HDD/NVMe.

Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List NVMe Options Tested AOC Manuals OS Certification Matrix Compatible GPU List Quick-References Guide Drive Options Datasheet


Product SKUs
AS -2024US-TRT
  • A+ Server 2024US-TRT
Motherboard
H12DSU-iN
Processor/Chipset
CPU
  • Dual AMD EPYC™ 7003/7002 Series Processors
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W*
Cores
  • Up to 64 Cores
Chipset
  • System on Chip (SoC)
Note * Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory
Memory Capacity
  • 32 DIMM slots
  • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
  • 8-channel memory bus
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
  • SATA3 (6 Gbps)
Graphics
  • ASPEED AST2500 BMC
Expansion Slots
2U
  • 2 PCI-E 4.0 x16 (FH, 10.5" L) slots
  • 1 PCI-E 4.0 x16 (FH, 9.5" L) slot
  • 1 PCI-E 4.0 x16 (LP) slot
  • 1 PCI-E 4.0 x8 (FH, 9.5" L, in x16) slot
  • 1 PCI-E 4.0 x8 (internal proprietary LP in x16) slot


(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Input / Output
SATA
  • 12 SATA3 (6 Gbps) ports
LAN
  • Dual 10GBase-T LAN ports via Intel® X710-AT2
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
VGA
  • 1 VGA port
SAS
  • 12 SAS3 ports support via optional SAS kit
NVMe
  • 4 NVMe support via optional tray
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connector
  • TPM 1.2 header
System BIOS
BIOS Type
  • AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Chassis
Form Factor
  • 2U
Model
  • CSE-829U2TS-R1K62P3-T
Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 28.46" (723mm)
Package
  • 9.96" (H) 24.60" (W) 45.43" (D)
Weight
  • Net Weight: 36 lbs (16.4 kg)
  • Gross Weight: 72 lbs (32.7 kg)
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED
Drive Bays
Hot-swap
  • 12 hot-swap 3.5" Drive Bays:
    • 12 SATA3 by default
    • or 8 SATA3 + 4 NVMe via optional kit
    • or 12 SAS3 via optional SAS kit
Backplane
HDD Backplane
  • Supports 12 SATA3 or 8 SATA3 + 4 NVMe or 12 SAS3 HDD
System Cooling
Fans
  • 4 heavy-duty PWM fans with optimal fan speed control
Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96% Titanium Level
[ Test Report ]
PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
  • CPU switching voltage regulator
FAN
  • Up to 8-fan status tachometer monitoring
  • Up to eight 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 8x Fan connectors
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)*
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
Note * Support for operating 35°C is available in certain system configurations. Contact your Supermicro sales rep or Technical Support for more details.
Parts List - (Items Included)
Part Number Qty Description
Motherboard MBD-H12DSU-iN 1 Super H12DSU-iN Motherboard
Chassis CSE-829U2TS-R1K62P3-T 1 2U Chassis
Add-on Card / Module AOC-2UR68G4-I2XT-P 1 2U Ultra Riser with 2-port 10G RJ45, Intel Carlsville X710-AT2, 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS
Backplane BPN-SAS3-LA26A-N12 1 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
Cable 1 CBL-PWEX-0673 2 8 Pin Female to 2x Big 4 Pin Female Power, 65/70CM, 18AWG,Ro
Cable 2 CBL-SAST-1245-85 1 Slimline x8 (LE) to Slimline x8 (LE),48CM,85 OHM,RoHS
Cable 3 CBL-SAST-1247-85 1 Slimline x8 (LE) to Slimline x8 (LE),47CM,85 OHM,RoHS
Cable 4 CBL-SAST-1253-100 1 Slimline x8 (LE) to 2x Slimline x4 (STR),42/53CM,100 OHM
Cable 5 CBL-SAST-1269F-100 1 Slimline x4 (RA) to Slimline x4 (STR),70CM,100 OHM,RoHS
Riser Card RSC-W2-66G4 1 2U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS
Riser Card RSC-WR-6 1 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
Heatsink / Retention SNK-P0063P 2 2U Passive CPU Heat Sink for AMD Socket SP3 Processors
*Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
*FAN FAN-0206L4 4 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
*Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5"; HDD tray
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Optional Parts List
Part Number Qty Description
Storage Control Card and Cable(s) AOC-S3008L-L8e - Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA
2x CBL-SAST-1285-100 Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
(support up to 8 SAS3 HDD)
AOC-S3008L-L8i - Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E
2x CBL-SAST-1285-100 Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
(support up to 8 SAS3 HDD)
AOC-S3108L-H8iR / 16DD - Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
2x CBL-SAST-1285-100 Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
(support up to 8 SAS3 HDD)
AOC-SAS3-9361-16I - MegaRAID SAS 9361-16i
3x CBL-SAST-1285-100 Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
(support up to 12 SAS3 HDD)
AOC-S3616L-L16IT - 16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP
3x CBL-SAST-1285-100 Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM
(support up to 12 SAS3 HDD)
AOC-S3808L-L8iT - 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS
1x CBL-SAST-1264F-100 Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM
(support up to 8 SAS3 HDD)
AOC-S3908L-H8iR-16DD - 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
1x CBL-SAST-1264F-100 Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM
(support up to 8 SAS3 HDD)
AOC-S3816L-L16iT - 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS
1x CBL-SAST-1264F-100 Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM
1x CBL-SAST-1265F-100 Slimline x8 (STR) to Slimline x4 (STR),64CM,100 OHM,RoHS
(support up to 12 SAS3 HDD)
AOC-S3916L-H16iR-32DD - 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS
1x CBL-SAST-1264F-100 Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM
1x CBL-SAST-1265F-100 Slimline x8 (STR) to Slimline x4 (STR),64CM,100 OHM,RoHS
(support up to 12 SAS3 HDD)
CacheVault(s) BTR-TFM8G-LSICVM02 - CacheVault for Broadcom 3108
BKT-BBU-BRACKET-05 Supercap mounting bracket for PCI-E location
BTR-TFM8G-LSICVM02 - CacheVault for Broadcom 3108
MCP-240-00127-0N Supercap mounting bracket for 2.5" HDD location
MCP-220-00043-0N STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray
BTR-CVPM05 - Cache Vault for 3908/3916 controller
BKT-BBU-BRACKET-05 Supercap mounting bracket for PCI-E location
BTR-CVPM05 - Cache Vault for 3908/3916 controller
MCP-240-00127-0N Supercap mounting bracket for 2.5" HDD location
MCP-220-00043-0N STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00043-0N - STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray
MCP-220-00118-0B - STD Black hot-swap tool-less 3.5"-to-2.5" converter drive tray.
Optional Kit for NVMe solution MCP-220-00116-0B Up to 4 Black gen-5 3.5"-to-2.5" NVMe drive tray, Orange tab (for hotswap NVMe drive)
MCP-220-00138-0B Up to 4 Black gen-5.5 tool-less NVMe 3.5"-to-2.5" drive tray, Orange tab
Additional HDD Kit MCP-240-82922-0N-OEM - Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U
2U Cable Management Arm MCP-290-00128-0N 1 2U Supermicro Cable Management Arm 2nd Gen
MCP-290-00127-0N
Ultra 2U Front Bezel MCP-210-82601-0B -
M.2 by AOC AOC-SLG3-2M2 1 LP, PCIe3 x8, Dual port NVMe M.2 carrier
AOC-SLG3-2H8M2 1 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS
GPU Kit SNK-P0062P 2 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
MCP-310-00091-0B 1 Ultra 2U GPU Air Shroud Kit for AMD
Riser Card RSC-W2-8888G4 - 2U LHS WIO Riser card with four PCI-E 4.0 x8 slots,HF,RoHS
TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
AOM-TPM-9665H - Horizontal TPM using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
SATADOM SSD-DM128-SMCMVN1 - SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH
SSD-DM480-SMCMVN1 - SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS
SSD-DM064-SMCMVN1 - SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
SSD-DM032-SMCMVN1 - SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
MEM-IDSAVS4-032G - SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725)
MEM-IDSAVM8A-128G - SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411)
MEM-IDSAVM8A-256G - SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411)
MEM-IDSAVE1-064G - SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i)
MEM-IDSAVS3-032G - SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710)
MEM-IDSAVT1-256G - IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
