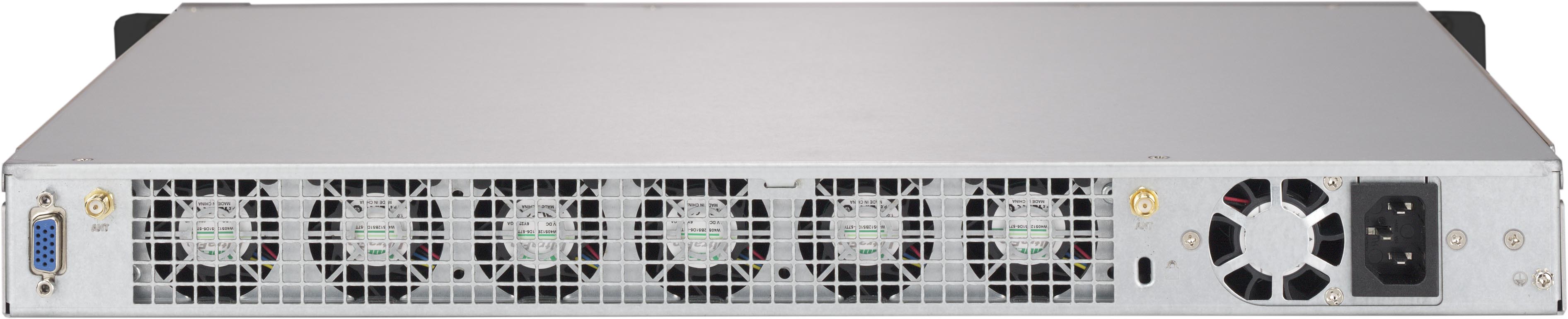

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.

Key Features
  1. 15" Mini 1U chassis support for maximum motherboard size - 12" x 13" E-ATX
  2. 2 x Full-height & Half-length expansion slot(s)
  3. 2 x 2.5" hot-swap drive bay, Up to optional 4 x 2.5" fixed Internal Drive with bracket
  4. Power Switch, UID Button & LED Indicators
  5. 4 x 40mm x28mm PWM fan(s)
  6. 1U 350W Multi-output Power Supply Platinum Level
Specifications
Product SKUs
CSE-513BTQC-350WB
  • SuperChassis 513BTQC-350WB

Form Factor
  • 15" Mini 1U chassis support for maximum motherboard size - 12" x 13" E-ATX
  •
    Processor Support
  • Single and Dual Intel® / AMD processors
  •
    Dimensions
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 15.0" (381 mm)
    Gross Weight
    • 14.5 lbs (6.58 kg)
    Packaging (W x H x L)
    • 19.5" (495 mm) x 6.9" (175 mm) x 22.4" (569 mm)
    Available Color
    • Black

    Expansion Slots
    • 2 full-height & half-length expansion slot(s) (Riser Card Required)

    Drive Bays
    • Up to 2 x 2.5" hot-swap drive bay
    • Optional 4 x 2.5" fixed with bracket
    • SAS or enterprise SATA HDD only recommended

    Backplane
    • 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD

    Front Panel
    Buttons
    • Power On/Off button
    • Unit Identification (UID) button
    LEDs
    • 2 Network Activity LEDs
    • HDD activity LED
    • Power Status LED
    • System Information LED
    Ports
    • 4x LAN Port(s)
    • 4x USB Port(s)
    • 1x IPMI
    • 1x VGA
    • 1x Com Port(s)
    Systems Cooling
    Fans
    • 4 x 40x28mm PWM fan(s)
    • Optional 2 x 40x28mm PWM fan(s)

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 350W Multi-output power supply Platinum level
    Power Efficiency
    • 93%
    Total Output Power and Input
    • 350W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 180 x 100 x 40 mm
    Output Type
    • 24pin ATX
    -12V
    • Max: .2A / Min: 0A
    +12V
    • Max: 29A / Min: .5A (100Vac - 240Vac)
    +5V
    • Max: 15A / Min: .2A
    +3.3V
    • Max: 12A / Min: .2A
    +5Vsb
    • Max: 3A / Min: 0A
    Certification
    • Platinum Certified  Platinum Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class B
    • TUV/CB
    Components
    Standard Parts List
      Part Number Qty Description
    HD BackplaneBPN-SAS3-826TQ-B2B12-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
    Cable(S)CBL-0160L1NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    Cable(S)CBL-0335L1CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG
    Fan(s)FAN-0154L4440x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
    Front PanelMCP-280-80901-0N1SC809 FRONT CONTROL PANEL ASSY
    Cooling Fan & AccessoryMCP-320-00060-0N1Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12
    Drive Tray(s)MCP-220-00180-0B22.5" New ID gen 3 hot-swap HDD tray with lock feature (with plastic bracket)
    Part(s)MCP-340-00001-012Dummy fan 40x28mm
    Part(s)MCP-260-00078-0B11U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
    Power Supply & AccessoryPWS-350-1H11U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
    Mounting Rail(s)MCP-290-00102-0N1 setOuter rail, quick-release type, 25.6" to 33.05"
    Mounting Rail(s)MCP-290-00108-0B1 setInner rail, front, short (quick) for 1U 17.2
    Rear WindowMCP-240-51301-0N1Rear window for SC513B single PWS chassis
    Optional Parts List
      Part Number Qty Description
    2.5" HDD Bracket MCP-220-00137-0N - Dual 2.5 HDD bracket
    Cable CBL-0234L - 4-PIN POWER SUPPLY Y-CABLE FOR HDD, 15CM, 20AWG
    Cable CBL-0481L - SATA,INT,ROUND,ST-ST,81CM,30AWG
    Cable CBL-CDAT-0662 - CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
    Cable CBL-0206L - SATA,INT,ROUND,ST-ST,48CM,26AWG
    IO shield MCP-260-00144-0B - 1U I/O Shield for X11SDW in 513B with EMI Gasket
    Servers (for CSE- 513BTQC-350WB)
    1019D-FHN13TP 1019D-4C-FHN13TP
    SuperChassis 513BTQC-350WB
