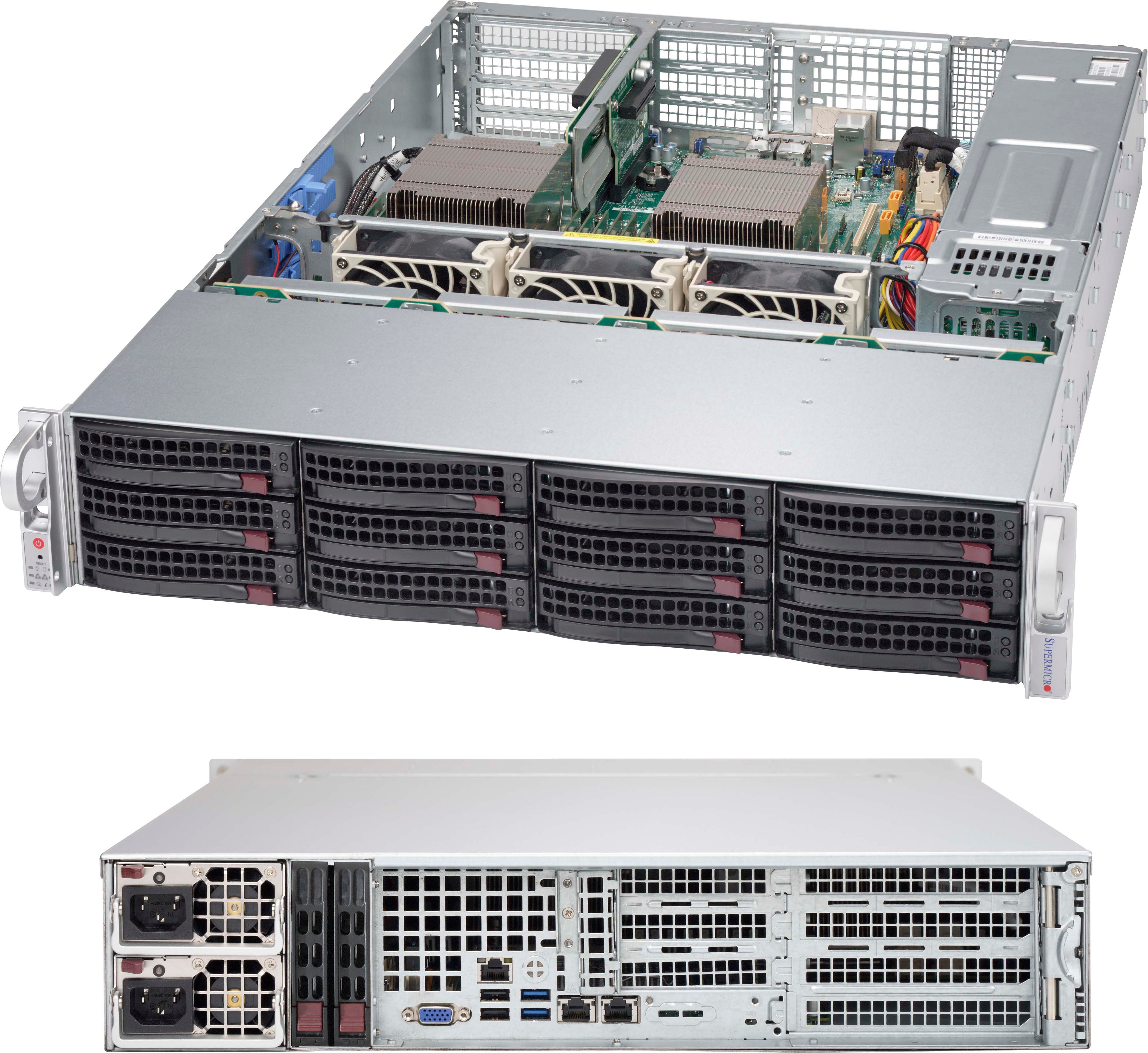

SuperChassis 826BAC4-R920WB

Key Features


  1. 2U chassis support for SMC Proprietary WIO motherboards max. motherboard size - 12" x 13", 13" x 13.68".
    Support up to 12"x13" MB with rear 2.5" HDD option installed
  2. 12 x 3.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay
    8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD
  3. 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
  4. 1U 920W Redundant Platinum Super Quiet power supply W/PMbus
  5. WIO Slots (4x Full-height, Half-length + 3x Low-profile)
  6. 3 x 8cm high-performance PWM fan(s)
    Optional 5 x 6cm 4pin high performance fan(s)
Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis 826BAC4-R920WB
Form Factor
  • 2U chassis support for SMC Proprietary WIO motherboards max. motherboard size - 12" x 13", 13" x 13.68".
    Support up to 12"x13" MB with rear 2.5" HDD option installed
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (647 mm)
Gross Weight
  • 55 lbs (24.95 kg)
Net Weight
  • 40 lbs (18.14 kg)
Packaging (W x H x L)
  • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
Available Color
  • Black
Expansion Slots
  • WIO Slots 4x Full-height, Half-length expansion slot(s)
  • WIO Slots 3x Low-profile expansion slot(s)
Drive Bays
  • Optional 2x 2.5" hot-swap drive bay
  • 12x 3.5" hot-swap drive bay
  • 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD
Backplane
  • 12-Port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Unit Identification (UID) LED
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • Optional 5x 6cm 4pin high performance fan(s)
  • 3x 8cm high-performance PWM fan(s)
System Monitoring
  • Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 920W Redundant Platinum Super Quiet power supply W/PMbus
Power Efficiency
  • 94%
Total Output Power and Input
  • 920W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 75A / Min: 1A (100Vac - 240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT826-8824
  • O/P: 12V/135
  • +5V Max: 40A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • Platinum Certified  Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL
Resources
Motherboard (for CSE-826BAC4-R920WB)
Motherboard Name
X10DRW-NTX10DRW-NX10DRW-iTX10DRW-iX10DRW-ETX10DRW-EX10DDW-INX10DDW-I
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Documentation
Chassis Manual
