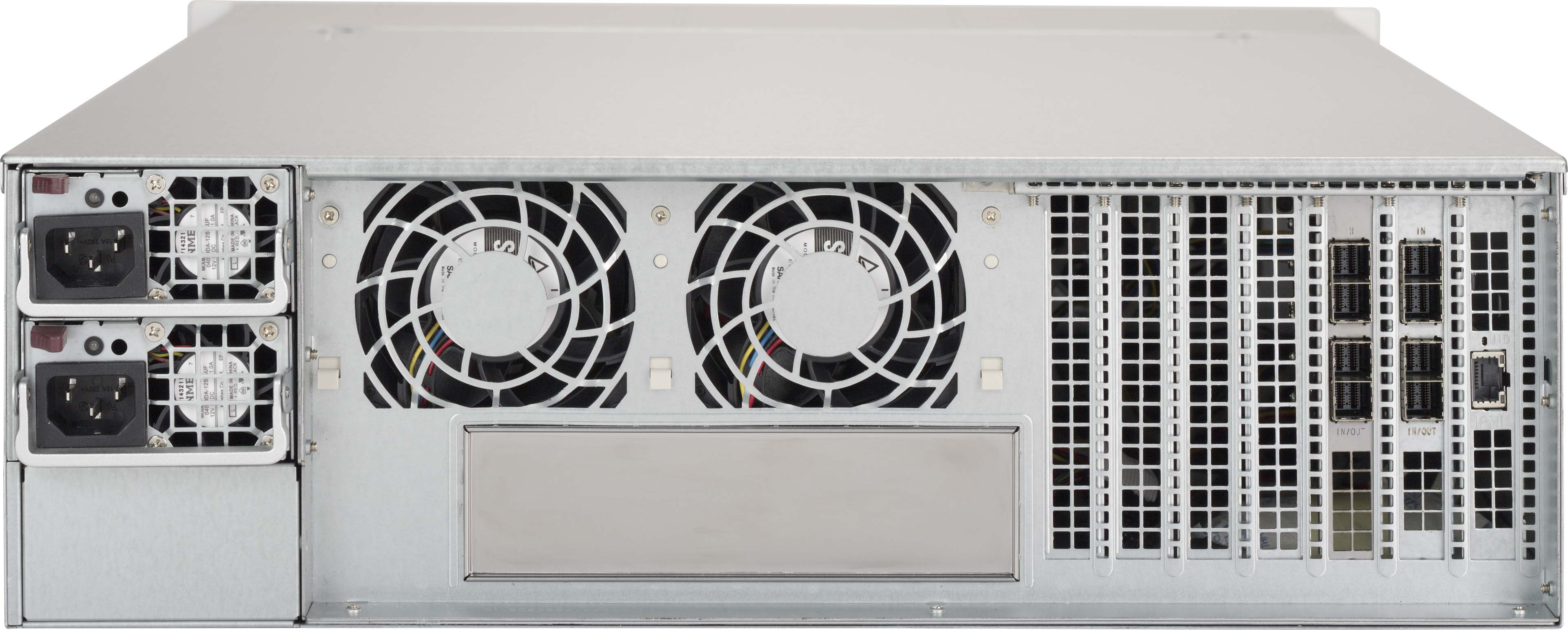

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Key Features
  1. Cloud Backup, Data Replication, or High Density Archive Storage Applications

    3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays
  2. Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
  3. 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
  4. 1x IPMI port for Remote System Power on/off and system monitoring
  5. Support NTP for time synchronization & RTC battery backup
  6. 1000W (1+1) 96% efficient Titanium level power supplies
  7. 5 hot-plug redundant cooling fans
  8. Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
  9. Qualified SAS HBA / controller:
    AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
    AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller


For optimal performance and quality, Supermicro validated drives are recommended. Please contact your Supermicro sales rep for validated HDD.
Specifications
Product SKUs
CSE-836BE2C-R1K03JBOD
  • SuperChassis 836BE2C-R1K03JBOD

Form Factor
  • 3U JBOD storage chassis

Dimensions
Height
  • 5.2" (132 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (647 mm)
Gross Weight
  • 75 lbs (34.02 kg)
Net Weight
  • 36 lbs (16.33 kg)
Packaging (W x H x L)
  • 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm)
Available Color
  • Black

Drive Bays
  • 16x 3.5" hot-swap HDD bay for JBOD solution

Qualified SAS Controllers
  • AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller
  • AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter

Backplane
  • 16-Port 3U SAS3 12Gbps dual-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)

Front Panel
Button
  • Power On/Off button
  • System Reset button
  • Unit Identification (UID) button
LED
  • 1 Network activity LEDs
Systems Cooling
Fans
  • 2x 8cm hot-swap exhaust fan(s) & air shroud
  • 3x 8cm hot-swap redundant PWM cooling fan(s)

System Monitoring
  • IPMI

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus
Power Efficiency
  • 96%
Total Output Power and Input
  • 800W with Input 100 - 127Vac
  • 1000W with Input 200 - 240Vac
  • 1000W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 66.7A / Min: 0A (100Vac - 127Vac)
  • Max: 83A / Min: 0A (200Vac - 240Vac)
  • Max: 83A / Min: 0A (200Vdc - 240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT826-8824
  • O/P: 12V/135
  • +5V Max: 40A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • Titanium Certified  Titanium Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Components
Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-39001-0N 1 SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB
Bracket MCP-120-84702-0N 1 CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
Bracket MCP-120-84706-0N 1 FH PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF
HD Backplane BPN-SAS3-836EL2 1 16-port 3U SAS3 12Gbps dual-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
Control Board CSE-PTJBOD-CB3 1 JBOD chassis power control board with IPMI remote on/off feature
Cable(s) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(s) CBL-0088L 1 10.5" 4PIN FAN POWER CORD FOR 743X-645,PBF
Cable(s) CBL-0296L 3 9" 4 PIN FAN PWS EXTENSION CORD, PBF
Cable(s) CBL-CDAT-0601 1 4 Pin to 4 Pin I2C cable, 50cm, 26AWG
Cable(s) CBL-NTWK-0587 1 INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
Cable(s) CBL-SAST-0531 4 Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s
Cable(s) CBL-SAST-0532 4 Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s
Part(s) MCP-230-82501-0N 1 Top cover for SC213,216,825,826,835,836,936,846
Part(s) MCP-120-00061-0N 7 Blank FH L-bracket (5x5 square hole)
Part(s) MCP-290-00088-0N 1 SC119 Intrusion assembly
Part(s) MCP-290-83603-0N 1 SC836 HDD backplane bracket
Part(s) MCP-290-83605-0N 1 836B rear dummy cover for 2 X 2.5"; HDD cage
CD-ROM & Accessory MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
Fan(s) FAN-0125L4 2 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
Fan(s) FAN-0126L4 3 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Drive Tray(s) MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836
Drive Tray(s) MCP-220-00075-0B 16 Black gen 5.5 hot-swap 3.5" HDD tray
Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B
Part(s) MCP-260-00011-0N 1 I/O shield without any opening
Part(s) MCP-290-83601-0V 1 set Silver chassis handles (left and right) for SC836/835
Power Supply & Accessory PWS-1K03A-1R 2 1U 1000W Redundant Power Supply Titanium W/PMbus 76x40x336mm,RoHS/REACH
Mounting Rail(s) MCP-410-00007-0N 1 Rail screw bag
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Rear Window MCP-240-83605-0N 1 836B chassis rear window (to support the optional MCP-220-83605-0N)
Optional Parts List
  Part Number Qty Description
Cable CBL-SAST-0690-1 - MINI SAS HD,12G,EXT,2M,30AWG,RoHS
CBL-SAST-0573 - External mini SAS HD to external mini SAS HD cable 28AWG (1M)
CBL-SAST-0677 - 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
Drive Trays MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
