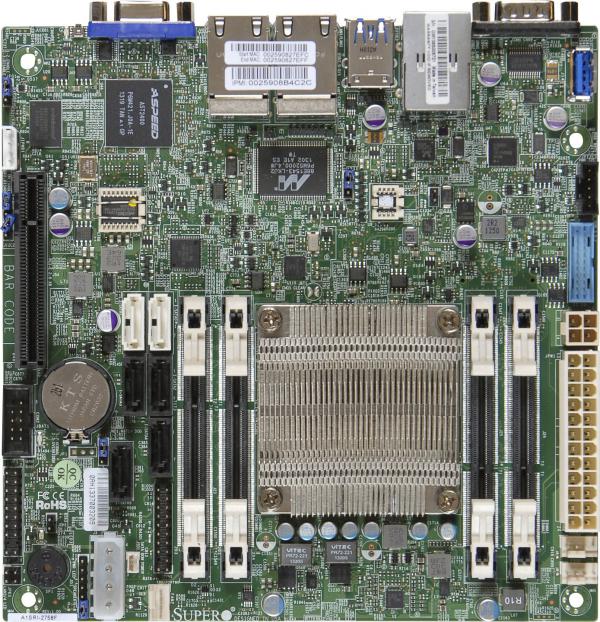

A1SRi-2558F

A1SRi-2558F
Embedded
Low Power
Rangeley
Silvermont

Key Features


  1. Intel® Atom® Processor C2558
    Single Socket FCBGA-1283 supported, CPU TDP support Up to 15W TDP
  2. Quad LAN with Intel® C2000 SoC
    I354
  3. 64GB Unbuffered ECC SO-DIMM, DDR3-1600MHz, in 4 DIMM slots
  4. 1 PCIe 2.0 x8
  5. SoC controller for 4 SATA2 (3 Gbps) ports; 2 SATA3 (6 Gbps)
  6. 1 VGA port
  7. System on Chip
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-A1SRi-2558F
Physical Stats
Form Factor
  • Mini-ITX
Dimension
  • 6.75" x 6.75" (17.15cm x 17.15cm)
Processor
CPU
  • Intel® Atom® Processor C2558
  • Single Socket FCBGA-1283 supported, CPU TDP supports Up to 15W TDP
Core
  • Up to 4 cores, 4 threads
Note
System Memory
Memory Capacity
  • 4 DIMM slots
  • 64GB Unbuffered ECC SODIMM, DDR3-1600MHz
Memory Type
  • 1600/1333/1066 MT/s ECC DDR3 SODIMM Unbuffered 204-pin gold-plated DIMMs1600/1333MHz SDRAM 204-pin gold-plated DIMMs
DIMM Sizes
  • 4GB, 8GB, 16GB
Memory Voltage
  • 1.35V
  • 1.5V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • 2 SATA3 (6 Gbps) ports; RAID 0/1
  • SoC controller for 4 SATA2 (3 Gbps) ports
IPMI
  • ASPEED AST2400 BMC
Graphics
  • 1 ASPEED AST2400 BMC port(s)
Network Controllers
  • Quad LAN with Intel® C2000 SoC, I354
Input / Output
SATA
  • 2 SATA3 (6Gbps) port(s)
  • 4 SATA2 (3Gbps) port(s)
LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
USB
  • 2 USB 2.0 port(s) (2 rear)
  • 2 USB 3.2 Gen1 port(s) (1 type A; 1 via header)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 VGA port(s)
Serial Port
  • 2 fast UART 16550 Serial
  • 2 COM Port(s) (1 header; 1 rear)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 2.0 x8
M.2
System BIOS
BIOS Type
  • 64MB AMI Flash EEPROM
Management
Software
  • SuperDoctor® 5, NMI, KVM with dedicated LAN, IPMI2.0, Watchdog
Power Configurations
  • ACPI Power Management, ATX Power connector, +12V DC Power Input, Control of power-on for recovery from AC power loss
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
  • Power LED
  • BMC/IPMI Heartbeat LED
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
FAN
  • 3x 4-pin fan headers (up to 3 fans)
  • Thermal control tachometer fan connectors
  • System level control
  • PWM fan speed control
  • Fan speed control
  • Overheat LED indication
Other Features
  • WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, Intel® QuickAssist Technology, 4-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
