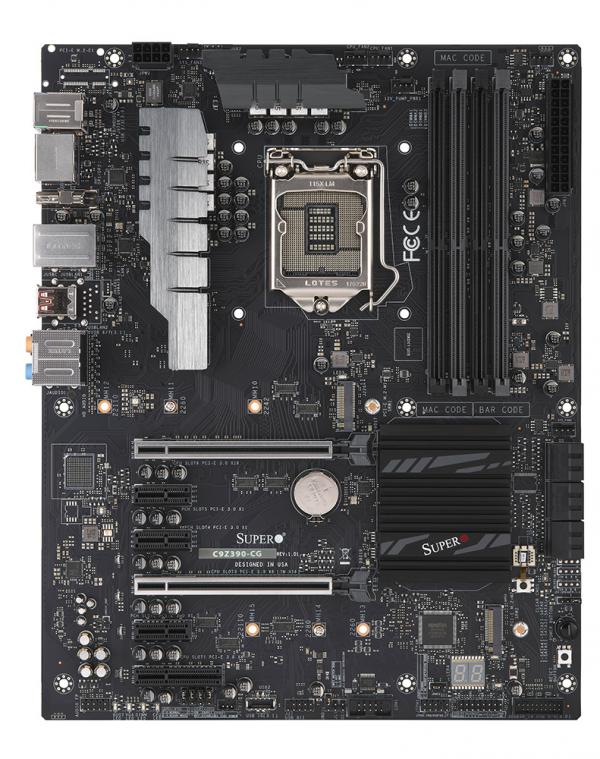

Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 120W TDP
Single LAN with Intel® single Ethernet PHY i219V
Intel® Z390 Express
Up to 64GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron)_x005F_x000D_
Up to 128GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 9th core i5/i7/i9)
2 PCIe 3.0 x16 slots (16/NA or 8/8), 1 PCIe 3.0 x4, 3 PCIe 3.0 x1 CPU Slot3 PCIe 3.0 x8 (IN x16) slot and CPU Slot1 PCIe 3.0 x4 slot share the same PCIex16 link with CPU Slot6 PCIe 3.0 x16 slot. CPU Slot6 PCIe 3.0 x16 slot and CPU Slot3 PCIe 3.0 x8 (IN x16) slot will change to PCIe 3.0 x8 link and PCIe 3.0 x4 link respectively when an add-on card is installed in CPU Slot1 PCIe 3.0 x4 slot M.2 Interface: 2 PCIe 3.0 x4, RAID 0 & 1 M.2 Form Factor: 2242/2260/2280/22110, 2242/2260/2280 M.2 Key: M-Key, M-Key
Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz),
HDMI(max. resolution up to 3840x2160@30Hz)
Network Controllers
Single LAN with Intel® single Ethernet PHY i219V
Input / Output
SATA
6 SATA3 (6Gbps) port(s)
LAN
1 RJ45 Gigabit Ethernet LAN ports
USB
4 USB 3.1 Gen1 port(s) (2 via header; 2 rear type A)
5 USB 3.1 Gen2 port(s) (1 via header; 1 rear type C; 3 rear type A)
Video Output
1 HDMI port(s), 2 DP (DisplayPort) port(s)
Serial Port
1 COM Port(s) (1 header), RS232/422/485
TPM
1 TPM Header
Expansion Slots
PCIe
2 PCIe 3.0 x16 slots (16/NA or 8/8),
1 PCIe 3.0 x4,
3 PCIe 3.0 x1
CPU Slot3 PCIe 3.0 x8 (IN x16) slot and CPU Slot1 PCIe 3.0 x4 slot share the same PCIex16 link with CPU Slot6 PCIe 3.0 x16 slot. CPU Slot6 PCIe 3.0 x16 slot and CPU Slot3 PCIe 3.0 x8 (IN x16) slot will change to PCIe 3.0 x8 link and PCIe 3.0 x4 link respectively when an add-on card is installed in CPU Slot1 PCIe 3.0 x4 slot
M.2
M.2 Interface: 2 PCIe 3.0 x4, RAID 0 & 1
Form Factor: 2242/2260/2280/22110, 2242/2260/2280
Key: M-Key, M-Key
1 M.2 2242/3042 B-Key (USB2.0 x 1,PCIe Gen2 x 1,SATA Gen3 x 1)
