H14SSL-NT

H14SSL-NT

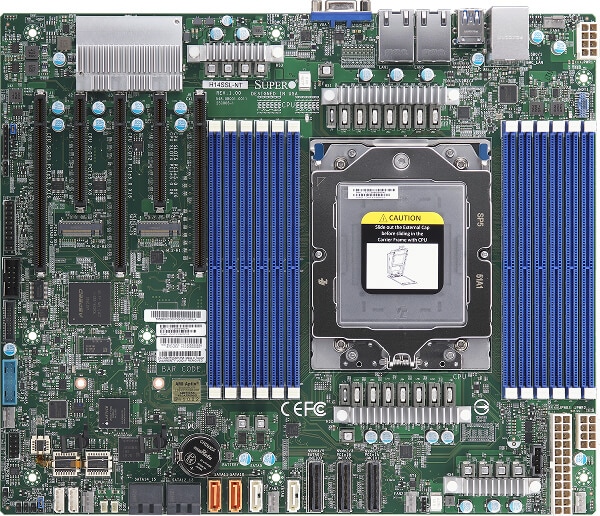

H14 UP Mainstream Server Board

Key Features


  1. ASPEED AST2600 BMC graphics
  2. 6 PWM 4-pin Fans with tachometer status monitoring
  3. M.2 Interface: 2 PCIe 5.0 x4, M.2 Form Factor: 2280, 22110
  4. AMD EPYC™ 9005/9004 Series Processors
  5. System on Chip
  6. Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s (Please check System Memory Section for detail)
  7. 3 PCIe 5.0 x16, 2 PCIe 5.0 x8
  8. 2x 10GBase-T LAN Ports via Broadcom BCM57416
  9. Up to 6 USB 3.0 ports(4 rear + 2 via header)
  10. 8 SATA3
...
...

Optimized Servers


AS -2116S-TNRT AS -2116S-FTNRT
Specifications Resources Parts List
Specifications
Product SKUs
A+ Motherboard® MBD-H14SSL-NT
Physical Stats
Form Factor
  • ATX
Dimension
  • 12" x 10.1" (30.48cm x 25.65cm)
Processor
CPU
Core
  • Up to 192 cores, 384 threads
System Memory
Memory Capacity
  • 12 DIMM slots
  • Up to 3TB 3DS ECC Registered RDIMM, DDR5-6400MT/s
Memory Type
  • 6400 MT/s ECC DDR5 RDIMM (3DS)
    Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM/3DS (AMD EPYC™ 9005 Series Processor)
DIMM Sizes
  • 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
Network Controllers
  • Dual LAN with Broadcom BCM57416 10GBase-T
Input / Output
LAN
  • 1 RJ45
Serial Port
  • 1 COM
Others
  • 1 MCIO (PCIe 5.0 x8/SATA3) Hybrid
  • 2 MCIO (PCIe 5.0 x8/SATA3)
Expansion Slots
PCIe
  • 3 PCIe 5.0 x16 (in x16 slot),
  • 2 PCIe 5.0 x8
M.2
  • M.2 Interface: 2 PCIe 5.0
  • Form Factor: 2280/22110
  • Key: M-key
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
  • AMI 64MB SPI Flash EEPROM
  • AMI 64MB SPI Flash EEPROM
BIOS Features
  • SMBIOS 3.7 or later
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • VBAT, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 1.8V standby
LED
  • UID/remote UID LED
  • BMC/IPMI Heartbeat LED
Temperature
  • CPU thermal trip support
  • Memory temperature
  • CPU temperature
  • VRM temperature
Other Features
  • RoT
Fan
  • 6x 4-pin fan headers (up to 6 fans)
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Publish Status
0
  • Published
Resources
Servers (Optimized for H14SSL-NT)
AS -2116S-TNRT
AS -2116S-FTNRT
...
Component Options
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Software
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

H14SSL-NT New
