SuperStorage 937R-E2CJB

Products Systems SBB JBOD [ SSG-937R-E2CJB ]


High Availability Storage Appliance Platform



2 Integrated AOM
AOM-SAS3-937EL-JB

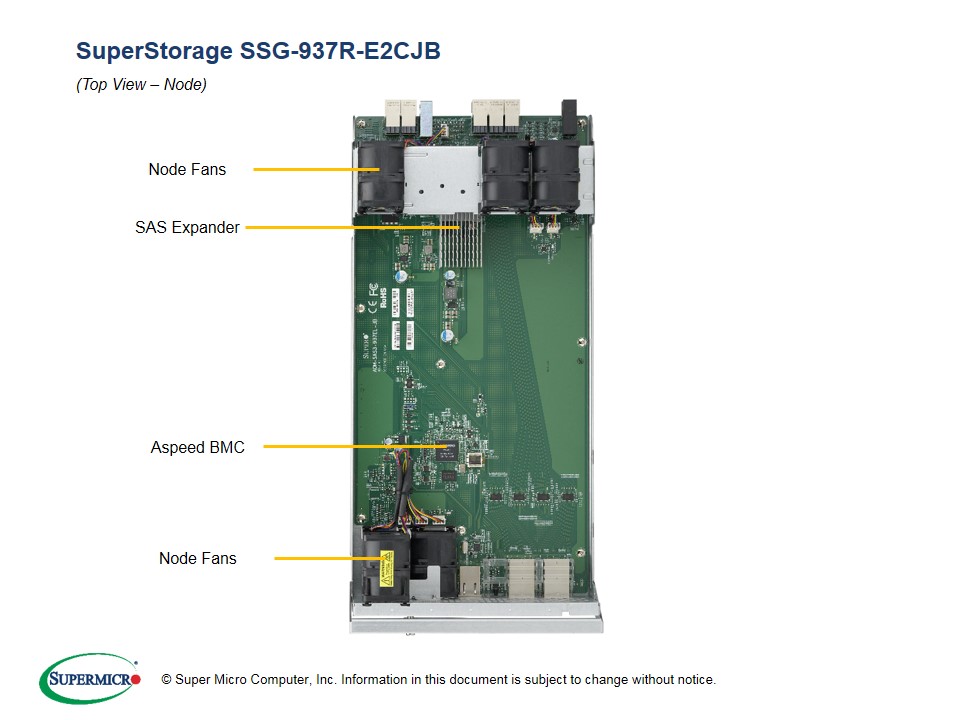

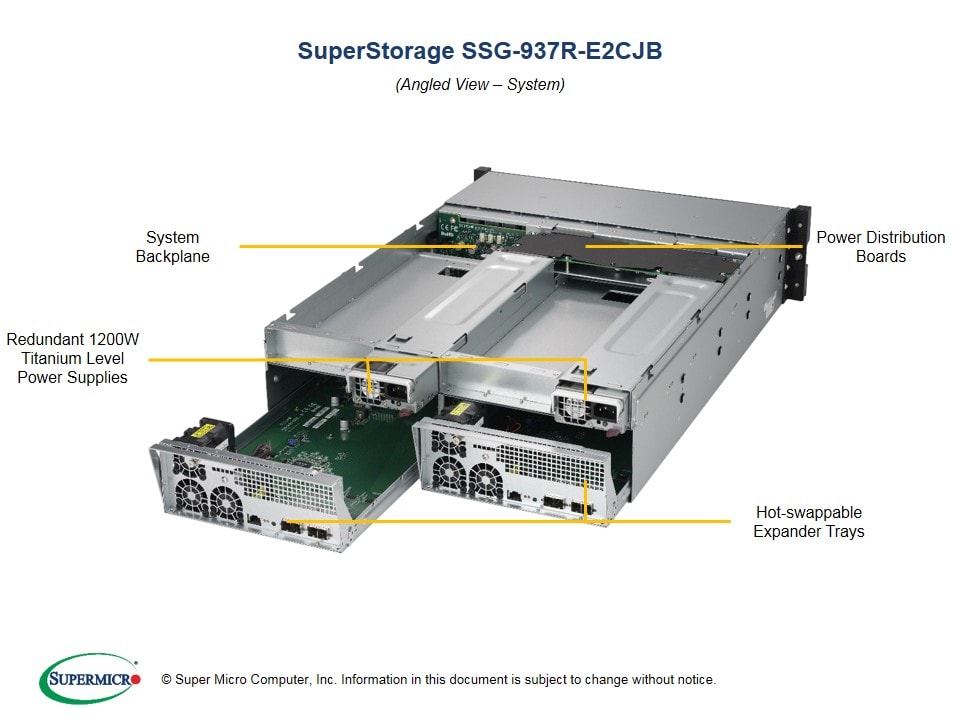

Views: | Angled View | Top View |

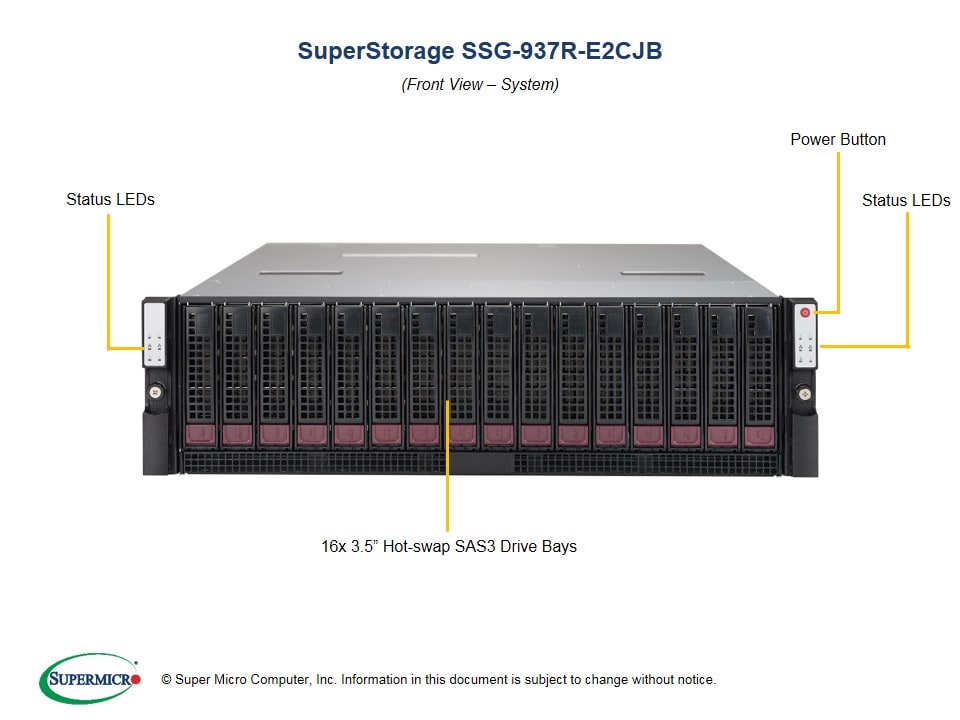

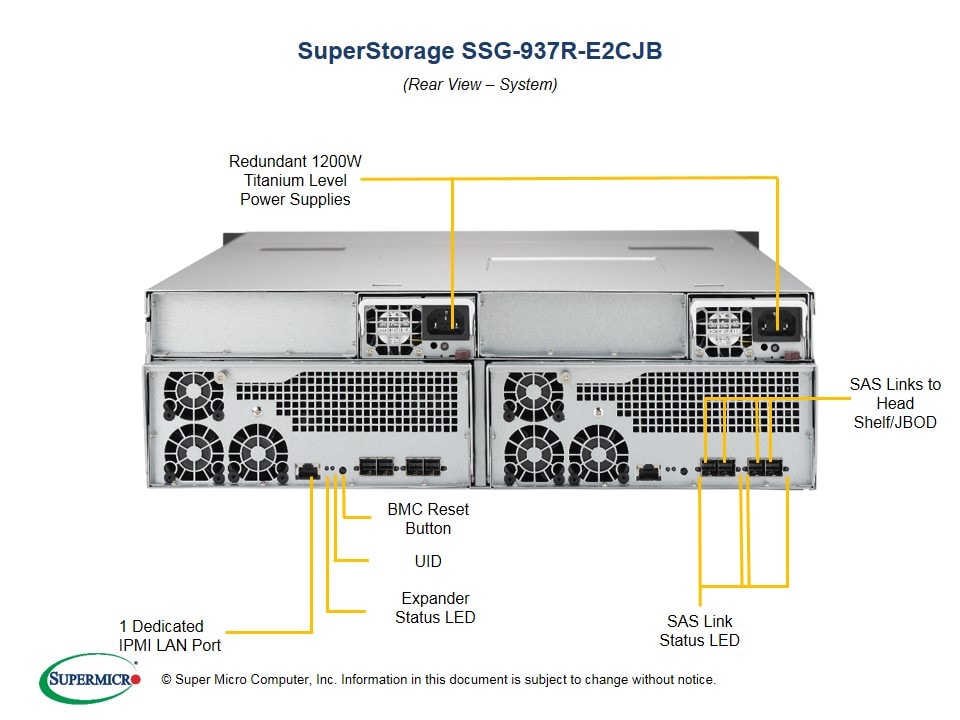

| Front View | Rear View |

Key Features
Two hot-pluggable systems (nodes) in a 3U form factor.
1. High Availability Storage
Appliance Platform
2. Redundant Hot-swap expander
trays
3. 4 SAS3.0 IO ports
4. 16 Hot-swap 3.5" Drive Bays
5. IPMI 2.0 with dedicated LAN
6. 12x 40mm cooling fans
7. 1200W Redundant Power Supplies
Titanium Level Certified

Drive Options Manuals

Product SKUs
SSG-937R-E2CJB
  • SuperStorage 937R-E2CJB (Black)
Add-on Module

2x AOM-SAS3-937EL-JB
Drive Bays
Hot-swap
  • 16 Hot-swap 3.5" Drive Bays
  • SAS or enterprise SATA HDD only recommended
Expander
AOM-SAS3-937EL-JB, features:
• 12Gb SAS3 HDD support
• Redundancy dual ported SAS architecture
• Robust AirMax server node connections (SBB specification)
On-Board Devices
SAS
  • SAS3 (12Gbps) via AOM-SAS3-937EL-JB
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
  • Alarm Mute Switch
LEDs
  • Power LED
  • Hard Drive Activity LED
  • 2 SAS link Activity LED
  • System Overheat LED
  • Power Fail LED
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-937ETS-R1200NDBP-X10
Dimensions
Height
  • 5.12" (130mm)
Width
  • 17.2" (437mm)
Depth
  • 26.5" (673mm)
System Cooling
Fans
  • 12x 40mm cooling fans
Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1200W
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 100-127Vac / 15-12A / 50-60Hz
  • 200-240Vac / 8.5-7A / 50-60Hz
  • 200-240Vdc / 8.5-7A (for CCC only)
+12V
  • Max: 83A / Min: 0A (100-127Vac)
  • Max: 100A / Min: 0A (200-240Vac)
  • Max: 100A / Min: 0A (200-240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • 19 Pairs Gold Finger Connector
Certification Platinum Level Certified95%+ Titanium Level
[ Test Report ]
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

Part Number
 Qty
 Description
Motherboard / Chassis AOM-SAS3-937EL-JB
CSE-937ETS-R1200NDBP-X10 		1
1 		Super AOM-SAS3-937EL-JB
3U Chassis
Add-on Card / Module AOM-SAS3-937EL-JB-P 2 AOM-SAS3-937EL-JB
Backplane BPN-SAS3-937 1 16-port 3U SBB SAS3 12Gbps midplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Cable 2 CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Air Shroud MCP-310-94701-0N 1 Two set plastic air shroud for SC947
Fan FAN-0157L4 12 40x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH
Drive Tray MCP-220-93703-0B 16 Drive trays support 3.5" SAS HDD/SSD
Power Supply PWS-1K23A-1R 2 1200W Redundant Titanium Power Supplies


Optional Parts List
Part Number Qty Description
HDD Converter MCP-220-93707-0B
MCP-240-93708-0N 		- Hot-swap 3.5" to 2.5" converter drive tray (for drive slot 1~15)
HDD Adapter Bracket for 2.5in SSD/HDD (for drive slot 16)
Global Services & Support OS4HR3/2/1
OSNBD3/2/1 		-
- 		3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Hide Parts List
