SuperServer SYS-F610P2-RTN (Complete System Only)

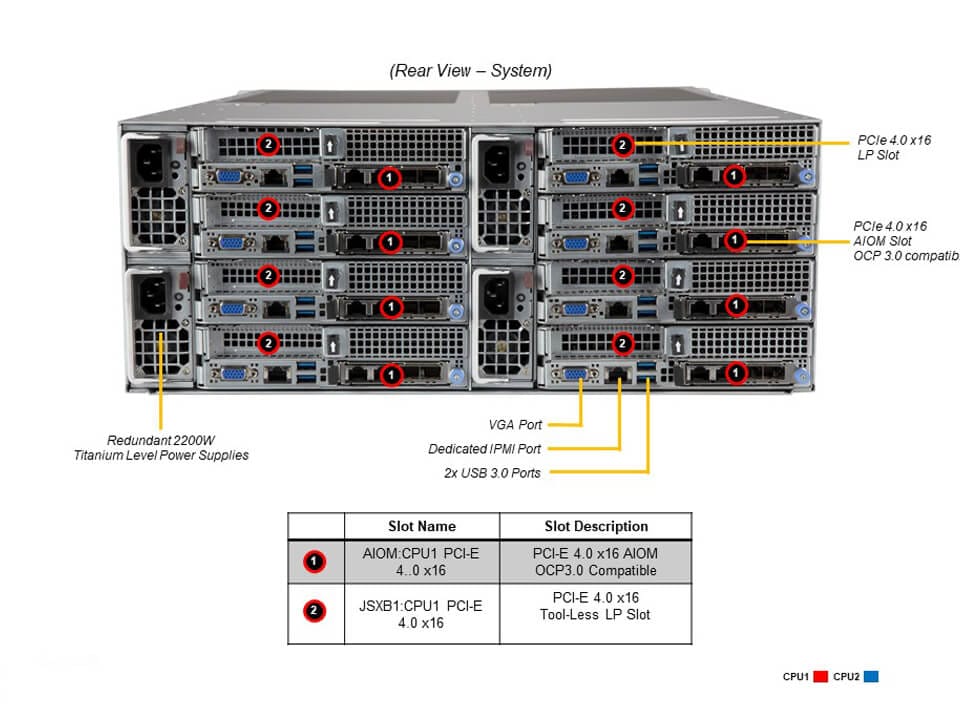

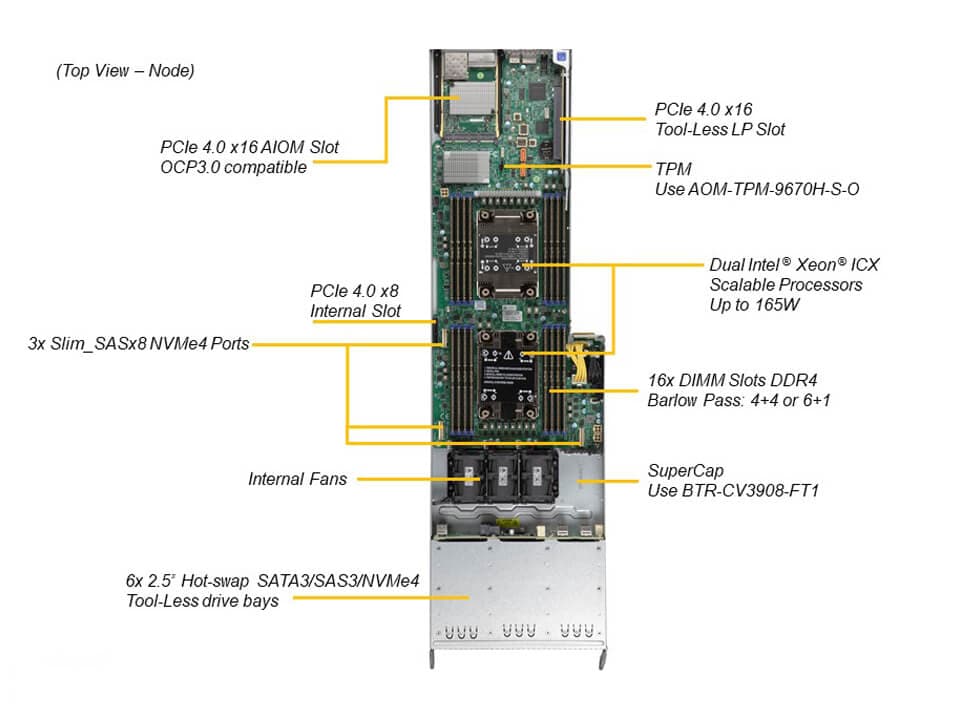

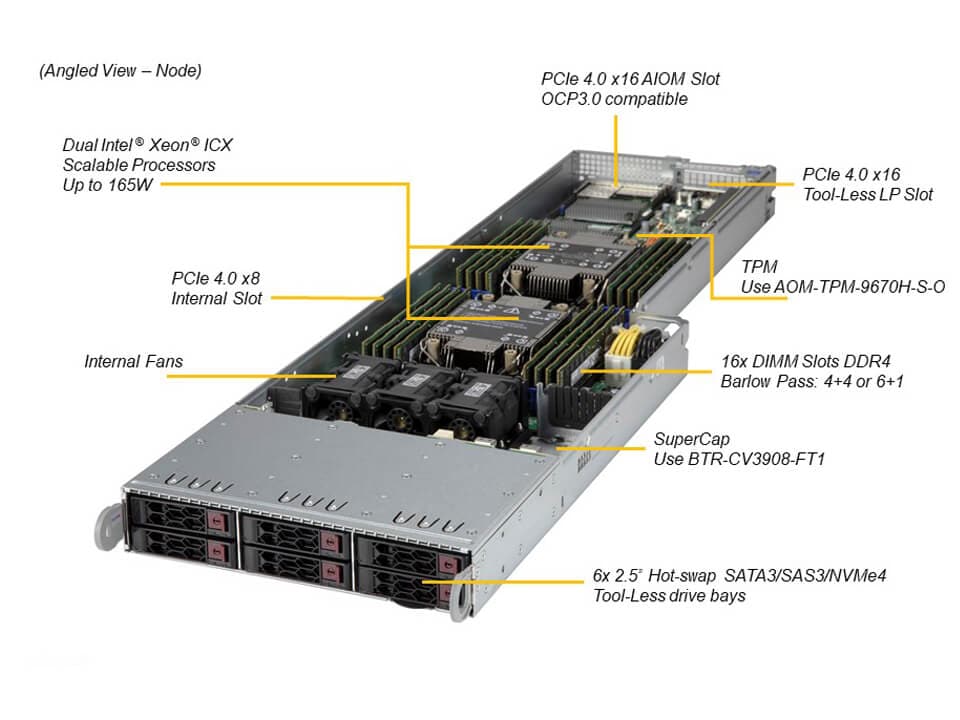

SYS-F610P2-RTN Main SYS-F610P2-RTN Angle SYS-F610P2-RTN Top SYS-F610P2-RTN Node SYS-F610P2-RTN Rear
Integrated Board: X12DPFR-AN6
Learn more

Key Applications

  • Hyperscale / Hyperconverged
  • HPC and Big Data
  • Data Center Enterprise Applications
  • Scale-Out Storage
  • Virtualization Server
  • Telco Data Center

Key Features

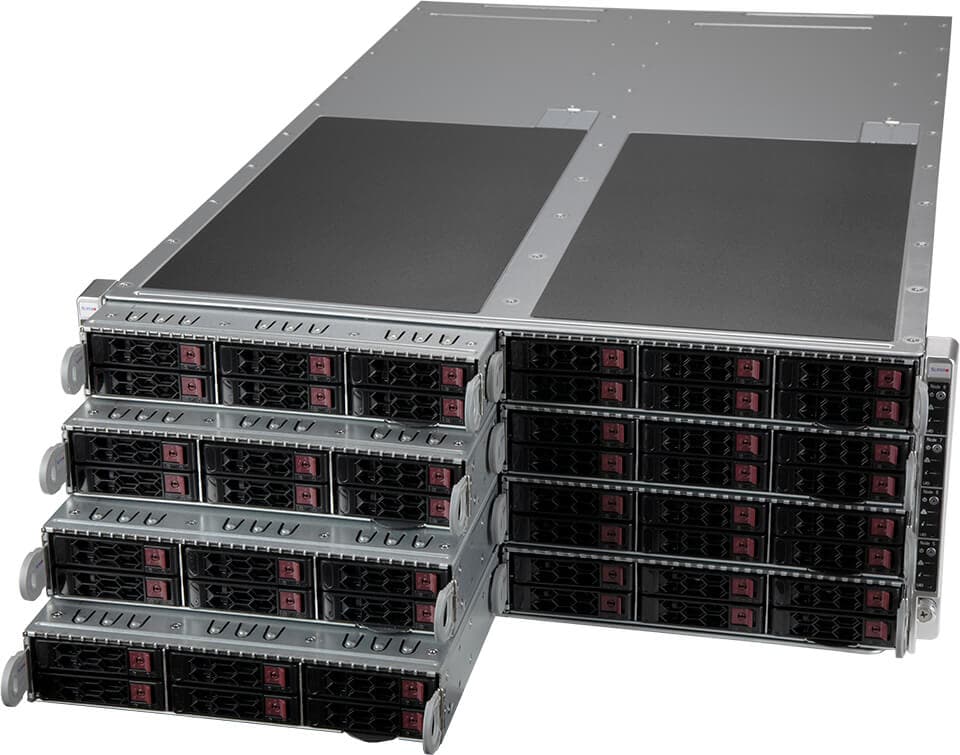

Eight hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:
  1. Socket P+(LGA 4189) Supports 3rd Generation Intel® Scalable Processors (Dual Socket)
  2. 16 DIMMs Supports up to 4TB  Intel® Optane Persistent Memory 200  Series; up to 2TB DDR 4-3200
    Two M.2 Internal Drives
  3. Network Connectivity Via AIOM (OCP 3.0 Compliant)
    NVMe/SATA/SAS options
  4. AIOM and M.2 support; 1 AIOM card support (PCIe 4.0)
  5. Front access node for better serviceability; 6x 2.5” hot-swap HDDs per node
    Up to 6x SAS/SATA/NVMe Hot Swap 2.5” Drives
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SYS-F610P2-RTN (Black)
Motherboard
Super X12DPFR-AN6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 54MB Cache per CPU
Note
  • Supports up to 185W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 8x 512 GB PMem and 16x 128 GB DRAM
  • Up to 2TB: 16x 128 GB DRAM
  • Up to : 16x 128 GB
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
On-Board Devices (per Node)
Chipset
  • Intel® C621A
Network Connectivity
  • 1x 1GbE RJ45 (BMC)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
SATA
  • 14 SATA (6Gbps) port(s)
NVMe
  • 6 NVMe U.2 options
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
Power Configurations
  • ACPI / APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 4U
Model
  • CSE-F418BC3-R2K20BP
Dimensions and Weight
Height
  • 6.96" (177mm)
Width
  • 17.63" (448mm)
Depth
  • 29" (737mm)
Package
  • 15" (H) x 28.3" (W) x 42.4" (D)
Weight
  • Net Weight: 150 lbs (68.04 kg)
  • Gross Weight: 200 lbs (90.71 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe)
  • 1 PCIe 4.0 x8 LP slot(s)
Drive Bays / Storage (per Node)
Hot-swap
  • 6x 2.5" hot-swap NVMe/SATA/SAS drive bays (6x 2.5" NVMe hybrid)
  • 6x 2.5" 7mm drive bays
System Cooling
Fans
  • 3x 4cm Fan(s)
Power Supply
8800W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 76 x 40 x 336 mm
AC Input
  • 1200W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
  • 1980W: 220-230Vac / 50-60Hz
  • 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
  • 2090W: 230-240Vac / 50-60Hz
  • 2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
  • Max: 174.17A / Min: 0A (230Vac-240Vac)
  • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
  • Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level94%+   Titanium Level



  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       5% to 95% (8)
  • Non-operating Relative Humidity:
       90% to 5% (95)


Resources
Component Options
AIOM MatrixDrive OptionsNVMe OptionsTested AOC ListTested M.2 ListTested Memory
Documentation
Manuals
Software
BIOS DownloadBMC DownloadDrivers & UtilitiesOS Certification
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DPFR-AN6

CSE-F418BC3-R2K20BP 		8

1 		Super X12DPFR-AN6 Motherboard

4U Chassis
Backplane BPN-ADP-X11DPFR 8 Power distribution board for X11DPFR-S(N)
BPN-NVME4-F418-B6S6 8 1U 6-Slot SFF Backplane Supports 6xSAS3/SATA3/NVMe4 Storage Devices. The Backplane is for X12 FatTwin Product Line.,HF,RoHS
BPN-PDB-X12DPFR 2 FatTwin 4U 4-Node PDB with LCMC for X12 RIO Platform
Cable CBL-0486L 16 2x2 to 2x2 15cm Power Cable HF
CBL-OTHR-1211-28 8 2x10pin (PH 1) to 2x10pin (PH 1),11CM,28AWG,1A/pin,RoHS
CBL-PWCD-0578-1 4 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
CBL-SAST-1247-100 16 Slimline x4 (LE) to MiniSAS HD x4 (STR),47CM,100 OHm,Ro
Riser Card RSC-S-6G4 8 1U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro
Software SFT-OOB-LIC 8 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077PM 8 X12 ICX/CPX 1U Passive CPU Heatsink (78x113x24.7mm), w/ Center Air channel
SNK-P0077V 8 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Power Supply PWS-2K20A-1R 4 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
*Rail Set MCP-290-41803-0N 1 Fat twin F418 / F424 Static Rail set support 28.5-33.7 inch depth rail,RoHS/REACH,PBF
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Component AOC-SMG4-2M2-F - 2x M.2 NVMe carrier card (NO SATA)
MCP-220-00178-0B • - 2.5” thin profile drive tray, Orange tab (for hotswap NVMe drive)
BTR-CV3908-FT1 - SuperCap for 3908 with bracket and 24in extension cable
AOC-KIT-FRB10-3908 - Supports 3908 HW RAID w/ cables. For 1U systems.
SCC-KIT-FRB10-3808 - Supports 3808 SW/HBA RAID w/ cables. For 1U systems.
CBL-KIT-FRI10-NVME6 - Supports up to 6 NVMe. For 1U systems.
CBL-KIT-FRI10-NVME4 - Supports up to 4 NVMe drives. For 1U systems.
CBL-SAST-1223-85 - Supports up to 2 NVMe drives for 1U systems.
BTR-CV3108-FT1 - CacheVault kit for FatTwin Broadcom 3108 card. Includes: TFM, cables, brackets and supercap
FatTwin SuperServer SYS-F610P2-RTN (Complete System Only )
