SuperServer SYS-F521E3-RTB (Complete System Only)

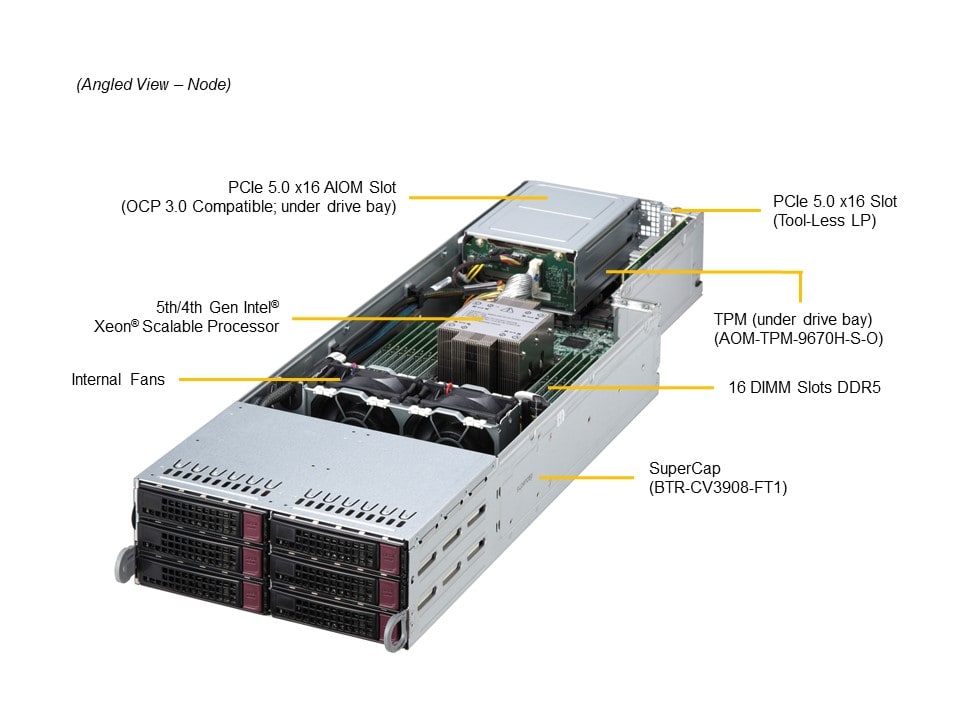

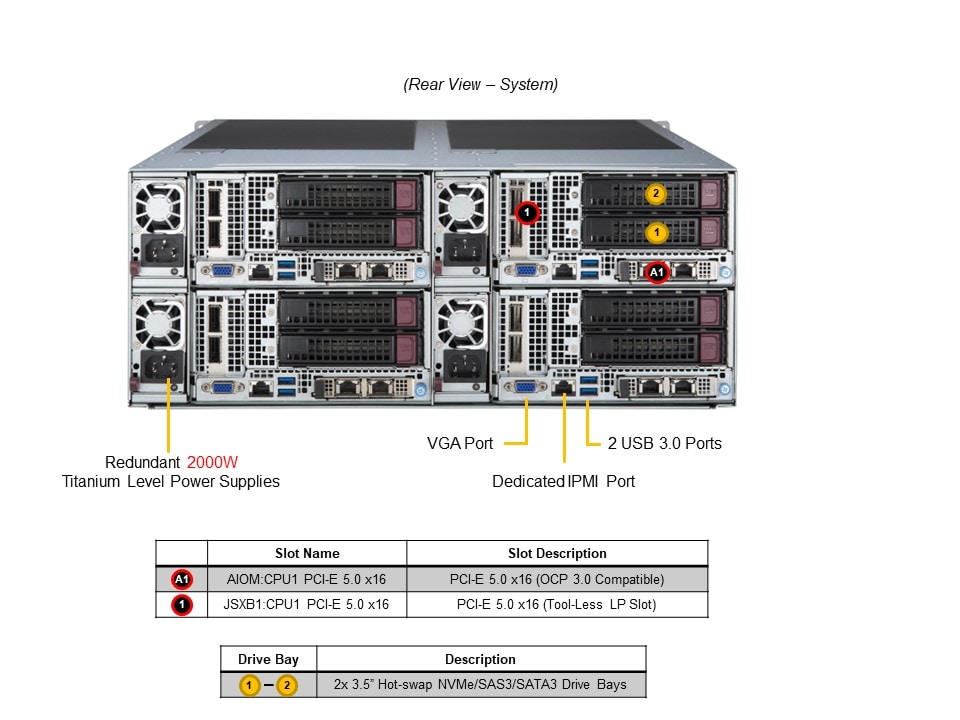

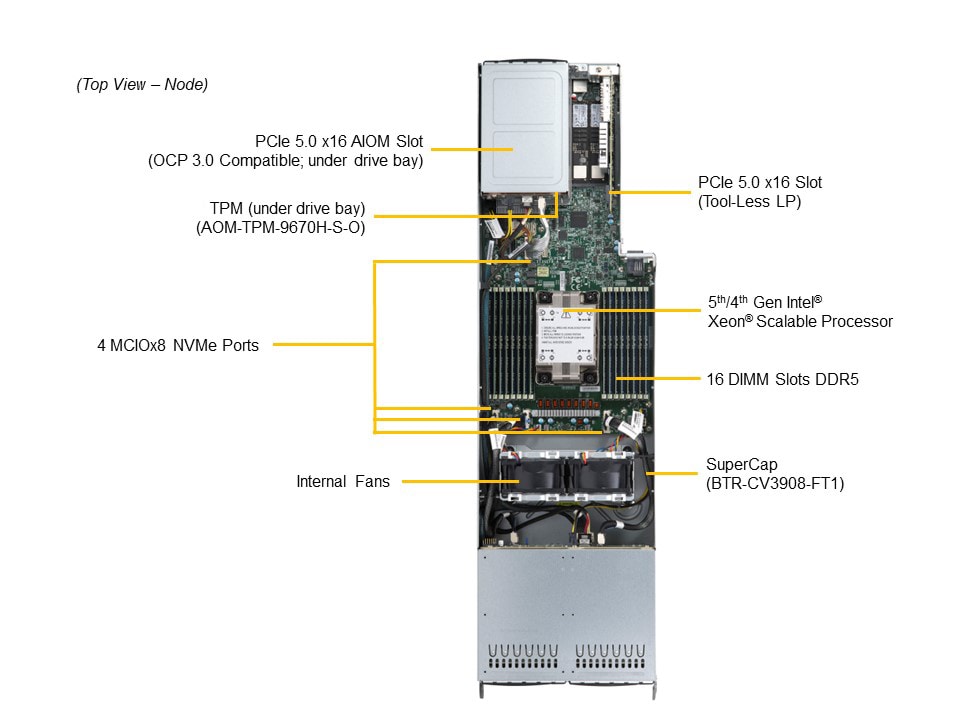

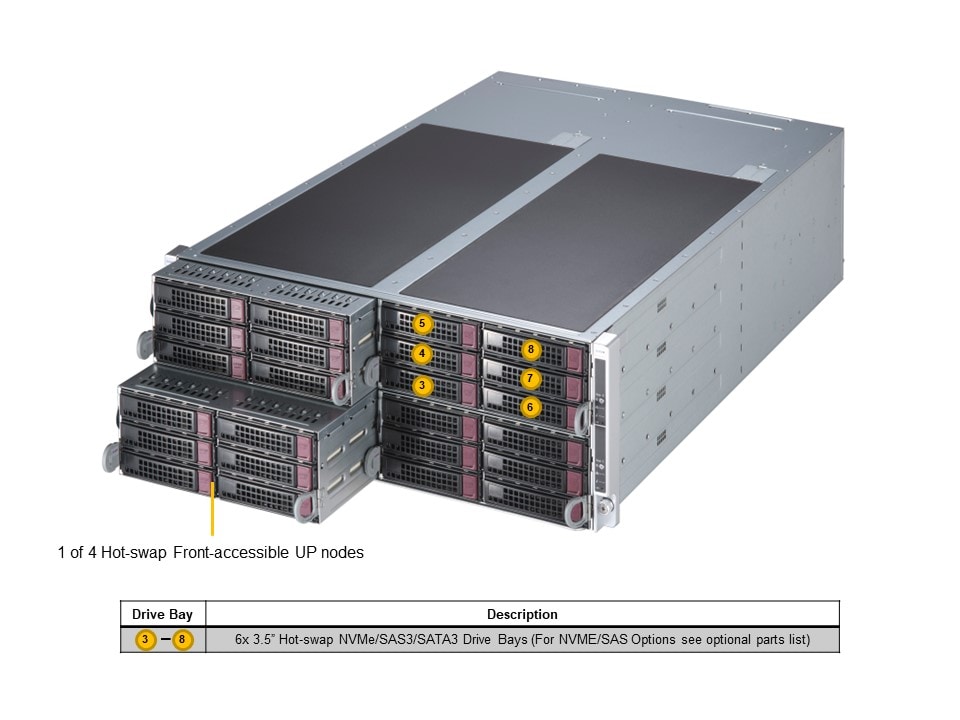

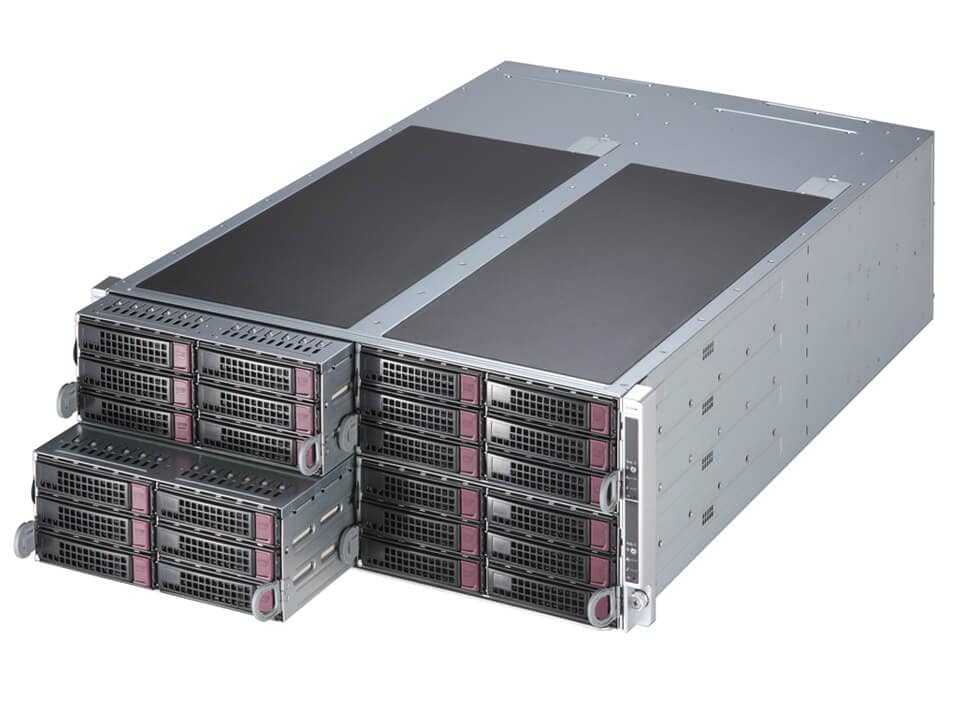

SYS-F521E3-RTB Main SYS-F521E3-RTB Angle SYS-F521E3-RTB Top SYS-F521E3-RTB Node SYS-F521E3-RTB Rear
Integrated Board: X13SEFR-A
Learn more

Key Applications

  • Hyperscale / Hyperconverged
  • HPC and Big Data
  • Data Center Enterprise Applications
  • Telco Data Center

Key Features

Four hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:
  1. Single Socket E (LGA-4677) Supports 4th Gen Intel® Xeon® Scalable Processor
  2. C741 Chipset
  3. 16 DIMMs Up to 4TB DDR5
    Two M.2 Internal Drives
  4. Network Connectivity Via AIOM (OCP 3.0 Compliant)
    NVMe/SATA/SAS options
  5. AIOM and M.2 support; 1 AIOM card support (PCIe 5.0)
  6. Up to 8x SAS/SATA Hot Swap 3.5” Drives, or up to 6x NVMe Hot Swap 2.5” Drives + 2x SAS/SATA Hot Swap 3.5” Drives
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SYS-F521E3-RTB (Black)
Motherboard
Super X13SEFR-A
Processor (per Node)
CPU
Core Count
  • Up to 60C/120T; Up to 112.5MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 4800MHz DDR5
Memory Voltage
  • 1.1 V
On-Board Devices (per Node)
Chipset
  • Intel® C741
Network Connectivity
  • 1x 1GbE RJ45 (BMC)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
SATA
  • 10 SATA (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
Power Configurations
  • ACPI / APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • 2 80 mm Heavy Duty Fans per Node
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 4U
Model
  • CSE-F424AS4-R2K08BP
Dimensions and Weight
Height
  • 6.96" (177mm)
Width
  • 17.63" (448mm)
Depth
  • 29" (737mm)
Package
  • 15" (H) x 28.3" (W) x 42" (D)
Weight
  • Net Weight: 150 lbs (68.04 kg)
  • Gross Weight: 200 lbs (90.71 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe)
  • 1 PCIe 5.0 x16 LP slot(s)
  • 1 AIOM slot(s)
Drive Bays / Storage (per Node)
Hot-swap
  • 8x 3.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid)
  • 8x 2.5" 7mm drive bays
M.2
  • 2x Hybrid M2 (PCIe 3.0 x2 & SATA)
System Cooling
Fans
  • 2x 8cm Fan(s)
Power Supply
8000W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2000W: 220-240Vac / 50-60Hz (for UL only)
  • 2000W: 230-240Vac / 50-60Hz
  • 2000W: 230-240Vdc / 50-60Hz (for China only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level94%+   Titanium Level



  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       5% to 95% (8)
  • Non-operating Relative Humidity:
       90% to 5% (95)


Resources
Component Options
AIOM MatrixCPU ListDrive OptionsNVMe OptionsTested AOC ListTested M.2 ListTested Memory
Documentation
Manuals
Software
BIOS DownloadBMC DownloadDrivers & UtilitiesOS Certification
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13SEFR-A

CSE-F424AS4-R2K08BP 		4

1 		Super X13SEFR-A Motherboard

4U Chassis
Backplane BPN-NVME5-F424-A2S2 4 2-Port Hybrid Backplane supports 2xSAS3/SATA3/NVMe5 Devices
BPN-NVME5-F424-A6S6 4 6-Port FatTwin Backplane supports 6xSAS3/SATA3/NVMe5 Devices
BPN-PDB-X13SEFR2 2 X13 RIO FatTwin 4U4N PDB with LCMC
Cable CBL-PWCD-0578-1 4 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
CBL-PWEX-1131-10 4 [NR] MicroHi (2x2 to 2x2), PH3.0, 10cm, 9.5A/p, 18AWG, RoHS
CBL-PWEX-1131-30 4 MicroHi (2x2 to 2x2),PH3.0,30CM,9.5A/p,18 AWG, RoHS
CBL-SAST-1268QLL4Y-85 4 [NR] SlimSAS LP (X4 to 2 X4),STR,63/68cm,85OHM,RoHS
CBL-SAST-1270LL4Q-100 4 SlimSAS LP (x4 to x4), STR, 70cm, 100OHM, RoHS,RoHS
Software SFT-OOB-LIC 4 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0088P 4 2U Passive CPU HS for X13 Intel Eagle Stream Platform
*Power Supply PWS-2K08A-1R 4 1U 2000W 100-240VAC Titanium Ultra power supply 73.5x40x203mm
*Rail Set MCP-290-41803-0N 1 Fat twin F418 / F424 Static Rail set support 28.5-33.7 inch depth rail,RoHS/REACH,PBF
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Component BTR-CV3908-FT1 - SuperCap for 3908 with bracket and 24in extension cable
