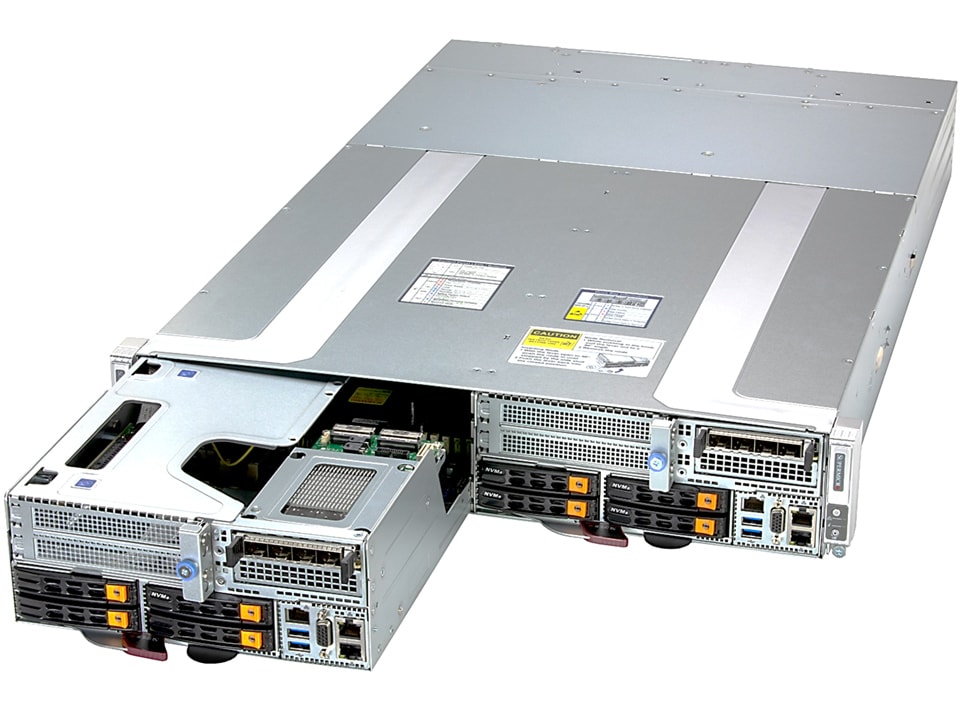

SuperServer SYS-212GT-DNAF (Complete System Only)

2U 2-Node GrandTwin with front I/O and double-width GPU support

Key Applications

  • HPC
  • Deep Learning/AI/Machine Learning Development
  • Scale-Out Object Storage
  • Cloud Gaming
  • MEC (Multi-Access Edge Computing)
  • Multi-Purpose CDN
  • Telco Edge Cloud
  • IoT Edge Computing / Gateway
  • Cluster Node
  • GPU Virtualization (VDI)
  • HPC cluster computer nodes

Key Features

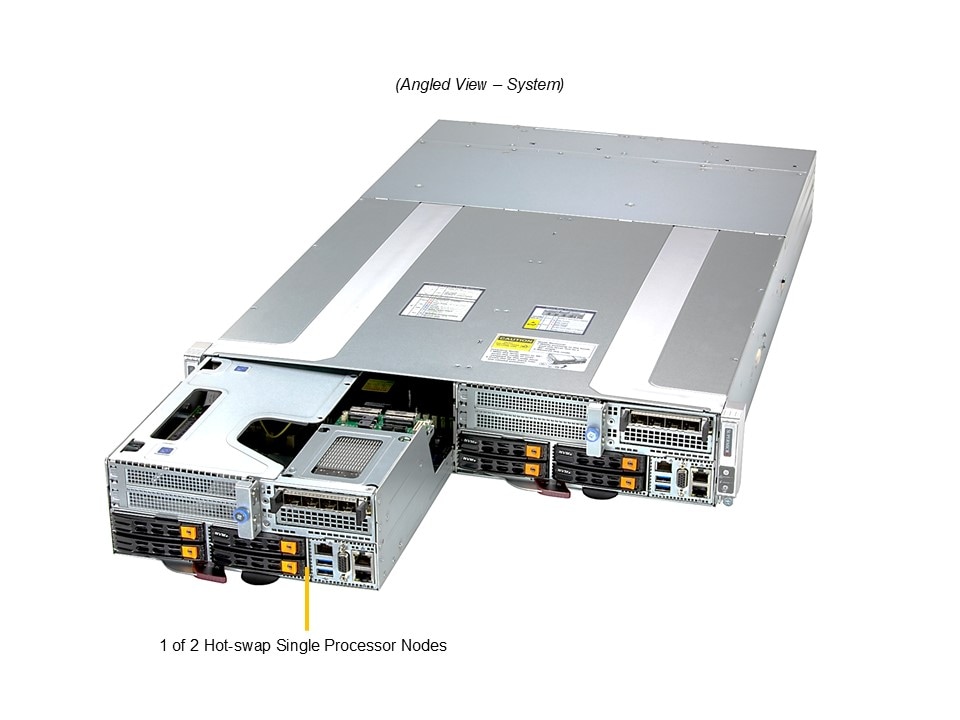

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  1. Single Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores up to 500W with air cooling
  2. Up to 12 DIMMs supporting up to 3TB MRDIMM 8800 in 1DPC
  3. Flexible networking with up to 2 PCIe 5.0 x16 FH AOC + 1 optional AIOM slot
  4. Up to 2 PCIe 5.0 x16 FH10.5"L slots (1x double-width GPU or 2x single-width AOCs)
  5. GrandTwin front IO module offers additional value for networking expansion(10G/25G/200G).
  6. 2 Redundant 2200W Titanium (certification pending) Level power supplies
...
...
SYS-212GT-DNAF
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-212GT-DNAF
Motherboard
Super X14SBT-GAP
Processor (per Node)
CPU
Core Count
  • Up to 128C/256T; Up to 504MB Cache
Note
  • Supports up to 500W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 1 double-width or 2 single-width GPUs
Supported GPU
System Memory (per Node)
Memory
  • Slot Count: 12 DIMM slots/1 Channels
  • Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices (per Node)
NVMe
  • NVMe; RAID 0/1/5/10 support(VROC HW key required)
Chipset
  • System on Chip
Network Connectivity
Input / Output (per Node)
USB
  • 2 USB 3.0 ports
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB Flash ROM
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GT222BG-R2K21BP
Dimensions and Weight
Height
  • 3.46" (88 mm)
Width
  • 17.67" (449 mm)
Depth
  • 28" (711.2 mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Gross Weight: 77.3 lbs (35.1 kg)
  • Net Weight: 57.3 lbs (26 kg)
Available Color
  • Silver

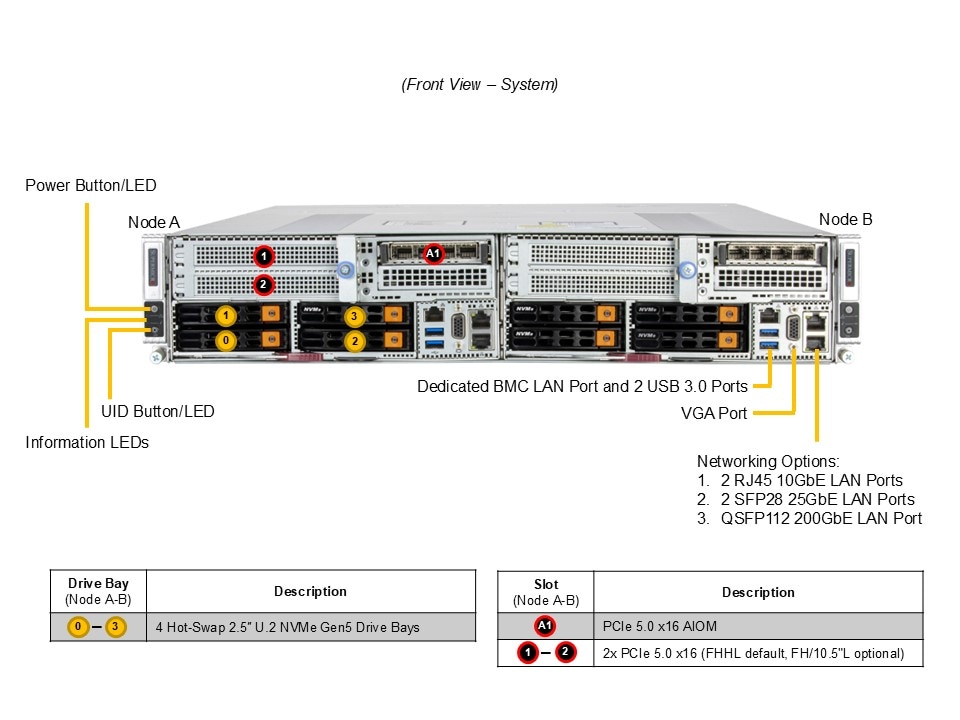

Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Buttons
  • Power On/Off button
  • UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
CXL Support
  • Up to 64 internal CXL 2.0 x16 Type 1/Type 2/Type 3 devices
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID)
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • 2x 16K RPM Heavy Duty 8cm Fan(s)
Power Supply
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 5°C ~ 40°C (41°F ~ 104°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
AIOM Dummy Tray MCP-120-21406-0N 1 GT214 FIO AIOM dummy bracket
AIOM Enablement Kit MCP-450-21413-ASM 0 - 1 GT214 front AIOM 80W KIT
Cable CBL-PWCD-0578-1 0-2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
CBL-PWCD-0200 0-2 PWCD, IEC60320, C20 to C21,12AWG,1.8M
E1.S tray MCP-220-12603-0B 0-8 E1.S_FRONT_LATCH_ASM with Tray (33.75mm height x15mm W)
GrandTwin I/O Module 2x10GbE AOC-GTG-B2T-O 1 Grand Twin I/O card 2-Port 10GbE RJ45, Broadcom BCM57416, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS
AOC-GTG-I2T-O 1 Grand Twin I/O card 2-Port 10GbE RJ45, Intel Carlsville X710-AT2, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS
GrandTwin I/O Module 2x25GbE AOC-G25G-M2S-O 1 Grand Twin I/O card 2-Port 25GbE SFP28, Mellanox CX-4 Lx EN, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS
GT222BG FIO MB tray MCP-220-22202-0N 0-2 GT222BG GrandTwin 2U2N FIO MB tray
HDD Dummy Tray MCP-120-21401-0N 0 - 2 GT214 FIO HDD dummy bracket(1slot)
NVMe Enablement Kit MCP-450-21408-ASM 0 - 2 GT214BF PCIe Gen5 FIO KIT of U.2 NVMe x2
Power Supply PWS-2K21A-BR 0-2 2200W Titanium Power Supply; LxWxH: 245.3x106.5x84mm
PWS-3K01A-BR 0-2 3000W Titanium Power Supply; LxWxH: 245.3x106.5x82.1mm, C20 inlet
Rail MCP-290-00172-0N 0-1 2U non-tip rail set, quick release, default for 2,3U 17.6"(W)
SPI Capable TPM 2.0 AOM-TPM-9672V-FIPS-O 0-1 AOM-TPM-9672V-FIPS TPM 2.0 with 10 pins SPI support FIPS
AOM-TPM-9672V-O 0-1 AOM-TPM-9672V- TPM 2.0 with 10 pins SPI
VROC Premium AOC-VROCPREMOD 0-1 Intel VROC Premium, RAID 0, 1, 5, 10
VROC Standard AOC-VROCSTNMOD 0-1 Intel VROC Standard, RAID 0, 1, 10
