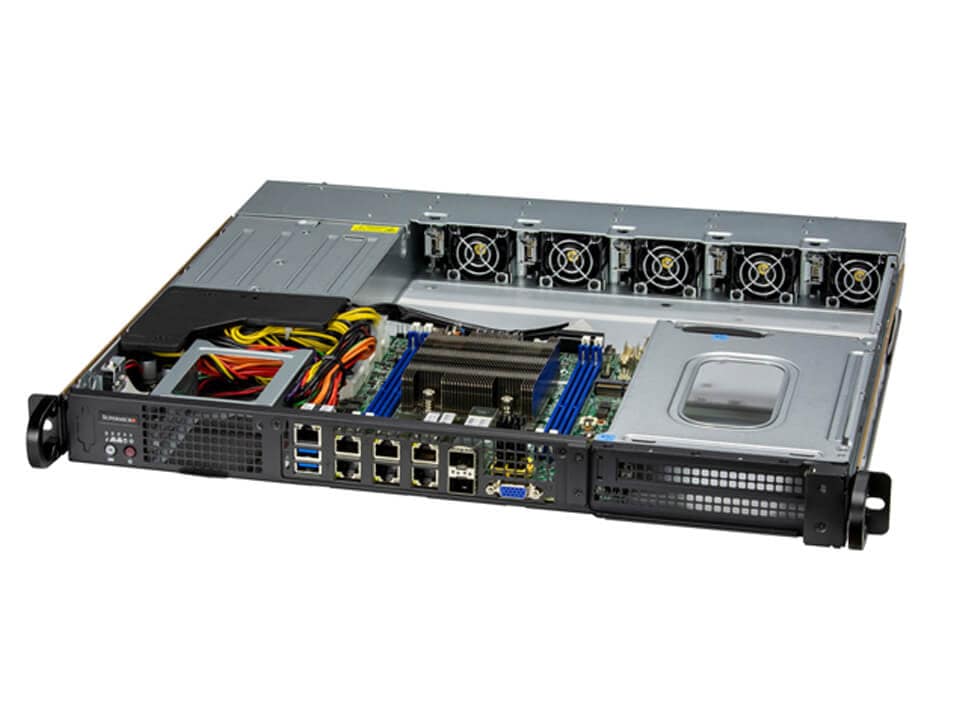

SuperServer SYS-110D-4C-FRDN8TP

Key Features

  1. Intel® Xeon® Processor D-2712T, CPU TDP 65W
  2. Up to 256GB Registered ECC RDIMM, DDR4-3200MHz; Up to 512GB LRDIMM LRDIMM, DDR4-3200MHz, in 4 DIMM slots
  3. 2x Internal 2.5" drive bays(2x PCI-E 4.0 NVMe x8 SlimSAS and 1x OCuLink options)

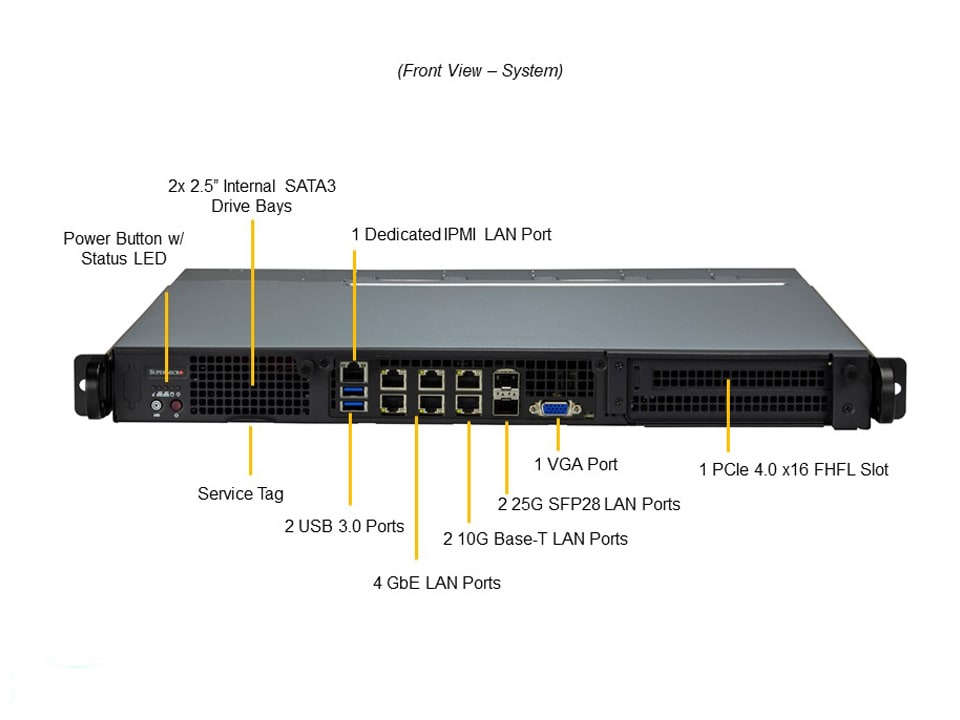

  4. 4x GbE, 2x 25G SFP28 and 2x 10G Base-T
  5. 1x M.2 M-Key 2242/2280 (SATA/PCI-E 3.0 x4)

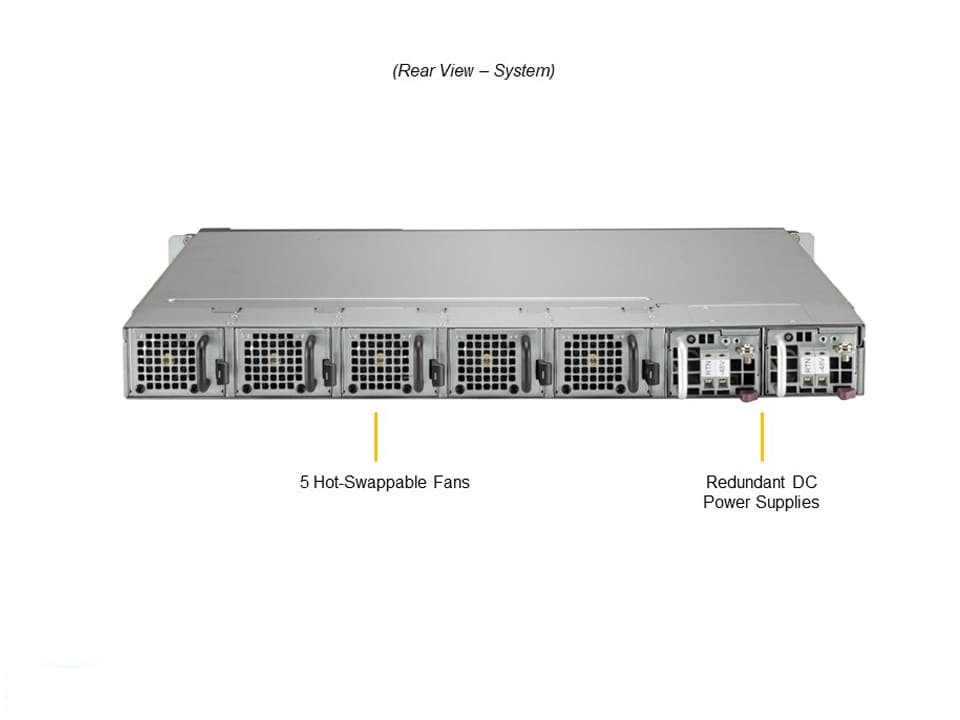

  6. 5x 40x56mm Hot-swap Counter-rotation PWM Fans
  7. Redundant 600 W, -48 Vdc
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SYS-110D-4C-FRDN8TP (Silver)
Motherboard
Super X12SDV-4C-SPT8F
Processor
CPU
  • Single FCBGA-2579
  • Intel® Xeon® Processor D-2700 Series
  • Support CPU TDP 65W
System Memory
Memory
  • Memory Capacity: 4 DIMM slots
  • Up to 256/512GB: ECC RDIMM/LRDIMM
  • Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
Chipset
  • Intel® SoC
Network Connectivity
  • 4x 1GbE GbE
  • 2x 25GbE SFP28
  • 2x 10GbE Base-T
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
Video
  • 1 VGA port(s)
Management
Software
  • SuperDoctor® 5
  • IPMI 2.0
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature
  • CPU thermal trip support, PEPI Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-515M-R000NP2
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth

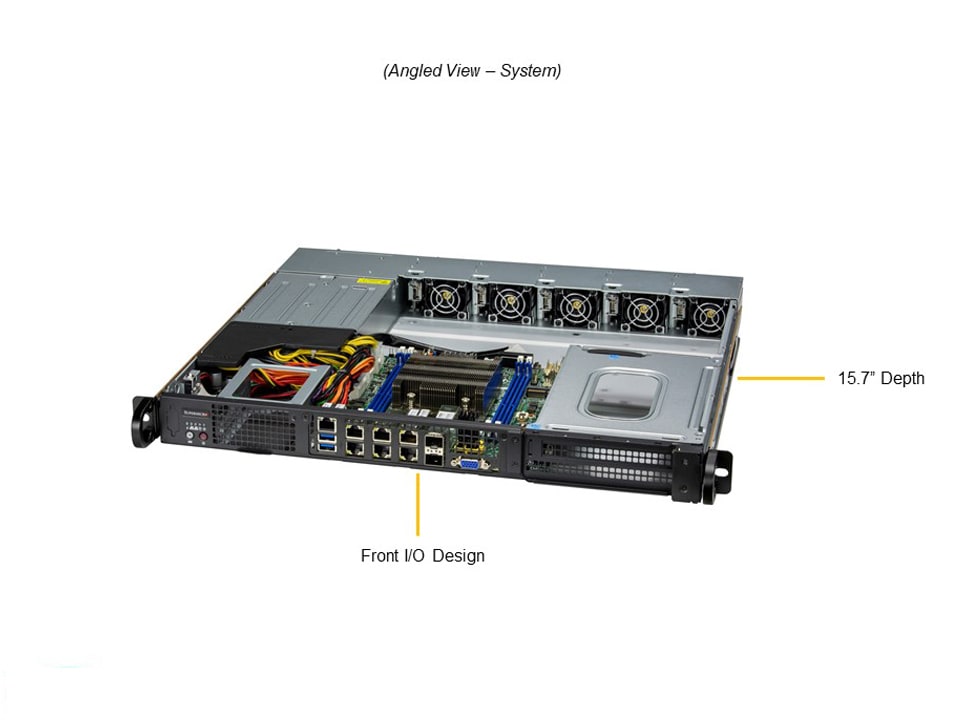

  • 15.7" (399mm)
Package
  • 7.9" (H) x 26.7" (W) x 23.8" (D)
Weight
  • Net Weight: 18 lbs (8.16 kg)
  • Gross Weight: 29 lbs (13.15 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCI-E)
  • 1 x PCIe 4.0 x 16 FHFL
Drive Bays / Storage
Drive Bays
  • 2x 2.5" SATA/PCIe drive bays
M.2
  • 1 M.2 NVMe OR 1 M.2 SATA3
  • M-Key, 2242/2280
System Cooling
Fans
  • 5 Counter-rotating, Hot-swappable 40x40x56mm Fan(s)
Power Supply
600W Redundant DC -48V Power Supplies with PMBus
Total Output Power
  • 600W : (-44) - (-65) Vdc
Dimension

(W x H x L)
  • 54.5 x 40 x 220 mm
+12V
  • Max: 50A
5V SB
  • Max: 3A / Min: 0A
Certification

  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       0°C ~ 40°C (32°F ~ 104°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Resources
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SDV-4C-SPT8F

CSE-515M-R000NP2
1

1
Super X12SDV-4C-SPT8F Motherboard

1U Chassis
Cable CBL-0483L 2 29CM 30AWG SATA S/S CBL
CBL-OTHR-1214-24 4 FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS
CBL-PWCD-0974 2 48VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS
CBL-0191L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,50CM,PBF
CBL-OTHR-1214-24 3 FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Fan FAN-0207L4 2 40x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan
FAN-0207L4 3 40x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan
Parts MCP-260-00099-0B 1 1U Black I/O Shield for A2SDi-TP8F with EMI Gasket
MCP-260-00078-0B 1 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
Air Shroud MCP-310-51504-0B 1 Mylar Air Shroud for SC515M + X11 SDW
Manual MNL-2541-QRG 1 110D-4C/8C/16C/20C-FRA(D)N8TP Quick Reference Guide
Power Supply PWS-601D-1R 2 -48V DC input, 12V and 5Vsb 600W output for 1U redundancy
Riser Card RSC-S-6G4 1 1U LHS Standard riser card with one PCI-E 4.0 x16 slot,HF,Ro
*Power Distributor PDB-PT515M-2424 1 1U support redundancy up to 800W for SC515M chassis with ATX
*Drive Tray(s) MCP-220-00137-0N 1 Dual 2.5 HDD bracket (bracket base follow std 2.5
*Rear Window MCP-240-51505-0N 1 Rear window for SC515M Redundant PWS chassis
*Front Panel MCP-280-80901-0N 1 SC809 FRONT CONTROL PANEL ASSY
*Rail Set MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6
MCP-290-00108-0B 1 set Inner rail, front, short (quick) for 1U 17.2
*Fan Holder MCP-320-51501-0N 2 1U hot-swap 4056 dummy fan tray for SC515M (no venting hole)
MCP-320-51502-0N 1 1U hot-swap 4056 fan tray for FAN-0207L4 in SC515M (with venting hole)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
