SuperServer SSG-620P-E1CR24H (Complete System Only)

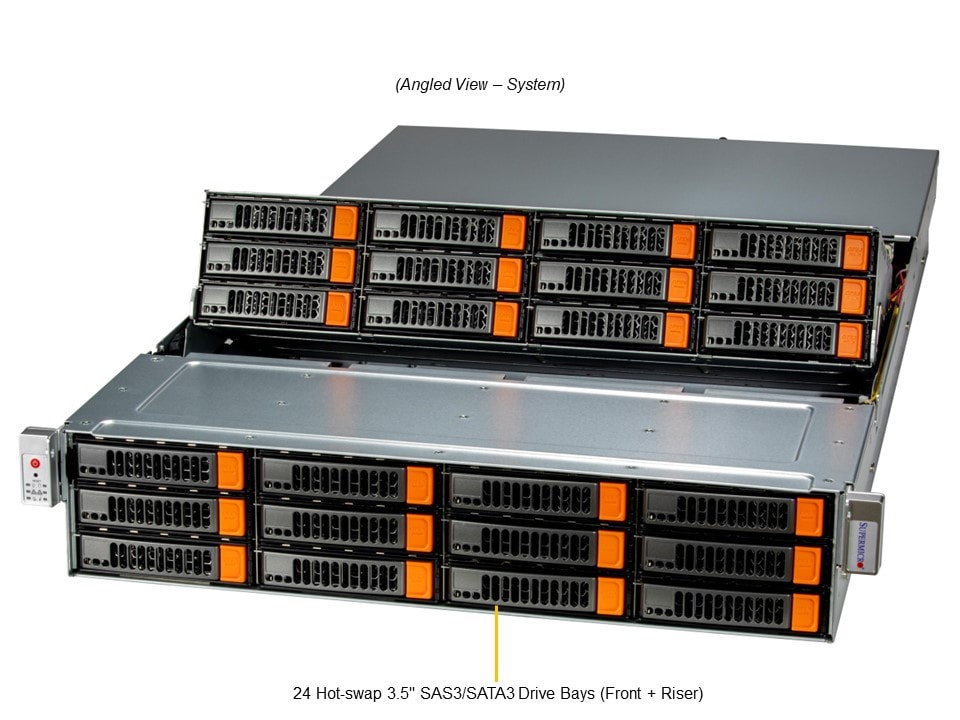

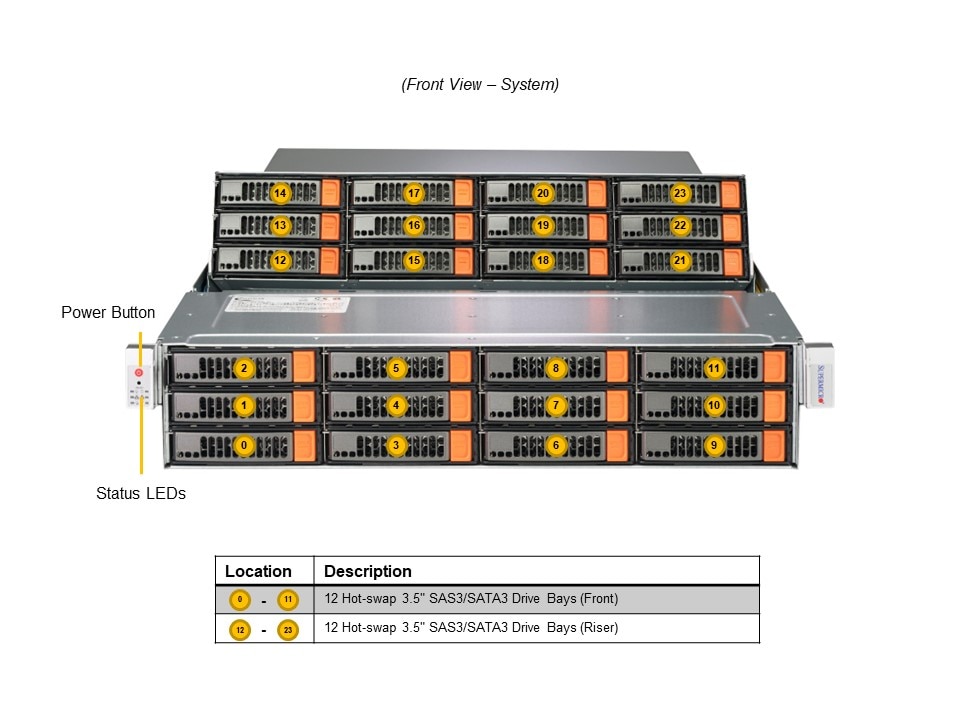

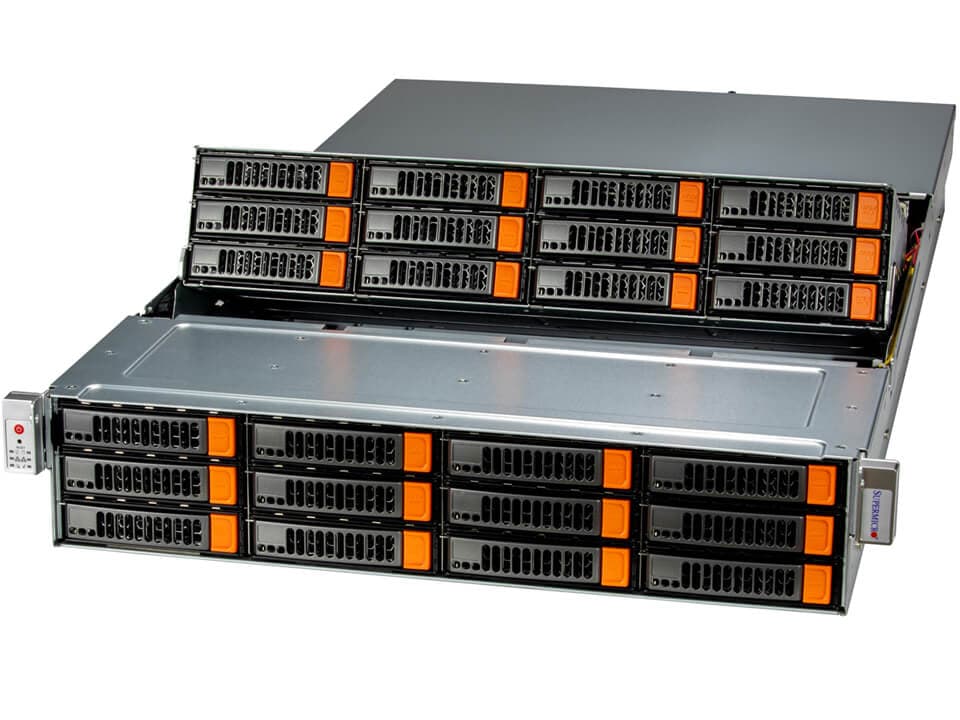

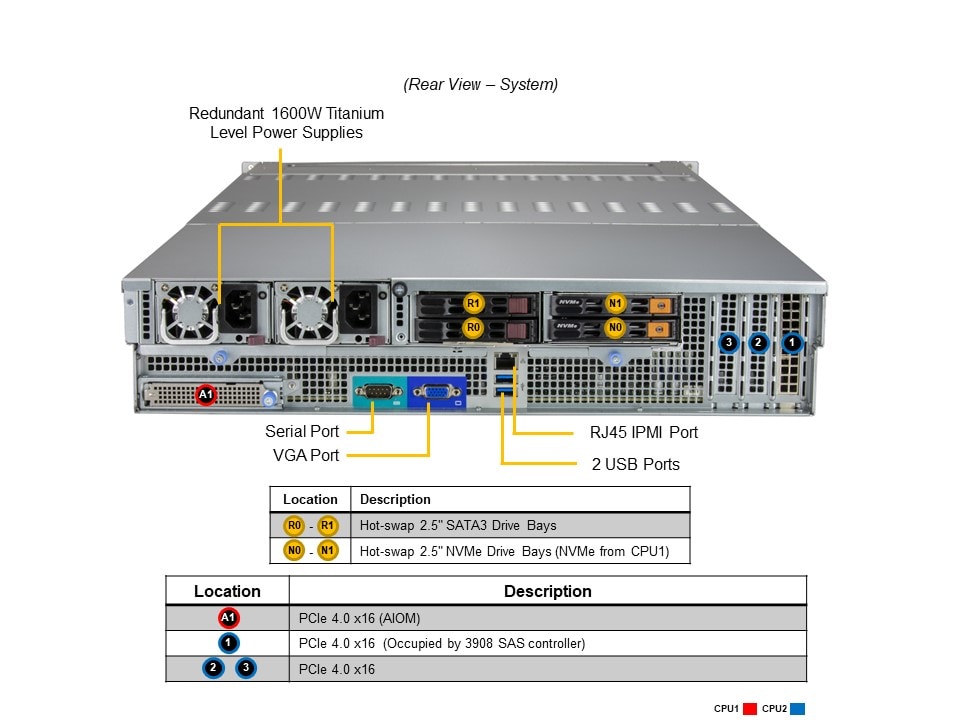

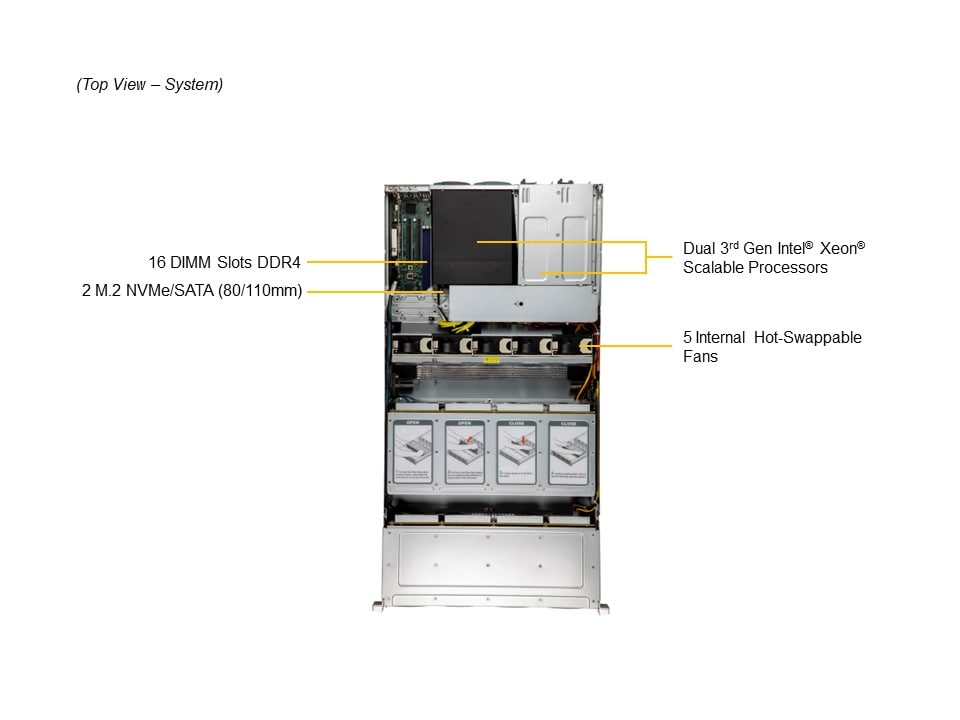

SSG-620P-E1CR24H Main SSG-620P-E1CR24H Angle SSG-620P-E1CR24H Top SSG-620P-E1CR24H Front SSG-620P-E1CR24H Rear
Integrated Board: X12DSC-A6
Learn more

Key Applications

  • Enterprise Server
  • iSCSI SAN
  • HPC, Data Center
  • Database Processing & Storage
  • Corporate Database
  • Appliance Optimized Storage Building Blocks

Key Features

  1. Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
  2. 16 ECC DDR4-3200: LRDIMM/RDIMM
  3. 3 x PCIe 4.0 x16 Slots
    Dedicated PCIe 4.0 AIOM slot
  4. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
  5. 24 3.5" Hot-swap SAS3/SATA3 drives, 4x Rear SATA/NVMe Slots, 2x SATA/NVMe M.2 (form factor: 2280)
  6. 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
  7. 1600W Redundant Power Supplies Titanium Level (96%)
  8. HW RAID support via Broadcom® 3908
...
...
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SSG-620P-E1CR24H
Motherboard
Super X12DSC-A6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 38C/76T; Up to 57MB Cache per CPU
Note
  • Supports 120W - 205W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2 V
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
NVMe
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 port(s) (2 Rear_USB)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826STS-R1K62P1
Dimensions and Weight
Height
  • 3.5"
Width
  • 17.2"
Depth
  • 34"
Package
  • 12" (H) x 29" (W) x 52" (D)
Weight
  • Net Weight: 52 lbs (23.59 kg)
  • Gross Weight: 74.5 lbs (33.79 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe)
  • 1 PCIe 4.0 x8 LP slot(s)
  • 2 PCIe 4.0 x16 LP slot(s)
  • 1 PCIe 4.0 x16 AIOM slot(s)
  • View AOC Options
Drive Bays / Storage
Hot-swap
  • 24x 3.5" hot-swap SATA3/SAS3 drive bays (2x 2.5" hot-swap SATA3 rear drive bays)
  • View Drive Options
M.2
System Cooling
Fans
  • 5 Heavy Duty 8cm Fan(s)
Power Supply
1600W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)
  • Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level94%+   Titanium Level




  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DSC-A6

CSE-826STS-R1K62P1
1

1
Super X12DSC-A6 Motherboard

2U Chassis
Add-on Card / Module AOC-S3908L-H8IR-32DD-P 1 Std LP RAID Gen4 PCIe x8 SlimSAS 8 intSAS3portsRoHS
Backplane BPN-SAS3-826SEL1-N4 2 12-port 2U Simply-Double SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD and 4x NVMe/SAS3/SATA3 storage devices
Cable CBL-0296L 4 9" 4 PIN FAN PWS EXTENSION CORD, PBF
CBL-PWEX-0702 1 8 Pin Female to RA(Right Angle) Big 4 Pin Female Power, 32cm
CBL-SAST-0836 2 MINI SAS HD,INT,48CM,32AWG w/oSB
CBL-SAST-1264-100 1 Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS
CBL-0459L 2 AC Power Cord Latch Clamp
CBL-CDAT-0728 1 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
CBL-CDAT-0921-85 1 [NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS
CBL-PWEX-0901 2 BPN PWEX,2X4F to 2X4F,GPU,P4.2,BLK*4,YEL*2,RED*2,33CM,18AWG,
CBL-PWEX-0903 2 BPN2GPU,2X4F to 2X4F,P4.2,BK*4/YL*2/RD*2,63.5CM,18AWG,RoHS
CBL-PWEX-1042-05 2 [NR]GPU,(2x4F to 2x4F),P4.2,5CM,16AWG,10A/pin,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077V 2 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
*Power Distributor PDB-PT226S-3824 1 2U Simply double PDB support redundant power 2.6KW for CS226
*Fan FAN-0154L4 2 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
FAN-0168L4 5 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay)
*Front Panel FPB-TB826-T 1 Chassis transfer board for SC826
*Drive Tray(s) MCP-220-00133-0B 24 Black gen 8 hot-swap 3.5\" HDD tray
MCP-290-82607-0N 2 826B/216B rear dummy cover for 2 X 2.5
*Rear Window MCP-240-82620-0N 1 SC826S2 rear window w/ 3x LP and 1x AIOM slots for X12DSC
*Rail Set MCP-290-00168-0N 1 Cable Management Arm, 1U height, 7.5 deep cable arm
*Air Shroud MCP-310-82615-0B 1 1U air shroud set for CSE-826S2 to support X12DSC-A6
MCP-310-82616-0B 1 1U air shroud for CSE-826S2 to support rear drive kits
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Converter Tray MCP-220-00140-0B - Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab
Network Cards More - AOC Compatibility Matrix (Select Storage & Generation)
AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
NVMe Kit (1-2 NVMe Drive Support) CBL-SAST-1244-85 1 Slimline x8 to Slimline x8 Cable, 45 CM - used for 1st NVMe cage
CBL-PWEX-0702 1 Power Cable
CBL-PWEX-1276 1 Power Cable
MCP-220-82620-0N 1 NVMe cage, includes BPN and drive trays
NVMe Kit (3-4 NVMe Drive Support) CBL-PWEX-1276 2 Power Cable
MCP-220-82620-0N 2 NVMe cage, includes BPN and drive trays
CBL-SAST-1267-85 1 Slimline x8 to Slimline x8 Cable, 67 CM - used for 2nd NVMe cage
CBL-SAST-1244-85 1 Slimline x8 to Slimline x8 Cable, 45 CM - used for 1st NVMe cage
CBL-PWEX-0702 1 Power Cable
Power Cord CBL-PWCD-0579-1 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
Short Rail MCP-290-11808-0N - Supermicro 1U Rail Kit (Note: If short rail is used, system will not support cable management arm)
SuperCap Kit BTR-CV3908-FT1 1 LSI 3908 CacheVault kit for Fat Twin w/ 24in extension cable
TPM AOM-TPM-9671V-O 1 TPM 1.2, vertical form factor, provisioned for server
AOM-TPM-9670V-O 1 TPM 2.0, vertical form factor, provisioned for server
