SuperServer SYS-751A-I (Complete System Only)

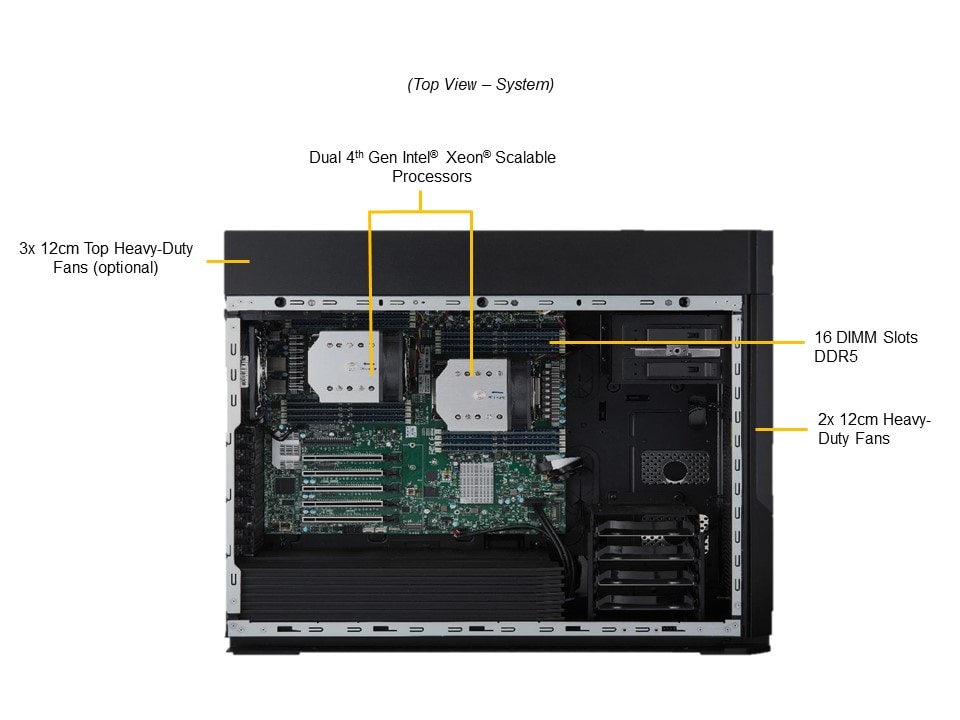

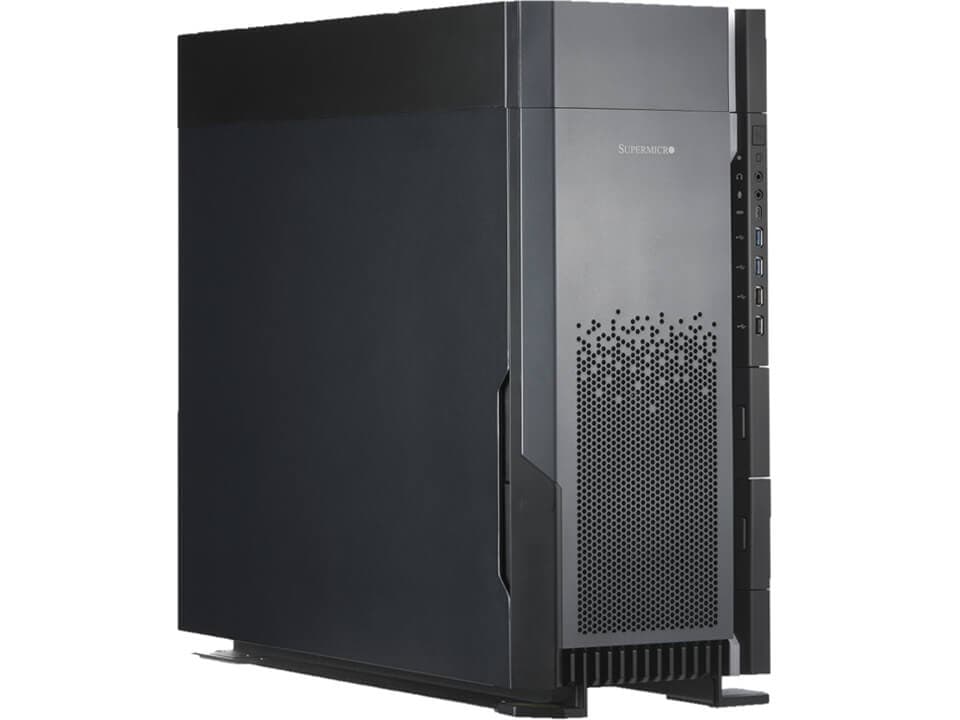

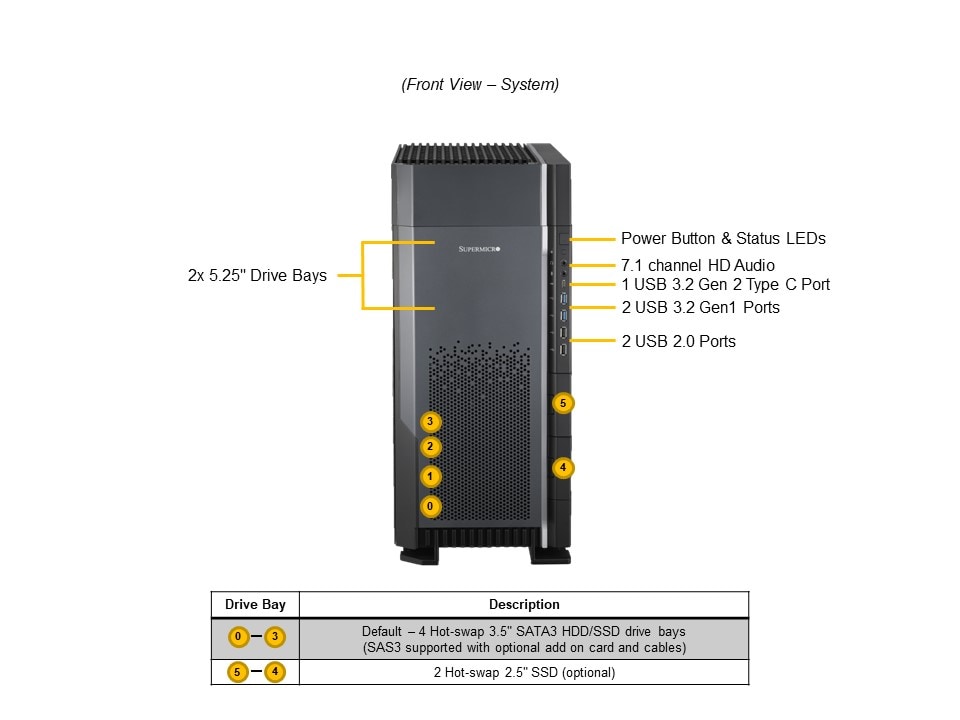

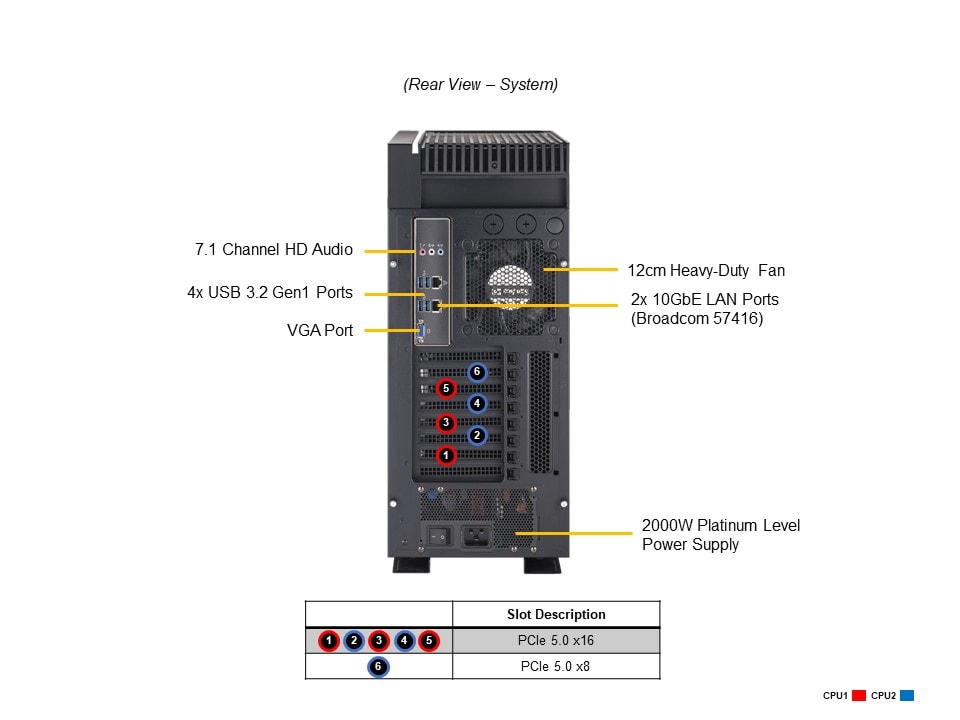

SYS-751A-I Main SYS-751A-I Angle SYS-751A-I Front SYS-751A-I Rear SYS-751A-I Side
Integrated Board: X13DAI-T
Learn more

Key Applications

  • Rendering
  • CAD
  • Multimedia/Digital Content creation
  • Engineering/scientific research

Key Features

  1. 4th Gen Intel® Xeon® Scalable processor support
  2. Intel® C741 Chipset
  3. 5 PCIe 5.0 x16, 1 PCIe 5.0 x8, 2 NVMe M.2 slots
  4. 2x 2.5" Front access SATA drive bays with hot swap
    2x 5.25" peripheral drive bays
    4x internal 3.5" SATA rotating drive bays for easy access
    up to 4x NVMe SSD support with opitonal cables and converter trays
  5. Compact and quiet operation
    New front bezel with keylock for added security
  6. 1 VGA, 6 USB 3.2 Gen1 (4 Rear, 2 Front),  2 USB 3.2 Gen2 (1 ineternal, 1 Front type C), 2 USB 2.0, 7.1 HD Audio
    Supports up to two double width active GPUs
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperWorkstation SYS-751A-I (Black)
Motherboard
Super X13DAI-T
Processor
CPU
Core Count
  • Up to 60C/120T; Up to 112.5MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 2TB: 16x 128 GB DRAM
  • Memory Type: 4800MHz ECC DDR5 RDIMM
Memory Voltage
  • 1.1 V
Error Detection
  • ECC
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
  • Intel® C741
Network Connectivity
  • 2x 10GbE port(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
SATA
  • 1 SlimSAS port(s)
  • 2 SuperDOM port(s)
LAN
  • 2 RJ45 10GbE (IPMI Shared on LAN port1)
USB
  • 5 USB 2.0x2; 3.2 Gen1x2; 3 port(s) (5 Front_USB)
  • 4 USB 3.2 Gen1 port(s) (4 Rear_USB)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
Power Configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • Tower or 5U Rackmount
Model
  • CSE-GS7A-000NBP3
Dimensions and Weight
Height
  • 21.1" (536mm)
Width
  • 8.7" (221mm)
Depth
  • 22.6" (574mm)
Package
  • 27.6" (H) x 14.6" (W) x 28" (D)
Weight
  • Net Weight: 56.2 lbs (25.5 kg)
  • Gross Weight: 59.5 lbs (27 kg)
Available Color
  • Black
Front Panel
Buttons
  • LED On/Off Button
  • Power On/Off button
LEDs
  • Power status LED
Expansion Slots
PCI-Express (PCIe)
  • 5 PCIe 5.0 x16 FHFL slot(s)
  • 1 PCIe 5.0 x8 FHHL slot(s)
Drive Bays / Storage
Drive Bays
  • 4x 3.5" SATA/NVMe drive bays (4x 2.5" NVMe hybrid)
M.2
  • 2 M.2 NVMe
Peripheral Bays
  • 2x 5.25" drive bays (optional)
System Cooling
Fans
  • 3x 12cm heavy duty fans with optimal fan speed control
Power Supply
2000W Platinum Level power supply
Dimension

(W x H x L)
  • 150 x 86 x 200 mm
AC Input
  • 1200W: 100-115Vac / 50-60Hz
  • 1500W: 115-200Vac / 50-60Hz
  • 2000W: 200-264Vac / 50-60Hz
+12V
  • Max: 100A / Min: 0.1A (100Vac-115Vac)
  • Max: 125A / Min: 0.1A (115Vac-120Vac)
  • Max: 166.6A / Min: 0.1A (200Vac-264Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • 24pin ATX
Certification Platinum Level Certified   Platinum Level



  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Resources
Component Options
CPU ListCompatible GPU ListDrive OptionsNVMe OptionsTested AOC ListTested M.2 ListTested Memory
Documentation
ManualsQuick Reference Guide
Software
BIOS DownloadBMC DownloadDrivers & UtilitiesOS Certification
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13DAI-T

CSE-GS7A-000NBP3 		1

1 		Super X13DAI-T Motherboard

Tower or 5U Chassis
Cable CBL-PWCD-0925 1 PWCD,US,NEMA 5-15P TO IEC60320 C19, 6FT, 14AWG, 15A/125V
CBL-PWEX-0663 1 PCIe 8 Pin Male(black) to CPU 8 Pin Female(White) Power Adap
CBL-SAST-1270S-100 1 SlimSASx8 STR to 8xSATA w/2SB,70CM,100Ohm,RoHS
Fan FAN-0154L4-1 1 Memory cooling kit with 4pcs FAN-0154L4 for X13 workstation,
FAN-0222L4 3 120x120x25 mm, 6.4K RPM, Optional Fan for GS7 Project
Parts MCP-260-00181-0B 1 STD I/O Shield for X13DAI-T with EMI Gasket & Black Mylar
Manual MNL-2583-QRG 1 751A-I Quick Reference Guide
Power Supply PWS-2K01-PQ 1 PS2 2000W Multi-output PLATINUM power supply,RoHS
Heatsink / Retention SNK-P0090AP4 2 4U Active CPU HS for X13 Gen. Intel Eagle Stream Platform
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
DVD-RW Drive DVM-LITE-DVDRW24-HBT1 - BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE
Gen4 8-ports SAS Raid controller kit   AOC-S3908L-H8IR-16DD-O - 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
Management Software SFT-DCMS-SINGLE • - Supermicro System Managment Software Suite - 1 per node
Mobile Rack CSE-M28SACB - SAS3/SATA3 Mobile Rack for 8x 2.5" HDD
NVMe cable CBL-MCIO-1245U2Y-E - MCIO x8 to 2x SFF-8639/U.2+Pwr,45cm,G5,RoHS
OOB License SFT-OOB-LIC • - License for out of band management
SAS cable CBL-SAST-1264-100 - Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS
SATA Cable CBL-SAST-0624 • - 70cm SATA Cable (1pc required for DVD Drive)
SATA Power adapter CBL-0082L • - Y SPLIT SATA POWER ADAPTER (1pc required for DVD Drive)
SuperCap kit for AOC-S3908L-H8IR-16DD BTR-CVPM05 - Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender
SuperWorkstation SYS-751A-I (Complete System Only )
