Supermicro® Total Solution for SUSE Enterprise Storage powered by Ceph

Supermicro and SUSE together deliver an industry-leading, cost-efficient, scalable software-defined storage solution powered by Ceph technology. SUSE Enterprise Storage provides unified object, block and file storage designed with unlimited scalability from terabytes to petabytes, with no single points of failure on the data path. Supermicro provides all Flash and Hybrid Disk configurations to deliver low-latency performance and cost optimization. Together, Supermicro and SUSE offer:

Validated reference architectures
SUSE Yes certified components
Faster and more efficient with BlueStoreObject Store
Easier to manage with Nextgen openATTIC and DeepSea
Highly Available, Scalable, Self-Manage and Self-Healing
Unified Storage with Block, Object and File
Software Defined Storage solution based on the Ceph Technology
Streamlined installation process
Reliable and production-ready
Scale out – One rack to many racks
Greenest Servers for the Cloud
Lowest Cost – Best Performance / Watt / $ / ft²

Support for SUSE Enterprise Storage is provided by SUSE in partnership with Supermicro where customers gain access to a global pool of knowledge and expertise. The partnership offers:

Support - With more than 25 years of experience, SUSE and Supermicro will deliver the support you need
Consulting - SUSE experts and partners will help you to implement Software Defined Enterprise storage solutions more quickly and efficiently
Training - Whether you prefer scheduled learning with a live experienced instructor who can answer your questions, or you need an eLearning solution so you can learn on the go, SUSE has the training

Total Solution - SUSE Enterprise Storage powered by Ceph on Supermicro Certified Platform

SKU Details

SYS-6029U-DCSO-AF — SYS-6029U-E1CR4
2U - 12 Bay

SYS-6029U-DCSO — SYS-6029U-E1CR4
2U - 12 Bay

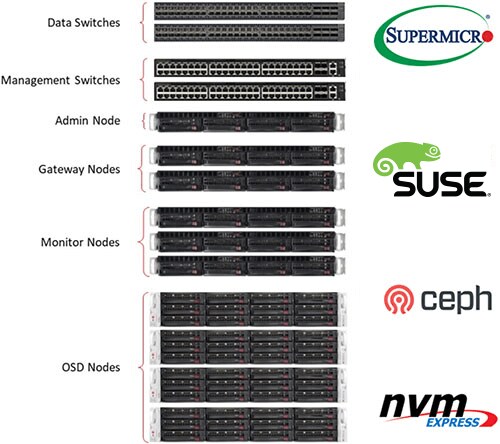

Components Used	Qty
Admin Node	SYS-5019P-WTR	1
Gateway Nodes	SYS-5019P-WTR	2
Monitor Node	SYS-5019P-WTR	3
OSD Node Options
OSD Node / SKU	All Flash	High Performance	Balanced	Storage Optimized	X-Large Storage
SYS-6029U-E1CR4 2U - 12 Bay	SYS-6029U-E1CR4 2U - 12 Bay	SSG-6029P-E1CR24L 2U - 24 Bay	SSG-6049P-E1CR36L 4U - 36 Bay	SSG-6049P-E1CR45L+ 4U - 45 Bay	4
Data Disks	SATA SSD	SAS	SAS	SAS	SAS
182.4 TB - 48 (12 Per Node x 4) HDS-M2T-MTFDDAK3T8TDC1AT	352 TB - 44 (11 Per Node x 4) HDD-A8000-ST8000NM0075	672 TB - 84 (21 Per Node x 4) HDD-A8000-ST8000NM0075	1024 TB - 128 (32 Per Node x 4) HDD-A8000-ST8000NM0075	1248 TB - 156 (39 Per Node x 4) HDD-A8000-ST8000NM0
Recommended Data Network	2 x 40 GbE*	4 x 10 GbE*	4 x 25 GbE*	2 x 40 GbE*	2 x 40 GbE*
Use Cases
HPC	✔
Block / Object	✔	✔	✔
Archiving				✔	✔
Cold Storage					✔
Software Licenses
SUSE	SFT-SS-662644477516: Activation Card SUSE Enterprise Storage Base Configuration, x86-64, 4 OSD Nodes with 1-2 Sockets, Priority Subscription, 3 Year	1
Optional Services
Design	DataCenter Design, Validation and Bootstrapping Services****	10
Integration	Supermicro Rack Integration Service**	1
Support	Supermicro Onsite Support	10
Onsite Integration	Supermicro Onsite Integration Service***

*: For networking option details, please consult Networking Options table below.
**: Racking & Cabling (with Supermicro switches); Racking & Cabling Engineering Drawing; SMC will not be responsible for 3rd party switch configuration.
***: Require SOW Onsite Survey; Onsite logistics; Racking & Cabling (with 3rd party switches); Racking & Cabling Engineering Drawing
****: Please consult Supermicro for pricing and configuration of this service

Networking Options (with 10, 25, or 40GB Data Switches)

Standard configurations include two types of Ethernet switches - one for consolidation of management/IPMI traffic and another for use in networking data traffic. The management switch is common to all storage options. The data switch options include a 10Gbps switch, a 25Gbps switch or a 40Gbps switch, depending on the selected OSD node option above.

	10 GbE Data Network with Cumulus OS³	25 GbE Data Network with SMIS OS	40 GbE Data Network with Cumulus OS³	Qty
Management Switch	SSE-G3648BR	SSE-G3648BR	SSE-G3648BR	2
Data Switch	SSE-X3648SR	SSE-F3548SR	SSE-C3632SR	2
Admin + Gateway + Monitor Node NICs	AOC-STGF-I2S-O	AOC-S25G-M2S	AOC-S40GI2Q	12 (2 Per Node x6)
OSD Node NICs	AOC-STGF-I2S-O	AOC-S25G-M2S	AOC-S40GI2Q	8 (2 Per Node x4)
Software Licenses (for networking)
Management Switch Software perpetual license with 3 yr service/support	SFT-CLSNWPL-1G-3Y¹	SFT-SMCPL1G²	SFT-CLSNWPL-1G-3Y¹	2
Data Switch Software perpetual license with 3 yr service/support	SFT-CLSNWPL-10G-3Y¹	Included with switch²	SFT-CLSNWPL-100G-3Y¹	2

1): The 10 GbE Data switch and 40 GbE Data switch options require a Cumulus OS for all switches in the solution. The Cumulus OS licenses for both the data and management switches are obtained through Supermicro using the provided SKUs.
2): The 25 GbE Data switch option requires the Supermicro (SMIS) OS for all switches in the solution. The SMIS OS for the management switch is obtained using the provided SKU. The SMIS OS for the data switch is included with the switch.
3): Cumulus Linux is a powerful open network operating system that allows you to automate, customize and scale:
https://cumulusnetworks.com/products/cumulus-linux/

Build your own with pre-validated configurations

Use one of our pre-validated configuration to build your storage cluster using one of the pre-validated configuration.

Supermicro and SUSE worked together to build wide range of storage (CEPH OSD node) configurations to cater various use cases. Based on requirements and use cases, users can use one of the below storage (CEPH OSD node) configurations for their deployment.

Network Component Details

SYS-1029U-TN10RT

10 NVMe support • 24 DDR4 DIMM • 2x 10GBase-T

Virtualization, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
10 Hot-swap 2.5" drive bays; 4 NVMe/SAS3 hybrid + 6 NVMe ports
2 PCI-E 3.0 x16 Full-height, 10.5" L slots
2x 10GBase-T ports, 1 Dedicated IPMI port
2 VGA (1 rear, 1 onboard), 1 Serial, 5 USB 3.0
8 heavy duty fans w/ optimal fan speed control
1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

1Gb & 10Gb Ethernet Switches

Layer 2/3 Ethernet Switching, link aggregation (LACP), Jumbo frames, VLAN support
Configuration Flexibility:
- SSE-G24-TG4 - 24 ports of RJ45 1Gbps Ethernet with 4 SFP Combo ports, 4 ports 10Gbps Ethernet (CX4, XFP, or SFP+), Stacking
- SSE-G48-TG4 - 48 ports of RJ45 1Gbps Ethernet with 4 SFP Combo ports, 4 ports 10Gbps Ethernet (CX4, XFP, or SFP+), Stacking
- SSE-X24S / SSE-X3348S(R) - 24 ports 10Gbps Ethernet (SFP+), Reverse airflow option
Management: Web-based management interface, Industry standard CLI with telnet SSH or local management port, Scripting, Logging
Routing, Multicast:
- Quality of service and DiffServ - 8 priority queues per port; Adjusted WRR and Strict Priority Scheduling
- Security - 802.1x port based authentication, RADIUS and TACACS+ authentication, SSH / SSL encryption
Dimensions: 17.3"W x 15.2"D x 1.7"H (440mm x 386mm x 43mm)

AF-4: 1U Ultra SuperServer, 3.6 TB

SYS-1029U-TRT

3.6 TB Raw Capacity (4x 1.2 TB Capacity SSDs, 1x 400 GB Caching SSDs)
16 Cores (2x Intel Xeon Silver 4110 2.1 GHz)
128 GB Memory (8x 16 GB DDR4-2666)
SMC3008 Storage Controller
2x Dual-Port 10GbE RJ45 NICs

AF-6: 1U Ultra SuperServer, 48 TB

SYS-1029U-TN10RT – Intel® Select VMware vSAN Solution

48 TB Raw Capacity (6x 8TB Capacity SSD DC P4610, 2x 375 GB Caching SSDs DCP4800x)
40 Cores (2x Intel Xeon Gold 6230 2.1 GHz)
384 GB Memory (12x 32 GB DDR4-2666)
SMC3008 Storage Controller
2x Dual-Port 10GbE RJ45 NICs

AF-6: 1U Ultra SuperServer, 7.2 TB

SYS-1029U-TRT

7.2 TB Raw Capacity (6x 1.2 TB Capacity SSDs, 2x 400 GB Caching SSDs)
16 Cores (2x Intel Xeon Silver 4110 2.1 GHz)
128 GB Memory (8x 16 GB DDR4-2666)
SMC3008 Storage Controller
2x Dual-Port 10GbE RJ45 NICs

AF-6: 2U 4-Node BigTwin, 32 TB (8 TB per node)

SYS-2029BT-HNR

32 TB Raw Capacity (4x 2 TB NVMe SSDs, 2x 375 GB Caching NVMe SSDs per node)
128 Cores (2x Intel Xeon Gold 6142 2.6 GHz per node)
1 TB Memory (16x 16 GB DDR4-2666 per node)
Dual-Port 25GbE SFP28 + Dual-Port 10GbE RJ45 NICs per node

AF-6: 2U 4-Node BigTwin, 32 TB (8 TB per node)

SYS-2029BT-HNC0R

32 TB Raw Capacity (5x 1.6 TB Capacity SSDs, 1x 480 GB Caching SSD per node)
96 Cores (2x Intel Xeon Gold 6136 3.0 GHz per node)
1 TB Memory (16x 16 GB DDR4-2666 per node)
Dual-Port 10GbE RJ45 NICs per node

AF-6: 2U 4-Node BigTwin, 61 TB (15 TB per node)

SYS-2029BT-HNC1R

61TB Raw Capacity (2 x Seagate Nytro 3331 3.84TB caching, 4 x Seagate Nytro 3331 3.84TB capacity per node)
Intel Platinum 8253, 16 core, 2.20Ghz
3108 Controller
Quad 10GB SFP+ NICs

AF-6: 2U SuperStorage, 9.6TB

SSG-5029P-E1CTR12L

9.6TB Raw capacity (2 x Intel S4610 960GB caching, 8x Samsung PM863 960GB capacity)
Intel Gold 6230 - 20 core, 2.10Ghz
3108 Controller
Dual 10GB Ethernet NICs

AF-8: 1U Ultra SuperServer, 23 TB

AS-1123US-TR4

23 TB Raw Capacity (6x 3.8 TB Capacity SSDs, 2x 480 GB Caching SSDs)
32 Cores (2x AMD EPYC 7351 2.4 GHz)
256 GB Memory (16x 16 GB DDR4-2666)
SMC3008 Storage Controller
Dual-Port 10GbE RJ45 NIC

AF-8: 1U Ultra SuperServer, 64 TB

SYS-1029U-TN10RT

64TB Raw Capacity (2 x P4800x 375GB caching, 8 x P4510 8TB capacity)
Intel Gold 6230 -20 core 3.6Ghz
Dual 10Gb SFP+ NICs

AF-8: 2U 4-Node BigTwin, 128TB (32TB per node)

SYS-2029BT-HNR

128TB Raw Capacity (2 x P4800x 375GB caching, 4 x P4510 8TB capacity per node)
Intel Gold 6252 Processor - 24 core, 2.10Ghz
Dual 25GB SFP28 NICs

AF-8: 2U 4-Node BigTwin, 61 TB (15 TB per node)

SYS-2029BT-HNR

61 TB Raw Capacity (4x 3.84 TB NVMe SSDs, 2x 1.6 TB Caching NVMe SSDs per node)
144 Cores (2x Intel Xeon Gold 6150 2.7 GHz per node)
1.5 TB Memory (12x 32 GB DDR4-2666 per node)
Dual-Port 25GbE SFP28 + Dual-Port 10GbE RJ45 NICs per node

AF-8: 2U 4-Node BigTwin, 61TB (15TB per node)

SYS-2029BT-HNC0R

61TB Raw Capacity (2 x P4800x 375GB caching, 4 x S4510 3.84TB capacity per node)
Intel Gold 6252 Processor - 24 core, 2.10Ghz
Dual 25GB SFP28 NICs

AF-8: 2U 4-Node BigTwin, 64TB (16TB per node)

SYS-2029BZ-HNR

64TB Raw Capacity ( 4 x 4.0TB NVMe SSD, 2 x 1.6TB Caching NVMe SSDs per node)
192 Cores (2 x Intel Xeon Platinum 8160T 2.10Ghz 24Core)
1.5 TB Memory (6x 64GB DDR4-2666 per node)
Quad-Port 10GBE NIC per node (AOC-MTG-i4T)

AF-8: 2U Ultra SuperServer, 168TB

SYS-2029U-TN24R4T

168TB Raw capacity (3 x P4800x 375GB caching, 21 x P4510 8TB capacity)
Intel Platinum 8253 - 16 core, 2.2Ghz
Dual 10GB Ethernet NICs

AF-8: 2U Ultra SuperServer, 32 TB

SYS-2029U-E1CRT

32 TB Raw Capacity (20x 1.6 TB Capacity SSDs, 4x 400 GB Caching SSDs)
48 Cores (2x Intel Xeon Platinum 8160 2.1 GHz)
384 GB Memory (24x 16 GB DDR4-2666)
SMC3008 Storage Controller
2x Dual-Port 10GbE RJ45 NICs

AOC-653106A-ECAT

Standard, PCI-E 2-port 100Gb/s InfiniBand & Ethernet, QSFP56, Gen 3.0/4.0 x16, CX-6 VPI
Interface: PCI-E 4.0 x16, PCI-E 3.0 x16
Port: 2 QSFP56 ports
Speed: 100Gb IB or 100GbE per port

AOC-MCX555A-ECAT

Standard, PCI-E 1-port IB-FDR/EDR 100Gb/s and 100GbE QSFP28 Gen3.0 x16 CX-5 VPI
Interface: PCI-E 3.0 x16
Port: 1 QSFP28 port
Speed: 100Gb IB or 100GbE

AOC-MCX556A-ECAT

Standard Low-profile Mellanox EDR IB (100Gb/s) and 100GbE card with 2 QSFP28 ports
Interface: PCI-E 3.0 x16
Port: 2 QSFP28 ports
Speed: 100Gb IB or 100GbE per port

AS -1114S-WTRT

(Cluster Role: Single Socket Performance Infrastructure Node)

48 Cores
128 (8 * 16) GB RAM
15.2 TB (2x 7.6TB) SAS SSD
3.8 TB (1x 3.8TB) NVMe SSD
2 RJ45 10GBase-T Ethernet ports

AS -1125HS-TNR-HCI

Best For	Most demanding workloads
Server SKU	AS -1125HS-TNR
Profile	All-flash
Form Factor	1U
Nodes in a cluster	1-4
Processors	Dual AMD EPYC™ 9004 Series processors
Memory	384GB to 3TB DDR5
Storage Type	NVMe
Networks	Up to 100GbE RoCE RDMA

AS -2013S-C0R

(Cluster Role: Single Socket Performance Cloud Node)

48 Cores
512 (8 * 64) GB RAM
16 TB (2x 8TB) SAS3 HDD
2 TB (1x 2TB) M.2 NVMe SSD
2 RJ45 1GBase-T Ethernet ports
Make sure to add data disks and "NICs for data" separately, per above chart

AS -2025HS-TNR-HCI

Best For	Most demanding workloads
Server SKU	AS -2025HS-TNR
Profile	All-flash
Form Factor	2U
Nodes in a cluster	1-4
Processors	Dual AMD EPYC™ 9004 Series processors
Memory	384GB to 3TB DDR5
Storage Type	NVMe
Networks	Up to 100GbE RoCE RDMA

AS -2115GT-HNTR-HCI

Best For	High-density 4-node HCI deployment scenarios for balanced workloads
Server SKU	AS -2115GT-HNTR
Profile	All-flash
Form Factor	2U
Nodes in a cluster	4-16 (4-node system)
Processors	Single AMD EPYC™ 9004 Series processor
Memory	192GB to 768GB DDR5
Storage Type	NVMe
Networks	Up to 100GbE RoCE RDMA

HY-6: 2U 4-Node TwinPro, 32 TB (8 TB per node)

SYS-2029TP-HC0R

32 TB Raw Capacity (4x 2 TB SAS HDDs, 1x 480 GB Caching SSD per node)
96 Cores (2x Intel Xeon Gold 6126 2.6 GHz per node)
1.5 TB Memory (12x 32 GB DDR4-2666 per node)
SMC3008 Storage Controller
Quad GbE NICs per node

HY-6: 2U SuperStorage, 60 TB

SSG-5029P-E1CTR12L

60 TB Raw Capacity (10x 6 TB SAS HDDs, 2x 1.92 TB Caching SSDs)
12 Cores (1x Intel Xeon Gold 6126 2.6 GHz)
128 GB Memory (8x 16 GB DDR4-2666)
SMC3008 Storage Controller
1x 10GbE RJ45 NIC

IPMI Server Management

HW fault alerts - E-mail or SNMP
Redundant access for management
Support for open standards (SMASH 2.0, LDAP, WSMAN)
VLAN support
KVM and Virtual Media and SOL (no additional license needed)
Easy maintenance (Command line flash tools for firmware update)

SC216BE2C-R741JBOD

24 Hot-swap 2.5" SAS3 drive bays
Dual Expander Backplane Boards supporting SAS3 HDDs with 12Gb/s throughput
8 Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
1 IPMI port for Remote System Power on/off, wake-on-LAN and system monitoring
Support NTP for time synchronization & RTC battery backup
3 High efficient Hot-swap 80mm fans for best system cooling
740W Redundant (1+1) Platinum level (95%) power supplies

SC847E2C-R1K28JBOD

44 (24 front + 20 rear) Hot-swap 3.5" SAS3 drive bays
Dual Expander Backplane Boards supporting SAS3 HDDs with 12Gb/s throughput
JBOD Power Control Board with IPMI for remote monitor and power on-off; Internal Connection Cables Included
8 External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
Palletized packaging for easy shipping and handling
7 Redundant Hot-swap 8cm (middle) cooling fans
1280W Redundant (1+1) Platinum Level power supplies with PMBus

SC946ED-R2KJBOD

90 Hot-swap Top-load 3.5" or 2.5" SAS3 drive bays
Hot-swap dual SAS3 expanders with redundant BMC
8 Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
Tool-less HDD tray with HDD LED indicator
5 Heavy duty 80mm fans with PWM fan speed control
4x 1000W Redundant Titanium Level (96%) Power Supplies

SC946SE2C-R1K66JBOD

60 Hot-swap Top-load 3.5" SAS3 drive bays
Dual Expander Backplane Boards supporting SAS3 HDDs with 12Gb/s throughput
8 Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
Tool-less HDD tray with HDD LED indicator
5 Redundant Hot-swap 80mm (rear) cooling fans
1600W Redundant (1+1) Platinum Level power supplies

SSE-C3632S

/ SSE-C3632SR (32 ports)

32x One-Hundred-Gigabit Ethernet ports
(Each optionally configured for forty-gigabit or 4x twenty-five gigabit)
Wire-speed Layer 3 Routing
1:1 Non-blocking connectivity
1U form factor for flexible installation
Data-Center friendly - regular and reverse airflow models
Redundant hot-pluggable power supplies
Bare metal - ONIE Installed
Cumulus Linux Capable

SSE-C3632SR

(Cluster Role: Data Switch)

32x Ethernet QSFP28 ports – either 40Gbps or 100Gbps
1x 10Gb Ethernet SFP+ port
RJ-45 Gb Ethernet management port
RJ-45 serial console
Type A USB 2.0 port
Full Duplex 3.2Tbps Switching Capacity
Regular Airflow option available
Dual redundant hot-swappable power supplies
1U form factor

SSE-F3548S / SSE-F3548SR

54 Ports

48x twenty-five Gigabit Ethernet ports
6x hundred-Gigabit Ethernet ports
Switching Capacity: 3.6 Tb
RJ-45 (for console cable)
RJ-45 1G Ethernet Management Port
USB
1:1 Non-blocking connectivity
1U form factor for flexible installation
CLI and Web GUI Management Interfaces

SSE-F3548SR

(Cluster Role: Data Switch)

48x 25Gb Ethernet ports - SFP28
6x 100Gb Ethernet ports - QSFP28
RJ-45 (for console cable)
RJ-45 1G Ethernet Management Port
USB
Switching Capacity: 3.6 Tb
1:1 Non-blocking connectivity
Regular Airflow option available
Dual redundant hot-swappable power supplies
1U form factor

SSE-G3648BR

(Cluster Role: Management Switch)

48x 1Gbps Ethernet RJ45 ports
4x 10Gbps Ethernet SFP+ ports
RJ-45 Gb Ethernet management port (for console cable)
Type A USB 2.0 port
Aggregated switching Capacity - 176 Gbps
Non-blocking, wire-speed Layer 3 Routing
Regular Airflow option available
Second (redundant) hot-swappable power supply - optional
1U form factor

SSE-X3348S / SSE-X3348SR

54 Ports

48x ten-Gigabit Ethernet ports
4x forty-Gigabit Ethernet ports
2x one-Gigabit Ethernet ports
Switching Capacity: 1284Gbps
Wire-speed Layer 3 Routing
1:1 Non-blocking connectivity
Link Aggregation and Jumbo Frame Support
1U form factor for flexible installation
CLI and Web GUI Management Interfaces

SSE-X3348T / SSE-X3348TR

54 Ports

48x ten-Gigabit Ethernet ports (RJ45)
4x forty-Gigabit Ethernet ports
2x one-Gigabit Ethernet ports
Switching Capacity: 1284Gbps
Wire-speed Layer 3 Routing
1:1 Non-blocking connectivity
1U form factor for flexible installation
Redundant hot-pluggable power supplies
CLI and Web GUI Management Interfaces

SSE-X3648SR

(Cluster Role: Data Switch)

48x 10Gb Ethernet ports - SFP+
6x 40 Gb Ethernet ports - QSFP+
RJ-45 (for console cable)
RJ-45 1G Ethernet Management Port
USB
Switching Capacity: 1440 Gbps
Wire-speed Layer 3 Routing
1:1 Non-blocking connectivity
Regular Airflow option available
Dual redundant hot-swappable power supplies
1U form factor

SSG-2029P-E1CR24H

Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 Hot-swap 2.5" SAS3/SATA3 drive bays
SAS3 via Broadcom 3108 AOC
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
1 VGA, 1 COM, 3 USB 3.0, 1 Type A
3 Hot-swap 8cm redundant PWM cooling fans
1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6028R-E1CR24L

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access
SAS3 via Broadcom 3008, IT mode controller
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
I/O: SIOM for flexible networking options, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5 Hot-swap 80mm redundant PWM cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

SSG-6029P-E1CR24L

(Cluster Role: Balanced OSD)

24 (2 x 12) Cores
192 (12 x 16) GB RAM
4 TB (2x 2TB) SATA (OS)
168 TB (21 x 8) SAS HDD (Data)
3x Intel DC P4610 1.6TB NVMe PCI-E 3.1 (Cache)
1 RJ45 Dedicated IPMI LAN port

* Make sure to add "NICs for data"

SSG-6048R-NEX3

Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
36 3.5" hot-swap SAS/SATA drive bay with SES3, rear 2 2.5" hot-swap drive bay
Up to 2TB ECC 3DS LRDIMM, up to DDR4 2400MHz; 16x DIMM slots
1 PCI-E 3.0 x16 slot (FH, 10.5" L), 6 PCI-E 3.0 x8 slots
2 10GBASE-T ports and 1 dedicated IPMI LAN port
7 heavy duty fans with optimal fan speed control
1280W Redundant Platinum Level (95%) + Super Quiet power supplies with PMbus

SSG-6049P-E1CR36L

(Cluster Role: Storage Optimized OSD)

32 (2 x 16) Cores
384 (12 x 32) GB RAM
4 TB (2 x 2TB) 2.5" SATA HDD
256 TB (32 x 8) SAS HDD (Data)
4x Intel DC P4610 1.6TB NVMe PCIe 3.1 (Cache)
2 RJ45 10GBase-T LAN ports; 1 RJ45 Dedicated IPMI LAN port

* Make sure to add "NICs for data"

SSG-6049P-E1CR45L+

(Cluster Role: X-Large Storage OSD)

20 (2 x 10) Cores
192 (12 x 16) GB RAM
4 TB (2 x 2TB) SATA (OS)
312 TB (39 x 8) SAS HDD (Data)
6x Intel DC P4610 1.6TB NVMe PCI-E 3.1 (Cache)
1 RJ45 Dedicated IPMI LAN port

* Make sure to add "NICs for data"

SYS-111E-WR-HCI

Best For	Edge deployment scenarios with 10 drive bays for balanced workloads
Server SKU	SYS-111E-WR
Profile	All-flash
Form Factor	1U
Nodes in a cluster	1-4
Processors	Single 4th Gen Intel® Xeon® Scalable processor
Memory	64GB to 1024GB DDR5
Storage Type	SSD
Networks	25GbE RoCE RDMA

SYS-128UMI-NE0S-01

/ SYS-128UMI-NE0T-01

All-Flash • 8.6TB Raw Capacity

1U Single Ready Node for Supermicro-NexentaEdge Scale-out Storage
28 Cores (2 Intel Xeon E5-2690 v4) each Node
256GB Memory (16x 16GB DDR4-2400) each Node
2 PCI-E 3.0 x16 Expansion Slots
8.6TB Data Storage (9x 960GB SSDs, 1x 240GB boot SSDs), Micron M510DC SSDs
Dual 10GbE SFP+ (NE0S model) or Dual 10GbE RJ45 (NE0T model)
10X More IOPS (8K Random@75% Read / 25% Write) & 3X More IOPS (8K@100% Read) with iSCSI All-SSD vs. Hybrid Configurations
Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)

SYS-2029BT-HNR

4 DP nodes in 2U; depth 28.5", Each Node:
Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
6 Hot-swap 2.5" NVMe drive bays per node
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

SYS-2029GP-TR

(Cluster Role: Cloud Node)

36 (2 * 18) Cores
512 (16 * 32) GB RAM
8TB (2x 4TB), SATA HDD (OS)
Intel DC P4610 1.6TB NVMe PCIe 3.1 (Cache)
2x NVIDIA Tesla V100 GPUs
Make sure to add data disks, GPUs and "NICs for data" separately

SYS-2029U-TR4T

(Cluster Role: "Secure" Cloud Node)

40 (2 * 20) Cores
1536 (24 * 64) GB RAM
1 TB (2x 512GB) NVMe SSD
4 RJ45 10GBase-T Ethernet ports
Make sure to add data disks and "NICs for data" separately, per above chart

SYS-5019P-WTR

(Cluster Role: Admin, Gateway and Monitor)

12 (1 × 12) Cores
96 (6 × 16) GB RAM
4 (2 × 2) TB SATA HDD (OS)
2 RJ45 10GBase-T Ethernet ports; 1 RJ45 Dedicated IPMI LAN port

SYS-511E-WR-HCI

Best For	Edge deployment scenarios with minimum footprint for balanced workloads
Server SKU	SYS-511E-WR
Profile	All-flash
Form Factor	1U
Nodes in a cluster	1-4
Processors	Single 4th Gen Intel® Xeon® Scalable processor
Memory	64GB to 1024GB DDR5
Storage Type	SSD
Networks	25GbE RoCE RDMA

SYS-6019U-TN4RT

(Cluster Role: Infrastructure Node)

32 (2 * 16) Cores
192 (12 * 16) GB RAM
12 TB (2x 6TB) SATA HDD
Intel DC P4510 1TB NVMe PCIe 3.1 3D TLC 2.5" 15mm 1DWPD(Cache)
2 RJ45 10GBase-T Ethernet ports

SYS-6019U-TN4RT

(Cluster Role: Infrastructure Node)

28 (2 * 14) Cores
384 (12 * 32) GB RAM
12 TB (2x 6TB) SATA HDD
Intel DC P4510 500GB, NVMe PCI-E 3.1 (Cache)
2 RJ45 10GBase-T Ethernet ports

SYS-6019U-TN4RT

(Cluster Role: Compute Node)

32 (2 × 16) Cores
576 (18 × 32) GB RAM
4 (2 × 2) TB SATA HDD (OS)
2 RJ45 10GBase-T Ethernet ports

SYS-6019U-TR4

Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
4 Hot-swap 3.5" drive bays
2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
4x 1GbE ports
1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
3 USB 3.0 (2 rear, 1 Type A)
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6028U-NEX3/NEX4

Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
12 Hot-swap 3.5" Drive Bays: 10 SATA3 ports by default; Optional drive support: 12 SAS3
Up to 3TB ECC LRDIMM, 1.5TB ECC RDIMM/LRDIMM; up to DDR4 2400MHz, 24x DIMM slots
1 PCI-E 3.0 x16 slot (FH, 10.5" L), 7 PCI-E 3.0 x8 slots (5 FH, 10.5" L, 1 LP, 1 Internal LP)
4 Gigabit Ethernet ports and 1x dedicated IPMI LAN port
4 heavy duty fans with optimal fan speed control
1000W Redundant Titanium Level (96%) power supplies

SYS-6029U-E1CR4

(Cluster Role: High-Performance OSD)

16 (2 x 8) Cores
192 (12 x 16) GB RAM
1.9 TB (2 x 960GB) TB 2.5" SATA SSD (OS)
88 TB (11 x 8) SAS HDD (Data)
Intel DC P4610 1.6TB NVMe PCI-E 3.1 (Cache)
4 RJ45 10GBase-T Ethernet ports

* Make sure to add "NICs for data"

SYS-6029U-E1CR4

(Cluster Role: All-Flash OSD)

16 (2 x 8) Cores
192 (12 x 16) GB RAM
1.9 TB (2 x 960GB) TB 2.5" SATA SSD (OS)
45.6 TB (12 x 3.8) SATA SSD (Data)
4 RJ45 10GBase-T Ethernet ports

* Make sure to add "NICs for data"

SYS-6029U-NEX1/NEX2/NEX3

Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 Hot-swap 3.5" Drive Bays: 12 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe)
Up to 6TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2933MHz; 24 DIMM slots
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 slots (FH, 10.5" L), 4 PCI-E 3.0 x8 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP)
4 10GBase-T LAN ports via Intel X710
4 Heavy duty 8cm PWM fans
1000W Redundant Titanium Level (96%) power supplies

*Contact your Supermicro sales rep for more info.

SYS-6029U-TR4T

(Cluster Role: "Value" Cloud Node)

32 (2 * 16) Cores
384 (12 * 32) GB RAM
12 TB (2x 6TB) SATA HDD
Intel DC P4610 1.6TB NVMe PCI-E 3.1 (Cache)
4 RJ45 10GBase-T Ethernet ports
Make sure to add data disks and "NICs for data" separately, per above chart

SYS-6029U-TR4T

(Cluster Role: Cloud Node)

36 (2 * 18) Cores
512 (16 * 32) GB RAM
8TB (2x 4TB), SATA HDD (OS)
Intel DC P4610 1.6TB NVMe PCIe 3.1 (Cache)
2x NVIDIA Tesla V100 GPUs
4 RJ45 10GBase-T Ethernet ports
Make sure to add data disks, GPUs and "NICs for data" separately

SYS-6029U-TR4T

(Cluster Role: "Performance" Cloud Node)

56 (2 * 28) Cores
1536 (16 * 64) GB RAM
1920 (2x 960GB), SATA SSD
2 RJ45 10GBase-T Ethernet ports
Make sure to add data disks and "NICs for data" separately, per above chart

SYS-6029U-TR4T

(Cluster Role: "Balanced" Cloud Node)

52 (2 * 28) Cores
1536 (24 * 64) GB RAM
1920GB (2x 960GB), SATA SSD
Intel DC P4610 7.6TB NVMe PCIe3.1 3D TLC 2.5" 3DWPD Rev.2 (Cache)
2 RJ45 10GBase-T Ethernet ports
Make sure to add data disks and "NICs for data" separately, per above chart

SYS-6029U-TR4T

(Cluster Role: "Performance" Cloud Node)

36 (2 * 18) Cores
512 (16 * 32) GB RAM
12TB (2x 6TB) SATA HDD
Intel DC P4610 1.6TB NVMe PCI-E 3.1 (Cache)
4 RJ45 10GBase-T Ethernet ports
Make sure to add data disks and "NICs for data" separately, per above chart

SYS-6029U-TR4T

(Cluster Role: "Value" Cloud Node)

32 (2 * 16) Cores
768 (24 * 32) GB RAM
1920GB (2x 960GB), SATA SSD
Intel DC P4610 7.6TB NVMe PCIe3.1 3D TLC 2.5" 3DWPD Rev.2 (Cache)
2 RJ45 10GBase-T Ethernet ports
Make sure to add data disks and "NICs for data" separately, per above chart

SSG-1029P-NEL32R

High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
32 Hot-swap EDSFF Long drive slots
24 DIMMs; up to 6TB 3DS ECC DDR4 2933MHz RDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 Low-profile slots
2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
1 VGA, 2 USB 3.0, 1 TPM header
8x 40x56mm PWM fans
1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6019P-ACR12L

High Density Storage, Object Storage 1U, Ceph / Hadoop, Scale-out Storage, Big Data Analytics
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 Hot-swap 3.5" SAS3/SATA3 drive bays, 4 Hot-swap 2.5" NVMe/SATA drive bays
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
1 VGA, 4 USB 3.0, 1 TPM header
6x 4cm 20.5K RPM cooling fans
600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6019P-ACR12L

12 Hot-swap 3.5" SAS3/SATA3 + 4 Hot-swap 2.5" NVMe/SATA

High Density Storage, Object Storage 1U, Ceph / Hadoop, Scale-out Storage, Big Data Analytics
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 Hot-swap 3.5" SAS3/SATA3 drive bays, 4 Hot-swap 2.5" NVMe/SATA drive bays
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
1 VGA, 4 USB 3.0, 1 TPM header
6x 4cm 20.5K RPM cooling fans
600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6029P-E1CR24H

– Optimized For GlusterFS

24 Hot-swap 3.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear)
SAS3 via Broadcom 3108 AOC
24 DIMMs; up to 6TB 3DS ECC DDR4‑2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0, 1 Type A
5 Hot-swap 80mm redundant PWM cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6029P-E1CR24L

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4 2400MHz
24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); SAS3 via Broadcom 3008 AOC
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0, 1 Type A
5 Hot-swap 80mm redundant PWM cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

SSG-6119P-ACR12N4L-HCI

Best For	Balanced performance work loads and high storage density
Profile	Hybrid
Form Factor	1U
Nodes in a cluster	2-4
Processors	Dual Intel® Xeon® Scalable Processors
Memory	128GB to 3TB DDR4
Storage Type	NVMe + HDD
Networks	Up to 100GbE RoCE RDMA

SYS-1019D-FHN13TP

Intel® Xeon® D-2146NT Processor, 8-Core, 16 Threads, 2.3 GHz, 80W
Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2133Mz; in 4 DIMM slots
2 PCI-E 3.0 x16 (FHFL) slots
2 Hot-swap 2.5" drive bays, 2 Internal 2.5" SSD bays
3 M.2:
M-Key SATA/PCI-E 3.0 x4, 22110
E-Key PCI-E 3.0 x1, 2230
B-Key SATA/PCI-E 3.0 x2/USB 3.0, 2242
9 GbE (1 port is used for management), 2x 10GbE, 2x 10G SFP+, and 1 Dedicated IPMI LAN port
Supports up to 2 NVIDIA Tesla T4 Tensor Core GPUs

SYS-1029GQ-TVRT

Up to 4 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK

HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
4 PCI-E 3.0 x16 slots
2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
1 VGA, 2 COM, 2 USB 3.0 (rear)
7x 4cm heavy duty counter-rotating fans with air shroud
2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029P-N32R

32 NVMe Support • (2 sleds with 16 drives per sled)

High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
Dual socket P (LGA 3647) supports 2nd Gen. Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
32 Hot-swap 2.5" NVMe SSDs (2 sleds with 16 drives per sled), 2 M.2 boot drives
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 slots
2x 10GBase-T LAN ports, 1 dedicated IPMI Port
1 VGA, 2 USB 3.0, 1 COM, 2 SuperDOM
Built-in Intel® QAT for Crypto/Compression
8 Hot-swap 40mm cooling fans
1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029U-E1CRT/ SYS-1029U-E1CR4 / SYS-1029U-E1CR4T / SYS-1029U-E1CRTP

10x 2.5" SAS3 • Flexible Network Opt.

Virtualization, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
10 Hot-swap 2.5" drive bays; 10 SAS3 via optional AOC
2 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-1029U-E1CR25M
Networking Options:
- SYS-1029U-E1CRT - 2x 10GBase-T ports
- SYS-1029U-E1CR4 - 4x 1GbE ports
- SYS-1029U-E1CR4T - 4x 10GBase-T ports
- SYS-1029U-E1CRTP - 2x 10G SFP+ ports
1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 COM/Serial
5 USB 3.0 (2 rear, 2 front, 1 Type A)
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029U-OSD100M

(Cluster Role: OSD Node)

System: Ultra SuperServer 1029U-TN10RT
2x Intel® Xeon® Platinum 8168 Processors
12x 32GB DDR4-2666 RDIMM
10x 2.5" 6.4TB Micron 9200 MAX NVMe SSDs
1x 240GB Micron 5100 PRO SATA M.2 for OS
Dual 100GbE QSFP28 via 2x Mellanox MCX516A-CCAT
1U with redundant Hot-swap 1000W power supplies

Solid Ready certification

SYS-1029U-TN10RT-HCI

Best For	High-performance compute and high-speed storage
Profile	All-flash NVMe
Form Factor	1U
Nodes in a cluster	2-16
Processors	Dual Intel® Xeon® Scalable Processors
Memory	128GB to 6TB DDR4
Storage Type	NVMe
Networks	Up to 100GbE RoCE DRMA

SYS-1029U-TR25M

10x 2.5" SATA3 or Opt. 8x SAS3 + 2x NVMe/SATA • Flexible Network Opt.

Virtualization, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4‑2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
10 Hot-swap 2.5" drive bays; 10 SATA3 (2 hybrid ports - 2 NVMe opt.)
2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP)
Networking 2x 25GbE SFP28 ports
1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
5 USB 3.0 (2 rear, 2 front, 1 Type A)
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029U-TR4

Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM
2 PCI-E 3.0 x16 slots (FH, 10.5" L), 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
4 Gigabit Ethernet ports
Supports up to 2 NVIDIA Tesla T4 Tensor Core GPUs

SYS-1029U-TRT-HCI

Best For	Work loads with balanced performance in a cost-optimized two-node cluster
Profile	All-flash, Hybrid
Form Factor	1U
Nodes in a cluster	2-4
Processors	Dual Intel® Xeon® Scalable Processors
Memory	128GB to 6TB DDR4
Storage Type	NVMe +SSD, NVMe + SSD + HDD
Networks	Up to 40GbE RoCE RDMA

SYS-2029BT-DNC0R-HCI

Best For	Two nodes optimized in a 2U form factor for balanced work loads
Profile	All-flash, Hybrid
Form Factor	2U
Nodes in a cluster	2-4 (1-2 systems)
Processors	Dual Intel® Xeon® Scalable Processors
Memory	128GB to 6TB DDR4
Storage Type	NVMe +SSD, NVMe + SSD + HDD
Networks	Up to 100GbE RoCE RDMA

SYS-2029BT-HNC1R

BigTwin™ • 4 NVMe/SAS3/SATA3 + 2 SAS3/SATA3 per Node

4 DP nodes in 2U; depth 28.5", Each Node:
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
SAS3 support via Broadcom 3108; RAID 0, 1, 5, 6, 10, 50, 60
1 PCI-E 3.0 x16 Low-profile slot, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029BT-HNR

BigTwin™ • 6 NVMe per Node

4 DP nodes in 2U; depth 28.5", Each Node:
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
6 Hot-swap 2.5" NVMe drive bays per node
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029GP-TR

(NGC Certified)

Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
6 PCI-E 3.0 x16 slots, 1 PCI-E 3.0 x8 (in x16) slots
8 Hot-swap 2.5" SAS/SATA drive bays, 2 Hot-swap 2.5" SAS/SATA/NVMe drive bays
1 SIOM for flexible Networking
Supports up to 4 NVIDIA Tesla T4 Tensor Core GPUs

SYS-2029U-E1CR25M

24x 2.5" SAS3 • Opt. 4 NVMe • Flexible Network Opt.

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4‑2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 2.5" drive bays; optional 20 SAS3 + 4 NVMe/SAS3, 2 rear Hot-swap 2.5" drive bays
Expansion Slots: 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
Networking 2x 25GbE SFP28 ports
1 Dedicated IPMI port
2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
4 heavy duty 8cm PWM fans
1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029U-E1CRT/ SYS-2029U-E1CR4 / SYS-2029U-E1CR4T / SYS-2029U-E1CRTP

24x 2.5" SAS3 Opt. 4 NVMe • Flexible Network Opt.

Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 2.5" drive bays; optional 20 SAS3 + 4 NVMe/SAS3, 2 rear Hot-swap 2.5" drive bays
Expansion Slots:
- 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
- 7 PCI-E Slots (SYS-2029U-E1CR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
Networking Options:
- SYS-2029U-E1CRT – 2x 10GBase-T ports
- SYS-2029U-E1CR4 – 4x 1GbE ports
- SYS-2029U-E1CR4T – 4x 10GBase-T ports
- SYS-2029U-E1CRTP – 2x 10G SFP+ ports
1 Dedicated IPMI port
2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
4 heavy duty 8cm PWM fans
1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029U-TN24R4T

Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 2.5" drive bays: 24 NVMe (4 hybrid ports - SAS3 via opt. AOC)
2 PCI-E 3.0 x16 (FH, 10.5" L) slots, 1 PCI-E 3.0 x8 (LP) slot
4x 10GBase-T ports
1 Dedicated IPMI port
2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
4 heavy duty 8cm PWM fans
1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029U-TN24R4T-HCI

Best For	High-performance mission critical workloads with large storage capacity
Profile	All-flash NVMe
Form Factor	2U
Nodes in a cluster	2-4
Processors	Dual Intel® Xeon® Scalable Processors
Memory	128GB to 6TB DDR4
Storage Type	NVMe
Networks	Up to 100GbE RoCE DRMA

SYS-4029GP-TVRT

Up to 8 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK

Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
16 Hot-swap 2.5" drive bays (support 8 NVMe drives)
4 PCI-E 3.0 x16 (LP, GPU tray for GPUDirect RDMA), 2 PCI-E 3.0 x16 (LP, CPU tray)
2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0 (front)
8x 92mm cooling fans, 4x 80mm cooling fans
2200W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-5019D-FN8TP

Intel® Xeon® processor D-2146NT, 8-Core, 16 Threads, 80W
Up to 512GB ECC LRDIMM, up to 256GB ECC/non-ECC RDIMM DDR4-2666Mz; in 4 DIMM slots
1 M.2 slot M key for SSD, 2242/8, 1 M.2 B Key for SSD/ WAN card, 1 Mini-PCI-E with mSATA Support, 1 PCI-E 3.0 x8 slot
1 Internal 3.5" or 4 Internal 2.5" drive bays
4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
Supports 1 NVIDIA Tesla T4 Tensor Core GPU

SYS-6029U-E1CR4-HCI

Best For	Work loads needing balanced performance and high storage capacity
Profile	All-flash, Hybrid
Form Factor	2U
Nodes in a cluster	2-16
Processors	Dual Intel® Xeon® Scalable Processors
Memory	128GB to 6TB DDR4
Storage Type	NVMe +SSD, NVMe + SSD + HDD
Networks	Up to 100GbE RoCE RDMA

SYS-6049GP-TRT

Up to 20 single-width GPUs

AI/Deep Learning, Video Transcoding
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 3.5" drive bays, 2 optional 2.5" U.2 NVMe drives
20 PCI-E 3.0 x16 slots, 1 PCI-E 3.0 x8 (FHFL, in x16 slot)
2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
1 VGA, 1 COM, 4 USB 3.0 (rear)
8x 92mm RPM Hot-Swappable Cooling Fans
2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-9029GP-TNVRT

Up to 16 V100 SXM3 GPUs

AI/Deep Learning, High-performance Computing
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
16 Hot-swap 2.5" NVMe drive bays, 6 Hot-swap 2.5" SATA3 drive bays
16 PCI-E 3.0 x16 slots for RDMA via IB EDR, 2 PCI-E 3.0 x16 on board
2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0 (front)
6x 80mm hot-swap PWM Fans, 8x 92mm Hot-swap Fans
6x 3000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-E403-9D-16C-FN13TP

Intel® Xeon® D-2183IT Processor, 16 Cores, 32 Threads, 2.2 GHz, 100W
Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2400Mz; in 4 DIMM slots
2 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FH3/4L) slots
4 Internal 2.5" drive bays
M.2: 1 M-Key 2280/22110, 1 E-Key 2230, 1 B-Key, 3042
9 GbE (one for Ethernet management), 2x 10GbE, 2x 10G SFP+, and 1 Dedicated IPMI LAN port
Supports 2 NVIDIA Tesla T4 Tensor Core GPUs

SYS-F629P3-RC0B

FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 1.5TB ECC 3DS LRDIMM, up to DDR4‑2666MHz
8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3008
1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM: flexible network opt.)
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 M.2 support
2x 8cm 14k RPM middle fans
1200W Redundant Titanium Level (96%) Power Supplies

SSG-6018R-MON2

(Cluster Role: Monitor Node)

System: SuperStorage Server 6018R-TDTPR
2x 2.5" 80GB SSD for OS
1 Internal 800GB NVMe SSD
Dual port 10G SFP+ onboard
1U w/ redundant Hot-swap 500W power supplies

SSG-6028R-OSD072

(Cluster Role: OSD Node)

System: SuperStorage Server 6028R-E1CR12L
12x 3.5" 6TB SATA3 HDDs
Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD)
Dual port 10G SFP+ via AOC-STGN-I2S
2U w/ redundant Hot-swap 920W power supplies

SSG-6028R-OSD072P

(Cluster Role: OSD / Throughput Optimized Node)

System: SuperStorage Server 6028R-E1CR12L
12x 3.5" 6TB SATA3 HDDs + 1x 800GB NVMe SSD
Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD)
Dual port 10G SFP+ via AOC-STGN-I2S
2U w/ redundant Hot-swap 920W power supplies

SSG-6048R-OSD216

(Cluster Role: OSD / Capacity Optimized Node)

System: SuperStorage Server 6048R-E1CR36L
36x 3.5" 6TB SATA3 HDDs
Internal 2.5" OS drives (mirrored 80GB SSD); Broadcom 3008 IT mode controller
Quad port 10G SFP+ via 2 AOC-STGN-I2S
4U w/ redundant Hot-swap 1280W power supplies

SSG-6048R-OSD216P

(Cluster Role: OSD Node)

System: SuperStorage Server 6048R-E1CR36L
36x 3.5" 6TB SATA3 HDDs, 2x 800GB NVMe SSD
Internal 2.5" OS drives (mirrored 80GB SSD); 2 Broadcom 3008 IT mode controllers
Quad port 10G SFP+ via 2 AOC-STGN-I2S
4U w/ redundant Hot-swap 1280W power supplies

SSG-6048R-OSD360P

(Cluster Role: OSD Node)

System: SuperStorage Server 6048R-E1CR72L
60x 3.5" 6TB SATA3 HDDs, 12x 2.5" 400GB SSDs
Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD); 3 Broadcom 3008 IT mode controllers
Quad port 10G SFP+ via 2x AOC-STGN-I2S
Optional 40G Mellanox networking configurations available upon request
4U w/ redundant Hot-swap 2000W power supplies

SSG-6048R-OSD432

(Cluster Role: OSD /Capacity Optimized Node)

System: SuperStorage Server 6048R-E1CR72L
72x 3.5" 6TB SATA3 HDDs
Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD); 3 Broadcom 3008 IT mode controllers
Quad port 10G SFP+ via 2x AOC-STGN-I2S
4U w/ redundant Hot-swap 2000W power supplies

SYS-1028U-MON50M

(Cluster Role: Monitor Node)

System: Ultra SuperServer 1028U-TNRT+
2x Intel® Xeon® E5-2630 v4 processors
4x 32GB DDR4-2400 RDIMM
2x 2.5" 240GB Micron 5100 PRO SATA SSD for OS
Dual 50GbE QSFP28 via 2x Mellanox MCX413A-GCAT
1U with redundant Hot-swap 750W power supplies

Solid Ready certification

AS -2023US-TR4-HCI

Best For	Work loads that need high CPU core counts and high storage capacity
Profile	All-flash, Hybrid
Form Factor	2U
Nodes in a cluster	2-4
Processors	Dual AMD EPYC™ 7000 Series Processors
Memory	128GB to 8TB DDR4
Storage Type	NVMe +SSD, NVMe + SSD + HDD
Networks	Up to 100GbE RoCE RDMA

AS -1114S-WN10RT

Single AMD EPYC™ 7002-series processor (Socket SP3)
Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
2 PCI-E 4.0 x16 (FHHL) slots, 1 PCI-E 4.0 x16 (LP) slot
10 hot-swap 2.5" U.2 Gen4/Gen3 NVMe drive& support, optional 10 SATA3 drive support via additional cables
IPMI 2.0 + KVM with dedicated LAN support
2x 10GBase-T LAN ports via Broadcom BCM57416
750W Platinum level Redundant Power Supplies with PMBus

AS -1114S-WN10RT-HCI

Best For	Cost-effective and flexible HCI solution for both balanced and high-performance workloads
Server SKU	AS -1114S-WN10RT
Profile	All-flash
Form Factor	1U
Nodes in a cluster	2-16
Processors	Single AMD EPYC™ 7003 Series Processor
Memory	128GB to 4TB DDR4
Storage Type	NVMe, SSD
Networks	Up to 100GbE RoCE RDMA

AS -1124US-TNRP-HCI

Best For	Both high-performance and balanced workloads
Server SKU	AS -1124US-TNRP
Profile	All-flash
Form Factor	1U
Nodes in a cluster	2-16
Processors	Dual AMD EPYC™ 7003 Series Processors
Memory	128GB to 8TB DDR4
Storage Type	NVMe
Networks	Up to 100GbE RoCE RDMA

SYS-120U-TNR-HCI

Best For	Flexible and scalable HCI for high-performance or balanced workloads
Server SKU	SYS-120U-TNR
Profile	All-flash
Form Factor	1U
Nodes in a cluster	2-16
Processors	Dual 3rd Gen Intel® Xeon® Scalable Processors
Memory	128GB to 4TB DDR4
Storage Type	NVMe + SSD
Networks	25GbE (Up to 100GbE) RoCE RDMA

SYS-220BT-HNC8R-HCI

Best For	High-density 4-node HCI deployment scenario for balanced workloads
Server SKU	SYS-220BT-HNC8R
Profile	All-flash, Hybrid
Form Factor	2U
Nodes in a cluster	4-16 (1-4 systems)
Processors	Dual 3rd Gen Intel® Xeon® Scalable Processors
Memory	128GB to 4TB DDR4
Storage Type	NVMe, SSD + HDD
Networks	Up to 100GbE RoCE RDMA

SYS-510P-MR-HCI

Best For	Workloads for small footprint HCI deployment in limited spaces
Server SKU	SYS-510P-MR
Profile	All-flash
Form Factor	1U
Nodes in a cluster	2-4
Processors	Single 3rd Gen Intel® Xeon® Scalable Processor
Memory	64GB to 256GB DDR4
Storage Type	NVMe, SSD SATA
Networks	25GbE RoCE RDMA

Certified Nodes for SUSE Enterprise Storage

SYS-1029U-TN10RT

10 NVMe support • 24 DDR4 DIMM • 2x 10GBase-T

Virtualization, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
10 Hot-swap 2.5" drive bays; 4 NVMe/SAS3 hybrid + 6 NVMe ports
2 PCI-E 3.0 x16 Full-height, 10.5" L slots
2x 10GBase-T ports, 1 Dedicated IPMI port
2 VGA (1 rear, 1 onboard), 1 Serial, 5 USB 3.0
8 heavy duty fans w/ optimal fan speed control
1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

1Gb & 10Gb Ethernet Switches

Layer 2/3 Ethernet Switching, link aggregation (LACP), Jumbo frames, VLAN support
Configuration Flexibility:
- SSE-G24-TG4 - 24 ports of RJ45 1Gbps Ethernet with 4 SFP Combo ports, 4 ports 10Gbps Ethernet (CX4, XFP, or SFP+), Stacking
- SSE-G48-TG4 - 48 ports of RJ45 1Gbps Ethernet with 4 SFP Combo ports, 4 ports 10Gbps Ethernet (CX4, XFP, or SFP+), Stacking
- SSE-X24S / SSE-X3348S(R) - 24 ports 10Gbps Ethernet (SFP+), Reverse airflow option
Management: Web-based management interface, Industry standard CLI with telnet SSH or local management port, Scripting, Logging
Routing, Multicast:
- Quality of service and DiffServ - 8 priority queues per port; Adjusted WRR and Strict Priority Scheduling
- Security - 802.1x port based authentication, RADIUS and TACACS+ authentication, SSH / SSL encryption
Dimensions: 17.3"W x 15.2"D x 1.7"H (440mm x 386mm x 43mm)

AF-4: 1U Ultra SuperServer, 3.6 TB

SYS-1029U-TRT

3.6 TB Raw Capacity (4x 1.2 TB Capacity SSDs, 1x 400 GB Caching SSDs)
16 Cores (2x Intel Xeon Silver 4110 2.1 GHz)
128 GB Memory (8x 16 GB DDR4-2666)
SMC3008 Storage Controller
2x Dual-Port 10GbE RJ45 NICs

AF-6: 1U Ultra SuperServer, 48 TB

SYS-1029U-TN10RT – Intel® Select VMware vSAN Solution

48 TB Raw Capacity (6x 8TB Capacity SSD DC P4610, 2x 375 GB Caching SSDs DCP4800x)
40 Cores (2x Intel Xeon Gold 6230 2.1 GHz)
384 GB Memory (12x 32 GB DDR4-2666)
SMC3008 Storage Controller
2x Dual-Port 10GbE RJ45 NICs

AF-6: 1U Ultra SuperServer, 7.2 TB

SYS-1029U-TRT

7.2 TB Raw Capacity (6x 1.2 TB Capacity SSDs, 2x 400 GB Caching SSDs)
16 Cores (2x Intel Xeon Silver 4110 2.1 GHz)
128 GB Memory (8x 16 GB DDR4-2666)
SMC3008 Storage Controller
2x Dual-Port 10GbE RJ45 NICs

AF-6: 2U 4-Node BigTwin, 32 TB (8 TB per node)

SYS-2029BT-HNR

32 TB Raw Capacity (4x 2 TB NVMe SSDs, 2x 375 GB Caching NVMe SSDs per node)
128 Cores (2x Intel Xeon Gold 6142 2.6 GHz per node)
1 TB Memory (16x 16 GB DDR4-2666 per node)
Dual-Port 25GbE SFP28 + Dual-Port 10GbE RJ45 NICs per node

AF-6: 2U 4-Node BigTwin, 32 TB (8 TB per node)

SYS-2029BT-HNC0R

32 TB Raw Capacity (5x 1.6 TB Capacity SSDs, 1x 480 GB Caching SSD per node)
96 Cores (2x Intel Xeon Gold 6136 3.0 GHz per node)
1 TB Memory (16x 16 GB DDR4-2666 per node)
Dual-Port 10GbE RJ45 NICs per node

AF-6: 2U 4-Node BigTwin, 61 TB (15 TB per node)

SYS-2029BT-HNC1R

61TB Raw Capacity (2 x Seagate Nytro 3331 3.84TB caching, 4 x Seagate Nytro 3331 3.84TB capacity per node)
Intel Platinum 8253, 16 core, 2.20Ghz
3108 Controller
Quad 10GB SFP+ NICs

AF-6: 2U SuperStorage, 9.6TB

SSG-5029P-E1CTR12L

9.6TB Raw capacity (2 x Intel S4610 960GB caching, 8x Samsung PM863 960GB capacity)
Intel Gold 6230 - 20 core, 2.10Ghz
3108 Controller
Dual 10GB Ethernet NICs

AF-8: 1U Ultra SuperServer, 23 TB

AS-1123US-TR4

23 TB Raw Capacity (6x 3.8 TB Capacity SSDs, 2x 480 GB Caching SSDs)
32 Cores (2x AMD EPYC 7351 2.4 GHz)
256 GB Memory (16x 16 GB DDR4-2666)
SMC3008 Storage Controller
Dual-Port 10GbE RJ45 NIC

AF-8: 1U Ultra SuperServer, 64 TB

SYS-1029U-TN10RT

64TB Raw Capacity (2 x P4800x 375GB caching, 8 x P4510 8TB capacity)
Intel Gold 6230 -20 core 3.6Ghz
Dual 10Gb SFP+ NICs

AF-8: 2U 4-Node BigTwin, 128TB (32TB per node)

SYS-2029BT-HNR

128TB Raw Capacity (2 x P4800x 375GB caching, 4 x P4510 8TB capacity per node)
Intel Gold 6252 Processor - 24 core, 2.10Ghz
Dual 25GB SFP28 NICs

AF-8: 2U 4-Node BigTwin, 61 TB (15 TB per node)

SYS-2029BT-HNR

61 TB Raw Capacity (4x 3.84 TB NVMe SSDs, 2x 1.6 TB Caching NVMe SSDs per node)
144 Cores (2x Intel Xeon Gold 6150 2.7 GHz per node)
1.5 TB Memory (12x 32 GB DDR4-2666 per node)
Dual-Port 25GbE SFP28 + Dual-Port 10GbE RJ45 NICs per node

AF-8: 2U 4-Node BigTwin, 61TB (15TB per node)

SYS-2029BT-HNC0R

61TB Raw Capacity (2 x P4800x 375GB caching, 4 x S4510 3.84TB capacity per node)
Intel Gold 6252 Processor - 24 core, 2.10Ghz
Dual 25GB SFP28 NICs

AF-8: 2U 4-Node BigTwin, 64TB (16TB per node)

SYS-2029BZ-HNR

64TB Raw Capacity ( 4 x 4.0TB NVMe SSD, 2 x 1.6TB Caching NVMe SSDs per node)
192 Cores (2 x Intel Xeon Platinum 8160T 2.10Ghz 24Core)
1.5 TB Memory (6x 64GB DDR4-2666 per node)
Quad-Port 10GBE NIC per node (AOC-MTG-i4T)

AF-8: 2U Ultra SuperServer, 168TB

SYS-2029U-TN24R4T

168TB Raw capacity (3 x P4800x 375GB caching, 21 x P4510 8TB capacity)
Intel Platinum 8253 - 16 core, 2.2Ghz
Dual 10GB Ethernet NICs

AF-8: 2U Ultra SuperServer, 32 TB

SYS-2029U-E1CRT

32 TB Raw Capacity (20x 1.6 TB Capacity SSDs, 4x 400 GB Caching SSDs)
48 Cores (2x Intel Xeon Platinum 8160 2.1 GHz)
384 GB Memory (24x 16 GB DDR4-2666)
SMC3008 Storage Controller
2x Dual-Port 10GbE RJ45 NICs

AOC-653106A-ECAT

Standard, PCI-E 2-port 100Gb/s InfiniBand & Ethernet, QSFP56, Gen 3.0/4.0 x16, CX-6 VPI
Interface: PCI-E 4.0 x16, PCI-E 3.0 x16
Port: 2 QSFP56 ports
Speed: 100Gb IB or 100GbE per port

AOC-MCX555A-ECAT

Standard, PCI-E 1-port IB-FDR/EDR 100Gb/s and 100GbE QSFP28 Gen3.0 x16 CX-5 VPI
Interface: PCI-E 3.0 x16
Port: 1 QSFP28 port
Speed: 100Gb IB or 100GbE

AOC-MCX556A-ECAT

Standard Low-profile Mellanox EDR IB (100Gb/s) and 100GbE card with 2 QSFP28 ports
Interface: PCI-E 3.0 x16
Port: 2 QSFP28 ports
Speed: 100Gb IB or 100GbE per port

AS -1114S-WTRT

(Cluster Role: Single Socket Performance Infrastructure Node)

48 Cores
128 (8 * 16) GB RAM
15.2 TB (2x 7.6TB) SAS SSD
3.8 TB (1x 3.8TB) NVMe SSD
2 RJ45 10GBase-T Ethernet ports

AS -1125HS-TNR-HCI

Best For	Most demanding workloads
Server SKU	AS -1125HS-TNR
Profile	All-flash
Form Factor	1U
Nodes in a cluster	1-4
Processors	Dual AMD EPYC™ 9004 Series processors
Memory	384GB to 3TB DDR5
Storage Type	NVMe
Networks	Up to 100GbE RoCE RDMA

AS -2013S-C0R

(Cluster Role: Single Socket Performance Cloud Node)

48 Cores
512 (8 * 64) GB RAM
16 TB (2x 8TB) SAS3 HDD
2 TB (1x 2TB) M.2 NVMe SSD
2 RJ45 1GBase-T Ethernet ports
Make sure to add data disks and "NICs for data" separately, per above chart

AS -2025HS-TNR-HCI

Best For	Most demanding workloads
Server SKU	AS -2025HS-TNR
Profile	All-flash
Form Factor	2U
Nodes in a cluster	1-4
Processors	Dual AMD EPYC™ 9004 Series processors
Memory	384GB to 3TB DDR5
Storage Type	NVMe
Networks	Up to 100GbE RoCE RDMA

AS -2115GT-HNTR-HCI

Best For	High-density 4-node HCI deployment scenarios for balanced workloads
Server SKU	AS -2115GT-HNTR
Profile	All-flash
Form Factor	2U
Nodes in a cluster	4-16 (4-node system)
Processors	Single AMD EPYC™ 9004 Series processor
Memory	192GB to 768GB DDR5
Storage Type	NVMe
Networks	Up to 100GbE RoCE RDMA

HY-6: 2U 4-Node TwinPro, 32 TB (8 TB per node)

SYS-2029TP-HC0R

32 TB Raw Capacity (4x 2 TB SAS HDDs, 1x 480 GB Caching SSD per node)
96 Cores (2x Intel Xeon Gold 6126 2.6 GHz per node)
1.5 TB Memory (12x 32 GB DDR4-2666 per node)
SMC3008 Storage Controller
Quad GbE NICs per node

HY-6: 2U SuperStorage, 60 TB

SSG-5029P-E1CTR12L

60 TB Raw Capacity (10x 6 TB SAS HDDs, 2x 1.92 TB Caching SSDs)
12 Cores (1x Intel Xeon Gold 6126 2.6 GHz)
128 GB Memory (8x 16 GB DDR4-2666)
SMC3008 Storage Controller
1x 10GbE RJ45 NIC

IPMI Server Management

HW fault alerts - E-mail or SNMP
Redundant access for management
Support for open standards (SMASH 2.0, LDAP, WSMAN)
VLAN support
KVM and Virtual Media and SOL (no additional license needed)
Easy maintenance (Command line flash tools for firmware update)

SC216BE2C-R741JBOD

24 Hot-swap 2.5" SAS3 drive bays
Dual Expander Backplane Boards supporting SAS3 HDDs with 12Gb/s throughput
8 Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
1 IPMI port for Remote System Power on/off, wake-on-LAN and system monitoring
Support NTP for time synchronization & RTC battery backup
3 High efficient Hot-swap 80mm fans for best system cooling
740W Redundant (1+1) Platinum level (95%) power supplies

SC847E2C-R1K28JBOD

44 (24 front + 20 rear) Hot-swap 3.5" SAS3 drive bays
Dual Expander Backplane Boards supporting SAS3 HDDs with 12Gb/s throughput
JBOD Power Control Board with IPMI for remote monitor and power on-off; Internal Connection Cables Included
8 External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
Palletized packaging for easy shipping and handling
7 Redundant Hot-swap 8cm (middle) cooling fans
1280W Redundant (1+1) Platinum Level power supplies with PMBus

SC946ED-R2KJBOD

90 Hot-swap Top-load 3.5" or 2.5" SAS3 drive bays
Hot-swap dual SAS3 expanders with redundant BMC
8 Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
Tool-less HDD tray with HDD LED indicator
5 Heavy duty 80mm fans with PWM fan speed control
4x 1000W Redundant Titanium Level (96%) Power Supplies

SC946SE2C-R1K66JBOD

60 Hot-swap Top-load 3.5" SAS3 drive bays
Dual Expander Backplane Boards supporting SAS3 HDDs with 12Gb/s throughput
8 Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
Tool-less HDD tray with HDD LED indicator
5 Redundant Hot-swap 80mm (rear) cooling fans
1600W Redundant (1+1) Platinum Level power supplies

SSE-C3632S

/ SSE-C3632SR (32 ports)

32x One-Hundred-Gigabit Ethernet ports
(Each optionally configured for forty-gigabit or 4x twenty-five gigabit)
Wire-speed Layer 3 Routing
1:1 Non-blocking connectivity
1U form factor for flexible installation
Data-Center friendly - regular and reverse airflow models
Redundant hot-pluggable power supplies
Bare metal - ONIE Installed
Cumulus Linux Capable

SSE-C3632SR

(Cluster Role: Data Switch)

32x Ethernet QSFP28 ports – either 40Gbps or 100Gbps
1x 10Gb Ethernet SFP+ port
RJ-45 Gb Ethernet management port
RJ-45 serial console
Type A USB 2.0 port
Full Duplex 3.2Tbps Switching Capacity
Regular Airflow option available
Dual redundant hot-swappable power supplies
1U form factor

SSE-F3548S / SSE-F3548SR

54 Ports

48x twenty-five Gigabit Ethernet ports
6x hundred-Gigabit Ethernet ports
Switching Capacity: 3.6 Tb
RJ-45 (for console cable)
RJ-45 1G Ethernet Management Port
USB
1:1 Non-blocking connectivity
1U form factor for flexible installation
CLI and Web GUI Management Interfaces

SSE-F3548SR

(Cluster Role: Data Switch)

48x 25Gb Ethernet ports - SFP28
6x 100Gb Ethernet ports - QSFP28
RJ-45 (for console cable)
RJ-45 1G Ethernet Management Port
USB
Switching Capacity: 3.6 Tb
1:1 Non-blocking connectivity
Regular Airflow option available
Dual redundant hot-swappable power supplies
1U form factor

SSE-G3648BR

(Cluster Role: Management Switch)

48x 1Gbps Ethernet RJ45 ports
4x 10Gbps Ethernet SFP+ ports
RJ-45 Gb Ethernet management port (for console cable)
Type A USB 2.0 port
Aggregated switching Capacity - 176 Gbps
Non-blocking, wire-speed Layer 3 Routing
Regular Airflow option available
Second (redundant) hot-swappable power supply - optional
1U form factor

SSE-X3348S / SSE-X3348SR

54 Ports

48x ten-Gigabit Ethernet ports
4x forty-Gigabit Ethernet ports
2x one-Gigabit Ethernet ports
Switching Capacity: 1284Gbps
Wire-speed Layer 3 Routing
1:1 Non-blocking connectivity
Link Aggregation and Jumbo Frame Support
1U form factor for flexible installation
CLI and Web GUI Management Interfaces

SSE-X3348T / SSE-X3348TR

54 Ports

48x ten-Gigabit Ethernet ports (RJ45)
4x forty-Gigabit Ethernet ports
2x one-Gigabit Ethernet ports
Switching Capacity: 1284Gbps
Wire-speed Layer 3 Routing
1:1 Non-blocking connectivity
1U form factor for flexible installation
Redundant hot-pluggable power supplies
CLI and Web GUI Management Interfaces

SSE-X3648SR

(Cluster Role: Data Switch)

48x 10Gb Ethernet ports - SFP+
6x 40 Gb Ethernet ports - QSFP+
RJ-45 (for console cable)
RJ-45 1G Ethernet Management Port
USB
Switching Capacity: 1440 Gbps
Wire-speed Layer 3 Routing
1:1 Non-blocking connectivity
Regular Airflow option available
Dual redundant hot-swappable power supplies
1U form factor

SSG-2029P-E1CR24H

Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 Hot-swap 2.5" SAS3/SATA3 drive bays
SAS3 via Broadcom 3108 AOC
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
1 VGA, 1 COM, 3 USB 3.0, 1 Type A
3 Hot-swap 8cm redundant PWM cooling fans
1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6028R-E1CR24L

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access
SAS3 via Broadcom 3008, IT mode controller
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
I/O: SIOM for flexible networking options, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5 Hot-swap 80mm redundant PWM cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

SSG-6029P-E1CR24L

(Cluster Role: Balanced OSD)

24 (2 x 12) Cores
192 (12 x 16) GB RAM
4 TB (2x 2TB) SATA (OS)
168 TB (21 x 8) SAS HDD (Data)
3x Intel DC P4610 1.6TB NVMe PCI-E 3.1 (Cache)
1 RJ45 Dedicated IPMI LAN port

* Make sure to add "NICs for data"

SSG-6048R-NEX3

Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
36 3.5" hot-swap SAS/SATA drive bay with SES3, rear 2 2.5" hot-swap drive bay
Up to 2TB ECC 3DS LRDIMM, up to DDR4 2400MHz; 16x DIMM slots
1 PCI-E 3.0 x16 slot (FH, 10.5" L), 6 PCI-E 3.0 x8 slots
2 10GBASE-T ports and 1 dedicated IPMI LAN port
7 heavy duty fans with optimal fan speed control
1280W Redundant Platinum Level (95%) + Super Quiet power supplies with PMbus

SSG-6049P-E1CR36L

(Cluster Role: Storage Optimized OSD)

32 (2 x 16) Cores
384 (12 x 32) GB RAM
4 TB (2 x 2TB) 2.5" SATA HDD
256 TB (32 x 8) SAS HDD (Data)
4x Intel DC P4610 1.6TB NVMe PCIe 3.1 (Cache)
2 RJ45 10GBase-T LAN ports; 1 RJ45 Dedicated IPMI LAN port

* Make sure to add "NICs for data"

SSG-6049P-E1CR45L+

(Cluster Role: X-Large Storage OSD)

20 (2 x 10) Cores
192 (12 x 16) GB RAM
4 TB (2 x 2TB) SATA (OS)
312 TB (39 x 8) SAS HDD (Data)
6x Intel DC P4610 1.6TB NVMe PCI-E 3.1 (Cache)
1 RJ45 Dedicated IPMI LAN port

* Make sure to add "NICs for data"

SYS-111E-WR-HCI

Best For	Edge deployment scenarios with 10 drive bays for balanced workloads
Server SKU	SYS-111E-WR
Profile	All-flash
Form Factor	1U
Nodes in a cluster	1-4
Processors	Single 4th Gen Intel® Xeon® Scalable processor
Memory	64GB to 1024GB DDR5
Storage Type	SSD
Networks	25GbE RoCE RDMA

SYS-128UMI-NE0S-01

/ SYS-128UMI-NE0T-01

All-Flash • 8.6TB Raw Capacity

1U Single Ready Node for Supermicro-NexentaEdge Scale-out Storage
28 Cores (2 Intel Xeon E5-2690 v4) each Node
256GB Memory (16x 16GB DDR4-2400) each Node
2 PCI-E 3.0 x16 Expansion Slots
8.6TB Data Storage (9x 960GB SSDs, 1x 240GB boot SSDs), Micron M510DC SSDs
Dual 10GbE SFP+ (NE0S model) or Dual 10GbE RJ45 (NE0T model)
10X More IOPS (8K Random@75% Read / 25% Write) & 3X More IOPS (8K@100% Read) with iSCSI All-SSD vs. Hybrid Configurations
Supermicro 4-Hour Onsite Hardware Service for 3 Years (OS4HR3)

SYS-2029BT-HNR

4 DP nodes in 2U; depth 28.5", Each Node:
Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
6 Hot-swap 2.5" NVMe drive bays per node
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

SYS-2029GP-TR

(Cluster Role: Cloud Node)

36 (2 * 18) Cores
512 (16 * 32) GB RAM
8TB (2x 4TB), SATA HDD (OS)
Intel DC P4610 1.6TB NVMe PCIe 3.1 (Cache)
2x NVIDIA Tesla V100 GPUs
Make sure to add data disks, GPUs and "NICs for data" separately

SYS-2029U-TR4T

(Cluster Role: "Secure" Cloud Node)

40 (2 * 20) Cores
1536 (24 * 64) GB RAM
1 TB (2x 512GB) NVMe SSD
4 RJ45 10GBase-T Ethernet ports
Make sure to add data disks and "NICs for data" separately, per above chart

SYS-5019P-WTR

(Cluster Role: Admin, Gateway and Monitor)

12 (1 × 12) Cores
96 (6 × 16) GB RAM
4 (2 × 2) TB SATA HDD (OS)
2 RJ45 10GBase-T Ethernet ports; 1 RJ45 Dedicated IPMI LAN port

SYS-511E-WR-HCI

Best For	Edge deployment scenarios with minimum footprint for balanced workloads
Server SKU	SYS-511E-WR
Profile	All-flash
Form Factor	1U
Nodes in a cluster	1-4
Processors	Single 4th Gen Intel® Xeon® Scalable processor
Memory	64GB to 1024GB DDR5
Storage Type	SSD
Networks	25GbE RoCE RDMA

SYS-6019U-TN4RT

(Cluster Role: Infrastructure Node)

32 (2 * 16) Cores
192 (12 * 16) GB RAM
12 TB (2x 6TB) SATA HDD
Intel DC P4510 1TB NVMe PCIe 3.1 3D TLC 2.5" 15mm 1DWPD(Cache)
2 RJ45 10GBase-T Ethernet ports

SYS-6019U-TN4RT

(Cluster Role: Infrastructure Node)

28 (2 * 14) Cores
384 (12 * 32) GB RAM
12 TB (2x 6TB) SATA HDD
Intel DC P4510 500GB, NVMe PCI-E 3.1 (Cache)
2 RJ45 10GBase-T Ethernet ports

SYS-6019U-TN4RT

(Cluster Role: Compute Node)

32 (2 × 16) Cores
576 (18 × 32) GB RAM
4 (2 × 2) TB SATA HDD (OS)
2 RJ45 10GBase-T Ethernet ports

SYS-6019U-TR4

Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
4 Hot-swap 3.5" drive bays
2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
4x 1GbE ports
1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
3 USB 3.0 (2 rear, 1 Type A)
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6028U-NEX3/NEX4

Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
12 Hot-swap 3.5" Drive Bays: 10 SATA3 ports by default; Optional drive support: 12 SAS3
Up to 3TB ECC LRDIMM, 1.5TB ECC RDIMM/LRDIMM; up to DDR4 2400MHz, 24x DIMM slots
1 PCI-E 3.0 x16 slot (FH, 10.5" L), 7 PCI-E 3.0 x8 slots (5 FH, 10.5" L, 1 LP, 1 Internal LP)
4 Gigabit Ethernet ports and 1x dedicated IPMI LAN port
4 heavy duty fans with optimal fan speed control
1000W Redundant Titanium Level (96%) power supplies

SYS-6029U-E1CR4

(Cluster Role: High-Performance OSD)

16 (2 x 8) Cores
192 (12 x 16) GB RAM
1.9 TB (2 x 960GB) TB 2.5" SATA SSD (OS)
88 TB (11 x 8) SAS HDD (Data)
Intel DC P4610 1.6TB NVMe PCI-E 3.1 (Cache)
4 RJ45 10GBase-T Ethernet ports

* Make sure to add "NICs for data"

SYS-6029U-E1CR4

(Cluster Role: All-Flash OSD)

16 (2 x 8) Cores
192 (12 x 16) GB RAM
1.9 TB (2 x 960GB) TB 2.5" SATA SSD (OS)
45.6 TB (12 x 3.8) SATA SSD (Data)
4 RJ45 10GBase-T Ethernet ports

* Make sure to add "NICs for data"

SYS-6029U-NEX1/NEX2/NEX3

Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 Hot-swap 3.5" Drive Bays: 12 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe)
Up to 6TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2933MHz; 24 DIMM slots
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 slots (FH, 10.5" L), 4 PCI-E 3.0 x8 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP)
4 10GBase-T LAN ports via Intel X710
4 Heavy duty 8cm PWM fans
1000W Redundant Titanium Level (96%) power supplies

*Contact your Supermicro sales rep for more info.

SYS-6029U-TR4T

(Cluster Role: "Value" Cloud Node)

32 (2 * 16) Cores
384 (12 * 32) GB RAM
12 TB (2x 6TB) SATA HDD
Intel DC P4610 1.6TB NVMe PCI-E 3.1 (Cache)
4 RJ45 10GBase-T Ethernet ports
Make sure to add data disks and "NICs for data" separately, per above chart

SYS-6029U-TR4T

(Cluster Role: Cloud Node)

36 (2 * 18) Cores
512 (16 * 32) GB RAM
8TB (2x 4TB), SATA HDD (OS)
Intel DC P4610 1.6TB NVMe PCIe 3.1 (Cache)
2x NVIDIA Tesla V100 GPUs
4 RJ45 10GBase-T Ethernet ports
Make sure to add data disks, GPUs and "NICs for data" separately

SYS-6029U-TR4T

(Cluster Role: "Performance" Cloud Node)

56 (2 * 28) Cores
1536 (16 * 64) GB RAM
1920 (2x 960GB), SATA SSD
2 RJ45 10GBase-T Ethernet ports
Make sure to add data disks and "NICs for data" separately, per above chart

SYS-6029U-TR4T

(Cluster Role: "Balanced" Cloud Node)

52 (2 * 28) Cores
1536 (24 * 64) GB RAM
1920GB (2x 960GB), SATA SSD
Intel DC P4610 7.6TB NVMe PCIe3.1 3D TLC 2.5" 3DWPD Rev.2 (Cache)
2 RJ45 10GBase-T Ethernet ports
Make sure to add data disks and "NICs for data" separately, per above chart

SYS-6029U-TR4T

(Cluster Role: "Performance" Cloud Node)

36 (2 * 18) Cores
512 (16 * 32) GB RAM
12TB (2x 6TB) SATA HDD
Intel DC P4610 1.6TB NVMe PCI-E 3.1 (Cache)
4 RJ45 10GBase-T Ethernet ports
Make sure to add data disks and "NICs for data" separately, per above chart

SYS-6029U-TR4T

(Cluster Role: "Value" Cloud Node)

32 (2 * 16) Cores
768 (24 * 32) GB RAM
1920GB (2x 960GB), SATA SSD
Intel DC P4610 7.6TB NVMe PCIe3.1 3D TLC 2.5" 3DWPD Rev.2 (Cache)
2 RJ45 10GBase-T Ethernet ports
Make sure to add data disks and "NICs for data" separately, per above chart

SSG-1029P-NEL32R

High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
32 Hot-swap EDSFF Long drive slots
24 DIMMs; up to 6TB 3DS ECC DDR4 2933MHz RDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 Low-profile slots
2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
1 VGA, 2 USB 3.0, 1 TPM header
8x 40x56mm PWM fans
1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6019P-ACR12L

High Density Storage, Object Storage 1U, Ceph / Hadoop, Scale-out Storage, Big Data Analytics
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 Hot-swap 3.5" SAS3/SATA3 drive bays, 4 Hot-swap 2.5" NVMe/SATA drive bays
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
1 VGA, 4 USB 3.0, 1 TPM header
6x 4cm 20.5K RPM cooling fans
600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6019P-ACR12L

12 Hot-swap 3.5" SAS3/SATA3 + 4 Hot-swap 2.5" NVMe/SATA

High Density Storage, Object Storage 1U, Ceph / Hadoop, Scale-out Storage, Big Data Analytics
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 Hot-swap 3.5" SAS3/SATA3 drive bays, 4 Hot-swap 2.5" NVMe/SATA drive bays
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
1 VGA, 4 USB 3.0, 1 TPM header
6x 4cm 20.5K RPM cooling fans
600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6029P-E1CR24H

– Optimized For GlusterFS

24 Hot-swap 3.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear)
SAS3 via Broadcom 3108 AOC
24 DIMMs; up to 6TB 3DS ECC DDR4‑2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0, 1 Type A
5 Hot-swap 80mm redundant PWM cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6029P-E1CR24L

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4 2400MHz
24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); SAS3 via Broadcom 3008 AOC
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0, 1 Type A
5 Hot-swap 80mm redundant PWM cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

SSG-6119P-ACR12N4L-HCI

Best For	Balanced performance work loads and high storage density
Profile	Hybrid
Form Factor	1U
Nodes in a cluster	2-4
Processors	Dual Intel® Xeon® Scalable Processors
Memory	128GB to 3TB DDR4
Storage Type	NVMe + HDD
Networks	Up to 100GbE RoCE RDMA

SYS-1019D-FHN13TP

Intel® Xeon® D-2146NT Processor, 8-Core, 16 Threads, 2.3 GHz, 80W
Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2133Mz; in 4 DIMM slots
2 PCI-E 3.0 x16 (FHFL) slots
2 Hot-swap 2.5" drive bays, 2 Internal 2.5" SSD bays
3 M.2:
M-Key SATA/PCI-E 3.0 x4, 22110
E-Key PCI-E 3.0 x1, 2230
B-Key SATA/PCI-E 3.0 x2/USB 3.0, 2242
9 GbE (1 port is used for management), 2x 10GbE, 2x 10G SFP+, and 1 Dedicated IPMI LAN port
Supports up to 2 NVIDIA Tesla T4 Tensor Core GPUs

SYS-1029GQ-TVRT

Up to 4 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK

HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
4 PCI-E 3.0 x16 slots
2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
1 VGA, 2 COM, 2 USB 3.0 (rear)
7x 4cm heavy duty counter-rotating fans with air shroud
2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029P-N32R

32 NVMe Support • (2 sleds with 16 drives per sled)

High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
Dual socket P (LGA 3647) supports 2nd Gen. Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
32 Hot-swap 2.5" NVMe SSDs (2 sleds with 16 drives per sled), 2 M.2 boot drives
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 slots
2x 10GBase-T LAN ports, 1 dedicated IPMI Port
1 VGA, 2 USB 3.0, 1 COM, 2 SuperDOM
Built-in Intel® QAT for Crypto/Compression
8 Hot-swap 40mm cooling fans
1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029U-E1CRT/ SYS-1029U-E1CR4 / SYS-1029U-E1CR4T / SYS-1029U-E1CRTP

10x 2.5" SAS3 • Flexible Network Opt.

Virtualization, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
10 Hot-swap 2.5" drive bays; 10 SAS3 via optional AOC
2 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-1029U-E1CR25M
Networking Options:
- SYS-1029U-E1CRT - 2x 10GBase-T ports
- SYS-1029U-E1CR4 - 4x 1GbE ports
- SYS-1029U-E1CR4T - 4x 10GBase-T ports
- SYS-1029U-E1CRTP - 2x 10G SFP+ ports
1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 COM/Serial
5 USB 3.0 (2 rear, 2 front, 1 Type A)
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029U-OSD100M

(Cluster Role: OSD Node)

System: Ultra SuperServer 1029U-TN10RT
2x Intel® Xeon® Platinum 8168 Processors
12x 32GB DDR4-2666 RDIMM
10x 2.5" 6.4TB Micron 9200 MAX NVMe SSDs
1x 240GB Micron 5100 PRO SATA M.2 for OS
Dual 100GbE QSFP28 via 2x Mellanox MCX516A-CCAT
1U with redundant Hot-swap 1000W power supplies

Solid Ready certification

SYS-1029U-TN10RT-HCI

Best For	High-performance compute and high-speed storage
Profile	All-flash NVMe
Form Factor	1U
Nodes in a cluster	2-16
Processors	Dual Intel® Xeon® Scalable Processors
Memory	128GB to 6TB DDR4
Storage Type	NVMe
Networks	Up to 100GbE RoCE DRMA

SYS-1029U-TR25M

10x 2.5" SATA3 or Opt. 8x SAS3 + 2x NVMe/SATA • Flexible Network Opt.

Virtualization, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4‑2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
10 Hot-swap 2.5" drive bays; 10 SATA3 (2 hybrid ports - 2 NVMe opt.)
2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP)
Networking 2x 25GbE SFP28 ports
1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
5 USB 3.0 (2 rear, 2 front, 1 Type A)
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029U-TR4

Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM
2 PCI-E 3.0 x16 slots (FH, 10.5" L), 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
4 Gigabit Ethernet ports
Supports up to 2 NVIDIA Tesla T4 Tensor Core GPUs

SYS-1029U-TRT-HCI

Best For	Work loads with balanced performance in a cost-optimized two-node cluster
Profile	All-flash, Hybrid
Form Factor	1U
Nodes in a cluster	2-4
Processors	Dual Intel® Xeon® Scalable Processors
Memory	128GB to 6TB DDR4
Storage Type	NVMe +SSD, NVMe + SSD + HDD
Networks	Up to 40GbE RoCE RDMA

SYS-2029BT-DNC0R-HCI

Best For	Two nodes optimized in a 2U form factor for balanced work loads
Profile	All-flash, Hybrid
Form Factor	2U
Nodes in a cluster	2-4 (1-2 systems)
Processors	Dual Intel® Xeon® Scalable Processors
Memory	128GB to 6TB DDR4
Storage Type	NVMe +SSD, NVMe + SSD + HDD
Networks	Up to 100GbE RoCE RDMA

SYS-2029BT-HNC1R

BigTwin™ • 4 NVMe/SAS3/SATA3 + 2 SAS3/SATA3 per Node

4 DP nodes in 2U; depth 28.5", Each Node:
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
SAS3 support via Broadcom 3108; RAID 0, 1, 5, 6, 10, 50, 60
1 PCI-E 3.0 x16 Low-profile slot, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029BT-HNR

BigTwin™ • 6 NVMe per Node

4 DP nodes in 2U; depth 28.5", Each Node:
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
6 Hot-swap 2.5" NVMe drive bays per node
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029GP-TR

(NGC Certified)

Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
6 PCI-E 3.0 x16 slots, 1 PCI-E 3.0 x8 (in x16) slots
8 Hot-swap 2.5" SAS/SATA drive bays, 2 Hot-swap 2.5" SAS/SATA/NVMe drive bays
1 SIOM for flexible Networking
Supports up to 4 NVIDIA Tesla T4 Tensor Core GPUs

SYS-2029U-E1CR25M

24x 2.5" SAS3 • Opt. 4 NVMe • Flexible Network Opt.

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4‑2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 2.5" drive bays; optional 20 SAS3 + 4 NVMe/SAS3, 2 rear Hot-swap 2.5" drive bays
Expansion Slots: 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
Networking 2x 25GbE SFP28 ports
1 Dedicated IPMI port
2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
4 heavy duty 8cm PWM fans
1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029U-E1CRT/ SYS-2029U-E1CR4 / SYS-2029U-E1CR4T / SYS-2029U-E1CRTP

24x 2.5" SAS3 Opt. 4 NVMe • Flexible Network Opt.

Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 2.5" drive bays; optional 20 SAS3 + 4 NVMe/SAS3, 2 rear Hot-swap 2.5" drive bays
Expansion Slots:
- 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
- 7 PCI-E Slots (SYS-2029U-E1CR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
Networking Options:
- SYS-2029U-E1CRT – 2x 10GBase-T ports
- SYS-2029U-E1CR4 – 4x 1GbE ports
- SYS-2029U-E1CR4T – 4x 10GBase-T ports
- SYS-2029U-E1CRTP – 2x 10G SFP+ ports
1 Dedicated IPMI port
2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
4 heavy duty 8cm PWM fans
1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029U-TN24R4T

Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 2.5" drive bays: 24 NVMe (4 hybrid ports - SAS3 via opt. AOC)
2 PCI-E 3.0 x16 (FH, 10.5" L) slots, 1 PCI-E 3.0 x8 (LP) slot
4x 10GBase-T ports
1 Dedicated IPMI port
2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
4 heavy duty 8cm PWM fans
1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029U-TN24R4T-HCI

Best For	High-performance mission critical workloads with large storage capacity
Profile	All-flash NVMe
Form Factor	2U
Nodes in a cluster	2-4
Processors	Dual Intel® Xeon® Scalable Processors
Memory	128GB to 6TB DDR4
Storage Type	NVMe
Networks	Up to 100GbE RoCE DRMA

SYS-4029GP-TVRT

Up to 8 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK

Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
16 Hot-swap 2.5" drive bays (support 8 NVMe drives)
4 PCI-E 3.0 x16 (LP, GPU tray for GPUDirect RDMA), 2 PCI-E 3.0 x16 (LP, CPU tray)
2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0 (front)
8x 92mm cooling fans, 4x 80mm cooling fans
2200W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-5019D-FN8TP

Intel® Xeon® processor D-2146NT, 8-Core, 16 Threads, 80W
Up to 512GB ECC LRDIMM, up to 256GB ECC/non-ECC RDIMM DDR4-2666Mz; in 4 DIMM slots
1 M.2 slot M key for SSD, 2242/8, 1 M.2 B Key for SSD/ WAN card, 1 Mini-PCI-E with mSATA Support, 1 PCI-E 3.0 x8 slot
1 Internal 3.5" or 4 Internal 2.5" drive bays
4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
Supports 1 NVIDIA Tesla T4 Tensor Core GPU

SYS-6029U-E1CR4-HCI

Best For	Work loads needing balanced performance and high storage capacity
Profile	All-flash, Hybrid
Form Factor	2U
Nodes in a cluster	2-16
Processors	Dual Intel® Xeon® Scalable Processors
Memory	128GB to 6TB DDR4
Storage Type	NVMe +SSD, NVMe + SSD + HDD
Networks	Up to 100GbE RoCE RDMA

SYS-6049GP-TRT

Up to 20 single-width GPUs

AI/Deep Learning, Video Transcoding
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 3.5" drive bays, 2 optional 2.5" U.2 NVMe drives
20 PCI-E 3.0 x16 slots, 1 PCI-E 3.0 x8 (FHFL, in x16 slot)
2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
1 VGA, 1 COM, 4 USB 3.0 (rear)
8x 92mm RPM Hot-Swappable Cooling Fans
2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-9029GP-TNVRT

Up to 16 V100 SXM3 GPUs

AI/Deep Learning, High-performance Computing
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
16 Hot-swap 2.5" NVMe drive bays, 6 Hot-swap 2.5" SATA3 drive bays
16 PCI-E 3.0 x16 slots for RDMA via IB EDR, 2 PCI-E 3.0 x16 on board
2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0 (front)
6x 80mm hot-swap PWM Fans, 8x 92mm Hot-swap Fans
6x 3000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-E403-9D-16C-FN13TP

Intel® Xeon® D-2183IT Processor, 16 Cores, 32 Threads, 2.2 GHz, 100W
Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2400Mz; in 4 DIMM slots
2 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FH3/4L) slots
4 Internal 2.5" drive bays
M.2: 1 M-Key 2280/22110, 1 E-Key 2230, 1 B-Key, 3042
9 GbE (one for Ethernet management), 2x 10GbE, 2x 10G SFP+, and 1 Dedicated IPMI LAN port
Supports 2 NVIDIA Tesla T4 Tensor Core GPUs

SYS-F629P3-RC0B

FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 1.5TB ECC 3DS LRDIMM, up to DDR4‑2666MHz
8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3008
1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM: flexible network opt.)
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 M.2 support
2x 8cm 14k RPM middle fans
1200W Redundant Titanium Level (96%) Power Supplies

SSG-6018R-MON2

(Cluster Role: Monitor Node)

System: SuperStorage Server 6018R-TDTPR
2x 2.5" 80GB SSD for OS
1 Internal 800GB NVMe SSD
Dual port 10G SFP+ onboard
1U w/ redundant Hot-swap 500W power supplies

SSG-6028R-OSD072

(Cluster Role: OSD Node)

System: SuperStorage Server 6028R-E1CR12L
12x 3.5" 6TB SATA3 HDDs
Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD)
Dual port 10G SFP+ via AOC-STGN-I2S
2U w/ redundant Hot-swap 920W power supplies

SSG-6028R-OSD072P

(Cluster Role: OSD / Throughput Optimized Node)

System: SuperStorage Server 6028R-E1CR12L
12x 3.5" 6TB SATA3 HDDs + 1x 800GB NVMe SSD
Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD)
Dual port 10G SFP+ via AOC-STGN-I2S
2U w/ redundant Hot-swap 920W power supplies

SSG-6048R-OSD216

(Cluster Role: OSD / Capacity Optimized Node)

System: SuperStorage Server 6048R-E1CR36L
36x 3.5" 6TB SATA3 HDDs
Internal 2.5" OS drives (mirrored 80GB SSD); Broadcom 3008 IT mode controller
Quad port 10G SFP+ via 2 AOC-STGN-I2S
4U w/ redundant Hot-swap 1280W power supplies

SSG-6048R-OSD216P

(Cluster Role: OSD Node)

System: SuperStorage Server 6048R-E1CR36L
36x 3.5" 6TB SATA3 HDDs, 2x 800GB NVMe SSD
Internal 2.5" OS drives (mirrored 80GB SSD); 2 Broadcom 3008 IT mode controllers
Quad port 10G SFP+ via 2 AOC-STGN-I2S
4U w/ redundant Hot-swap 1280W power supplies

SSG-6048R-OSD360P

(Cluster Role: OSD Node)

System: SuperStorage Server 6048R-E1CR72L
60x 3.5" 6TB SATA3 HDDs, 12x 2.5" 400GB SSDs
Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD); 3 Broadcom 3008 IT mode controllers
Quad port 10G SFP+ via 2x AOC-STGN-I2S
Optional 40G Mellanox networking configurations available upon request
4U w/ redundant Hot-swap 2000W power supplies

SSG-6048R-OSD432

(Cluster Role: OSD /Capacity Optimized Node)

System: SuperStorage Server 6048R-E1CR72L
72x 3.5" 6TB SATA3 HDDs
Rear 2.5" Hot-swap OS drives (mirrored 80GB SSD); 3 Broadcom 3008 IT mode controllers
Quad port 10G SFP+ via 2x AOC-STGN-I2S
4U w/ redundant Hot-swap 2000W power supplies

SYS-1028U-MON50M

(Cluster Role: Monitor Node)

System: Ultra SuperServer 1028U-TNRT+
2x Intel® Xeon® E5-2630 v4 processors
4x 32GB DDR4-2400 RDIMM
2x 2.5" 240GB Micron 5100 PRO SATA SSD for OS
Dual 50GbE QSFP28 via 2x Mellanox MCX413A-GCAT
1U with redundant Hot-swap 750W power supplies

Solid Ready certification

AS -2023US-TR4-HCI

Best For	Work loads that need high CPU core counts and high storage capacity
Profile	All-flash, Hybrid
Form Factor	2U
Nodes in a cluster	2-4
Processors	Dual AMD EPYC™ 7000 Series Processors
Memory	128GB to 8TB DDR4
Storage Type	NVMe +SSD, NVMe + SSD + HDD
Networks	Up to 100GbE RoCE RDMA

AS -1114S-WN10RT

Single AMD EPYC™ 7002-series processor (Socket SP3)
Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
2 PCI-E 4.0 x16 (FHHL) slots, 1 PCI-E 4.0 x16 (LP) slot
10 hot-swap 2.5" U.2 Gen4/Gen3 NVMe drive& support, optional 10 SATA3 drive support via additional cables
IPMI 2.0 + KVM with dedicated LAN support
2x 10GBase-T LAN ports via Broadcom BCM57416
750W Platinum level Redundant Power Supplies with PMBus

AS -1114S-WN10RT-HCI

Best For	Cost-effective and flexible HCI solution for both balanced and high-performance workloads
Server SKU	AS -1114S-WN10RT
Profile	All-flash
Form Factor	1U
Nodes in a cluster	2-16
Processors	Single AMD EPYC™ 7003 Series Processor
Memory	128GB to 4TB DDR4
Storage Type	NVMe, SSD
Networks	Up to 100GbE RoCE RDMA

AS -1124US-TNRP-HCI

Best For	Both high-performance and balanced workloads
Server SKU	AS -1124US-TNRP
Profile	All-flash
Form Factor	1U
Nodes in a cluster	2-16
Processors	Dual AMD EPYC™ 7003 Series Processors
Memory	128GB to 8TB DDR4
Storage Type	NVMe
Networks	Up to 100GbE RoCE RDMA

SYS-120U-TNR-HCI

Best For	Flexible and scalable HCI for high-performance or balanced workloads
Server SKU	SYS-120U-TNR
Profile	All-flash
Form Factor	1U
Nodes in a cluster	2-16
Processors	Dual 3rd Gen Intel® Xeon® Scalable Processors
Memory	128GB to 4TB DDR4
Storage Type	NVMe + SSD
Networks	25GbE (Up to 100GbE) RoCE RDMA

SYS-220BT-HNC8R-HCI

Best For	High-density 4-node HCI deployment scenario for balanced workloads
Server SKU	SYS-220BT-HNC8R
Profile	All-flash, Hybrid
Form Factor	2U
Nodes in a cluster	4-16 (1-4 systems)
Processors	Dual 3rd Gen Intel® Xeon® Scalable Processors
Memory	128GB to 4TB DDR4
Storage Type	NVMe, SSD + HDD
Networks	Up to 100GbE RoCE RDMA

SYS-510P-MR-HCI

Best For	Workloads for small footprint HCI deployment in limited spaces
Server SKU	SYS-510P-MR
Profile	All-flash
Form Factor	1U
Nodes in a cluster	2-4
Processors	Single 3rd Gen Intel® Xeon® Scalable Processor
Memory	64GB to 256GB DDR4
Storage Type	NVMe, SSD SATA
Networks	25GbE RoCE RDMA

Rackmount Servers

1U Dual Processor

2U Dual Processor

Single Processor

Multi Processor

Product Families

GPU Servers

4U GPU Lines

2U GPU Lines

1U GPU Lines

Twin Servers

BigTwin®

GrandTwin®

TwinPro®

Twin

FatTwin®

Blade Servers

SuperBlade®

MicroBlade®

MicroCloud

Storage Servers

All Storage Systems

All-Flash NVMe

Top-Loading Storage

Enterprise-Optimized Storage

Motherboards

Server Boards

Workstation Boards

Embedded / IoT Boards

Desktop / Gaming Boards

Previous Gen.

Motherboard Matrix

Global SKUs

Chassis

1U Chassis

2U Chassis

3U Chassis

4U / Tower Chassis

Mid / Mini-Tower

Embedded / IoT Chassis

Mobile Racks / Drive Kits

JBOD Storage Enclosures

Global SKUs

SuperRack®

Data Center Solution Engineering (DCSE)

Rack Integration Service

Accessories

Cable Matrix

Riser Card Matrix

Storage AOC Matrix

Power Supply Matrix

Heatsink Matrix

System Fan Matrix

Mobile Racks / Drive Kits

Front Chassis Bezels

Storage, I/O, Security

Edge & Telecom Servers

Fanless Edge Systems

Compact Edge Systems

Outdoor Edge Systems

1U Edge Network Systems

5G/Telecom Systems

Embedded Motherboards

Embedded Chassis

Switches

Adapters

SuperWorkstations

Liquid-Cooled AI Development Platform

Single-Processor

Dual-Processor

Supero™ Gaming Solutions

AI Infrastructure

HPC

Enterprise Applications & Data Analytics

Cloud & Virtualization

5G, Edge Computing, and IoT

Made in the USA

Data Management

Hyperscale Infrastructure

About Us
