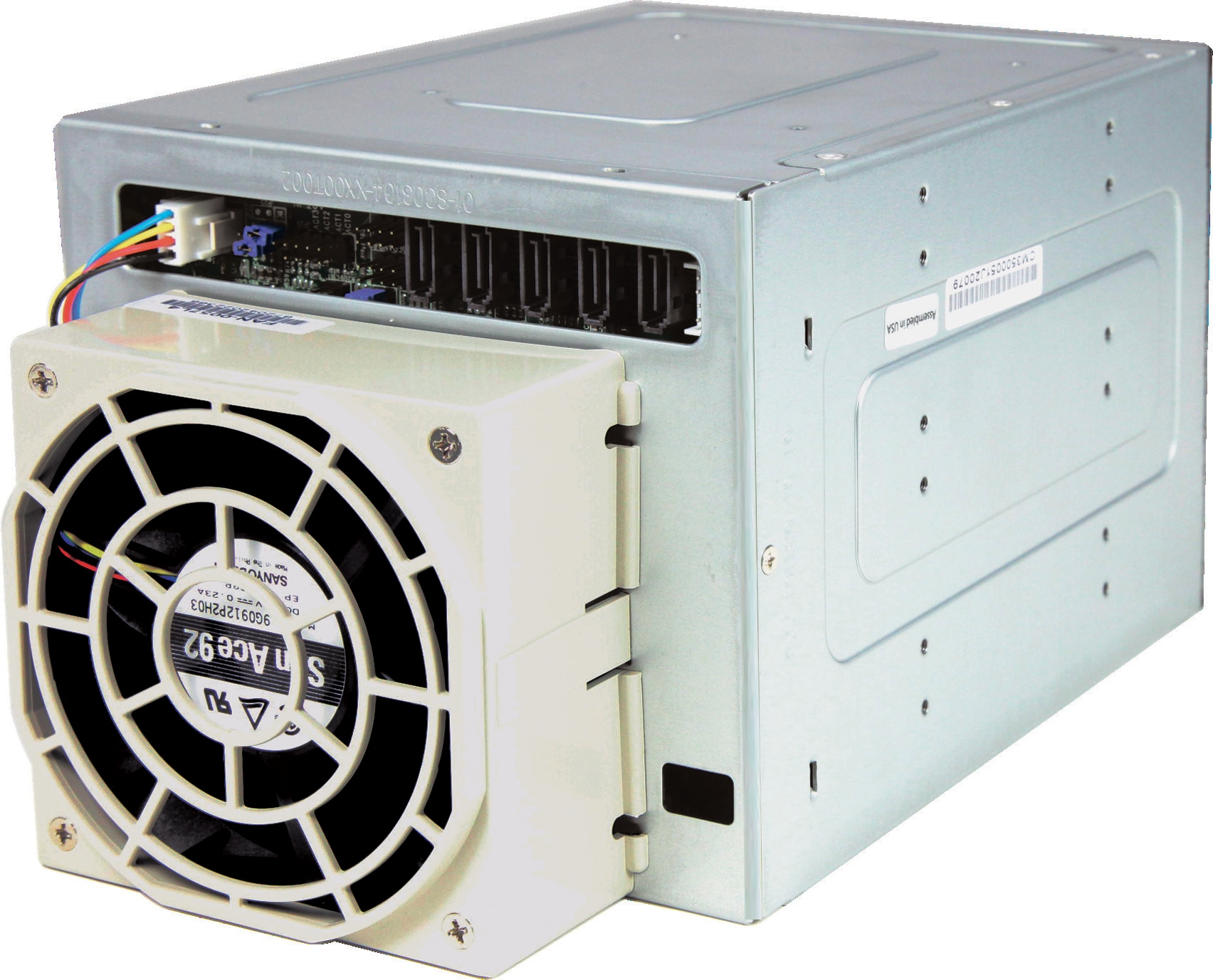

Mobile Rack CSE-M35TQ
Super Micro Computer, Inc.
Contact Us

Search

MySupermicro
  Products   Accessories   [ CSE-M35TQ ]
CSE-M35S SCA Mobile RackCSE-M35S SCA Mobile Rack
CSE-M35TQ - Beige

Key Features
1. 5x 3.5" Hot-swap SATA Hard Disk
    Drive Trays
2. Fan Failure LED and Alarm
3. Overheat LED
4. Drive Activity LED
5. Drive Failure LED
6. 3x 5.25" Drive Bay Enclosure
7. 9cm Cooling Fan Subsystem

Available Colors
  Beige
Downloads
Manual Download Manual
Product SKUs - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply
SKU
  • Mobile Rack CSE-M35TQ

Dimensions
Height 5" (127mm)
Width 5.8" (147mm)
Depth 9.7" (245mm): with fan
7.7" (195mm): without fan
Gross Weight 7.5 lbs (3.4kg): with package
6 lbs (2.6kg): mobile rack only
Available Colors Beige
Occupancy
• 3x 5.25" Drive Bays
Capacity
5x 3.5" Hot-swap SAS/SATA HDDs with SES2
Cooling Sub-system
Fans 1x 90mm Exhaust Fan
System Monitoring
LEDs / Alarms • Fan Fail LED and Alarm
• Overheat LED Indication Alarm
• Drive Activity Indication and Alarm
Compatibility
Chassis • SC748 Series
• SC747 Series
• SC745 Series
• SC743 Series

Standard Parts List
  Part Number Qty Description
Cable(s) CBL-0097L-02 1 79536-3220, 50cm IPASS to 4 SATA
Backplane CSE-SAS-M35TQ 1 M35 SAS backplane w/ AMI MG9072
Mobile Rack CSE-M35P 1 Disk array mobile rack w/ 5 drives
Drive Trays CSE-PT17 5 Beige SCA hard drive carrier, 2U
Cooling Fan FAN-0057L4 1 92x32mm 4-pin PWM fan assembly for M34 and M35
