SuperServer SYS-120H-TNR (Complete System Only)

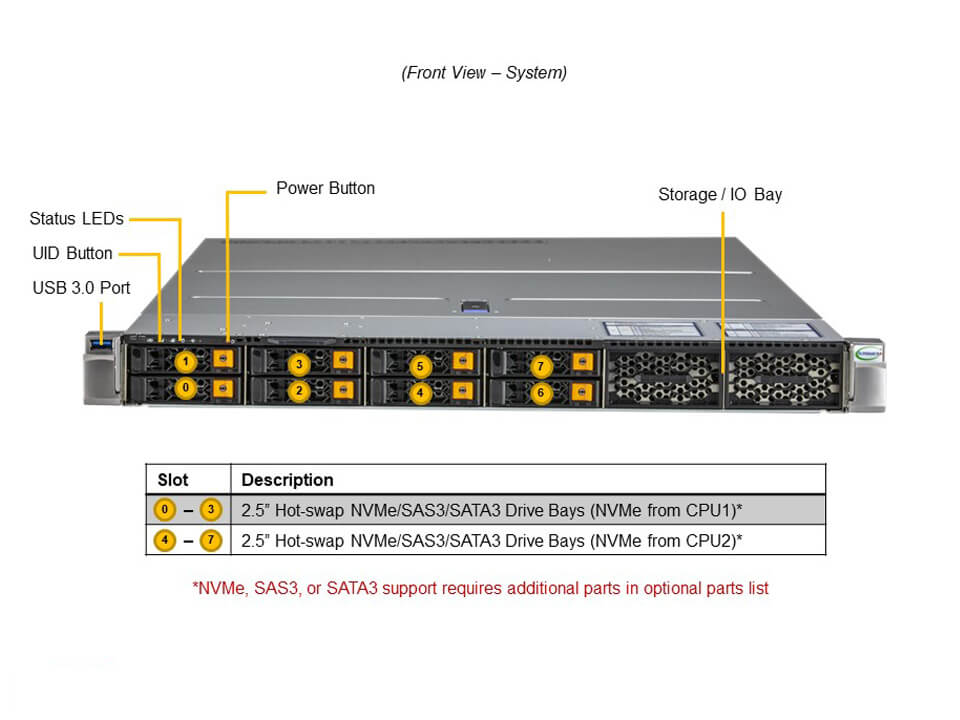

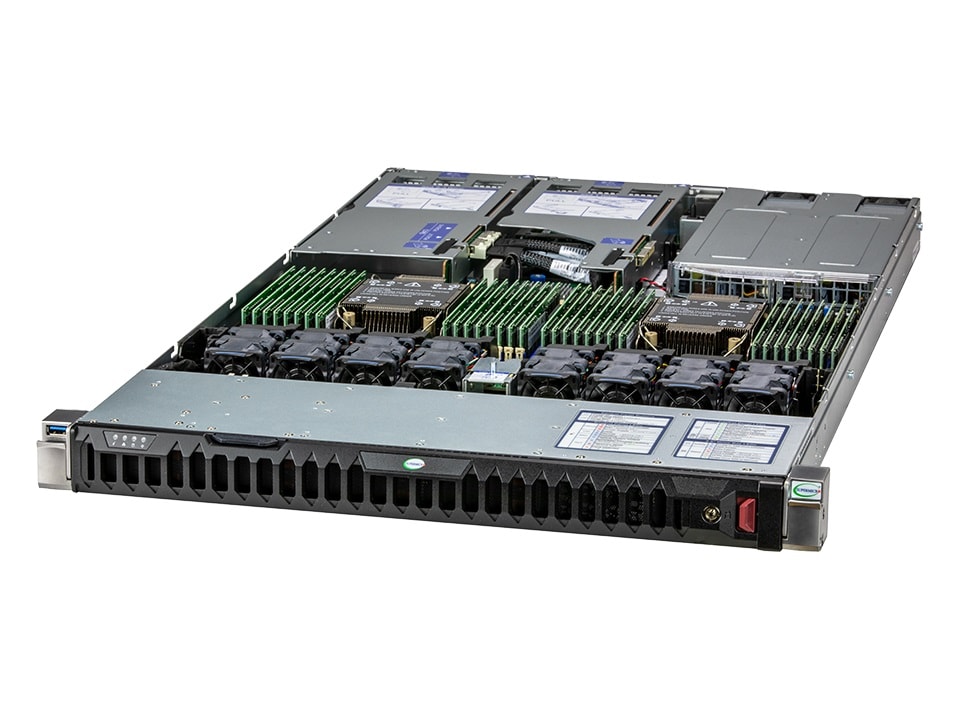

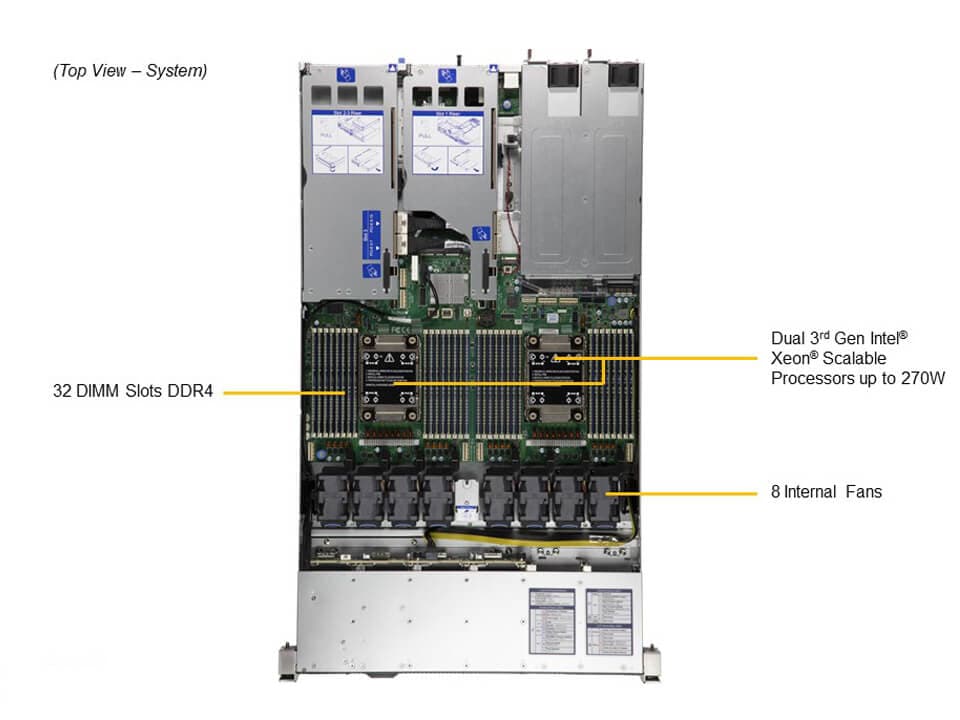

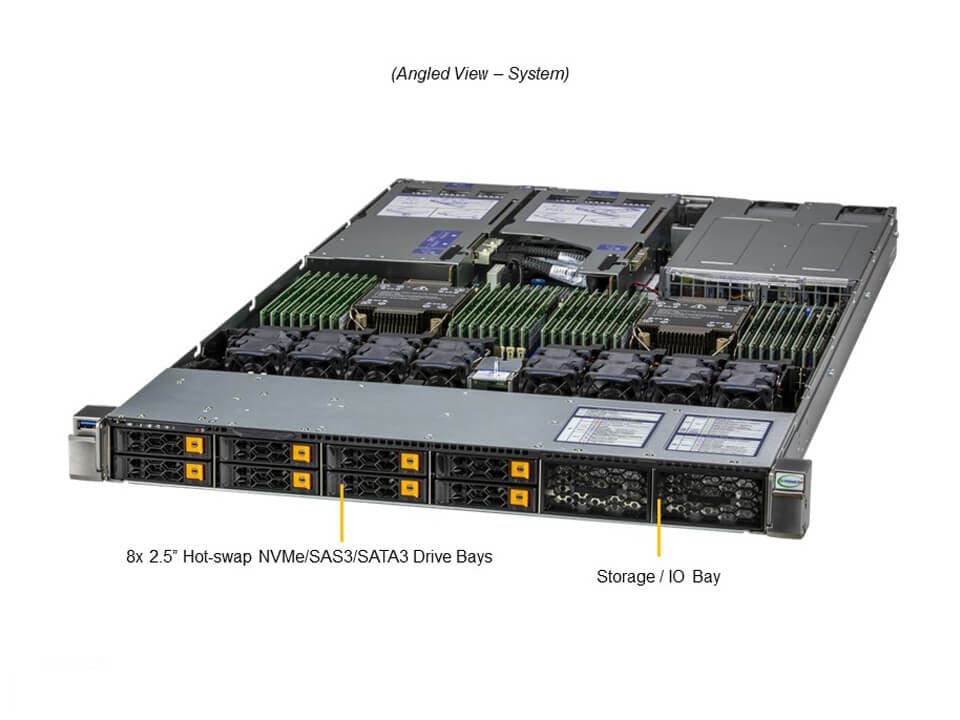

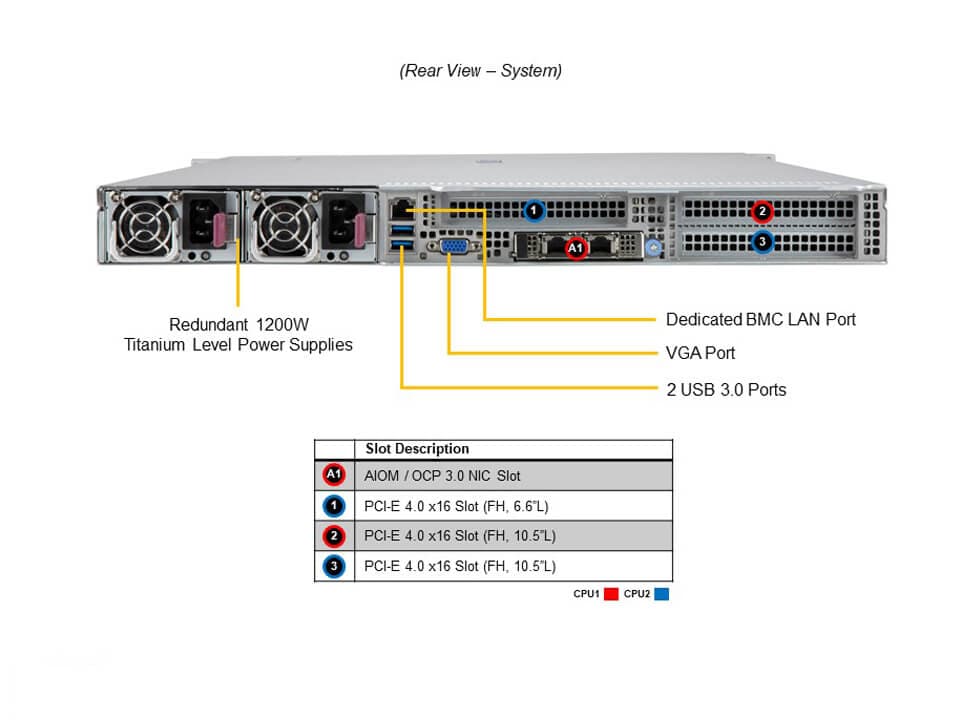

SYS-120H-TNR Main SYS-120H-TNR Angle SYS-120H-TNR Top SYS-120H-TNR Front SYS-120H-TNR Rear
Integrated Board: X12DHM-6
Learn more

Key Applications

  • Virtualization
  • Software-defined Storage
  • AI Inference and Machine Learning
  • Cloud Computing
  • Enterprise Server

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. 32 DIMM Slots;
    Up to 8TB DRAM;
    Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series
  3. 3 PCIe 4.0 x16 slots with support for GPU/Accelerator cards
  4. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
  5. 8x 2.5" hot-swap NVMe/SATA/SAS drive bays;
    Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays;
    2x internal M.2 NVMe/SATA drive slots;
    Optional RAID support via storage add-on card
  6. 8 heavy duty hot-swap fans with optimal fan speed control
...
...
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-120H-TNR
Motherboard
Super X12DHM-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width GPU(s)
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2 V
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 1GbE BaseT with Intel® i350-AM2 (optional)
  • 4x 1GbE BaseT or 4x 1GbE SFP with Intel® i350-AM4 (optional)
  • 2x 10GbE BaseT with Intel® X550-AT2 (optional)
  • 2x 10GbE SFP+ with Intel® X710-BM2 (optional)
  • 4x 10GbE SFP+ with Intel® XL710-BM1 (optional)
  • 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional)
  • 2x 25GbE SFP28 with Broadcom® BCM57414 (optional)
  • 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional)
  • 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)
  • View AOC Options
  • View AIOM Options
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated BMC LAN port
USB
  • 3 USB 3.0 port(s) (1 front; 2 rear)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
Power Configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-HS119-R1K24P
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 29.4" (747mm)
Package
  • 8.1" (H) x 23.8" (W) x 40.6" (D)
Weight
  • Net Weight: 34 lbs (15.4 kg)
  • Gross Weight: 49 lbs (22.2 kg)
Available Color
  • N/A
Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD activity
  • LAN1 activity
  • Power
  • System information
Expansion Slots
PCI-Express (PCIe)
  • 1 PCIe 4.0 x16 FH, 6.6"L slot(s)
  • 2 PCIe 4.0 x16 FH, 10.5"L slot(s)
  • View AOC Options
Drive Bays / Storage
Hot-swap
  • 8x 2.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid) (Configurable option for 12x 2.5" hot-swap NVMe/SAS/SATA drive bays. NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.)
  • View Drive Options
M.2
System Cooling
Fans
  • 8x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud(s)
Power Supply
2x 1200W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 73.5 x 40 x 265 mm
AC Input
  • 800W: 100-127Vac / 50-60Hz
  • 1200W: 200-240Vac / 50-60Hz
  • 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)
  • Max: 100A / Min: 0A (200Vac-240Vac)
  • Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DHM-6

CSE-HS119-R1K24P
1

1
Super X12DHM-6 Motherboard

1U Chassis
Add-on Card / Module AOM-HS119-IO-P 1 Hyper IO Board,RoHS
Backplane BPN-NVME4-HS119N-S8L 1 1U 8-Port Backplane Supports 8 x SAS3/SATA3/NVMe4 Storage Device for Hyper-S Platform,HF,RoHS
Cable CBL-GNZ4-1261-85 1 GENZ4C x16 (STR) to GENZ4C x16 (STR),8CM,85 OHM,RoHS
CBL-PWEX-1142-60 1 MicroHi,(2X4 to 2X4) P3.0,60CM,8A/pin,18AWG,RoHS
CBL-SAST-1225LP 1 SlimlineLP x8 (LE) to SlimlineLP x8 (RA),30CM,75/85/100,
CBL-SAST-1234LP-85 2 SlimlineLP x8 (STR) to 2x SlimlineLP x8 (STR),17CM,85 O
CBL-CUSB-1265-119 1 [NR] USB 3.0(F) Type A, RA to USB3.0 20pin,65CM,26/32AWG
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Drive Tray(s) MCP-220-00178-0B 8 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
Air Shroud MCP-310-11910-0N 1 CSE-HS119 Plastic Air Shroud (CPU1) for X12DHM,RoHS
MCP-310-11911-0N 1 CSE-HS119 Plastic Air Shroud (CPU2) for X12DHM,RoHS
Riser Card RSC-H-66G4L 2 1U LHS Hyper riser card with two PCIe 4.0 X16 slots,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077V 2 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Power Supply PWS-1K24A-1R 2 1U 800W/1200W Redundant Titanium w/PMBus power supply, W73.5xH40xL265mm, C14 inlet
*Fan FAN-0216L4 8 40x40x56 mm, 31K-26.6K RPM, Hot Swap, Counter-rotating Fan,R
*Front Panel FPB-FP119UH 1 Front control board for 119UHTS 1U Ultra
*Rail Set MCP-290-11903-0N OR 1 30.5" ball-bearing rail set, without auto latch for Hyper 1U & 2U
MCP-290-11902-0N 35.25" ball-bearing rail set,without auto latch for Hyper 1U & 2U
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Cable Management Arm + Rail Set MCP-290-00168-0N + MCP-290-11901-0N - 7.5" cable management arm + 41" long ball-bearing rail set
CacheVault for Broadcom 3916/3908 BTR-CVPM05 + MCP-120-00092-0N 1 CacheVault Flash Cache Protection Module for Broadcom 3916/3908 RAID controller (CVPM05) + slot 2-3 riser cage mounting bracket
Drive Bay Configuration Options Refer to User's Manual - Drive bay configuration options for NVMe, SAS, or SATA support
Drive Bay Cover MCP-220-11902-0B - Drive bay cover for two 2.5" drive bays (top & bottom drive bays)
Drive Tray Label LBL-0968 - Pack of 4 "NVMe" labels for hot-swap drive tray
Front Bezel MCP-210-11909-0B 1 Optional front bezel for 1U Hyper
Global Services & Support SMSAD3/2/1 - Bronze Level, 3/2/1-year 3BD SLA
OSNBD3/2/1 - Silver Level, 3/2/1-year onsite NBD SLA
OS4HR3/2/1 - Gold Level, 3/2/1-year onsite 24x7x4 SLA
Intel® VROC RAID Key Options AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
Rail Set MCP-290-11901-0N 1 41" ball-bearing rail set for Hyper servers
MCP-290-21103-0N 1 21.65" ball-bearing rail set for Hyper servers
MCP-290-11903-0N (included in the system ) 1 30.5" ball-bearing rail set for Hyper servers
MCP-290-11902-0N 1 35.25" ball-bearing rail set for Hyper servers
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Trusted Platform Module Options AOM-TPM-9670V-O 1 SPI capable vertical TPM 2.0
AOM-TPM-9670V-S-FIPS-O 1 AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS
AOM-TPM-9671V-O 1 SPI capable vertical TPM 1.2
Hyper SuperServer SYS-120H-TNR (Complete System Only )
