A+ Server 1013S-MTR
A+ Products Systems 1U [ 1013S-MTR ]




Integrated Board
H11SSL-i

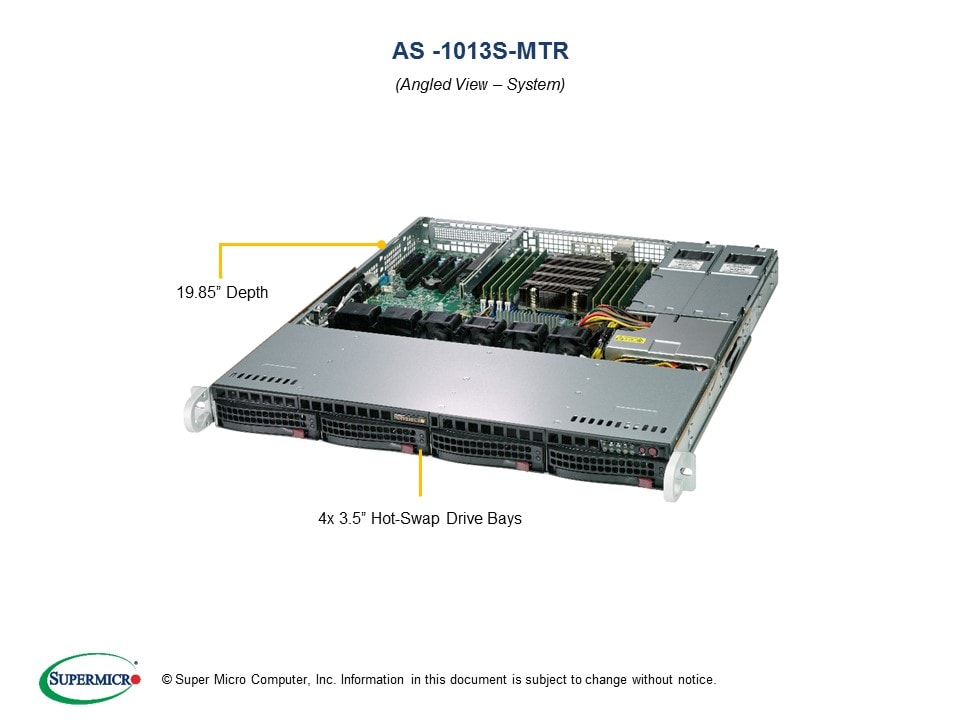

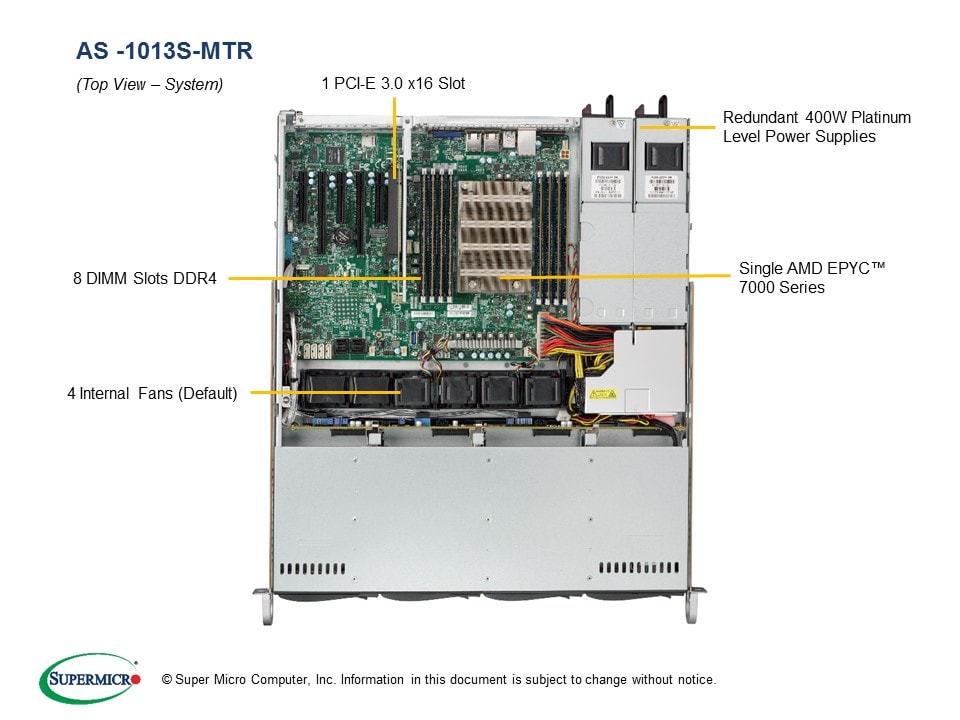

Views: | Angled View | Top View |

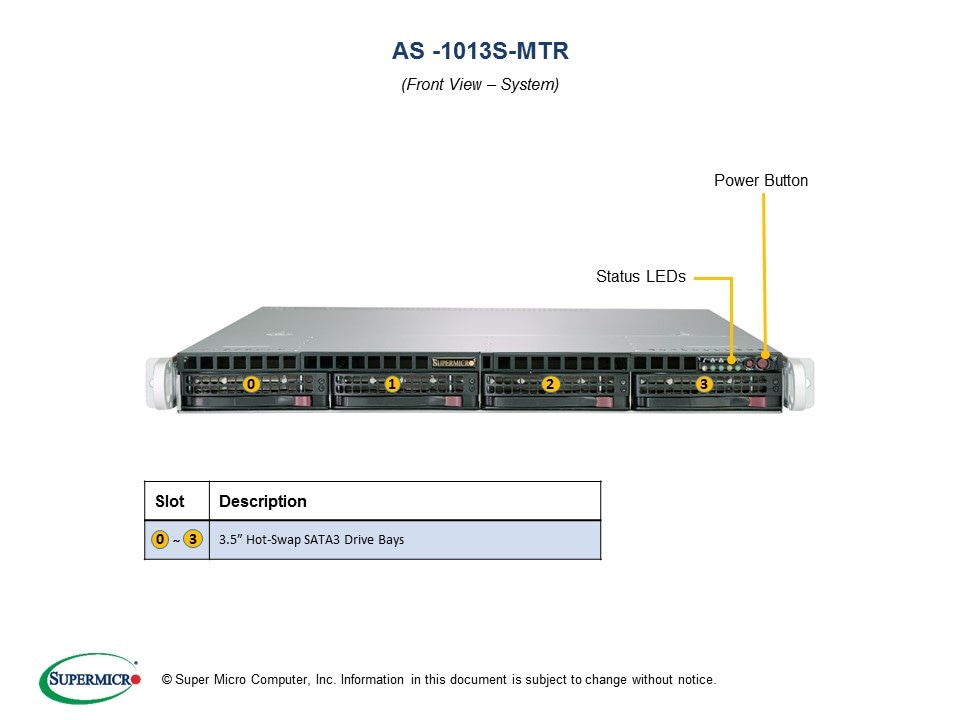

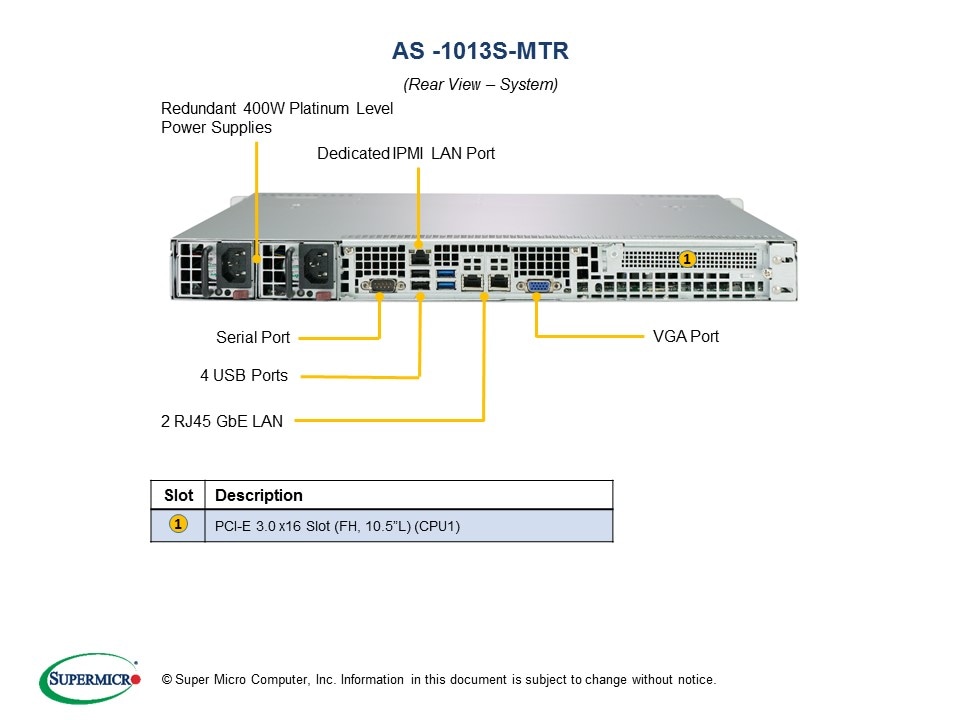

| Front View | Rear View |

Key Features
• Web Hosting, VM
• Cloud Computing
• Connectivity/Storage
  Computer Nodes
1. Single AMD EPYC™ 7001/7002* Series Processor (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs (Board revision 2.x required)
3. Expansion slots:
PCI-E 3.0 x16 (FH/HL) slot
M.2 Interface: PCI-E 3.0 x4 (NVMe based)
M.2 Form Factor: 2280, 22110
M.2 Key: Onboard M-key
Number of M.2: Single
4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
 key (SFT-OOB-LIC) included
 for OOB BIOS management
5. 2x 1GbE LAN ports via Intel® I210
6. 4 hot-swap 3.5" SATA3 drive bays
or 4 SAS3 ports (SAS Add-on Card is optional),
1 M.2 NVMe SSD Supported
7. 400W Redundant Platinum Level Power Supplies
(Full redundancy based on configuration and application load)



Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List Tested AOC Manuals OS Certification Matrix Quick-References Guide Drive Options


Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
AS -1013S-MTR
  • A+ Server 1013S-MTR
Motherboard
H11SSL-i
Processor/Chipset
CPU
  • Single AMD EPYC™ 7001/7002* series Processor (*Board revision 2.x required)
  • Socket SP3
  • Supports CPU TDP 225W / cTDP up to 240W*
Cores
  • Up to 32 Cores (Board revision 1.x + 7001 Processors)
  • Up to 64 Cores (Board revision 2.x + 7002 Processors)
Chipset
  • System on Chip (SoC)
System Memory
Memory Capacity
  • 8 DIMM slots
  • Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
  • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
  • 8-channel memory bus
Memory Type
  • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
    (* Board revision 2.x required + 7002 Processors)
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
  • SATA3 (6 Gbps)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Controllers
  • Intel® I210 Controller
VGA
  • ASPEED AST2500 BMC
Expansion Slots
PCI Express
  • 1 PCI-E 3.0 x16 (FH/HL) slot
M.2
  • Interface: PCI-E 3.0 x4 (NVMe based)
  • Form Factor: 2280, 22110
  • Key: Onbard M-key
  • Number of M.2: Single
Input / Output
SATA
  • 4 SATA3 (6 Gbps) ports
LAN
  • 2x 1GbE LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
  • 4 USB 2.0 ports (2 rear, 2 via header)
VGA
  • 1 VGA port
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connector
  • TPM 1.2 header
System BIOS
BIOS Type
  • AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Chassis
Form Factor
  • 1U
Model
  • CSE-813MFTQC-R407CB
Dimensions
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 19.85" (503mm)
Weight
  • Net Weight: 20 lbs (9.1 kg)
  • Gross Weight: 33 lbs (15.0 kg)
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED
Drive Bays
Hot-swap
  • 4 hot-swap 3.5" SATA3 drive bays
Peripheral Drives
Optional
  • Optional 2.5" drive adapter
  • Optional slim DVD drive
Backplane
HDD Backplane
  • Supports 4 SATA3 3.5" HDD
System Cooling
Fans
  • 4x 40x28mm 4-pin PWM Cooling Fans
Air Shroud
  • 1 Air Shroud
AC/DC240V Input Redundant Power Supplies
400W 1U Redundant Power Supplies with PMbus
Total Output Power
  • 400W
Dimension
(W x H x L)
  • 54.5 x 40 x 220 mm
Input
  • 100 - 240Vac / 6.0 - 3.0A / 50-60Hz
  • 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
+12V
  • Max: 33A / Min: 0.5A
+5V sb
  • Max: 3A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
Certification Platinum Level Certified
Platinum Level Certified
[ Test Report ]
PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
  • CPU switching voltage regulator
FAN
  • Up to 8-fan status tachometer monitoring
  • Up to eight 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 8x Fan connectors
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
Parts List - (Items Included)
Part Number Qty Description
Motherboard MBD-H11SSL-i 1 Super H11SSL-i Motherboard
Chassis CSE-813MFTQC-R407CB 1 1U Chassis
HD Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5" SAS3/SATA3 HDD/SSD
Cable CBL-0488L 1 SATA,INT,ROUND,ST-RA,55CM,30AWG
Cable CBL-SAST-0639 2 SATA,INT,ROUND,ST-RA,31CM,30AWG
Cable CBL-SAST-0641 1 SATA,INT,ROUND,ST-RA,45CM,30AWG
Part(s) MCP-120-00031-0N 1 Riser card bracket for SC812,813,813M,815,111,113,113M
Air Shroud MCP-310-81305-0B 1 Mylar air shroud for 1U X11SPW-TF,RoHS
Riser Card RSC-RR1U-E16 1 RSC-RR1U-E16 with PIC-E x16 output
Heat Sink SNK-P0062P 1 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management

Optional Parts List
Part Number Qty Description
Storage Control Card and Cable(s) AOC-S3008L-L8e - Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA
1x CBL-SAST-0811 MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG,RoHS/REACH
AOC-S3008L-L8i - Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E
1x CBL-SAST-0811 MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG,RoHS/REACH
AOC-S3108L-H8iR - Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
1x CBL-SAST-0811 MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG,RoHS/REACH
CacheVault(s) BTR-TFM8G-LSICVM02 - CacheVault for Broadcom 3108
MCP-240-00127-0N Supercap mounting bracket for 2.5" HDD location
MCP-220-00043-0N STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00043-0N - STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray
MCP-220-00118-0B - STD Black hot-swap tool-less 3.5"-to-2.5" converter drive tray
DVD-ROM / DVD-RW DVM-PNSC-DVD-SBT3 - Black Panasonic Slim DVD-ROM SATA Drive
MCP-220-81502-0N Slim SATA DVD mounting kit
CBL-0099 25CM FDD 4 PIN TO SLIM 4 PIN power cable,24AWG
DVM-TEAC-DVD-SBT3 - Black TEAC Slim DVD-ROM SATA Drive
MCP-220-81502-0N Slim SATA DVD mounting kit
CBL-0099 25CM FDD 4 PIN TO SLIM 4 PIN power cable,24AWG
DVM-PLDS-DVDRW-SBT4 - Philips Slim Black DVD-RW SATA Drive, HF
MCP-220-81502-0N Slim SATA DVD mounting kit
CBL-0099 25CM FDD 4 PIN TO SLIM 4 PIN power cable,24AWG
Drive Tray(s) MCP-220-00129-0B - Black 2x USB 3.0 port tray in slim FDD bay
Hot-Swap Drive Bays | 2.5" HDD Tray (FDD Slot) MCP-220-81504-0N - 12G 2.5-in Hot-swap Slim Floppy Size Drive Kit w/Status LED
CBL-0210L (PWR)
Hot-Swap Drive Bays | 2.5" HDD Tray (DVD Slot) MCP-220-81506-0N - 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED
CBL-0099 (PWR)
Hot-Swap Drive Bays | 2.5" HDD Tray (DVD Slot)
+
Hot-Swap Drive Bays | 2.5" HDD Tray (FDD Slot) 		MCP-220-81504-0N - 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED
+
Slim DVD Size Drive Kit w/Status LED
MCP-220-81506-0N
CBL-SAST-0654 (data) x2
CBL-0210L (PWR)
CBL-0099 (PWR)
CBL-0161L (Y-cable)
CBL-PWEX-0702 (PWD)
TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
AOM-TPM-9665V - AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
FAN FAN-0154L4 2 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
