A+ Server 1023US-TR4 (Complete System Only)
A+ Products Systems 1U [ 1023US-TR4 ]




Integrated Board
H11DSU-iN

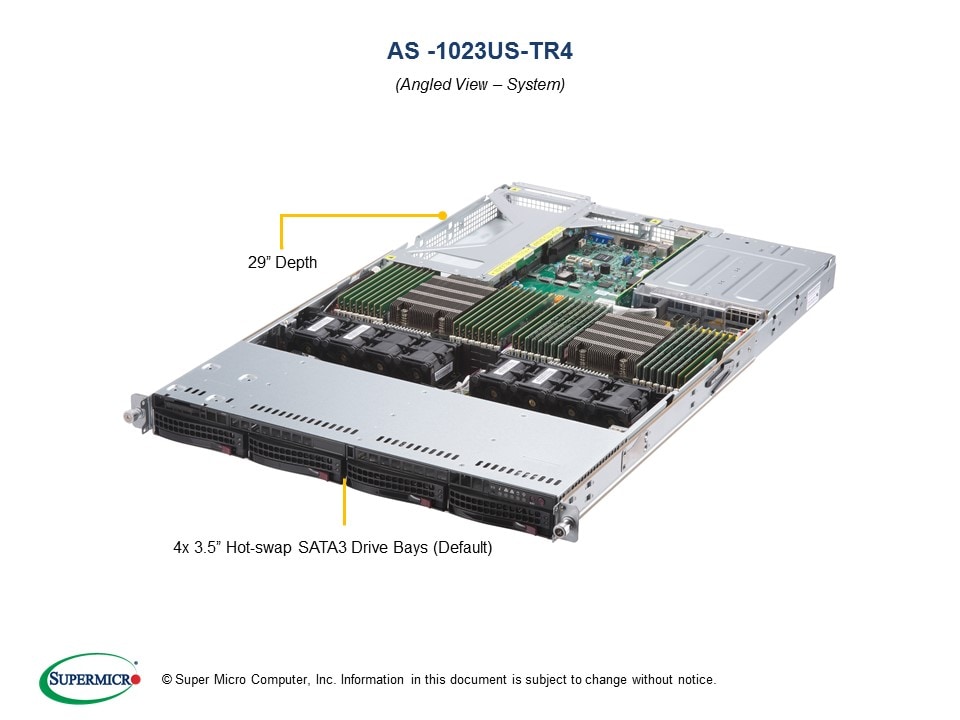

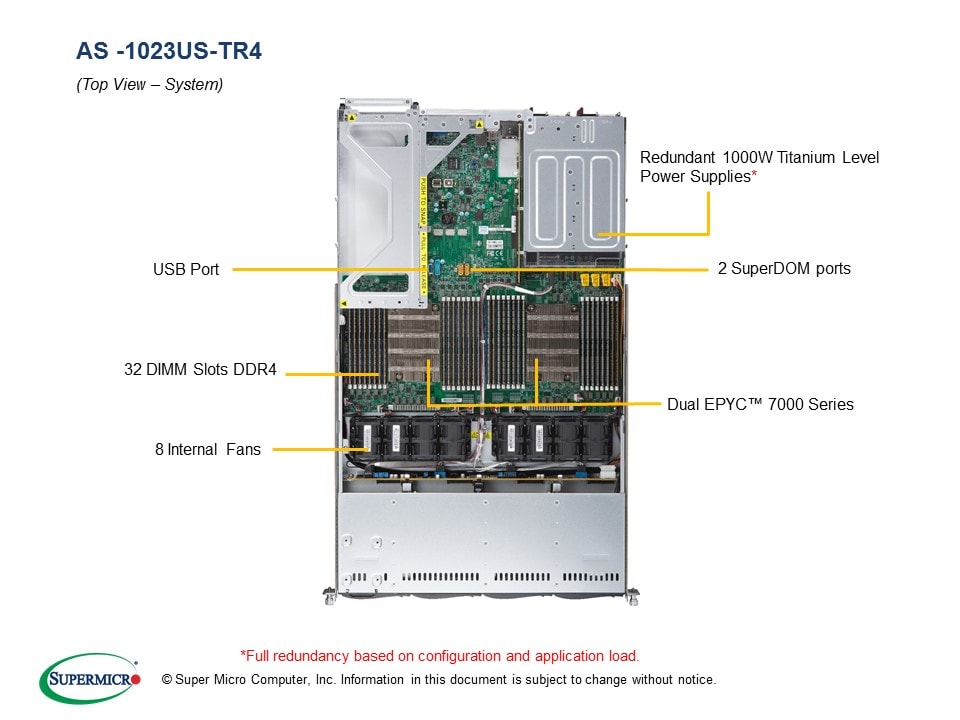

Views: | Angled View | Top View |

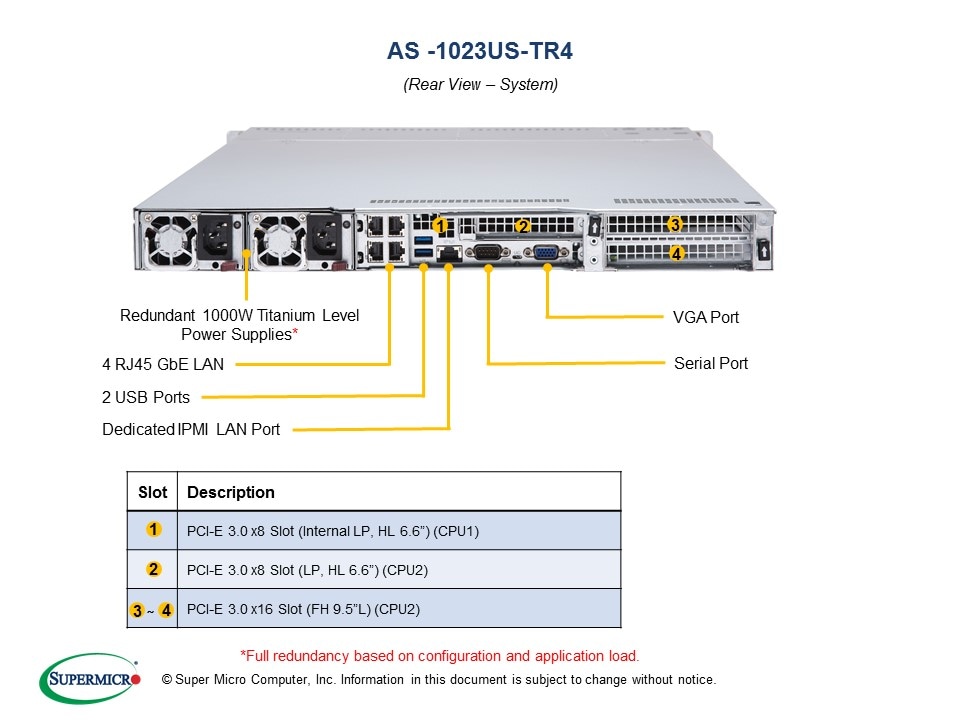

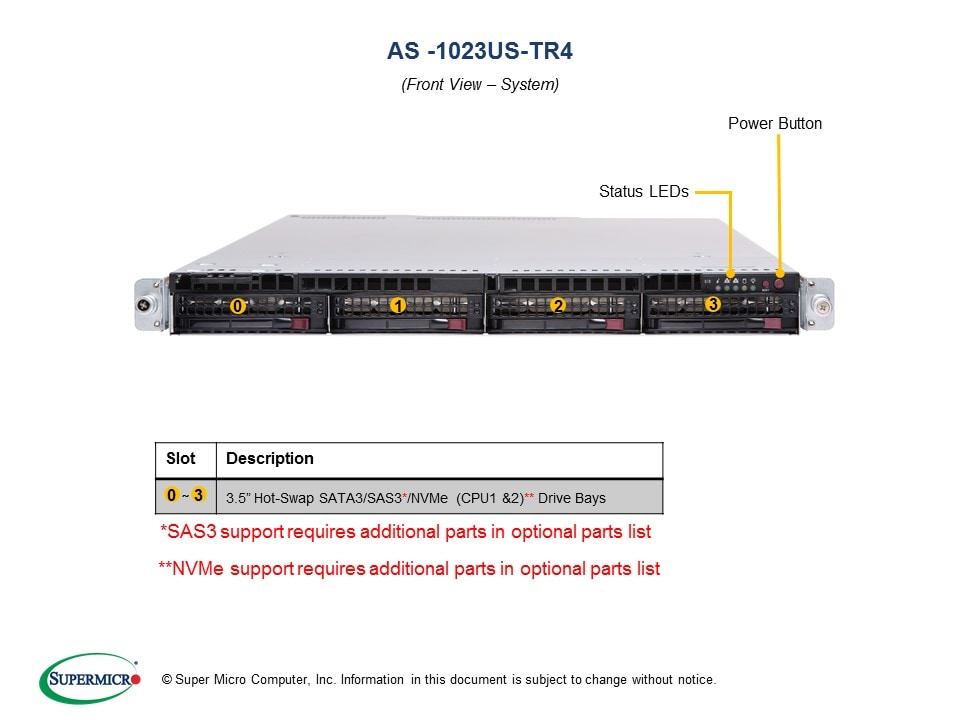

| Front View | Rear View |


Key Features
• Virtualization
• Cloud Computing
• High End Enterprise Server
• Flexible Networking Options

1. Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
3. Expansion slots:
2 PCI-E x16 (FH / 9.5"L) slots
2 PCI-E x8 slots (1 LP, 1 internal proprietary LP slot)
[ Details ]
4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
 key (SFT-OOB-LIC) included
 for OOB BIOS management
5. Quad Gigabit LAN ports via Intel i350AM4
6. Drive Bays:
 4 hot-swap 3.5" SATA3 by default
 or 4 NVMe (optional supported)
 or 4 SAS3 ports
 (SAS Add-on card is optional)
7. 1000W Redundant Power Supplies
Titanium Level (96%+)
(Full redundancy based on configuration
and application load)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 HDD/NVMe.

Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List NVMe Options Tested AOC Manuals OS Certification Matrix Quick-References Guide Drive Options


Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
AS -1023US-TR4
  • A+ Server 1023US-TR4
Motherboard
H11DSU-iN
Processor/Chipset
CPU
  • Dual AMD EPYC™ 7001/7002* series Processors
    (* Board revision 2.x required)
  • Socket SP3
  • Supports CPU cTDP up to 280W**
Cores
  • Up to 32 Cores (Board revision 1.x + 7001 Processors)
  • Up to 64 Cores (Board revision 2.x + 7002 Processors)
Chipset
  • System on Chip (SoC)
Note ** Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory
Memory Capacity
  • 32 DIMM slots
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
  • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
  • 8-channel memory bus
Memory Type
  • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors)
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
    (* Board revision 2.x required + 7002 Processors)
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
VGA
  • ASPEED AST2500 BMC
Expansion Slots
1U
  • 2 PCI-E x16 (FH/HL 9.5") slots
  • 2 PCI-E x8 slots (1 LP, 1 internal proprietary LP slot)


(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Input / Output
SATA
  • 4 SATA3 (6 Gbps) ports
LAN
  • Quad Gigabit LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
VGA
  • 1 VGA port
SAS
  • 4 SAS3 ports support via optional Add-on Card
NVMe
  • 4 NVMe support with optional cables
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connector
  • TPM 1.2 header
System BIOS
BIOS Type
  • AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Chassis
Form Factor
  • 1U
Model
  • CSE-819UTS-R1K02P-T
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 29" (737mm)
Package
  • 7.8" (H) 23.66" (W) 37.13" (D)
Weight
  • Net Weight: 26 lbs (11.8 kg)
  • Gross Weight: 41 lbs (18.6 kg)
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED
Drive Bays
Hot-swap
  • Four 3.5" Hot-swap SATA drive bays
Backplane
HDD Backplane
  • Supports 4 SATA3 or 4 NVMe or 4 SAS3 HDD
System Cooling
Fans
  • 8 heavy-duty PWM fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud
Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power
  • 800W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
  • 200-240Vdc / 7 - 5A (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
  • Max: 83A / Min: 0A (200-240Vdc)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96% Titanium Level
[ Test Report ]
PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
  • CPU switching voltage regulator
FAN
  • Up to 8-fan status tachometer monitoring
  • Up to eight 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 8x Fan connectors
  • I2C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
Parts List - (Items Included)
Part Number Qty Description
Motherboard MBD-H11DSU-iN 1 Super H11DSU-iN Motherboard
Chassis CSE-819UTS-R1K02P-T 1 1U Chassis
Add-on Card / Module AOC-UR-I4G 1 1U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports and 1 internal PCI-E x8 3.0 slot
Backplane BPN-SAS3-815TQ-N4 1 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-PWEX-0673 1 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH
Cable 2 CBL-SAST-0880 1 MINI SAS(RA-RS EXIT)-4 SATA,INT,55/55/55/55CM,55CM SB,30AWG
FAN 1 FAN-0101L4 4 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
Manual MNL-1959-QRG 1 AS-1023US-TR4 Quick Reference Guide
Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Heatsink / Retention SNK-P0062P 2 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
* Power Supply PWS-1K02A-1R 2 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Optional Parts List
Part Number Qty Description
Storage Control Card and Cable(s) AOC-S3008L-L8e - Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA
1x CBL-SAST-0948 Internal mini SAS HD to 4 SATA 60CM, S, w/ 60cm SB
AOC-S3008L-L8i - Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E
1x CBL-SAST-0948 Internal mini SAS HD to 4 SATA 60CM, S, w/ 60cm SB
AOC-S3108L-H8iR / 16DD - Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
1x CBL-SAST-0948 Internal mini SAS HD to 4 SATA 60CM, S, w/ 60cm SB
CacheVault(s) BTR-TFM8G-LSICVM02 - CacheVault for Broadcom 3108
BKT-BBU-BRACKET-05 Supercap mounting bracket for PCI-E location
MCP-120-81906-0N Internal AOC bracket for SC819U, 119U (PCIE spec)
BTR-TFM8G-LSICVM02 - CacheVault for Broadcom 3108
MCP-240-00127-0N Supercap mounting bracket for 2.5" HDD location
MCP-220-00043-0N STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00043-0N - STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray
MCP-220-00118-0B - STD Black hot-swap tool-less 3.5"-to-2.5" converter drive tray
Optional Kit for NVMe Solution MCP-220-00116-0B - Black gen-5 3.5-to-2.5 NVMe drive tray, Orange tab (for hotswap NVMe drive)
CBL-SAST-0819 OCuLink v.91,INT,PCIe NVMe SSD, 65CM,34AWG
MCP-220-00138-0B - NVMe 3.5-to-2.5 drive tray, Orange tab
CBL-SAST-0819 OCuLink v.91,INT,PCIe NVMe SSD, 65CM,34AWG
DVD-ROM / DVD-RW DVM-PNSC-DVD-SBT3 - Black Panasonic Slim DVD-ROM SATA Drive
MCP-220-81502-0N Slim SATA DVD mounting kit
CBL-0099 25CM FDD 4 PIN TO SLIM 4 PIN power cable,24AWG
DVM-TEAC-DVD-SBT3 - Black TEAC Slim DVD-ROM SATA Drive
MCP-220-81502-0N Slim SATA DVD mounting kit
CBL-0099 25CM FDD 4 PIN TO SLIM 4 PIN power cable,24AWG
DVM-PLDS-DVDRW-SBT4 - Philips Slim Black DVD-RW SATA Drive, HF
MCP-220-81502-0N Slim SATA DVD mounting kit
CBL-0099 25CM FDD 4 PIN TO SLIM 4 PIN power cable,24AWG
USB Port Tray (FDD Slot) MCP-220-00129-0B - Black 2x USB 3.0 port tray in slim FDD bay
Hot-Swap Drive Bays | 2.5" HDD Tray (FDD Slot) MCP-220-81504-0N - 12G 2.5-in Hot-swap Slim Floppy Size Drive Kit w/Status LED
CBL-0210L (PWR)
Hot-Swap Drive Bays | 2.5" HDD Tray (DVD Slot) MCP-220-81506-0N - 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED
CBL-0099 (PWR)
Hot-Swap Drive Bays | 2.5" HDD Tray (DVD Slot)
+
Hot-Swap Drive Bays | 2.5" HDD Tray (FDD Slot)
MCP-220-81504-0N - 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED
+
Slim DVD Size Drive Kit w/Status LED
MCP-220-81506-0N
CBL-SAST-0654 (data) x2
CBL-0210L (PWR)
CBL-0099 (PWR)
CBL-0161L (Y-cable)
CBL-PWEX-0702 (PWD)
Ultra 1U Front Bezel CSE-PTFB-813L - SC813 Front Bezel, PB Free
CSE-PTFB-813LB - Black SC813 Front Bezel, PB Free
MCP-210-11601-0B - Black Front Bezel for SC113, SC113M, SC116, SC119, SC119U, SC514 (No LED indicator support)
1U Cable Management Arm MCP-290-00165-0N 1 1U Supermicro Cable Management Arm 3rd Gen (optimize for Ultra)
1 Internal M.2 slot
(NVMe)
RSC-UMR-8 1 1U Ultra RHS Riser Card with 1 PCI-E (up to 22110)
MCP-120-81908-0N
1 Internal M.2 slot
(SATA)
RSC-UMR-8 1 1U Ultra RHS Riser Card with 1 SATA M.2 (up to 22110)
CBL-SAST-0639
MCP-120-81908-0N
2 Internal M.2 slots
(NVMe 2260 + SATA 2260)
RSC-UMR-8 1 1U Ultra RHS Riser Card with 1 PCI-E/SATA Hybrid M.2 & 1 PCI-E x8 (up to 2260 for each device)
MCP-120-81908-0N
CBL-SAST-0639
M.2 by AOC AOC-SLG3-2M2 1 LP, PCIe3 x8, Dual port NVMe M.2 carrier
TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
AOM-TPM-9665V - AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
