A+ Server 1113S-WN10RT (Complete System Only)



A+ Products Systems 1U [ 1113S-WN10RT ]

Integrated Board

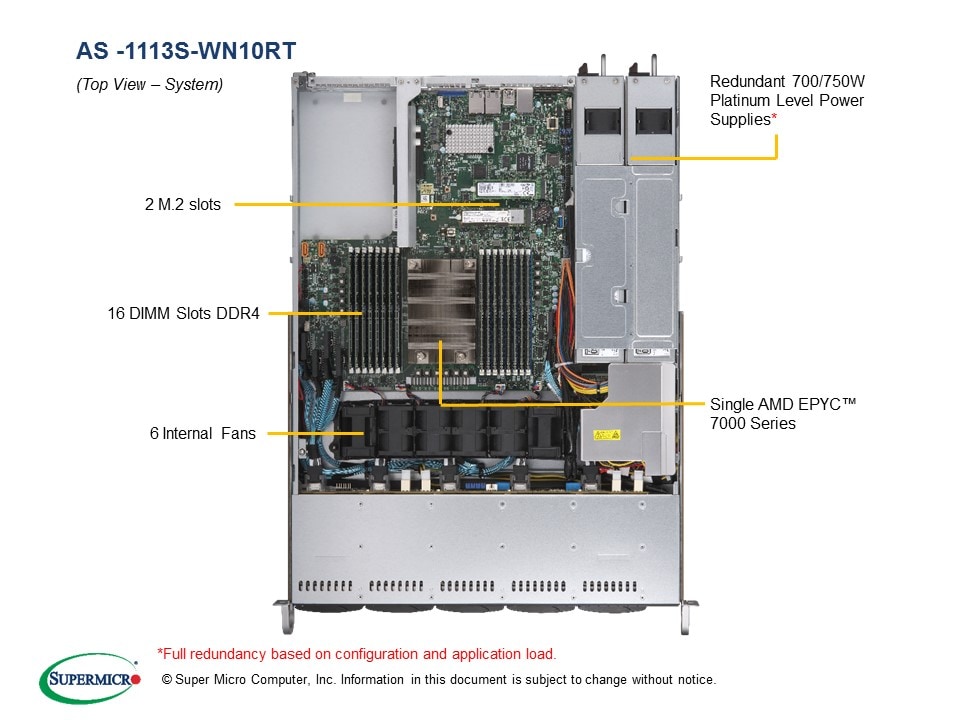

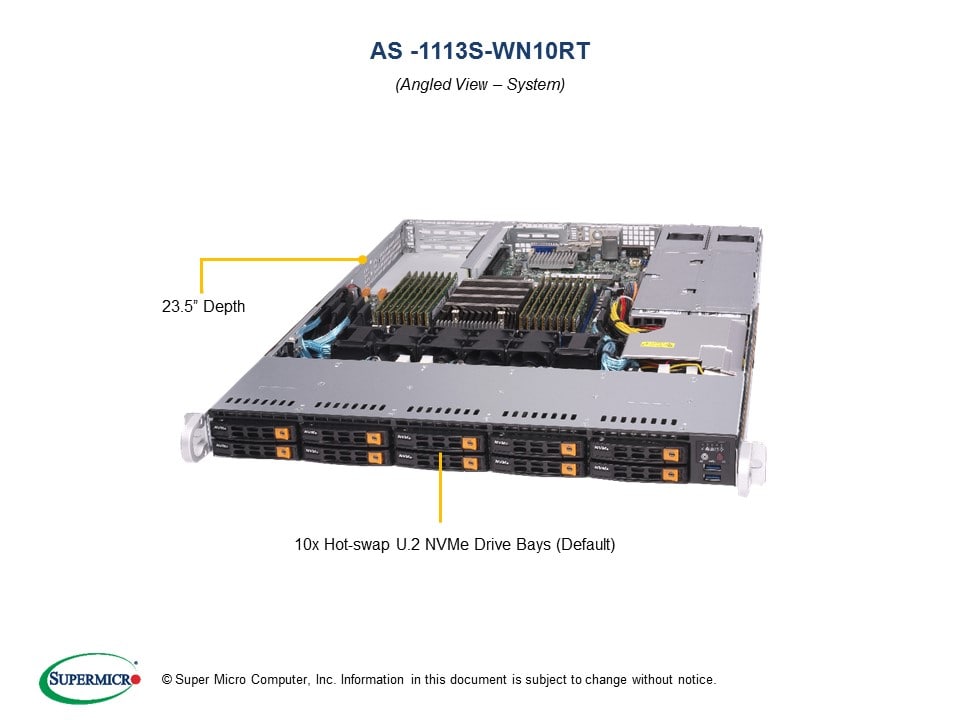

Views: | Angled View | Top View |

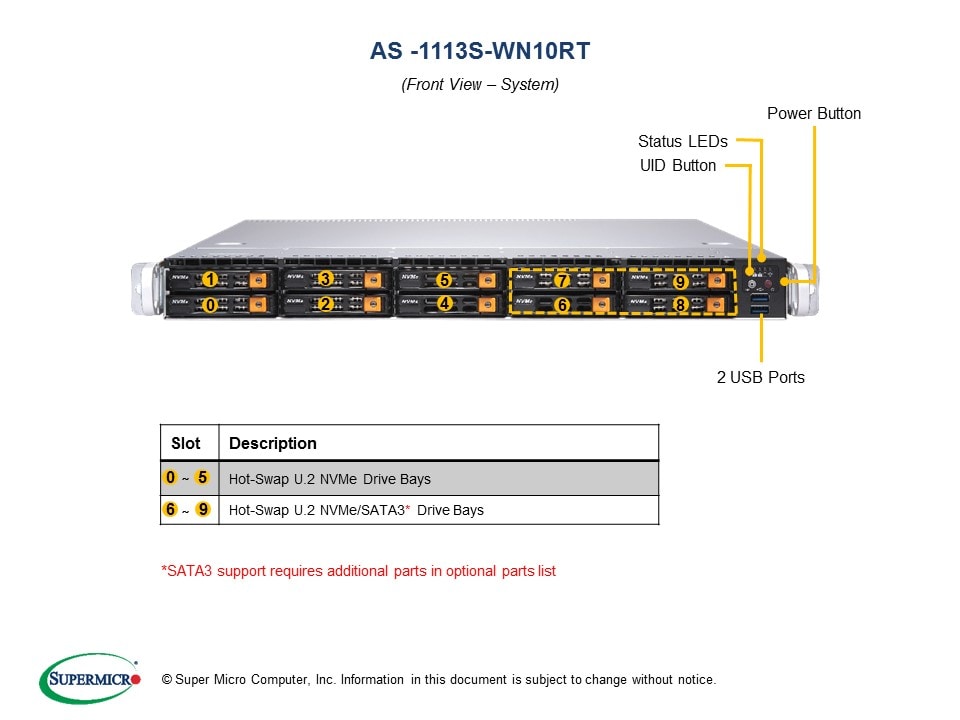

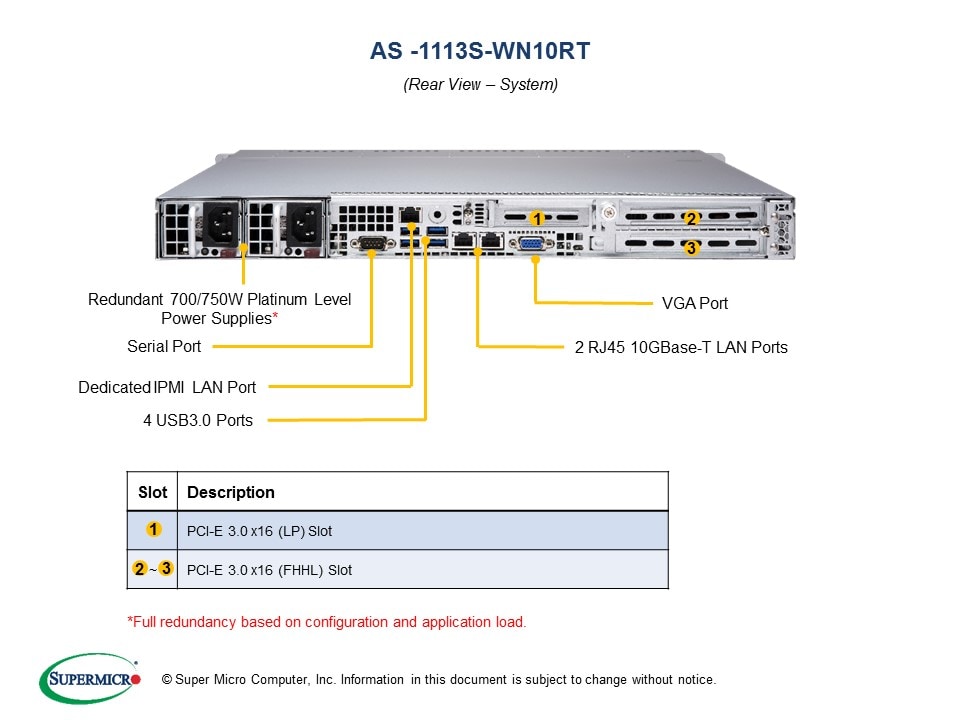

| Front View | Rear View |

Key Features
Virtualization
Cloud Computing
All Flash Storage

1. Single AMD EPYC™ 7001/7002* Series Processor (*AMD EPYC 7002 series drop-in support requires board revision 2.x)

2. 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required)

3. Expansion slots:
2 PCI-E 3.0 x16 (FH/HL) slots,
1 PCI-E 3.0 x16 (LP) slot
M.2 Interface: PCI-E 3.0 x2 (NVMe based)
M.2 Form Factor: 2280, 22110
M.2 Key: Onboard M-key
Number of M.2: Dual

4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
key (SFT-OOB-LIC) included
for OOB BIOS management

5. 2x 10GBase-T LAN ports via Broadcom BCM57416

6. 10 hot-swap 2.5" U.2 NVMe drive bays,
optional 4 SATA3 drive support with additional cables

7. 750W Redundant Power Supplies
Platinum Level (94%)
(Full redundancy based on configuration and application load)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with 1 CPU, minimum 8 DIMMs, 1 NVMe). Recommended configuration for best performance is at least 24 or 32 Cores per CPU.


	Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List NVMe Options Tested AOC Manuals OS Certification Matrix Quick-References Guide Drive Options


Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.

AS -1113S-WN10RT	A+ Server 1113S-WN10RT


Motherboard

H11SSW-NT


Processor/Chipset

CPU	Single AMD EPYC™ 7001/7002* series Processor (Board revision 2.x required) Socket SP3 Supports CPU TDP 225W / cTDP up to 240W
Cores	Up to 32 Cores (Board revision 1.x + 7001 Processors) Up to 64 Cores (Board revision 2.x + 7002 Processors)
Chipset	System on Chip (SoC)


System Memory

Memory Capacity	16 DIMM slots Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) 8-channel memory bus
Memory Type	DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors) DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)
DIMM Sizes	4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (* Board revision 2.x required + 7002 Processors)
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Network Controllers	Broadcom BCM57416 Controller
VGA	ASPEED AST2500 BMC


Expansion Slots

PCI Express	2 PCI-E 3.0 x16 (FH/HL) slots 1 PCI-E 3.0 x16 (LP) slot
M.2	Interface: PCI-E 3.0 x2 (NVMe based) Form Factor: 2280, 22110 Key: Onboard M-key Number of M.2: Dual


Input / Output

NVMe	Up to 10 U.2 NVMe support
SATA	Optional 4 SATA3 (6 Gbps) support via additional cables
LAN	2x 10GbBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	7 USB 3.0 ports (4 rear + 2 front + 1 Type A)
VGA	1 VGA port
Others	1 COM port 2 SATA DOM power connectors TPM 1.2 header


System BIOS

BIOS Type	AMI 128Mb SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1


Chassis

Form Factor	1U
Model	CSE-116TS-R706WBP3


Dimensions and Weight

Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	23.5" (597mm)
Package	7.63" (H) 23.42" (W) 31.45" (D)
Weight	Net Weight: 20 lbs (9.1 kg) Gross Weight: 33 lbs (15.0 kg)


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED / Fan fail LED / UID LED


Drive Bays

Hot-swap	10 hot-swap 2.5" U.2 NVMe drive bays


Backplane

Hybrid Backplane	Supports up to 10x 2.5" NVMe storage devices, 4 of them SAS3/SATA3 compatible


System Cooling

Fans	6 heavy-duty PWM fans with optimal fan speed control
Air Shroud	1 Air Shroud


AC/DC240V Input Redundant Power Supply

700W/750W Redundant Power Supplies with PMBus
Total Output Power	700W/750W
Dimension (W x H x L)	54.5 x 40.25 x 320 mm
Input	100 - 140Vac / 8 - 6A / 50-60Hz 200 - 240Vac / 4.5 - 3.8A / 50-60Hz 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V	Max: 58A / Min: 0.5A (100 - 140Vac) Max: 62A / Min: 0.5A (200 - 240Vac) Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only)
+5V sb	Max: 3A / Min: 0A
Output Type	Gold Finger Connector Mating with Molex 45984-4343
Certification	Platinum Certified [ Test Report ]


PC Health Monitoring

CPU	Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT CPU switching voltage regulator
FAN	Up to 6-fan status tachometer monitoring Up to six 4-pin fan headers Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 6x Fan connectors I²C Temperature Sensing Logic
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 30°C (50°F to 86°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard	MBD-H11SSW-NT	1	Super H11SSW-NT Motherboard
Chassis	CSE-116TS-R706WBP3	1	1U Chassis
HD Backplane	BPN-SAS3-116A-N10	1	10-port 1U SAS3 12Gbps Hybrid backplane, support up to 10x 2.5-inch NVMe storage devices, 4 of them are SAS3/SATA3 drives compatible.
Cable(s)	CBL-PWEX-1072	2	PWEX,2X2M/P4.2 TO 2X2F/P4.2,BLK1,YEL1,28CM,16AWG
Cable(s)	CBL-PWEX-1073	2	PWEX,2X2F/P4.2 TO 1X4M/P5.08,BLK2,YEL1,RED*1,5CM,18AWG
Cable(s)	CBL-SAST-0814	1	SLIMLINE SAS x8 (LA) to 2x Oculink x4,INT,13CM,34AWG
Cable(s)	CBL-SAST-0815	3	SLIMLINE SAS x8 to 2x Oculink x4,INT, 22CM,34AWG
Cable(s)	CBL-SAST-0816	1	SLIMLINE SAS x8 (LA) to 2x Oculink x4,INT, 28CM,34AWG
Riser Card	RSC-R1UW-2E16	1	1U LHS WIO Riser card with two PCI-E x16 slots
Riser Card	RSC-WR-6	1	1U RHS WIO Riser card with one PCI-E x16 slot,HF,RoHS
Heatsink / Retention	SNK-P0062P	1	1U Passive CPU Heat Sink for AMD Socket SP3 Processors
Mounting Rail(s)	MCP-290-00063-0N	1set	Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
Drive Tray(s)	MCP-220-00127-0B-BULK	10	Black gen3 Hotswap 2.5 NVMe drive tray, Orange tab/Lock/Bulk
Fan(s)	FAN-0101L4	5	40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
Software	SFT-OOB-LIC •	1	OOB Management Package (per node license)


Optional Parts List

	Part Number	Qty	Description
Storage Controller card & cable	AOC-S3008L-L8e & 1x CBL-SAST-0699 AOC-S3008L-L8i & 1x CBL-SAST-0699 AOC-S3108L-H8iR & 1x CBL-SAST-0699	- - -	Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG
Cable Management Arm	MCP-290-00085-0N	-	Supermicro Cable Management Arm for 1U Chassis
TPM	AOM-TPM-9655V	-	Vertical TPM with Infineon 9655 TCG 1.2
TPM	AOM-TPM-9665V	-	AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
Optional Kit for 4 SATA Drive Support	CBL-SAST-0813	1	SLIMLINE SAS x8 (LA) to SATA x4,INT, 16/26CM,32AWG
Optional Kit for 4 SATA Drive Support	MCP-220-00147-0B	4	Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design)
Global Services & Support	OS4HR3/2/1	-	3/2/1-year onsite 24x7x4 service
Global Services & Support	OSNBD3/2/1	-	3/2/1-year onsite NBD service
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
