A+ Server 2014TP-HTR

A+ Products Systems 2U [ 2014TP-HTR ]





Integrated Board
H12SST-PS Motherboard
Super H12SST-PS

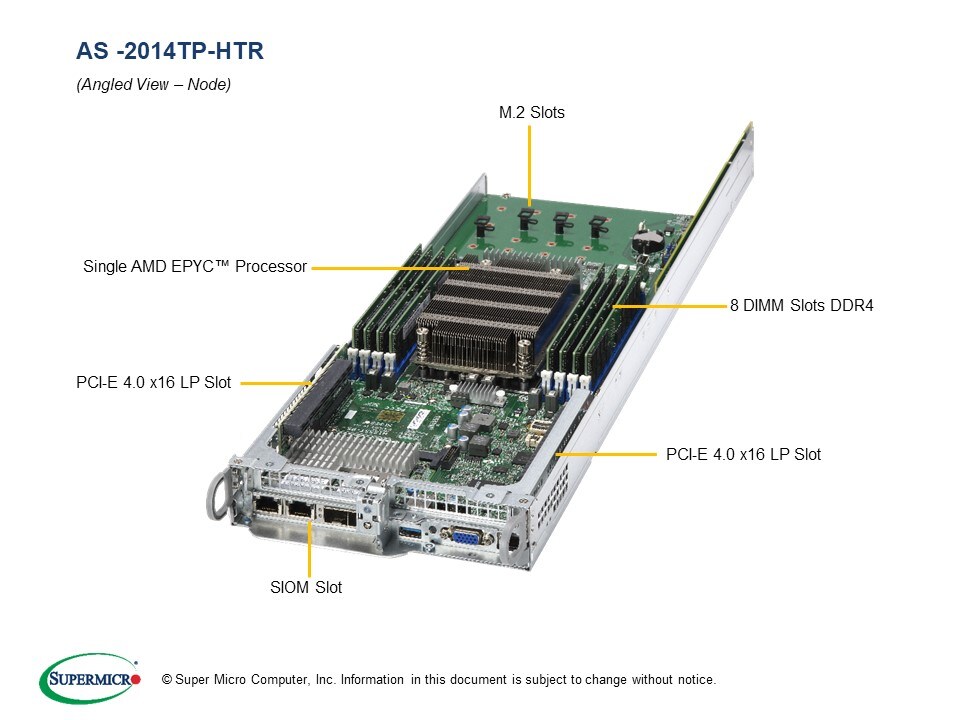

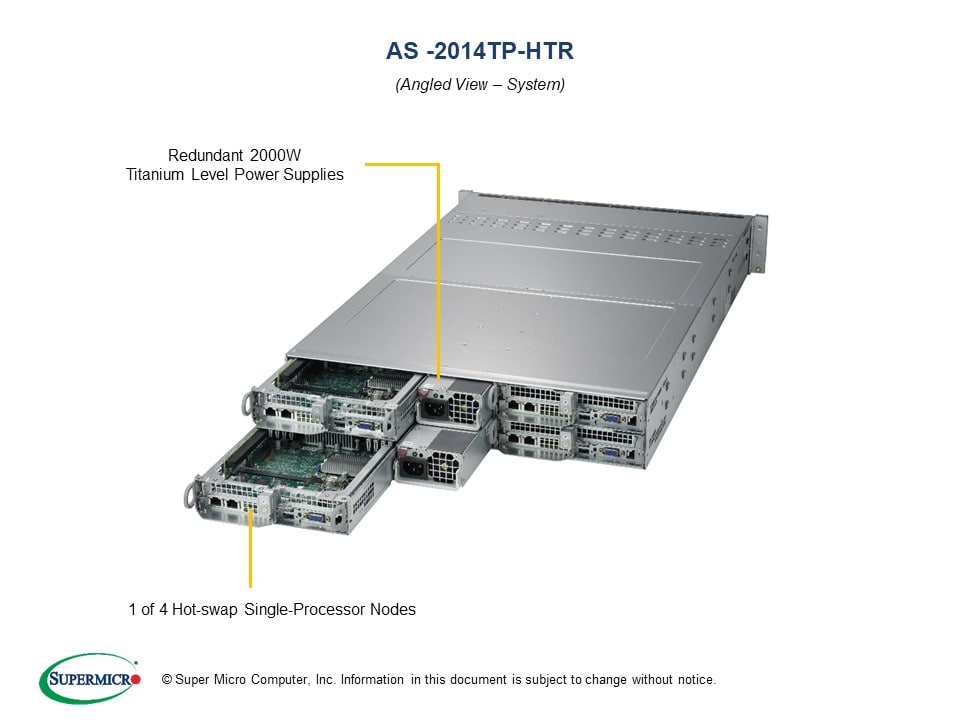

Views: Angled View | Node View |

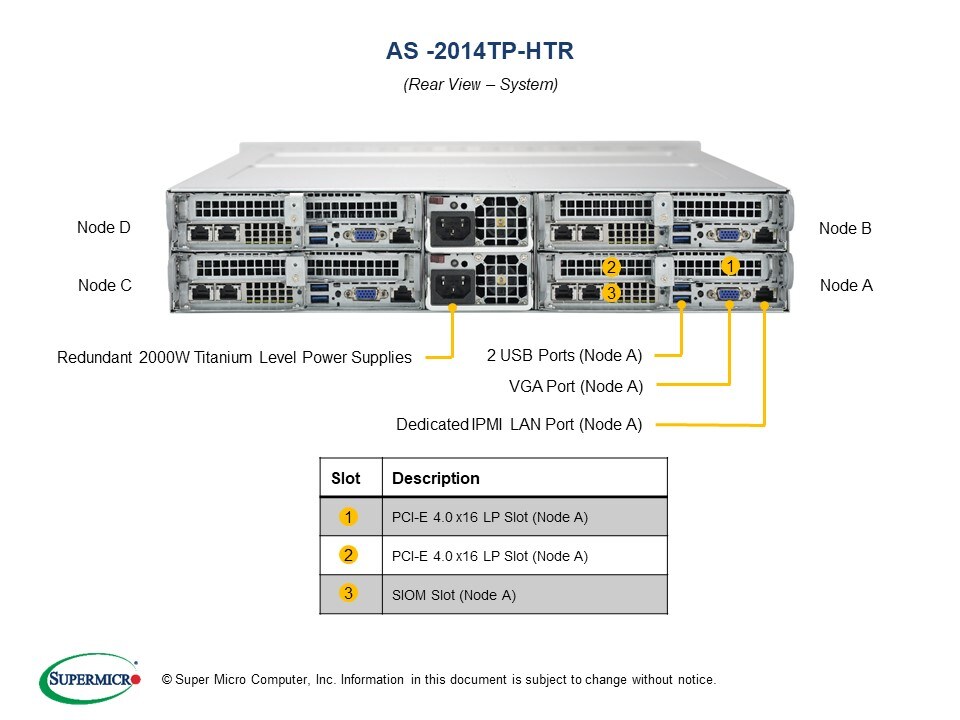

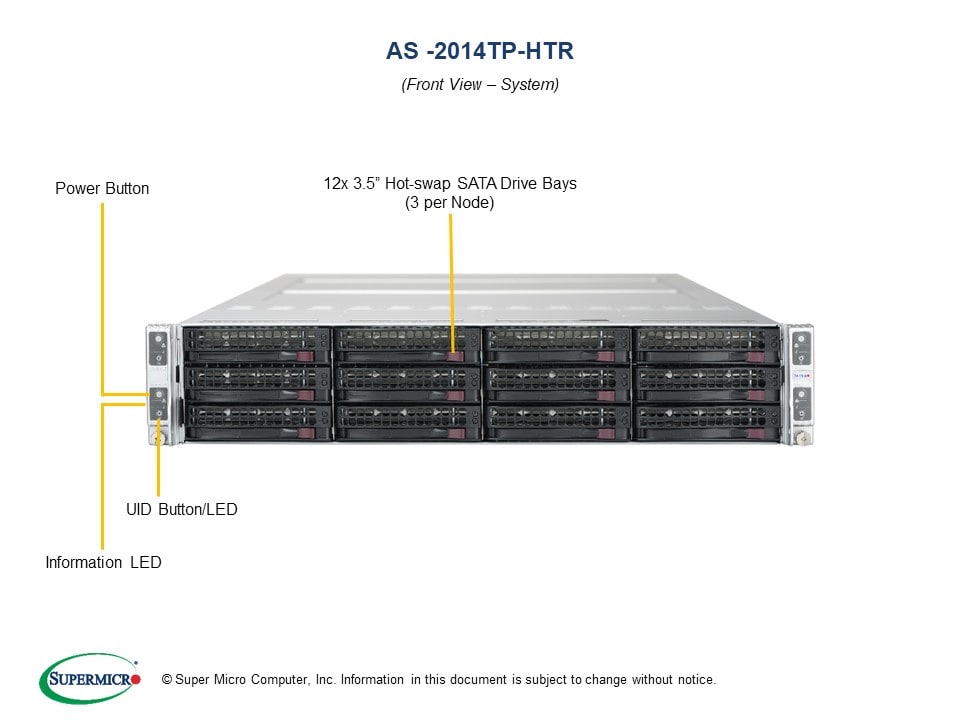

| Front View | Rear View |
Key Features
- Compute Intensive Applications
- HPC, Data Center, Enterprise Server
- Hyperscale / Hyperconverged

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. Up to 2TB ECC 3DS LRDIMM,
up to DDR4-3200MHz; 8 DIMM slots
3. 2 PCI-E 4.0 x16 (LP) slots
4. Flexible Networking support via SIOM;
Dedicated IPMI 2.0 LAN
• Software Out of Band License key
   (SFT-OOB-LIC) included for
   OOB BIOS management
5. 3 Hot-swap 3.5" SATA3 drive bays
M.2 Interface: 4 SATA/PCI-E 4.0 x4
M.2 Form Factor: 2280, 22110, 2260, 2242
M.2 Key: M-key
6. 2000W Redundant Power Supplies
Titanium Level (96%)
   (Full redundancy based on
   configuration and application load)

Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List Tested AOC Manuals OS Certification Matrix Quick-References Guide Drive Options

Product SKUs
AS -2014TP-HTR
  • A+ Server 2014TP-HTR
Motherboard (per Node)

Super H12SST-PS
Processor/Chipset (per Node)
CPU
  • Single AMD EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP / cTDP up to 280W*
Cores
  • Up to 64 Cores
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory (per Node)
Memory Capacity
  • 8 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
  • 8-channel memory bus
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
Memory Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices (per Node)
Chipset
  • System on Chip
Storage
  • SATA3 (6Gbps) via AMD EPYC
Network Controllers
  • Barebones and Complete System must have at least one SIOM installed per node
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC
Input / Output (per Node)
LAN
  • Provided via SIOM (optional)
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 1 USB 2.0 port (Type A)
Video
  • 1 VGA port
DOM
  • 1 SuperDOM (Disk on Module) port
Others
  • 2 COM ports (header)
  • 1 TPM 2.0 header
System BIOS (per Node)
BIOS Type
  • AMI 128Mb SPI Flash ROM
Management (per Node)
Software
Power Configurations
  • ACPI / APM Power Management
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-827HQ+-R2K04BP2
Dimensions and Weight
Width
  • 17.25" (438mm)
Height
  • 3.47" (88mm)
Depth
  • 30.5" (774mm)
Package
  • 26.4" (W) x 11.2" (H) x 39.8" (D)
Weight
  • Gross Weight: 85 lbs (38.6 kg)
  • Net Weight: 54.5 lbs (24.7 kg)
Available Colors
  • Black
Front Panel (per Node)
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express
  • 2 PCI-E 4.0 (x16) Low-profile slots
  • 1 SIOM card support
    (must be assembled/integrated with SIOM)
M.2
  • Interface: 4 SATA/PCI-E 4.0 x4
  • Form Factor: 2280, 22110, 2260, 2242
  • Key: M-key
Drive Bays (per Node)
Hot-swap
  • 3 Hot-swap 3.5" SATA3 drive bays
System Cooling
Fans
  • 4 Heavy duty 8cm PWM fans

Power Supply (76mm Width)
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1800W/1980W/2000W
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
  • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
  • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-127 Vac)
  • Max: 150A / Min: 0A (200-220 Vac)
  • Max: 165A / Min: 0A (220-230 Vac)
  • Max: 166.7A / Min: 0A (230-240 Vac)
  • Max: 166.7A / Min: 0A (200-240 Vac)
    (UL/cUL only)
+5Vsb
  • Max: 1A / Min: 0A
Output Type
  • 27 Pairs Gold Finger Connector
Certification Titanium Level 96%   Titanium Level
  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 30°C (50°F ~ 85°F)
    All CPU SKUs supported
    10°C ~ 35°C (50°F ~ 95°F)
    See Note *
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

Part Number
 Qty
 Description
Motherboard / Chassis MBD-H12SST-PS
CSE-827HQ+-R2K04BP2 		4
1 		Super H12SST-PS Motherboard
2U Chassis
Backplane BPN-ADP-6SATA3P 4 Backplane adapter card; 6SATA ports,RoHS/REACH,PBF
Backplane BPN-SAS3-827HQ2 1 2U 12-Port 4-Node Backplane Supports 3x3.5" SAS3/SATA3 HDD per Node
Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5" HDD tray
Parts MCP-240-82715-0N 1 TwinPro SC827HQ+ BPN retention bracket assembly
Riser Card RSC-P-6-X2 4 1U LHS TwinPro riser card with one PCI-E 4.0 x16 slot,HF,RoH
Riser Card RSC-PR-6-X2 4 1U RHS TwinPro Riser card with one PCI-E 4.0 x16 slot,HF,RoH
Software SFT-OOB-LIC 4 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0062P 4 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
Air Shroud MCP-310-82723-0B 4 SC827HQ+ mylar air shroud for MBD-H12SST-PS-P
Power Supply PWS-2K04A-1R 2 AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
FAN FAN-0162L4 4 80x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan,RoHS/REACH
Cable CBL-PWCD-0578-1 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management


Optional Parts List
Part Number Qty Description
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00043-0N - Black Hot-swap gen 4 3.5" to 2.5" HDD tray
Global Services & Support OS4HR3/2/1
OSNBD3/2/1 		-
- 		3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
TPM security module AOM-TPM-9655V - TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
AOM-TPM-9665V - TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF;
SIOM - - Supermicro SIOM solutions [Details]
Hide Parts List
