A+ Server F2014S-RNTR (Complete System Only)

A+ Products Systems FatTwin™ [ F2014S-RNTR ]





Integrated Board
H12SSFR-AN6 Motherboard
Super H12SSFR-AN6

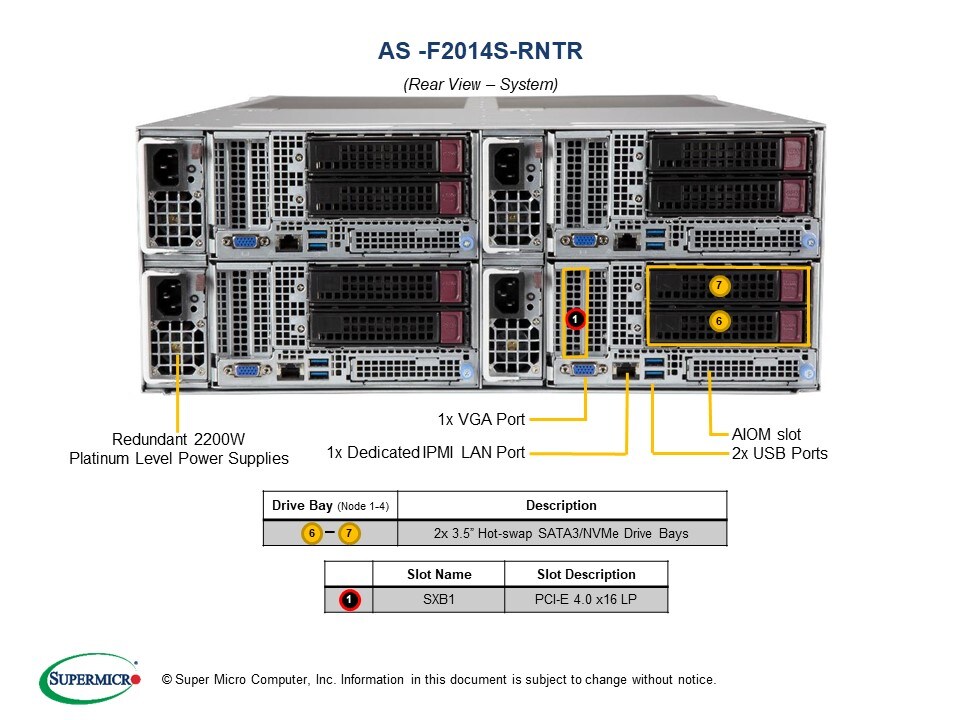

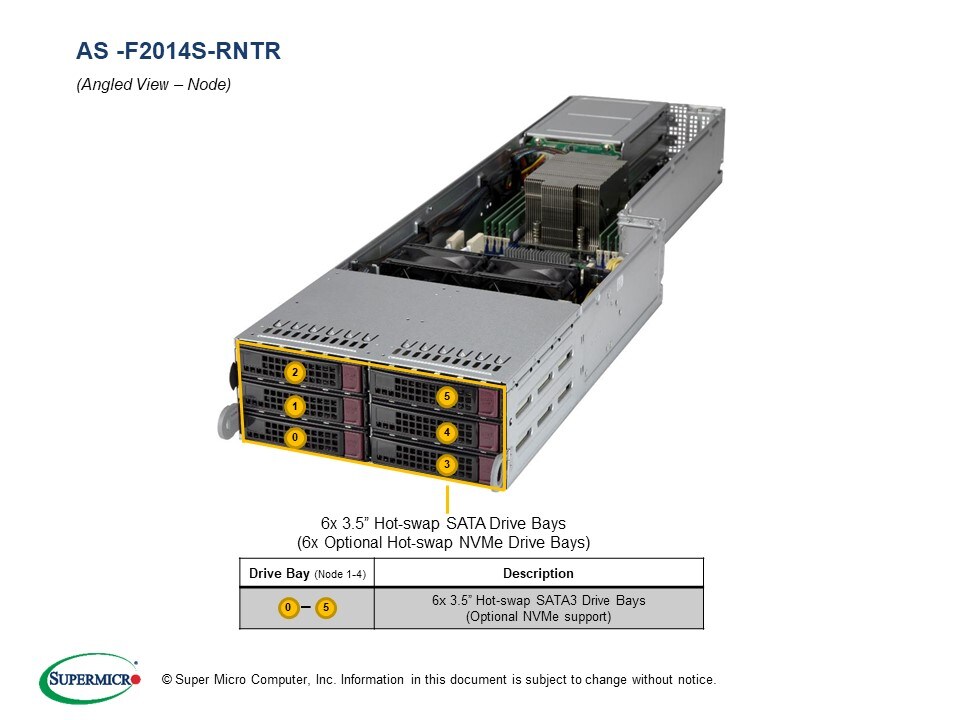

Views: | Angled (node) | Top (node) |
| Angled Front (system) | Rear (system) |

Key Applications
- Hyperscale / Hyperconverged
- HPC and Big Data
- Data Center Enterprise Applications
- Scale Out Storage
- Telco Data Center
- Virtualization Server


Key Features
4 Hot-pluggable System Nodes in a 4U form factor.
Each node supports:
1. Single AMD EPYC™ 7003/7002 Series Processor
(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
2. Up to 2TB ECC 3DS LRDIMM,
up to DDR4-3200MHz; 8 DIMM slots
3. Expansion slots: 1 PCI-E 4.0 x16 (LP Riser)
1 PCI-E 4.0 x8 (for Internal RAID AOC)
4. AIOM Network card,
1 dedicated IPMI LAN port
5. 1 VGA, 2 USB 3.0 ports
6. 8 Hot-swap 3.5" drive bays:
   Front 6 SATA (Optional NVMe support),
   Rear 2 SATA/NVMe
M.2 Interface: 4 SATA/PCI-E 4.0 x4
M.2 Form Factor: 2242, 2260, 2280, 22110
M.2 Key: M-Key
7. 2x 8cm 13.5K RPM middle fans
8. 2200W Redundant Power Supplies
Titanium Level (96%)
   (Full redundancy based on
   configuration and application load)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely assembled system (for optimal performance 8 DIMMs is recommended). Minimum requirement is 1 CPU, 4 DIMMs, 1 HDD/NVMe and 1 AIOM/AOC NIC card per node.

Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List NVMe Options Manuals OS Certification Matrix Drive Options Tested AIOM

Product SKUs
AS -F2014S-RNTR
  • A+ Server F2014S-RNTR (Black)
Motherboard

Super H12SSFR-AN6
Processor/Chipset (per Node)
CPU
  • Single AMD EPYC™ 7003/7002 Series Processor
    (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
  • Socket SP3
  • Supports CPU TDP / cTDP up to 280W*
Cores
  • Up to 64 Cores
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory (per Node)
Memory Capacity
  • 8 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
  • 8-channel memory bus
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
Memory Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Flexible networking via AIOM (not included, must add 1 per node)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2600 BMC
Input / Output (per node)
LAN
  • Flexible networking via AIOM
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
VGA
  • 1 VGA port
Others
  • 1 COM port
  • 1 TPM 2.0 header
System BIOS
BIOS Type
  • 256Mb SPI Flash EEPROM with AMI BIOS
Management
Software
Power Configurations
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-F424AS3-R2K20BP
Dimensions and Weight
Width
  • 17.63" (448mm)
Height
  • 6.96" (177mm)
Depth
  • 29" (737mm)
Package
  • 28.3" (W) x 15.0" (H) x 42.4" (D)
Weight
  • Net Weight: 150 lbs (68.04 kg)
  • Gross Weight: 200 lbs (90.71 kg)
Available Colors
  • Black
Front Panel (per node)
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • Information LED (UID, Fan failure, Overheat)
Expansion Slots (per node)
PCI-Express
  • 1 PCI-E 4.0 x16 (Low-profile riser)
  • 1 PCI-E 4.0 x8 (Internal RAID AOC)
Drive Bays (per node)
Hot-swap
  • 8 Hot-swap 3.5" drive bays: Front 6 SATA (optional NVMe support), Rear 2 SATA/NVMe
M.2
  • M.2 Interface: 4 SATA/PCI-E 4.0 x4
  • M.2 Form Factor: 2242, 2260, 2280, 22110
  • M.2 Key: M-Key
Backplane
1 SATA/NVMe backplane
System Cooling (per node)
Fans
  • 2x 8cm 13.5K RPM middle fans

Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency
  • 50-60Hz
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 183.3A / Min: 0A (220-240Vac)
5VSB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level96%   Titanium Level
  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-H12SSFR-AN6
CSE-F424AS3-R2K20BP
4
1
Super H12SSFR-AN6 Motherboard
4U Chassis
Backplane BPN-ADP-2UPWR 4 Backplane adapter card for 2UPWR,RoHS/REACH
Backplane BPN-SAS3-F424-A2N2A 4 2-Port Hybrid Backplane support 2 x SAS3/SATA3/NVMe Storage Devices
Backplane BPN-SAS3-F424-A6N6 4 6-Port Hybrid Backplane Supports 6x3.5
Cable 1 CBL-0486L 12 2x2 to 2x2 15cm Power Cable HF
Cable 2 CBL-OTHR-1211-28 4 2x10pin (PH 1) to 2x10pin (PH 1),11CM,28AWG,1A/pin,RoHS
Cable 3 CBL-PWCD-0900 4 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
Cable 4 CBL-SAST-1228-100 4 Slimline x4(STR) to 2x MiniSAS HD x4(STR),55/15CM,100OH
Cable 5 CBL-SAST-1239F-85 4 Slimline x8 (RE) to 2x Oculink x4 (STR),FFC,28/28CM,85
Cable 6 CBL-SAST-1247-100 4 Slimline x4 (LE) to MiniSAS HD x4 (STR),47CM,100 OHm,Ro
Heatsink / Retention SNK-P0063PB 4 Proprietary 2U Passive CPU Heat Sink for AMD SP3 Processors
Power Supply PWS-2K20A-1R 4 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
Software SFT-OOB-LIC 1 OOB Management Package (per node license)


Optional Parts List
Part Number Qty Description
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
