A+ Server 1124US-TNRP (Complete System Only)

A+ Products Systems 1U [ 1124US-TNRP ]





Integrated Board
H12DSU-iN

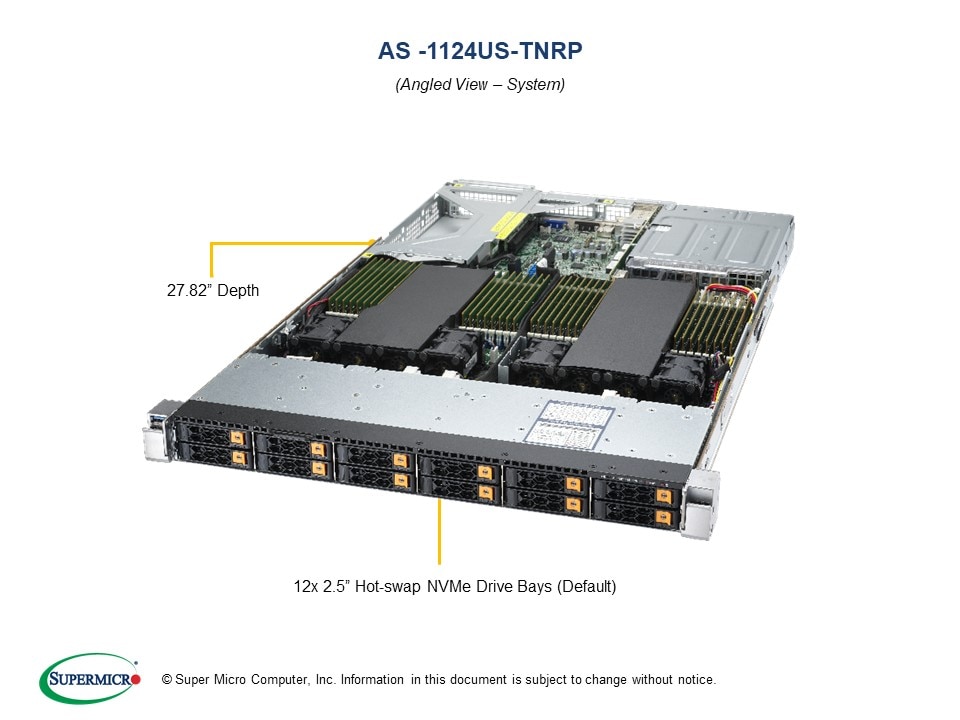

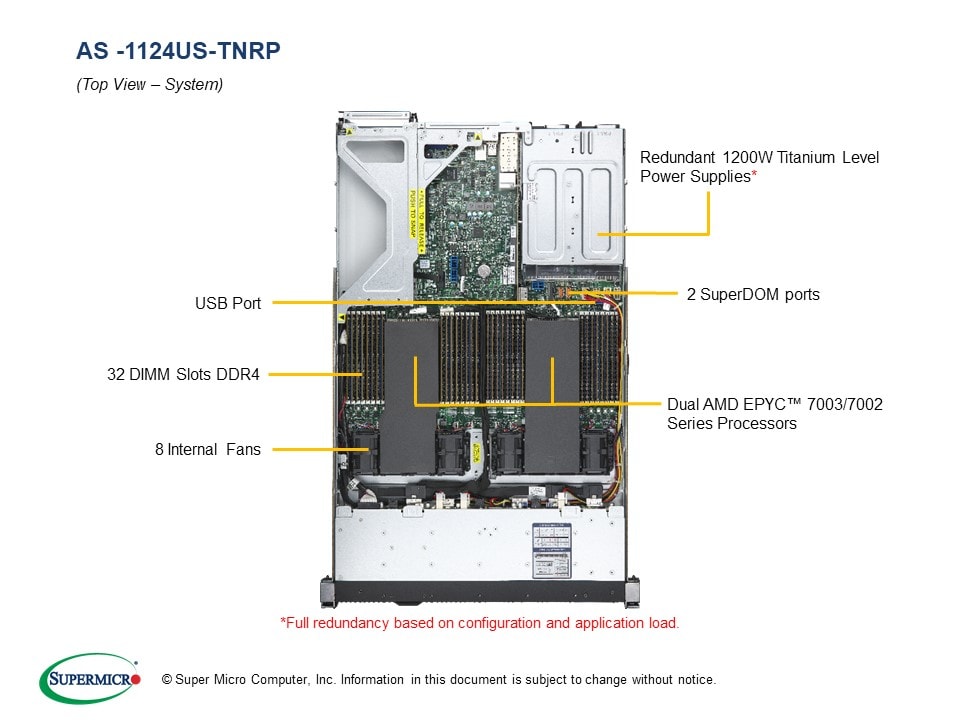

Views: | Angled View | Top View |

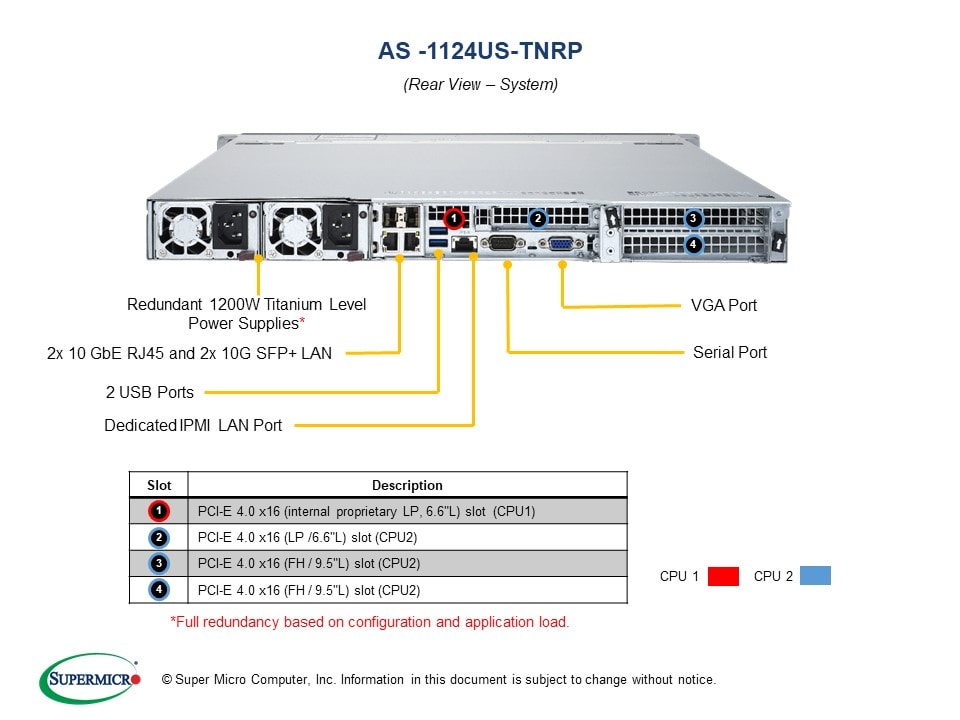

| Front View | Rear View |

Key Features
  - Virtualization
  - Cloud Computing
  - High End Enterprise Server
1. Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
3. Expansion slots:
2 PCI-E 4.0 x16 (FH, 9.5"L),
1 PCI-E 4.0 x16 (LP),
1 PCI-E 4.0 x16 (internal proprietary LP slot)
[ Details ]
4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
 key (SFT-OOB-LIC) included
 for OOB BIOS management
5. Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4
6. Drive Bays:
12 Hot-swap 2.5" U.2 NVMe drive bays
or SATA3/SAS3 (via optional SAS kit)
7. 1200W Redundant Power Supplies
Titanium Level (96%)
(Full redundancy based on configuration
and application load)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs & at least 24/32 cores per CPU is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 storage drive.

Drivers & Utilities BIOS IPMI Tested Memory Tested M.2 List NVMe Options Tested AOC Manuals OS Certification Matrix Quick-References Guide Drive Options Datasheet

Product SKUs
AS -1124US-TNRP
  • A+ Server 1124US-TNRP (Black)
Motherboard

Super H12DSU-iN
Processor/Cache
CPU
  • Dual AMD EPYC™ 7003/7002 Series Processors
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W*
Cores
  • Up to 64 Cores
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory
Memory Capacity
  • 32 DIMM slots
  • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
  • 8-channel memory bus
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip (SoC)
SATA
  • SATA3 (6Gbps)
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output
NVMe
  • 12 NVMe ports (default)
LAN
  • Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports
    (2 rear + 1 Type A + 1 front)
VGA
  • 1 VGA port
SAS
  • 12 SAS3 ports support via optional SAS kit
SATA
  • 12 SATA3 ports support via optional kits
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connectors
  • TPM 2.0 header
System BIOS
BIOS Type
  • AMI 128Mb SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-119UHTS-R1K22HP-A
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 29.1" (739mm)
Package
  • 7.8" (H) 23.66" (W) 37.13" (D)
Gross Weight
  • 48 lbs (21.8 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • UID LED
Expansion Slots
PCI-Express
  • 2 PCI-E 4.0 x16 (FH/HL, 9.5"L)
  • 1 PCI-E 4.0 x16 (LP)
  • 1 PCI-E 4.0 x16 (internal proprietary LP slot)


(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Drive Bays
Hot-swap
  • 12 Hot-swap 2.5" U.2 NVMe drive bays
Backplane
HDD Backplane
  • Supports 12 NVMe or 12 SAS3 HDD or 12 SATA3
System Cooling
Fans
  • 8 Heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
1200W Redundant Power Supplies with PMBus
Total Output Power
  • 800W: 100 – 127Vac
  • 1200W: 200 – 240Vac
  • 1200W: 200 -240Vdc (for CCC only)
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7.5 - 6A / 50-60Hz
  • 200-240Vdc / 7.5 - 6A (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 100A / Min: 0A (200-240Vac)
  • Max: 100A / Min: 0A (200-240Vdc)
+12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96% Titanium Level
 [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 30°C (50°F ~ 86°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

Part Number
 Qty
 Description
Motherboard / Chassis MBD-H12DSU-iN
CSE-119UHTS-R1K22HP-A 		1
1 		Super H12DSU-iN Motherboard
CSE-119UHTS-R1K22HP-A chassis
Add-on Card / Module AOC-URG4N4-I4XTS-P 1 1U Ultra Riser with 2-port 10GBase-T RJ45 & 2-port 10G SFP+, based on Intel Carlsville X710-AT2, with 1 PCI-E 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8).,RoHS
Backplane BPN-SAS3-119A-N12 1 1U Hybrid BPN for 12x2.5"; SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-CDAT-0190 1 CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,30CM,28AWG,RoHS
Cable 2 CBL-PWEX-0781 1 PWR EXT,2X4F/P4.2 TO TWO 2X2F/P4.2,CPU(5,12V),65/65CM,18AWG
Cable 3 CBL-PWEX-1067 1 PWR EXT,2X4F to 2x2, 42CM,18AWG, 8A/pin,RoHS
Cable 4 CBL-SAST-1243-85 1 Slimline x8 (LE) to Slimline x8 (RE),43CM,85 OHM
Cable 5 CBL-SAST-1254F-85 1 Slimline x8 (STR) to Slimline x8 (RE/LE),FFC,54CM,85 OH
Cable 6 CBL-SAST-1258-85 1 Slimline x8 (RE) to Slimline x8 (LE),58CM,85 OHM
Cable 7 CBL-SAST-1260-85 1 Slimline x8 (LE) to Slimline x8 (LE),60CM,85 OHM
Cable 8 CBL-SAST-1263F-85 1 Slimline x8 (LE) to 2x Slimline x4 (RA),FFC,63/65CM,85
Riser Card RSC-W-66G4 1 1U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS
Riser Card RSC-WR-6 1 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
Heatsink / Retention SNK-P0062P 2 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
* Power Supply PWS-1K22A-1R 2 1U 1200W/800W Titanium Redundant Power Supply CRPS 73.5x203x40mm,RoHS/REACH
* FAN FAN-0163L4 8 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
Part Number Qty Description
Storage Control Card and Cable(s) AOC-S3008L-L8e &
2x CBL-SAST-0531
(support up to 8 SAS3 HDD)
AOC-S3008L-L8i &
2x CBL-SAST-0531
(support up to 8 SAS3 HDD)
AOC-S3108L-H8iR/16DD &
2x CBL-SAST-0531
(support up to 8 SAS3 HDD)
AOC-SAS3-9361-16I &
3x CBL-SAST-0531
(support up to 12 SAS3 HDD)
AOC-S3616L-L16IT &
3x CBL-SAST-0531
(support up to 12 SAS3 HDD)
AOC-S3808L-L8iT &
1x CBL-SAST-1264-100
(support up to 8 SAS3 HDD)
AOC-S3908L-H8iR-16DD &
1x CBL-SAST-1264-100
(support up to 8 SAS3 HDD)
AOC-S3816L-L16iT &
2x CBL-SAST-1264-100
(support up to 12 SAS3 HDD)
AOC-S3916L-H16iR-32DD &
2x CBL-SAST-1264-100
(support up to 12 SAS3 HDD) 		-


-


-


-


-


-


-


-


-

  		Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA
Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s

Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E
Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s

Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s

MegaRAID SAS 9361-16i
Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s

16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP
Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s

8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS
Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS

8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS

16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS
Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS

16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS
Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS

M.2 by AOC AOC-SLG3-2M2 1 LP, PCIe3 x8, Dual port NVMe M.2 carrier
AOC-SLG3-2H8M2 1 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS
HDD Tray for SAS/SATA MCP-220-00187-0B 1~12 Tool-less black hot-swap 2.5" drive tray (red tab)
CacheVault(s) BTR-TFM8G-LSICVM02 - CacheVault for Broadcom 3108
BKT-BBU-BRACKET-05 Supercap mounting bracket for PCI-E location
BTR-TFM8G-LSICVM02 - CacheVault for Broadcom 3108
MCP-240-00127-0N Supercap mounting bracket for 2.5" HDD location
BTR-CVPM05 - Cache Vault for 3908/3916 controller
BKT-BBU-BRACKET-05 Supercap mounting bracket for PCI-E location
BTR-CVPM05 - Cache Vault for 3908/3916 controller
MCP-240-00127-0N Supercap mounting bracket for 2.5" HDD location
TPM AOM-TPM-9665H - Horizontal TPM using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
SATADOM SSD-DM128-SMCMVN1 - SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH
SSD-DM480-SMCMVN1 - SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS
SSD-DM064-SMCMVN1 - SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
SSD-DM032-SMCMVN1 - SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
MEM-IDSAVS4-032G - SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725)
MEM-IDSAVM8A-128G - SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411)
MEM-IDSAVM8A-256G - SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411)
MEM-IDSAVE1-064G - SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i)
MEM-IDSAVS3-032G - SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710)
MEM-IDSAVT1-256G - IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
