A+ Server 3014TS-i

A+ Products Systems Mid-Tower [ 3014TS-i ]





Integrated Board
H12SSL-i Motherboard
Super H12SSL-i

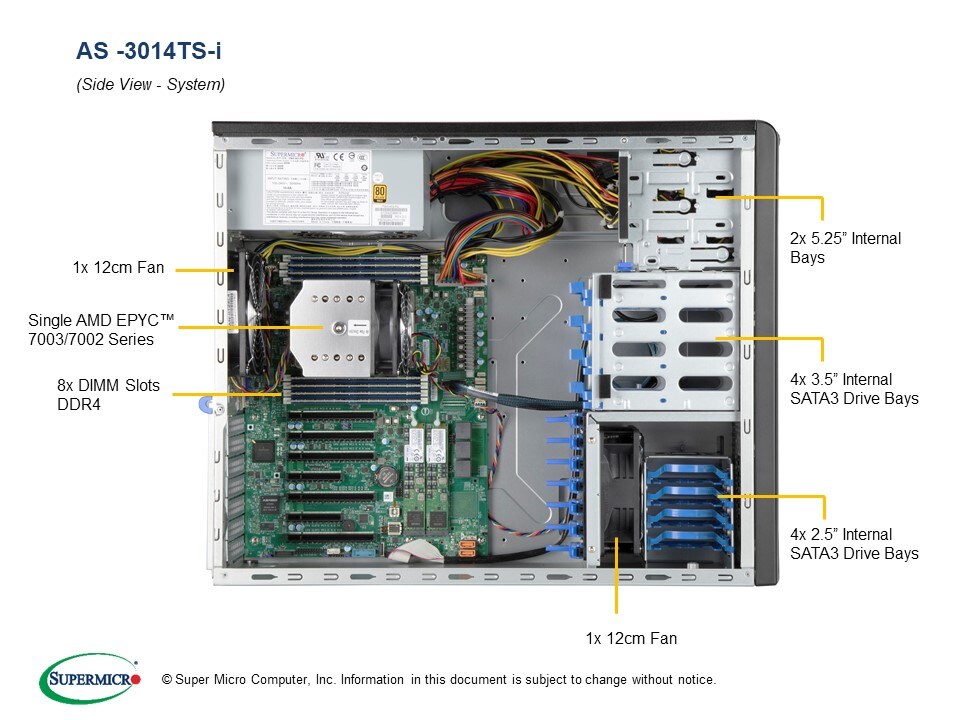

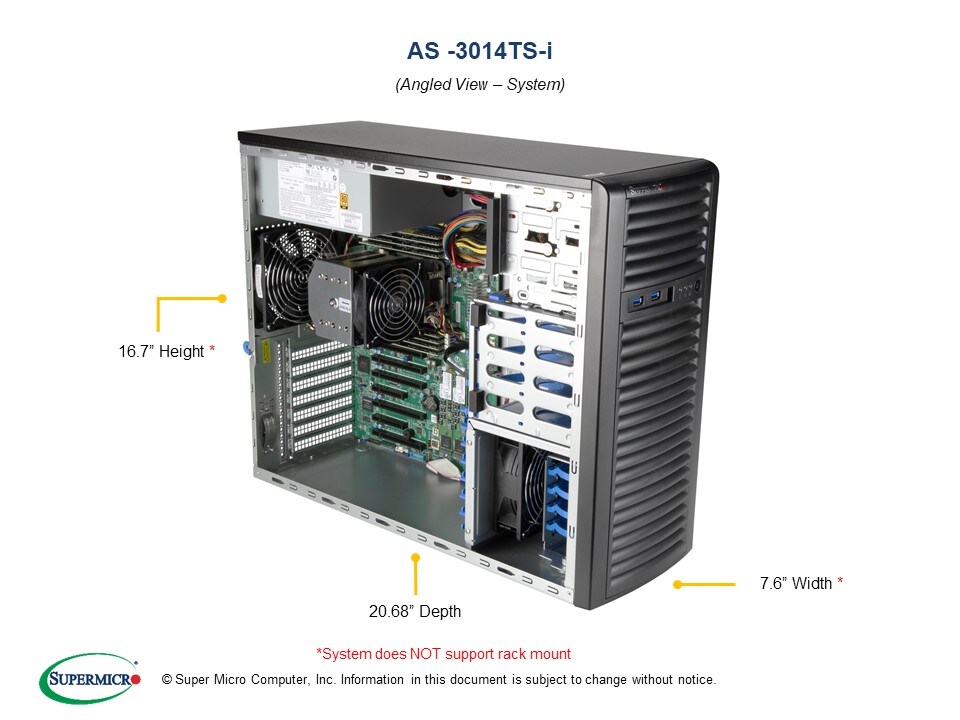

Views: | Angled View | Side View |

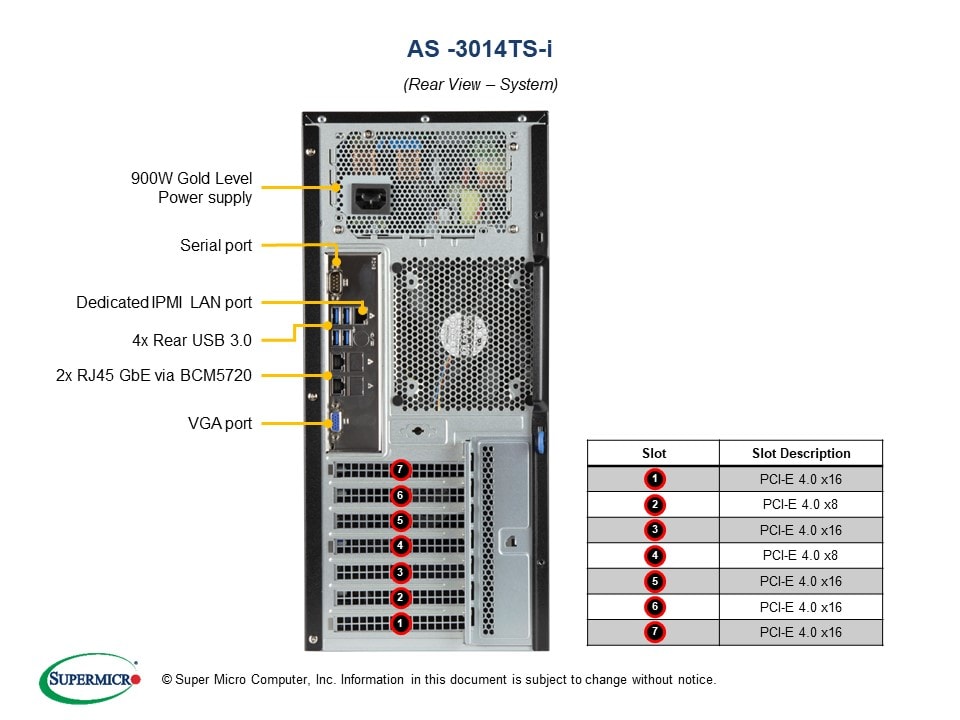

| Front View | Rear View |

Key Applications
- Entry-Level Workstation
- Video and Music Production
- 3D Simulation and Rendering
- Office Applications


Key Features
1. Single AMD EPYC™ 7002/7003 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
3. 5 PCI-E 4.0 x16 (FH), 2 PCI-E 4.0 x8 (FH)
4. Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
 key (SFT-OOB-LIC) included
 for OOB BIOS management
5. 4 internal 3.5" SATA3 drive bays and 4 internal 2.5" drive bays
M.2 Interface: 2 PCI-E 4.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key
6. 6 USB 3.0 ports (4 rear, 2 via header),
1 VGA, ASPEED AST2500 BMC graphics
7. Dual Gigabit LAN ports
8. 900W Gold Level Power Supply

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List  Tested AOC  Manuals   Quick-References Guide  Drive Options

Product SKUs
AS -3014TS-i
  • A+ Server 3014TS-i (Black)

Motherboard

Super H12SSL-i

Processor/Chipset
CPU
  • Single AMD EPYC™ 7002/7003 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W
Cores
  • Up to 64 Cores

System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Broadcom BCM5720 Gigabit Ethernet Controller
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 8 SATA3 (6 Gbps) ports
LAN
  • Dual Gigabit Ethernet ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 3.0 ports (4 rear, 2 via header)
COM
  • 1 COM Port (rear)
Video
  • 1 VGA port
DOM
  • 1 SuperDOM (Disk on Module) port

System BIOS
BIOS Type
  • AMI 256Mb SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • Mid-Tower
Model
  • CSE-732i-903B

Dimensions and Weight
Width
  • 7.6" (193mm)
Height
  • 16.7" (424mm)
Depth
  • 20.68" (525mm)
Packaging (W x H x L)
  • 11.97" (304mm) x 21.38" (543mm) x 25.27" (642mm)
Net Weight
  • 27 lbs (12.25 kg)
Gross Weight
  • 30 lbs (13.61 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • System Information LED
Ports
  • 2 USB 3.0 Ports

Expansion Slots
PCI-Express
  • 5 PCI-E 4.0 x16 (FH) slots
  • 2 PCI-E 4.0 x8 (FH) slots
M.2
  • Interface: 2 PCI-E 4.0 x4
  • Form factor: 2280, 22110
  • Key: M-key

Drive Bays
Internal
  • 4 internal 3.5" SATA3 drive bays
  • 4 internal 2.5" drive bays

System Cooling
Fans
  • 2x 12cm rear exhaust fans
  • Optional additional 12cm rear exhaust fan
Note Active CPU Heat Sink (SNK-P0064AP4) from Optional Parts List is required

Power Supply
900W AC multi output power supply
AC Voltage
  • 100-240 V, 50-60 Hz, 10-6 Amp
+5V Standby
  • 3 Amp
+12V1
  • 25 Amp
+12V2
  • 25 Amp
+12V3
  • 25 Amp
+12V4
  • 25 Amp
+5V
  • 25 Amp
+3.3V
  • 25 Amp
-12V
  • 0.5 Amp
Certification Gold Level   Gold Level
Note: • Max. continuous combined load on +3.3V and +5V output shall not exceed 155W.
• Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W.

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Optional Parts List
  Part Number Qty Description
Heat Sink* SNK-P0064AP4 - 4U Active CPU Heat Sink for AMD Socket SP3 Platform
* Note: Adding this part is required (not included in the barebone/chassis)
TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
AOM-TPM-9665V - AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
OSNBD3/2/1 - 3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
