Advanced 100Gb Ethernet controller in Supermicro Advanced I/O Module (AIOM)
Supermicro® Advanced I/O Modules (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other
I/O technologies. The AOC-A100GT2-B2CM is based on the Broadcom BCM57608 series Ethernet Controllers and is designed to lower data
center total cost of ownership (TCO) by providing the industry’s lowest power consumption for 100G NICs. The AOC-A100GT2-B2CM offers a 2x
100G-capable network interface that delivers high-performance networking while maintaining low power consumption and thermal efficiency.
The BCM57608 series supports the fourth generation of RDMA over Converged Ethernet (RoCE) with hardware-based congestion control. This
technology ensures low latency and simplifies RoCE deployment at scale. Furthermore, the BCM57608 features the TruFlow engine, a hardware
acceleration engine with enhanced programmability. This engine allows for rapid implementation of new flow types, increasing virtual machine
density and improving application performance.
The BCM57608 supports industry-leading security features, including Broadcom’s HW Secure Boot (RoT) and Attestation support. These security
measures enable the creation of secure server platforms.
In summary, the BCM57608 series Ethernet Controllers are versatile and can be used in a wide range of hardware designs, including cloud and
enterprise data center servers, AI and ML clusters, NVMe storage disaggregation, 5G Wireless RAN, Network Function Virtualization (NFV),
mobile edge computing, and HPC environments.

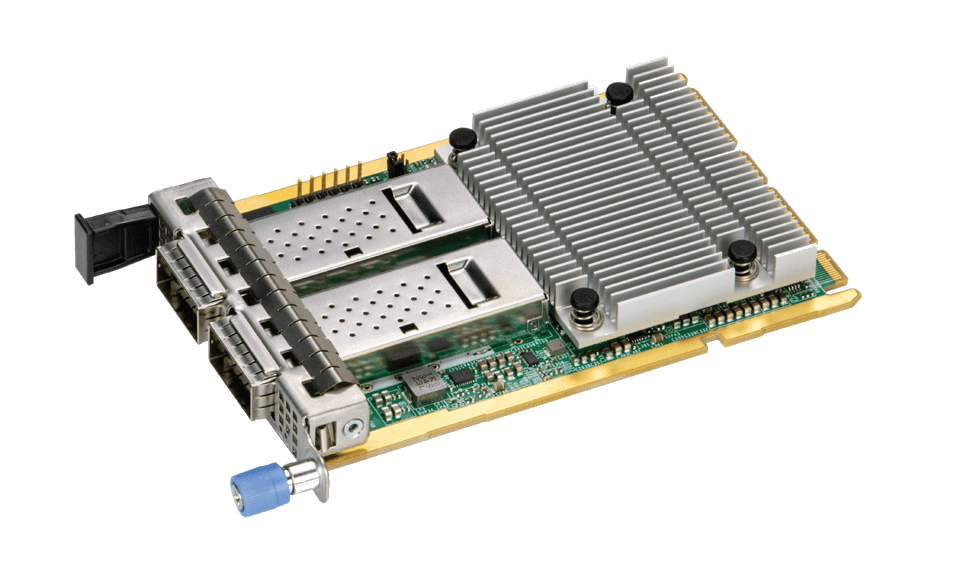

AOC-A100GT2-B2CM
Key Features
Broadcom® BCM57608 2x100GbE controller
PCIe Gen 5.0 x16
Supports 100/50/25 operation
Backward compatible with QSFP28 and QSFP56 optical modules and DAC/AOC cables
RDMA over Converged Ethernet (RoCEv2)
VXLAN, NVGRE and Geneve
NIC Partitioning (NPAR)
Broadcom® TruFlow™ flow processing engine
Asset Management Features with thermal sensor
NC-SI for Remote Management (Not supported in Standby by default)
Data Center Bridging Capability eXchange (DCBX; IEEE 802.1Qaz)
8 traffic classes per port; fully DCB compliant per 802.1Qbb
Power Savings
ACPI compliant power management
Pass-through Energy Efficient Ethernet (IEEE 802.3az-2010)
Power Consumption
Typical 19 W
Max 25.4 W (at 100C)
Environmental Conditions
Storage temperature: -40°C to 70°C (-40°F to 158°F)
Storage humidity: 90% non-condensing relative humidity at 35°C
Physical Dimensions
Card PCB dimensions: 76mm (2.99inch) x 115mm (4.52inch) (W x D)
QSFP112 connector supports backward compatibility with QSFP28 and QSFP56 modules operating at 100GbE and below.
Please note that this product is sold only as part of an integrated solution with Supermicro server systems.
Available SKUs
SKUs
Bracket Included
Description
AOC-A100GT2-B2CM
BKT-0170L
2-port 100 Gigabit Ethernet Adapter with a 0.5U height bracket.
