Add-on Card AOC-AG-i4 / AOC-AG-i4M
Products Accessories [ AOC-AG-i4 / AOC-AG-i4M ]
Add-on Card

Advanced I/O Module (AIOM) Gigabit Ethernet Adapters

The Supermicro® Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The GbE adapter AOC-AG-i4(M) is the most flexible and scalable GbE solution providing 4 RJ45 ports. Based on the Intel® network controller i350, and with performance-enhancing features, power management technologies, the AOC-AG-i4(M) provides a quality networking choice for datacenters while reducing CPU utilization and power consumption. With the added NC-SI feature, this adapter also functions as a secure networking port for server remote management.

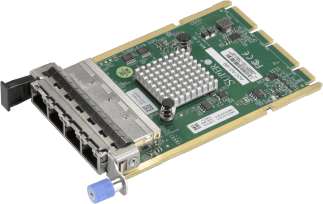

AOC-AG-i4M
AOC-AG-i4M

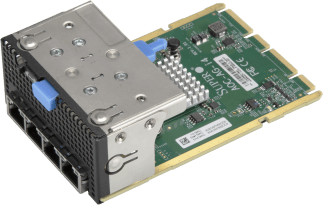

AOC-AG-i4
AOC-AG-i4

To order, contact your distributor. This product is only available through Supermicro.
Key Features
  • Advanced I/O Module (AIOM) Form Factor
  • 4x 1Gbps ports with RJ45 Connectors
  • Intel® i350 GbE controller
  • Energy Efficient Ethernet (EEE)
  • Reliable and proven Gigabit Ethernet technology
  • Asset Management Features with thermal sensor
  • NC-SI for Remote Management
Compliance
RoHS
  • RoHS Compliant 6/6


Specifications
  • General:
    • Advanced I/O Module (AIOM) Form Factor
    • Intel® i350 GbE Controller
    • 4x 1Gbps ports: 2x RJ45 Connectors


  • Networking Features
    • IEEE 802.3 auto-negotiation for speed, duplex, and flow control
    • IEEE 802.3x and 802.3z compliant flow control support
    • Automatic cross-over detection function (MDI/MDI-X)
    • 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant


  • Virtualization Features:
    • PC-SIG SR-IOV support
    • VM to VM Packet forwarding (Packet Loopback)
    • Flexible Port Partitioning
    • IEEE 802.1q VLAN support
    • IEEE 802.1q advanced packet filtering
    • Jumbo Frames support


  • Power Management and Efficiency:
    • Energy Efficient Ethernet (EEE)
    • DMA Coalescing reduces platform power consumption
    • PCI Express Active State Power Management (ASPM)
    • LAN disable function
    • Low Power Link Up – Link Speed Control


  • Performance Features:
    • TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage
    • Low Latency Interrupts
    • Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage
    • Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments
    • Intelligent interrupt generation


  • Management Features:
    • Preboot eXecution Environment (PXE) support
    • iSCSI Remote Boot Support
    • Asset Management support on Supermicro® platforms
    • NC-SI for remote management


  • OS Support:
    • Windows® Server
    • RedHat Linux
    • SUSE Linux
    • FreeBSD
    • UEFI
    • VMWare


  • Power Consumption (Max):
    • AOC-AG-i4(M): 4.4W


  • Operating Conditions:
    • Storage temperature: -40°C to 70°C (-40°F to 158°F)
    • Storage humidity: 90% non-condensing relative humidity at 35°C


  • Physical Dimensions:
    • PCB dimensions: 76mm x 115mm (W x D)


Please note that this product is sold only as part of an integrated solution with Supermicro server systems.

Downloads
User's Guide [ Download ]
Datasheet [ Download ]
Driver Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ Download ]
Driver CD Click on the latest CDR-NIC ISO file to download [ Download ]
Available SKUs
SKU Bracket Included Description
AOC-AG-i4 BKT-0177L 4-port Gigabit Ethernet Adapter with a 1U height bracket
AOC-AG-i4M BKT-0178L 4-port Gigabit Ethernet Adapter with a 0.5U height bracket
