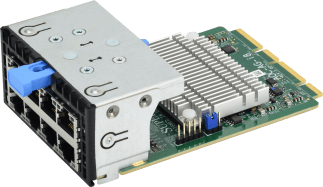

Add-on Card AOC-AG-i8



Products Accessories [ AOC-AG-i8 ]


Add-on Card

The Ultimate Ethernet Adapter in Supermicro Advanced I/O Module (AIOM) The Supermicro® Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options and other I/O technologies for server, storage and IoT systems. The AOC-AG-i8 is a highly flexible and scalable controller with 8 Gigabit Ethernet ports. Based on the Intel GbE network controller i350, the AOC-AG-i8 is designed with performance enhancing features and advanced power management technologies for the latest high performance data center and edge solutions.

To order, contact your distributor. This product is only available through Supermicro.



Key Features

Advanced I/O Module (AIOM) Form Factor Intel® i350 GbE controller 8 RJ45 Connectors Energy Efficient Ethernet (EEE) Reliable and proven Gigabit Ethernet technology Asset Management Features with thermal sensor NC-SI for Remote Management


Compliance

RoHS	RoHS Compliant 6/6


Downloads

User's Guide	[ Download ]
Datasheet	[ Download ]
Driver	Choose the latest CDR-NIC folder, and then click on Intel & folder for driver [ Download ]
Driver CD	Click on the latest CDR-NIC ISO file to download [ Download ]


Supported Platforms

Servers	SYS-1019D-FRN5TP


Specifications

General: Advanced I/O Module (AIOM) Form Factor Intel® i350 GbE controller 8 RJ45 ports Ethernet Features: IEEE 802.3 auto-negotiation for speed, duplex, and flow control IEEE 802.3x and 802.3z compliant flow control support Automatic cross-over detection function (MDI/MDI-X) 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant IEEE 1588 protocol and 802.1AS implementation Power Management and Efficiency: Energy Efficient Ethernet (EEE) DMA Coalescing reduces platform power consumption Active State Power Management (ASPM) support LAN disable function Low Power Link Up Link Speed Control Virtualization Features: PC-SIG SR-IOV support VM to VM Packet forwarding (Packet Loopback) Flexible Port Partitioning IEEE 802.1q VLAN support IEEE 802.1q advanced packet filtering Jumbo Frames support Performance Features: TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage Low Latency Interrupts Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments Intelligent interrupt generation Management Features: Preboot eXecution Environment (PXE) support iSCSI Remote Boot Support Asset Management support on Supermicro® platforms NC-SI for remote management OS Support: Windows RedHat Linux SUSE Linux FreeBSD UEFI VMWare Cable Support: RJ45 Category 5/5e up to 100m Power Consumption: Typical 7.4W; Maximum 8.8W Operating Conditions: Storage temperature: -40°C to 70°C (-40°F to 158°F) Storage humidity: 90% non-condensing relative humidity at 35°C Physical Dimensions: Card PCB dimensions: 115mm (4.528in) x 76mm (2.992in) (D x W)
Please note that this product is sold only as part of an integrated solution with Supermicro server systems.


Available SKUs

SKU	Bracket Included	Description
AOC-AG-i8	BKT-0155L	8-port Gigabit Ethernet Adapter with an 1U height bracket.
