Add-on Card AOC-ATGC-i2TM
Products Accessories [ AOC-ATGC-i2TM ]
Add-on Card

Advanced 10Gb Ethernet controller in Supermicro Advanced I/O Module (AIOM)

Supermicro® Advanced I/O Modules (AIOM) is the latest form factor designed to provide a wide range of networking options and other I/O technologies. The AOC-ATGC-i2TM is one of the most flexible and scalable 2-port 10Gb network solutions in the market. Based on the Intel® X710-AT2 network controller with performance-enhancing features and power management technologies, the AOC-ATGC-i2TM provides a quality networking choice for data centers while reducing CPU utilization and power consumption. With the added NC-SI feature, this adapter also can function as a secure networking port for remote server management.

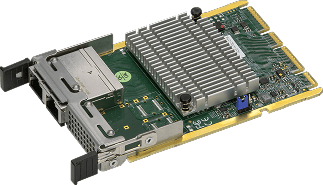

AOC-ATGC-i2TM

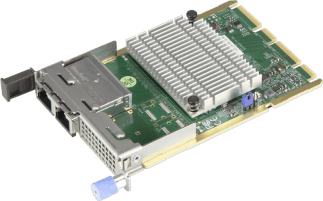

AOC-ATGC-i2TM

To order, contact your distributor. This product is only available through Supermicro.
Key Features
  • Advanced I/O Module (AIOM) Form Factor
  • Intel® X710-AT2 Ethernet Controller
  • 2x 10GBase-T ports with RJ45 connectors
  • Network Virtualization: VXLAN and NVGRE
  • Energy Efficient Ethernet (EEE)
  • Intel® Ethernet Flow Director
  • Data Plane Developer Kit for efficient packet processing (DPDK)
  • Asset Management Features
  • NC-SI for Remote Management
  • Supports RJ-45 Category 6 and 6A cables
  • Supports both Direct Attach Copper and Fiber Cables
Compliance
RoHS
  • RoHS Compliant 6/6


Specifications
  • General:
    • Advanced I/O Module (AIOM) Form Factor
    • Intel® X710-AT2 controller
    • 2x RJ45 connectors with speed up to 10Gbps per port
    • PCI-E Gen3 X8


  • Networking Features:
    • IEEE 802.3ad, 802.1AX Link Aggregation
    • IEEE 802.1Q VLAN
    • MSI and MSI-X support
    • Intel® Flow Director
    • Jumbo Frames (up to 9.5KB)
    • IEEE 802.3x Flow Control
    • Teaming support
    • Checksum Offload (IPv4/IPv6, SCTP, TCP, UDP, Tx/Rx)


  • Virtualization Features:
    • Virtual Machine Devices queues (VMDq)
    • Single-Root I/O Virtualization (SR-IOV)
    • VLAN
    • VXLAN and NVGRE
    • GENEVE


  • Management Features:
    • Asset Management support with thermal sensor
    • NC-SI for remote management
    • Preboot eXecution Environment (PXE)
    • iSCSI remote boot
    • PLDM


  • Power Savings:
    • ACPI compliant power management
    • Energy Efficient Ethernet (IEEE 802.3az)


  • OS Support:
    • Windows® Server
    • Linux RHEL
    • Linux SLES
    • Linux Ubuntu
    • Linux CentOS
    • FreeBSD
    • VMware


  • Power Consumption:
    • Maximum: 9.5W


  • Operating Conditions:
    • Storage condition: -40°C to 70°C (-40°F to 158°F)
    • Storage humidity: 90% non-condensing relative humidity at 35°C


  • Physical Dimensions:
    • PCB dimensions: 76mm x 115mm (W x D)


Downloads
User's Guide [ Download ]
Datasheet [ Download ]
Driver Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ Download ]
Driver CD Click on the latest CDR-NIC ISO file to download [ Download ]
Available SKUs
SKU Bracket Included Description
AOC-ATGC-i2TM BKT-0185L 2-port 10 Gigabit Ethernet Adapter with a 0.5U height bracket
