Add-on Card/Module AOC-CTG-b2T & AOM-CTG-b2TM
Products Accessories [ AOC-CTG-b2T / AOM-CTG-b2TM ]
Add-on Card/Module

Compact and Powerful dual-port 10 Gigabit Ethernet Adapter

The AOC-CTG-b2T and AOM-CTG-b2TM 10 Gigabit Ethernet Adapters are the most compact and scalable 10GBase-T adapters for today’s demanding data center environments. Based on Broadcom® network controller BCM57416, it addresses the demanding needs of the next-generation data center. The AOC-CTG-b2T and AOM-CTG-b2TM are designed in a proprietary and small MicroLP formfactor to fit Supermicro MicroCloud 8-node and 12-node systems.

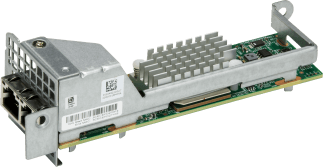

AOC-CTG-b2T
AOC-CTG-b2T

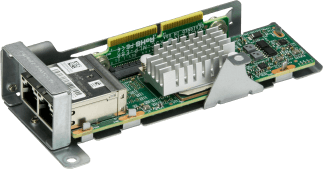

AOM-CTG-b2TM
AOM-CTG-b2TM


To order, contact your distributor. This product is only available through Supermicro.


Key Features
  • Dual 10GbE RJ45 Connectors
  • MicroLP Form Factor
  • Broadcom BCM57416 Ethernet Controller
  • PCI-E 3.0 x4 interface
  • Asset Management feature with thermal sensor
  • NC-SI for remote management


Downloads
User's Guide [ Download ]
Datasheet [ Download ]
Driver Choose the latest CDR-NIC folder, and then click on Broadcom folder for driver [ Download ]
Driver CD Click on the latest CDR-NIC ISO file to download [ Download ]


Supported Platforms
Servers
  • AOC-CTG-b2T on MicroCloud 8-node systems
  • AOM-CTG-b2TM on MicroCloud 12-node systems


  • Please note that this product is sold only as part of an integrated solution with Supermicro server systems.

    Specifications
    • General:
      • MicroLP Form Factor for Supermicro Micro Cloud systems
      • Broadcom BCM57416 dual-port 10Gbps controller
      • PCI-E 3.0 x4 (8GT/s) interface
      • Dual RJ45 connectors


    • Networking Features:
      • Jumbo Frames (up to 9600-byte)
      • 802.3x flow control
      • Link Aggregation (802.3ad)
      • Virtual LANs 802.1q VLAN tagging
      • Configurable Flow Acceleration
      • IEEE 1588 and Time Sync
      • RDMA over Converged Ethernet (RoCE)
      • TruFlow Technology


    • Stateless Offload Features:
      • TCP, UDP, IPv4, IPv6 checksum offload
      • Large Send Offload
      • Receive Segment Coalescing
      • TCP segmentation Offload
      • Large Receive Offload
      • Receive Side Scaling (RSS)
      • Transmit Side Scaling (TSS)


    • NIC partitioning (NPAR):
      • 16 Physical Functions
      • QoS per partition
      • Partitioning control via sideband communication
      • Up to 64MAC/VLAN filter per partition
      • Stateless offload configuration per partition
      • VEB/VEPA support


    • Flow Processing:
      • Exact/Wildcard Match Flow Lookup
      • VLAN insertion/deletion
      • NAT/NAPT
      • Mirroring


    • Virtualization Features:
      • NetQueue, VMQueue, and Multiqueue
      • Support for 128 Virtual Functions
      • VXLAN
      • NVGRE
      • Geneve
      • Edge Virtual Bridging (EVB)


    • Data Center Bridging:
      • Priority-based flow control (PFC; IEEE 802.1Qbb)
      • Enhanced transmission selection (ETS; IEEE802.1Qau)
      • Quantized congestion Notification (QCN; IEEE802.1Qau)
      • Data Center Bridging Capability eXchange (DCBX; IEEE802.1Qaz)
      • 8 traffic classes per port; fully DCB compliant per 802.1Qbb


    • Manageability:
      • Network Controller Sideband Interface (NC-SI)
      • PXE boot
      • Asset Management with Thermal Sensors


    • Power Savings:
      • ACPI compliant power management
      • Ultra low-power mode
      • Pass-through Energy Efficient Ethernet (IEEE802.3az-2010)


    • Operating Conditions:
      • Storage temperature: -40°C to 70°C (-40°F to 158°F)
      • Storage humidity: 90% non-condensing relative humidity at 35°C


    • Physical Dimensions:
      • PCB dimensions: 11.3cm (4.46”) x 3.9cm (1.54”)


    Available SKUs
    SKU Bracket/Riser Included Description
    AOC-CTG-b2T BKT-0051L & BKT-0054L MicroLP 2-Port 10GbE RJ45 adapter for MicroCloud 8-node systems
    AOM-CTG-b2TM MCP-240-93907-0N & RSC-MLP-E8R MicroLP 2-Port 10GbE RJ45 adapter for MicroCloud 12-node systems
